TP-LINK

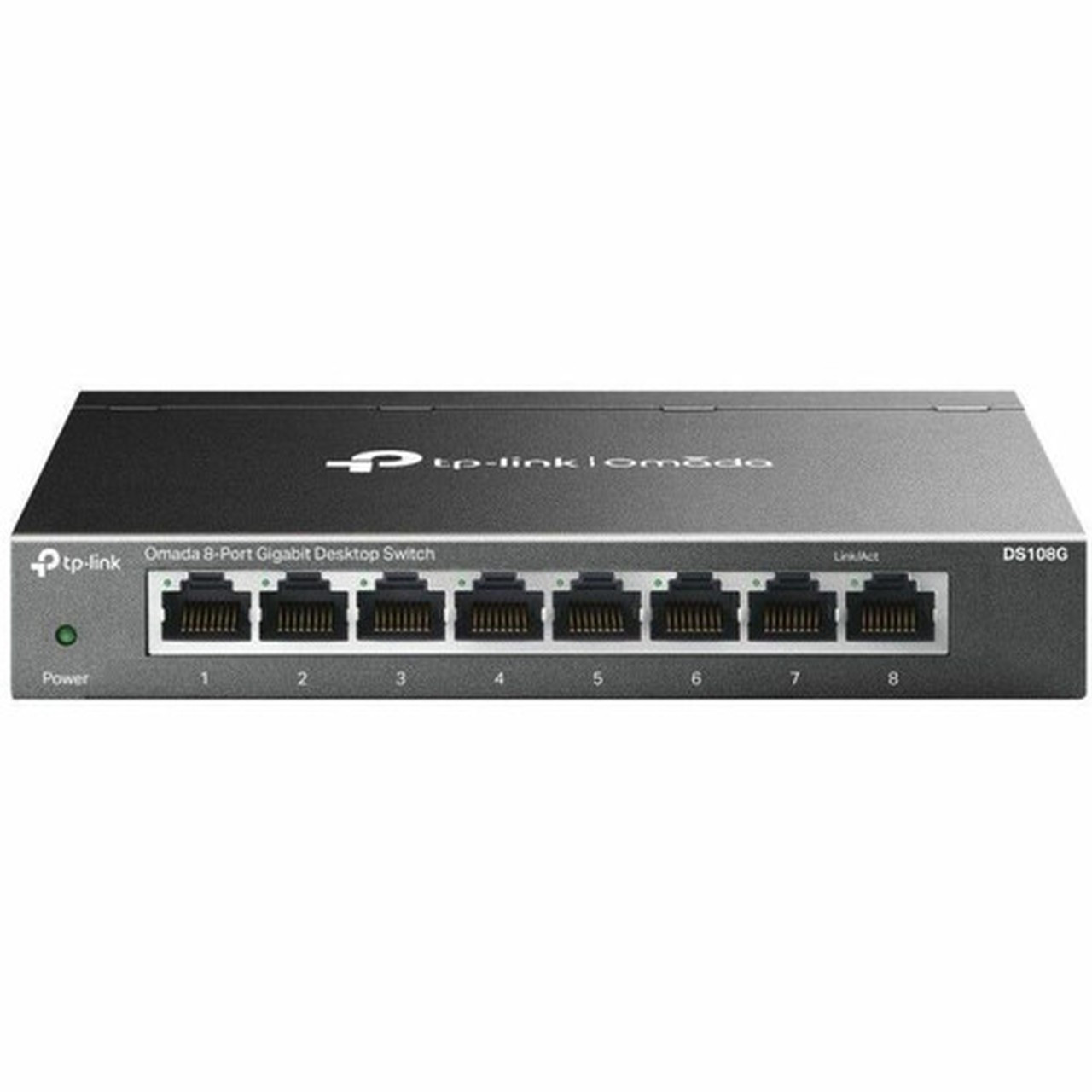

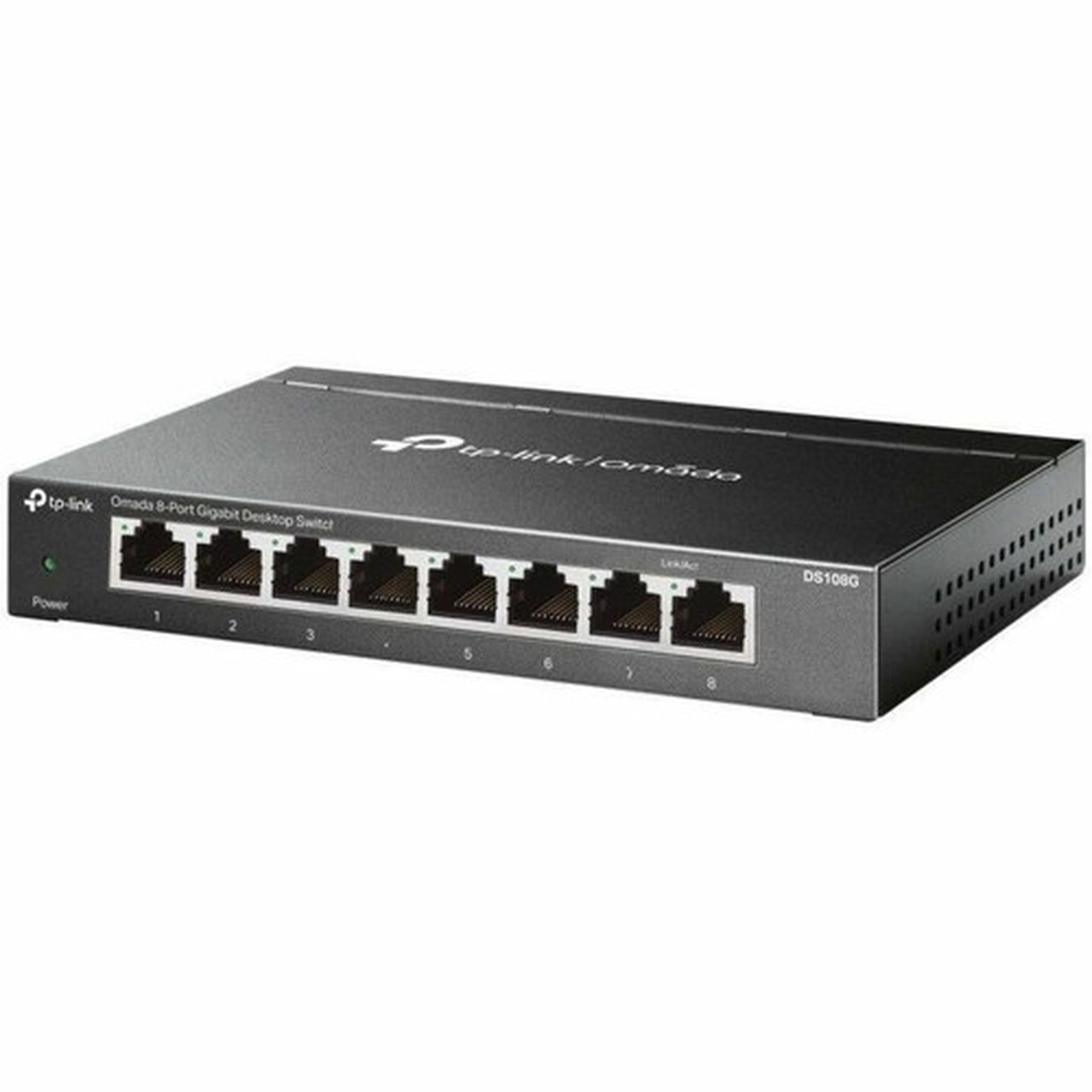

TP-Link DS105G Omada 8-Port Gigabit Desktop Switch - 8 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 3.92 W Power (DS108G)
- Omada 8-Port Gigabit Desktop Switch
- Power Adapter
- Installation Guide
Features: Fanless
Total Number of Network Ports: 8
Network (RJ-45): Yes
Port/Expansion Slot Details: 8 x Gigabit Ethernet Network
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Layer Supported: 2
Networking Standards: IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1p
Manageable: No
Input Voltage: 5 V DC
Power Source: DC,Power Adapter
Power Consumption: 3.92 W
Product Material: Metal
Form Factor: Desktop,Wall Mountable
Height: 1" (25.40 mm)
Width: 6.20" (157.48 mm)
Depth: 4" (101.60 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- 8× 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, no configuration needed
- Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
[custom-specifications]
| Specifications | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | DS108G |
| Manufacturer Website Address | http://www.tp-link.com |
| Brand Name | TP-Link |
| Product Line | Omada |
| Product Model | DS108G |
| Product Name | DS105G Omada 8-Port Gigabit Desktop Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1p |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Input Voltage | 5 V DC |
| Power Source | DC,Power Adapter |
| Power Consumption | 3.92 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 6.20" (157.48 mm) |
| Depth | 4" (101.60 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
