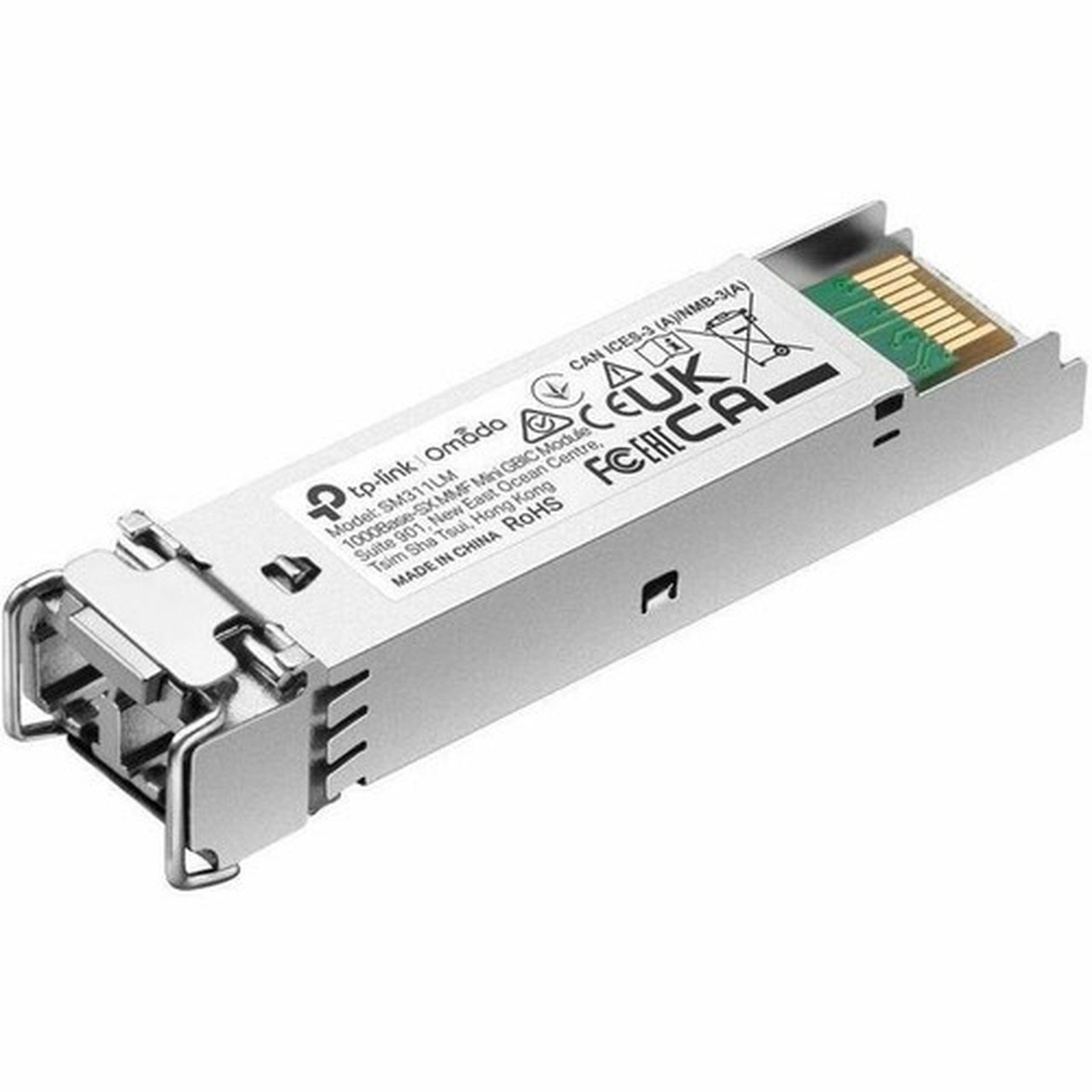

TP-Link Omada 1000-Base-SX MMF Mini GBIC Module - For Data Networking, Optical Network - 1 x LC/UPC 1000Base-SX Network - Optical - nm (SM311LM)
- Omada 1000-Base-SX MMF Mini GBIC Module
- Installation Guide
- T3700 series
- T2700 series
- T2600 series
- T2500 series
- T1700 series
- T1600 series
- T1500 series
- 2/3/5 series
- MC220L
Marketing Information:
What This Product Does
The SM311LM (TL-SM311LM) Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Application/Usage: Data Networking,Optical Network
Total Number of Ports: 1
Connector Type: LC/UPC
Interfaces/Ports Details: 1 x LC/UPC 1000Base-SX Network
Media Type Supported: Optical Fiber
Fiber Optic Cable Standard: 50/125 µm,62.5/125 µm,850 nm
Fiber Mode Supported: Multi-mode
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-SX
Maximum Distance Supported: 1804.46 ft (550000 mm)
Maximum Data Transfer Rate: 1.25 Gbit/s
Form Factor: Hot-swappable
Height: 0.50" (12.70 mm)
Width: 2.20" (55.88 mm)
Depth: 0.50" (12.70 mm)
Package Contents:
Compatibility:
MSA Compliant
TP-LINK
Switches:
Media Converter:
Country of Origin: China
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
- With 1000Base-SX technology, enjoy up to 1000Mbps data transfer rate over optical fiber cable
- Up to 10x faster than standard Ethernet connection and provides high-performance
- Typically used for short distance, multi-mode fiber optic is ideal to carry data and transmit audio/video applications within a building
[custom-specifications]
| Specifications | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | SM311LM |
| Manufacturer Website Address | http://www.tp-link.com |
| Brand Name | TP-Link |
| Product Line | Omada |
| Product Model | SM311LM |
| Product Name | Omada 1000-Base-SX MMF Mini GBIC Module |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC/UPC |
| Interfaces/Ports Details | 1 x LC/UPC 1000Base-SX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Optic Cable Standard | 50/125 µm,62.5/125 µm,850 nm |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-SX |
| Maximum Distance Supported | 1804.46 ft (550000 mm) |
| Maximum Data Transfer Rate | 1.25 Gbit/s |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 0.50" (12.70 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 0.50" (12.70 mm) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | MSA Compliant TP-LINK Switches:
Media Converter:
|
| Country of Origin | China |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
