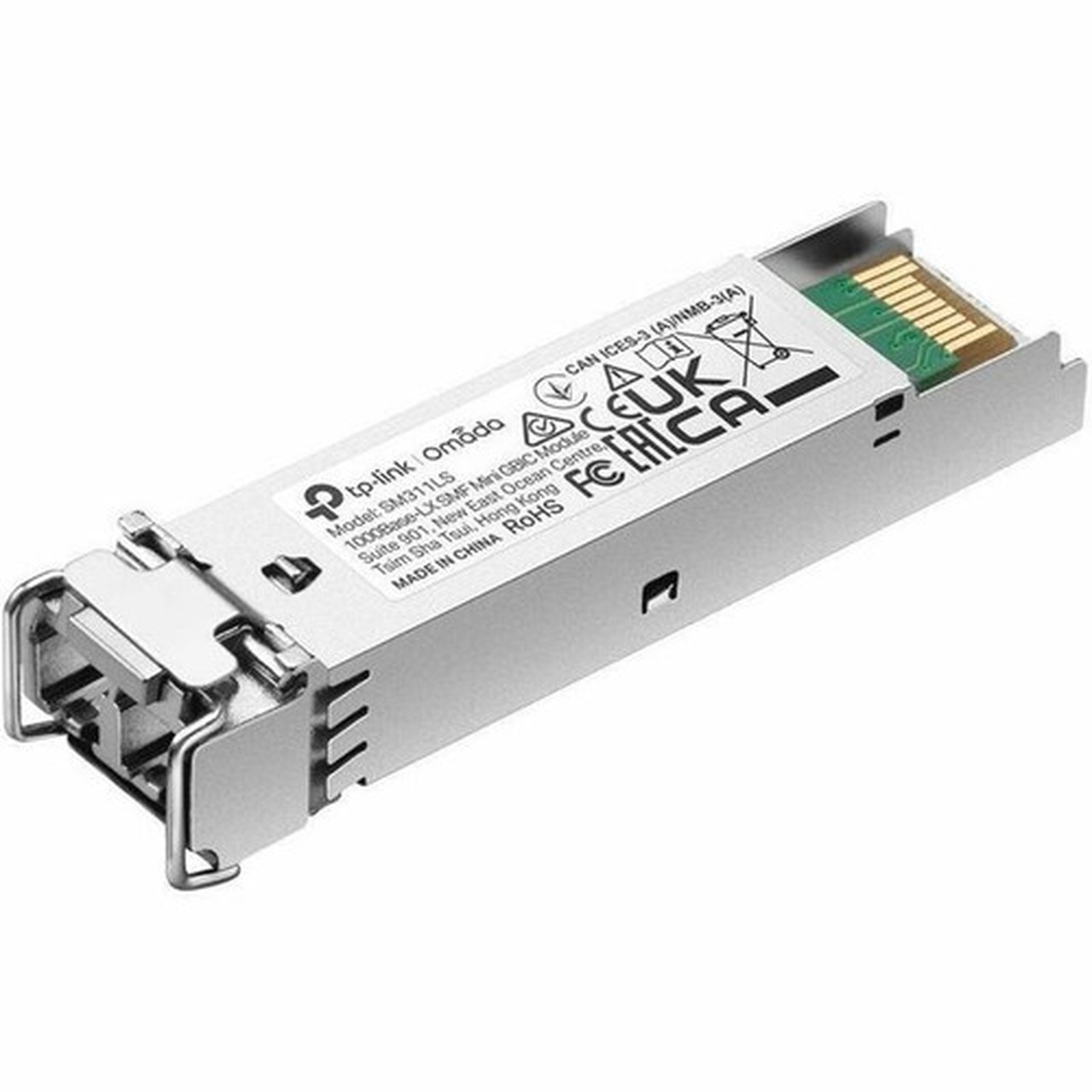

TP-Link Omada 1000Base-LX SMF Mini GBIC Module - For Data Networking, Optical Network - 1 x LC 1000Base-LX Duplex Network - Optical - (SM311LS)
- Omada 1000Base-LX SMF Mini GBIC Module
- Installation Guide
Marketing Information:
What This Product Does
The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
Application/Usage: Data Networking,Optical Network
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC 1000Base-LX Duplex Network
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-LX
Maximum Distance Supported: 20 km (12.43 Mile)
Maximum Data Transfer Rate: 1.25 Gbit/s
Form Factor: Hot-pluggable,Hot-swappable
Height: 0.50" (12.70 mm)
Width: 2.20" (55.88 mm)
Depth: 0.60" (15.24 mm)
Package Contents:
Compatibility:
MSA Compliant
Country of Origin: China
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
- With 1000Base-LX technology, enjoy up to 1000Mbps data transfer rate over optical fiber cable
- Gigabit Ethernet port for ultra-fast network speeds
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- For transmitting data at gigabit speed over hundreds of miles with little integrity loss, single-mode fiber optic is an ideal solution
[custom-specifications]
| Specifications | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | SM311LS |
| Manufacturer Website Address | http://www.tp-link.com |
| Brand Name | TP-Link |
| Product Line | Omada |
| Product Model | SM311LS |
| Product Name | Omada 1000Base-LX SMF Mini GBIC Module |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 1000Base-LX Duplex Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-LX |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Maximum Data Transfer Rate | 1.25 Gbit/s |
| Physical Characteristics | |
| Form Factor | Hot-pluggable,Hot-swappable |
| Height | 0.50" (12.70 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 0.60" (15.24 mm) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | MSA Compliant |
| Country of Origin | China |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
