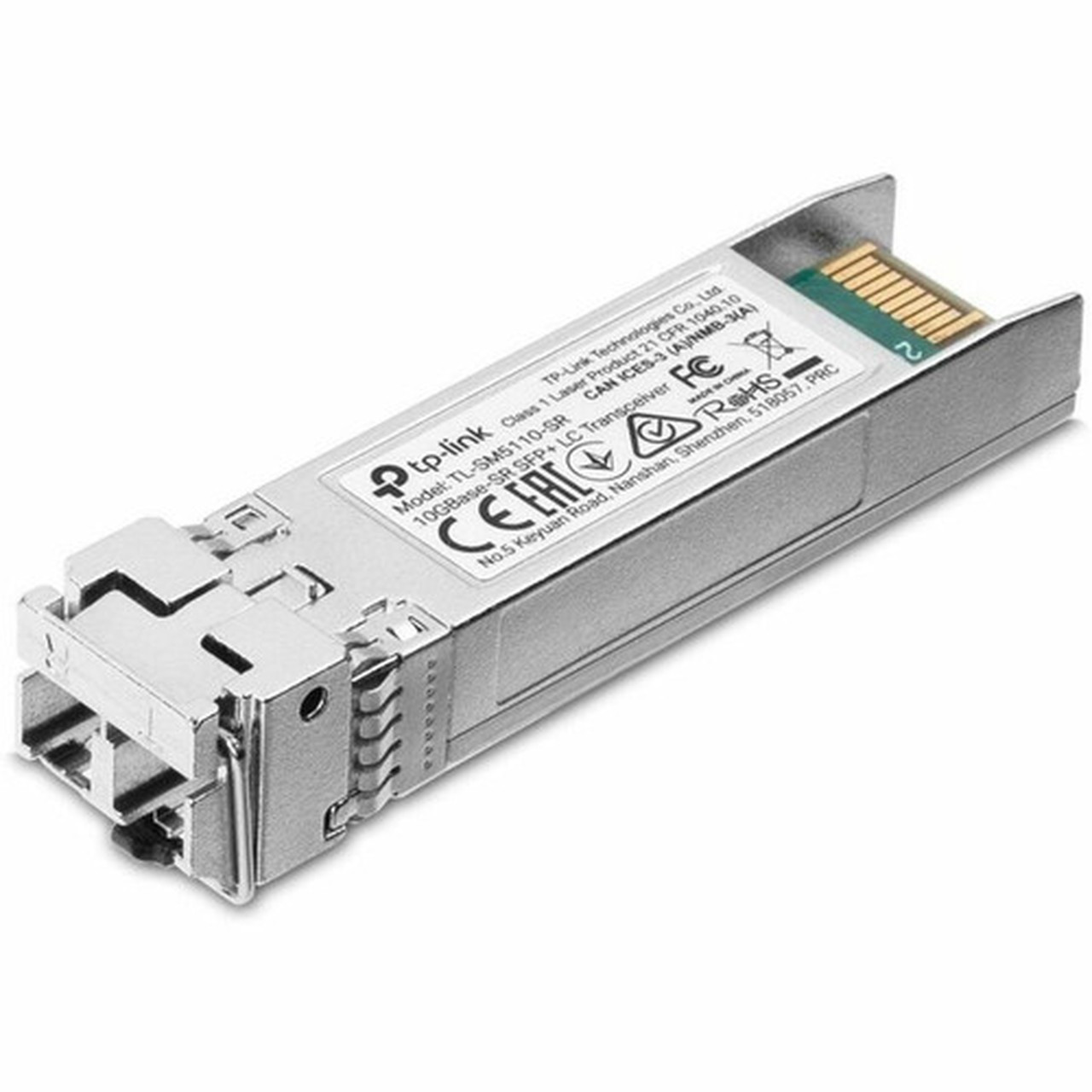

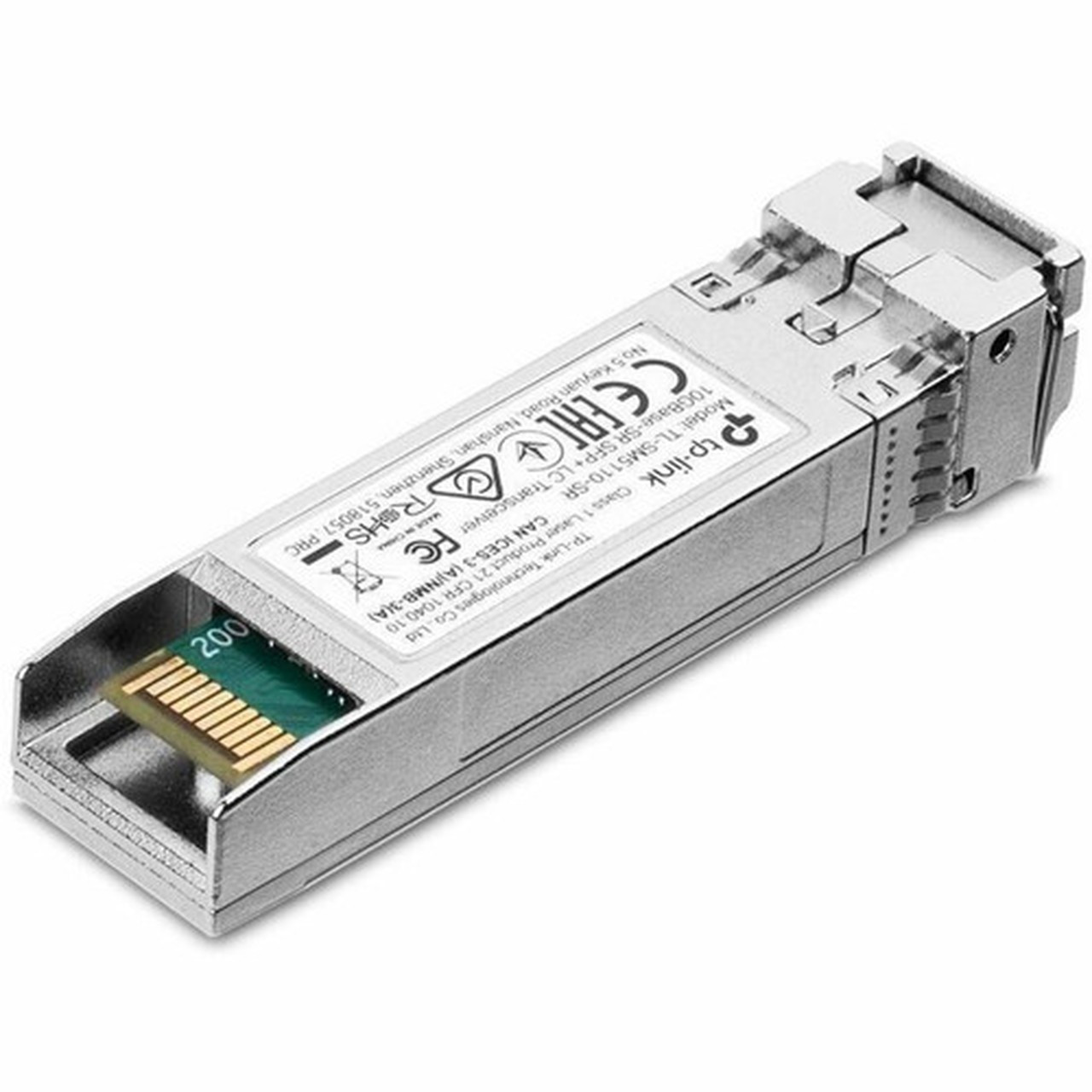

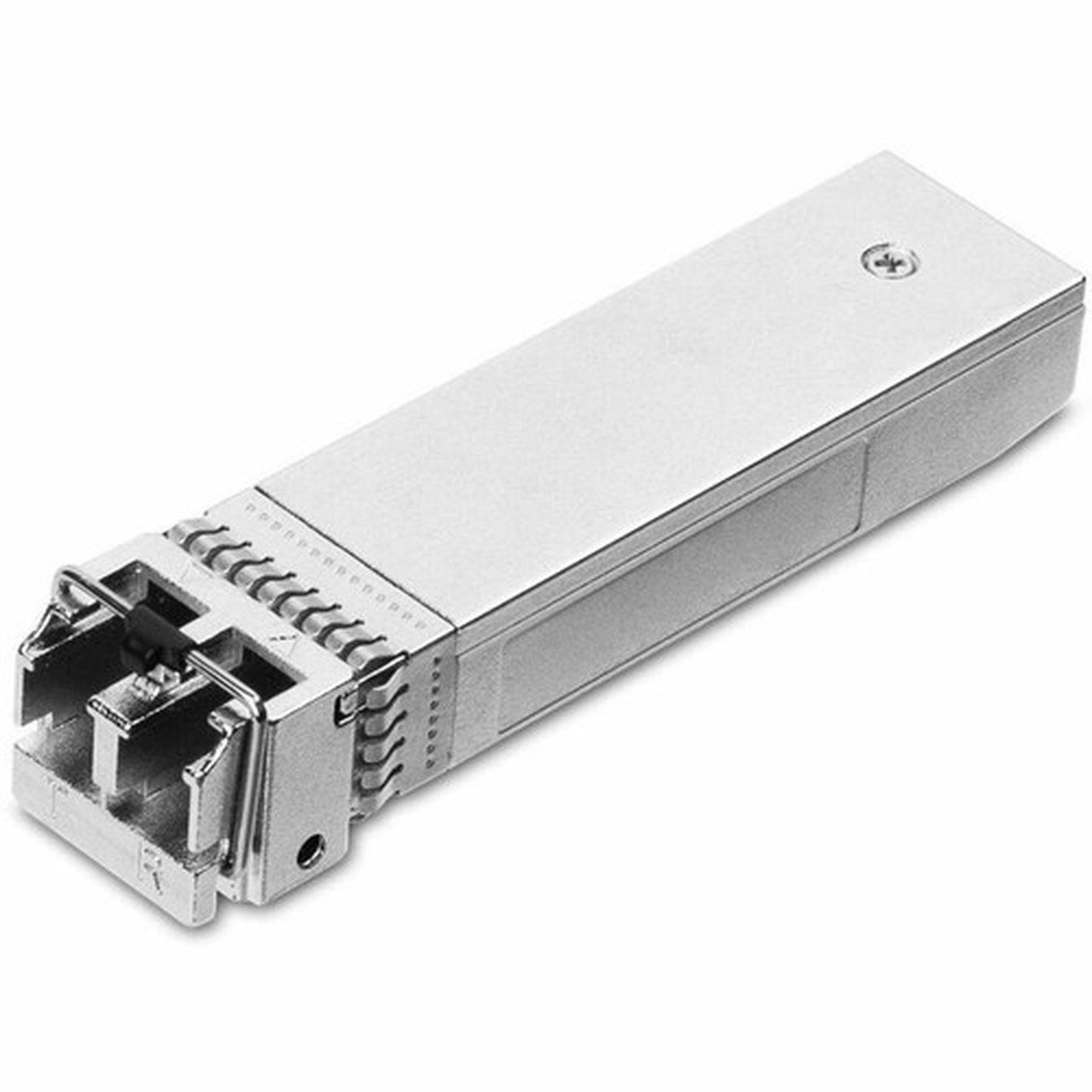

TP-Link Omada 10GBase-SR SFP+ LC Transceiver - For Data Networking, Optical Network - 1 x LC/UPC 10GBase-SR Duplex Network - Optical - (SM5110-SR)
- Omada 10GBase-SR SFP+ LC Transceiver
- Installation Guide
- SG3428X
- TL-SG3428XMP
Marketing Information:
What This Product Does
The SM5110-SR (TL-SM5110-SR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Application/Usage: Data Networking,Optical Network
Total Number of Ports: 1
Connector Type: LC/UPC
Interfaces/Ports Details: 1 x LC/UPC 10GBase-SR Duplex Network
Media Type Supported: Optical Fiber
Fiber Mode Supported: Multi-mode
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-SR
Maximum Distance Supported: 0.30 km
Maximum Data Transfer Rate: 10 Gbit/s
Form Factor: Hot-swappable,Hot-pluggable
Height: 0.50" (12.70 mm)
Width: 2.40" (60.96 mm)
Depth: 0.60" (15.24 mm)
Package Contents:
Compatibility:
MSA Compliant
TP-LINK Switches:
Country of Origin: China
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
- With 10GBase-SR technology, enjoy up to 10Gbps data transfer rate over optical fiber cable
- Optimize the network's performance with 10 Gigabit Ethernet connectivity
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Typically used for short distance, multi-mode fiber optic is ideal to carry data and transmit audio/video applications within a building
[custom-specifications]
| Specifications | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | SM5110-SR |
| Manufacturer Website Address | http://www.tp-link.com |
| Brand Name | TP-Link |
| Product Line | Omada |
| Product Model | SM5110-SR |
| Product Name | Omada 10GBase-SR SFP+ LC Transceiver |
| Product Type | SFP+ |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC/UPC |
| Interfaces/Ports Details | 1 x LC/UPC 10GBase-SR Duplex Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-SR |
| Maximum Distance Supported | 0.30 km |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Physical Characteristics | |
| Form Factor | Hot-swappable,Hot-pluggable |
| Height | 0.50" (12.70 mm) |
| Width | 2.40" (60.96 mm) |
| Depth | 0.60" (15.24 mm) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | MSA Compliant TP-LINK Switches:
|
| Country of Origin | China |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
