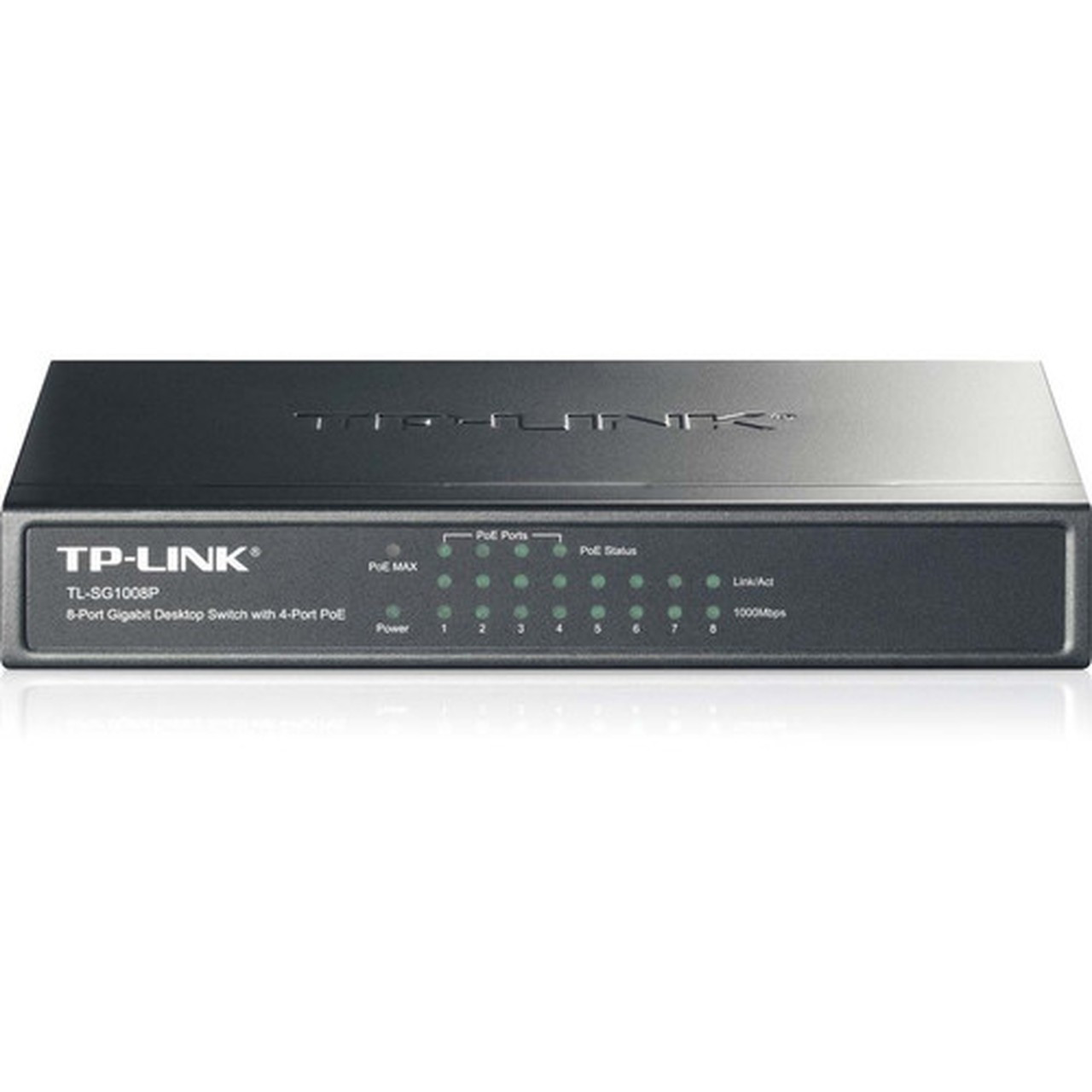

TP-LINK TL-SG1008P Ethernet Switch - 8 Ports - 2 Layer Supported - Twisted Pair - Desktop (TL-SG1008P)

Marketing Information:

What This Product Does

8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.

How This Product Works

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Overload Arrangement

TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

More from the Manufacturer

Total Number of Network Ports: 8

Network (RJ-45): Yes

Uplink Port: No

Modular: No

Stack Port: No

Port/Expansion Slot Details: 4 x Gigabit Ethernet PoE+,4 x Gigabit Ethernet Network

Media Type Supported: Twisted Pair

Ethernet Technology: Gigabit Ethernet

Network Technology: 10/100/1000Base-T

Layer Supported: 2

Networking Standards: IEEE 802.3af,IEEE 802.3at,IEEE 802.3x,IEEE 802.1p

PoE (RJ-45) Port: Yes

PoE Budget: 64 W

Power Source: Power Adapter

Redundant Power Supply Supported: No

Power Consumption: 5.40 W

Product Color: Black

Product Material: Metal

Form Factor: Desktop

Height: 1.10" (27.94 mm)

Width: 6.70" (170.18 mm)

Depth: 3.90" (99.06 mm)

Package Contents:

• TL-SG1008P Ethernet Switch
• Power Adapter
• User Guide

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
