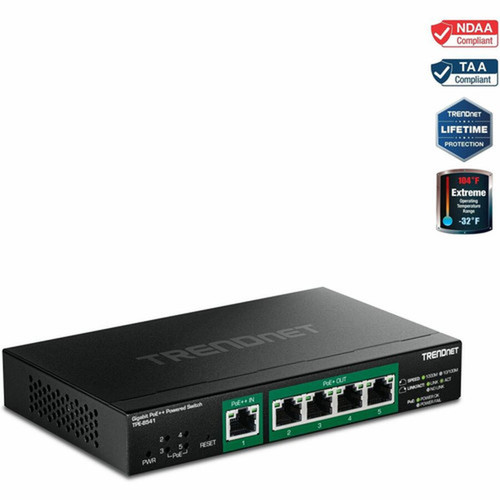

TRENDnet 5 Port Gigabit Managed PoE Plus Powered Switch With Passthrough Compact Power Solution Manageable Ethernet Layer Ports W TPE-B541

Marketing Information: TRENDnet's 5-Port Gigabit PoE++ Powered Managed Switch with PoE Passthrough, model TPE-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The compact PoE++-powered managed switch features four gigabit PoE+ ports to power devices, such as IP cameras, VoIP handsets, and wireless access points, with a 60W total PoE power budget. Reducing unnecessary switch complexity, this PoE++ passthrough managed switch is equipped with management features such as VLANs, QoS, PoE control, and monitoring.

• DEVICE INTERFACE: 1 x Gigabit PoE++ In Port; 4 x Gigabit PoE+ Out Ports; LED Indicators; Wall Mount
• LIFETIME PROTECTION -We stand by the quality of our products. The TPE-B541 5-Port Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• POE++ POWERED: No AC adapter required-this switch is powered by a PoE++ switch or injector. It features four gigabit PoE+ ports to power PoE devices, such as IP cameras.
• POE+ POWER & SWITCHING CAPACITY: Equipped with 10Gbps switching capacity, and a 60W PoE power budget with PoE++ Type 4 (90W) input power. PoE++ reduces equipment cost by delivering data and power over existing network cables
• NETWORK MANAGEMENT: The web-based management interface on the PoE++ powered managed switch offers features for loopback detection, RSTP, VLAN, IGMP Snooping, and QoS

• POE PASSTHROUGH: Instead of using a regular power adapter, you can connect a PoE cable to one of these ports to enable power across the other connections. Powered by PoE, while simultaneously providing power to other connected devices.
• JUMBO FRAME: Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance; WALL MOUNTABLE: The Gigabit PoE++ switch features metal housing, and a convenient wall mountable design for greater installation flexibility
• COMPACT DESIGN: Compact, lightweight, and fanless, this switch is designed for desktops and quiet environments. Dimensions: 170 x 105 x 27mm (4.69 x 4.13 x 1.06 in.)

More from the Manufacturer

Features: Fanless

Total Number of Network Ports: 5

Port/Expansion Slot Details: 1 x Gigabit Ethernet PoE++,4 x Gigabit Ethernet PoE+

Media Type Supported: Twisted Pair

Ethernet Technology: Gigabit Ethernet

Network Technology: 10/100/1000Base-T

Layer Supported: 2

Networking Standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1w

Manageable: Yes

PoE (RJ-45) Port: Yes

PoE Budget: 60 W

Power Source: AC,Power Adapter,PoE++

Product Material: Metal

Form Factor: Wall Mountable,Compact

Height: 1.10" (28 mm)

Width: 6.69" (170 mm)

Depth: 4.13" (105 mm)

Weight (Approximate): 15.87 oz (450 g)

Package Contents:

• 5-Port Gigabit PoE++ Powered Managed Switch with PoE Passthrough
• Quick Installation Guide

TAA Compliant: Yes

Limited Warranty: Lifetime
