Transcend JetRAM 2GB DDR2 SDRAM Memory Module - For Notebook - 2 GB - DDR2-800/PC2-6400 DDR2 SDRAM - Non-ECC - Unbuffered - 200-pin - (JM800QSU-2G)

Marketing Information:

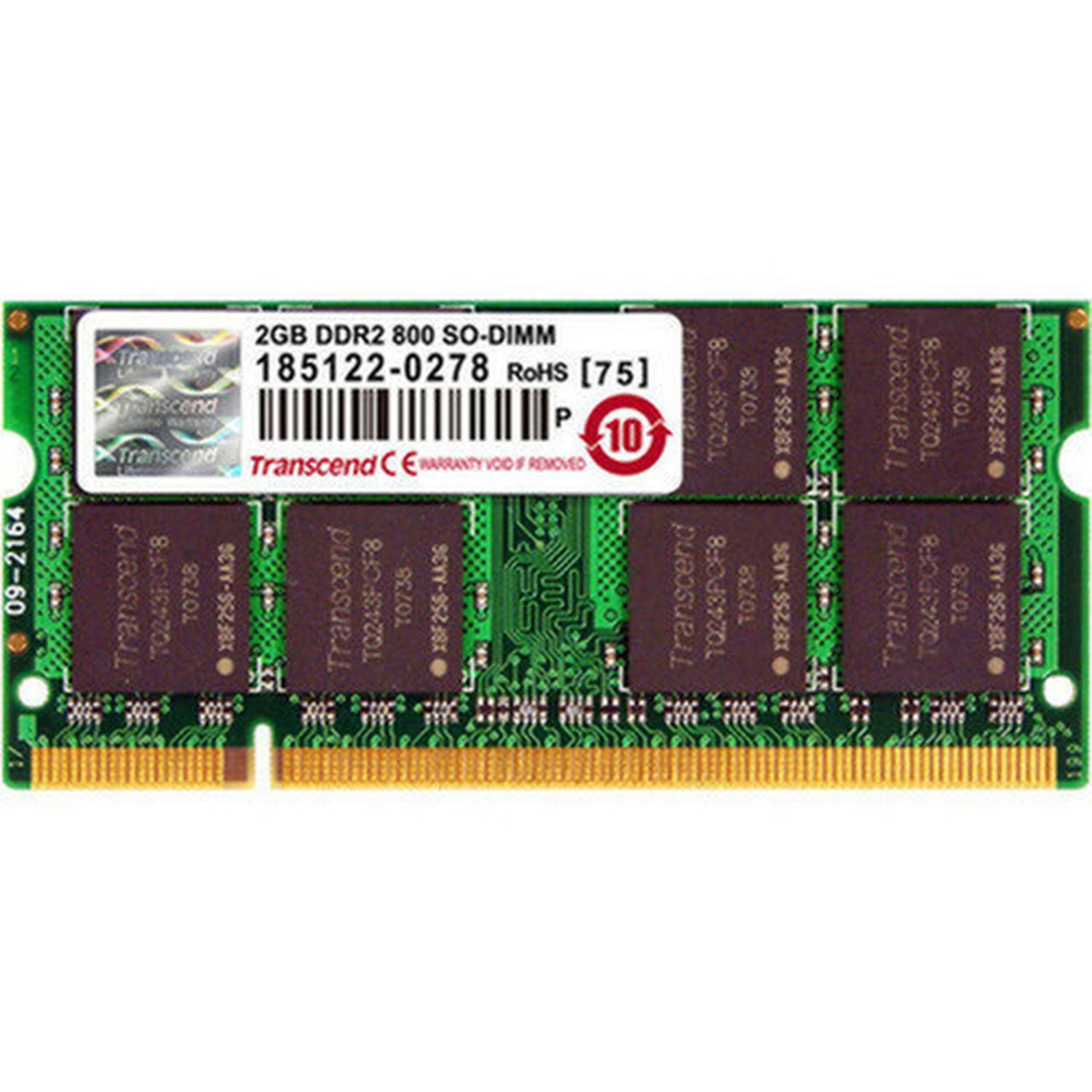

The JM800QSU-2G is a 256M x 64bits DDR2-800 SO-DIMM. The JM800QSU-2G consists of 16pcs 128Mx8bits DDR2 SDRAMs in 68 ball FBGA packages and a 2048 bits serial EEPROM on a 200-pin printed circuit board. The JM800QSU-2G is a Dual In-Line Memory Module and is intended for mounting into 200-pin edge connector sockets. Synchronous design allows precise cycle control with the use of system clock. Data I/O transactions are possible on both edges of DQS. Range of operation frequencies, programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.

Memory Size: 2 GB

Memory Technology: DDR2 SDRAM

Memory Speed: 800 MHz

Memory Standard: DDR2-800/PC2-6400

Error Checking: Non-ECC

Signal Processing: Unbuffered

Device Supported: Notebook

Number of Pins: 200-pin

Form Factor: SoDIMM

Thickness: 39.37 mil (1 mm)

Width: 1.18" (30 mm)

Length: 2.66" (67.60 mm)

Environmentally Friendly: Yes

Limited Warranty: Lifetime
