- NDAA / TAA compliant (U.S. and Canada only)
- Marketing Information:
- DEVICE INTERFACE: 16 x Gigabit RJ-45 ports; LED indicators
- SWITCHING CAPACITY: This 16-port gigabit switch has a 32Gbps switching capacity with a forwarding rate of 23.8Mpps (64-byte packet size)
- DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex); Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex);Gigabit: 2000 Mbps (full duplex)
- DESKTOP DESIGN: Sturdy metal housing for greater installation flexibility and well-suited for desktop installations. Rackmount brackets are also included for easy installation with 1U rack installations
- FANLESS DESIGN: The network switch fanless design lowers energy consumption and eliminates operating noise.
- INTERNAL POWER SUPPLY: 100 - 240V AC, 50/60 Hz, 1A; Max. Consumption: 9.19W
- TRENDnet LIFETIME PROTECTION: The TEG-S17D 16-Port Gigabit Desktop Switch is backed by TRENDnet's Lifetime Manufacturer Protection.
- NDAA / TAA compliant (U.S. and Canada only)
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- Compact
- Desktop
- Rack-mountable

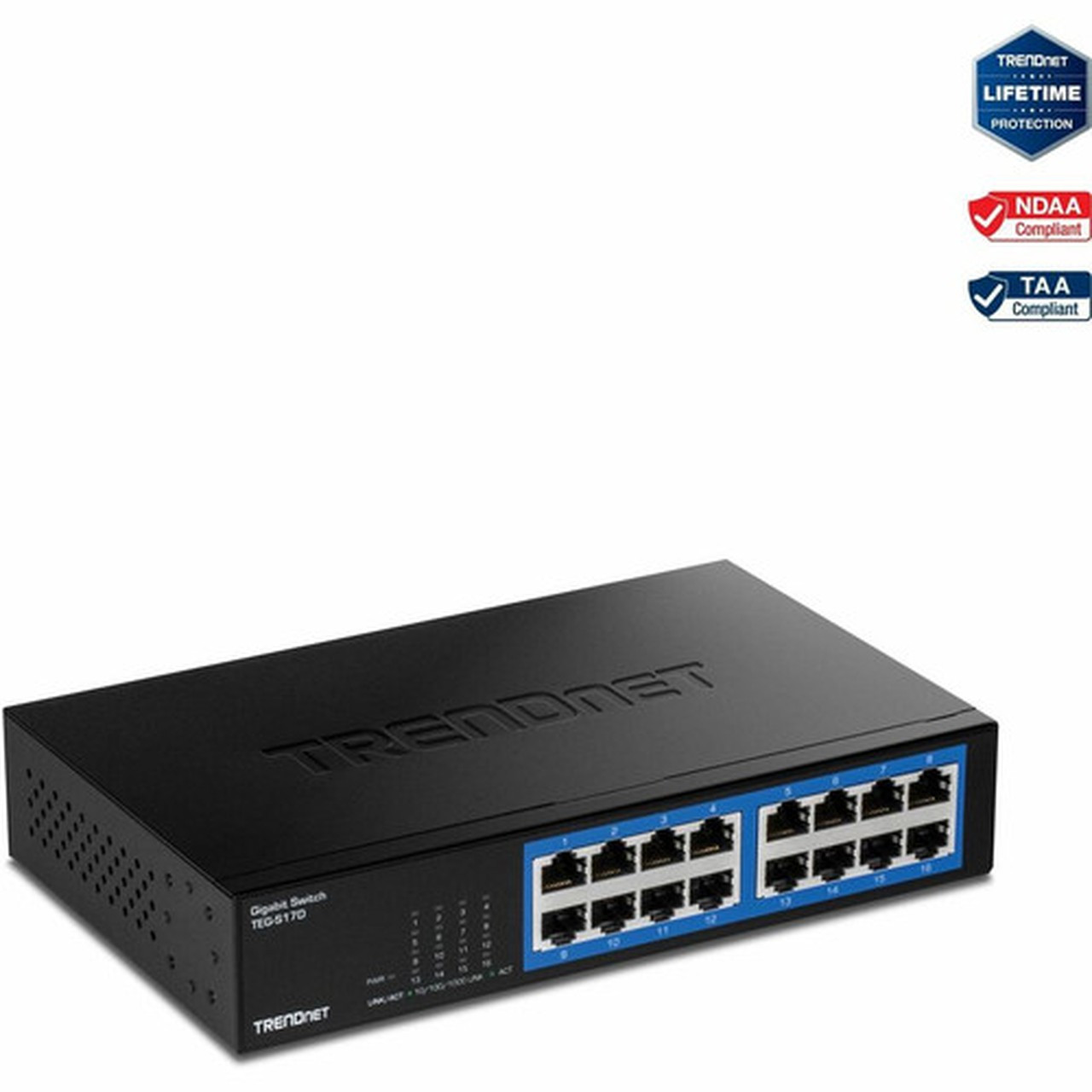

- 16-Port Gigabit Desktop Switch
- Quick Installation Guide
- Rack Mount Kit
- Power Cord (1.5m / 4.9 ft.)
The 16-Port Gigabit Desktop Switch, model TEG-S17D, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with fullduplex mode. A built-in universal power supply reduces cable clutter, and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
Gigabit Speeds
Gigabit ports provide high-speed network connections to 16 devices, and a 32Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Housing Design
With a compact and sturdy metal housing design, this switch is well-suited for desktop or rackmount installations (brackets included).
Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.
FEATURES | Plug and Play
Simply power up the switch and plug in connected devices
Housing Design
With a compact and sturdy metal housing design, this switch is wellsuited for desktop or rackmount installations (brackets included).
LED Indicators
LEDs convey power, link and activity
Ports
16 x Gigabit Ethernet ports
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Internal Power Supply
100~240VAC, 50/60Hz internal universal switching power supply
Switching Capacity
32Gbps switching capacity
Fanless
Fanless design lowers energy consumption and eliminates operating noise
[custom-specifications]
Manufacturer: TRENDnet
Manufacturer Part Number: TEGS17D
Manufacturer Website Address: http://www.trendnet.com
Brand Name: TRENDnet
Product Model: TEG-S17D
Product Name: 16-Port Gigabit Desktop Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 16
Network (RJ-45): Yes
Port/Expansion Slot Details: 16 x Gigabit Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T
Network & Communication
Layer Supported: 2
Networking Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
Power Description
Power Source: Power Supply
Power Consumption: 9.19 W
Physical Characteristics
Product Material: Metal
Compatible Rack Unit: 1U
Form Factor:
- Compact
- Desktop
- Rack-mountable
Height: 4.29" (109 mm)
Width: 0.98" (25 mm)
Length: 6.30" (160 mm)
Weight (Approximate): 414 g
Miscellaneous
Package Contents:
- 16-Port Gigabit Desktop Switch
- Quick Installation Guide
- Rack Mount Kit
- Power Cord (1.5m / 4.9 ft.)
Country of Origin: Taiwan
TAA Compliant: Yes
Warranty
Limited Warranty: Lifetime
[/custom-specifications]
