- 16 x Gigabit PoE+ ports
- 246 W PoE budget
- 32 Gbps switching capacity
- Sturdy metal switch
- Rack mount brackets included
- Lifetime Warranty

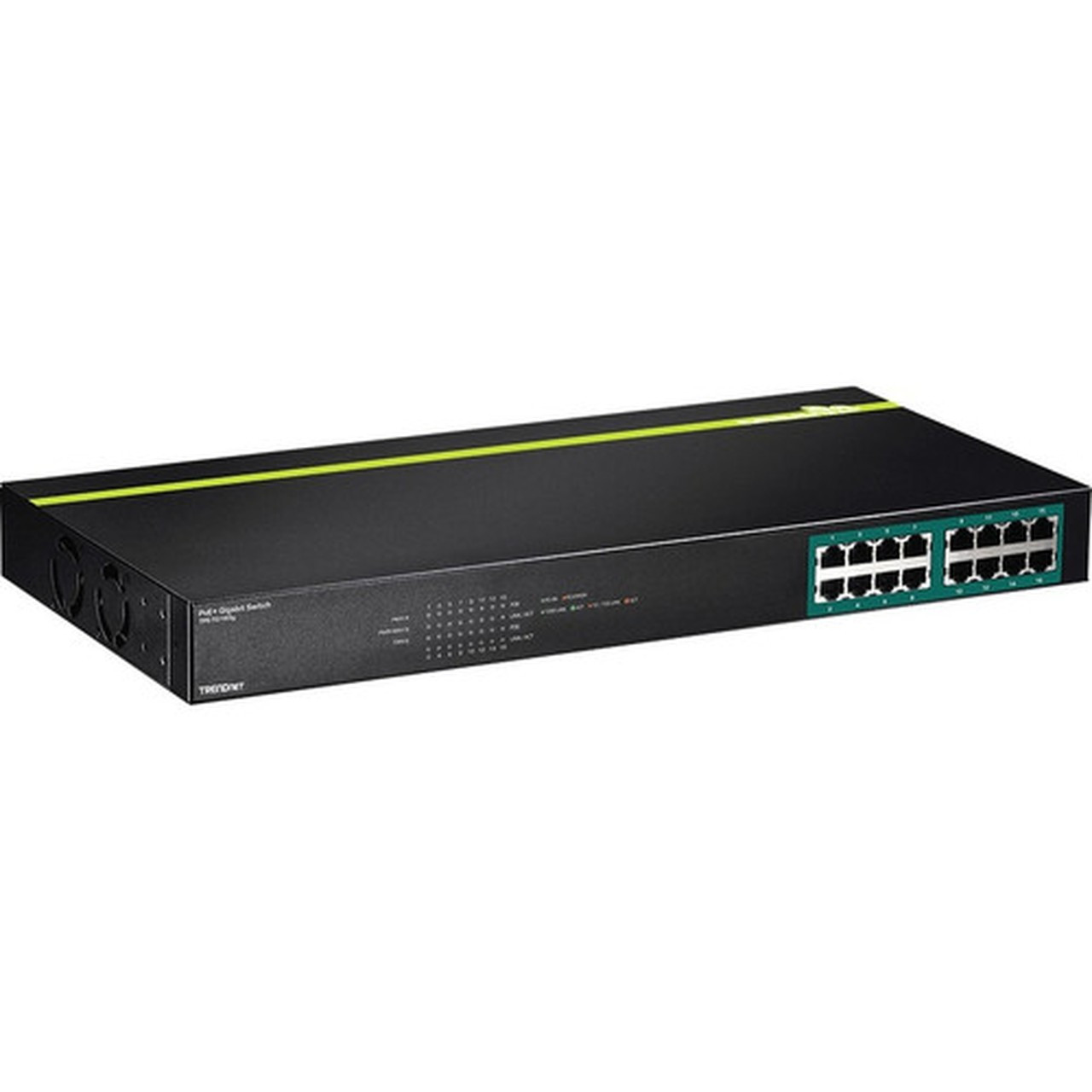

Marketing Information: TRENDnet's 16-Port Gigabit PoE+ Switch, model TPE-TG160g, offers 16 x Gigabit PoE+ ports, a 32 Gbps switching capacity, and a PoE power budget of 246 Watts. This rugged metal switch comes with a rack mount kit.
PoE Camera Flexibility
The switch recognizes non-PoE, PoE (15.4 W), and PoE+ (30 W) cameras (or other PoE devices) and supplies the required amount of power automatically.
Full PoE Power
The large 246 Watt PoE power budget supplies full PoE power to every port, thereby maximizing the number of allowable connected PoE devices.
Gigabit Networking
All Gigabit ports produce a 32 Gbps switching capacity and support Jumbo Frames up to 10 KB.Total Number of Network Ports: 16Uplink Port: NoModular: NoStack Port: NoPort/Expansion Slot Details: 16 x Gigabit Ethernet NetworkMedia Type Supported: Twisted PairEthernet Technology: Gigabit EthernetNetwork Technology: 10/100/1000Base-TLayer Supported: 2Manageable: NoPoE (RJ-45) Port: NoPower Source: Power SupplyForm Factor: Rack-mountableHeight: 1.70" (43.18 mm)Width: 8.30" (210.82 mm)Length: 17.30" (439.42 mm)Weight (Approximate): 3 kgPackage Contents: - 16-Port Gigabit PoE+ Switch
- Quick Installation Guide
- Rack mount kit
- Power cord
Environmentally Friendly: YesEnvironmental Certification: Country of Origin: TaiwanLimited Warranty: Lifetime
[custom-specifications]
SpecificationsManufacturer: TRENDnet
Manufacturer Part Number: TPE-TG160G
Manufacturer Website Address: http://www.trendnet.com
Brand Name: TRENDnet
Product Model: TPE-TG160G
Product Name: 16-Port Gigabit PoE+ Switch
Product Type: Ethernet Switch
Interfaces/PortsTotal Number of Network Ports: 16
Uplink Port: No
Modular: No
Stack Port: No
Port/Expansion Slot Details: 16 x Gigabit Ethernet Network
Media & PerformanceMedia Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & CommunicationLayer Supported: 2
Management & ProtocolsManageable: No
Power DescriptionPoE (RJ-45) Port: No
Power Source: Power Supply
Physical CharacteristicsForm Factor: Rack-mountable
Height: 1.70" (43.18 mm)
Width: 8.30" (210.82 mm)
Length: 17.30" (439.42 mm)
Weight (Approximate): 3 kg
MiscellaneousPackage Contents:
- 16-Port Gigabit PoE+ Switch
- Quick Installation Guide
- Rack mount kit
- Power cord
Environmentally Friendly: Yes
Environmental Certification:
Country of Origin: Taiwan
WarrantyLimited Warranty: Lifetime
