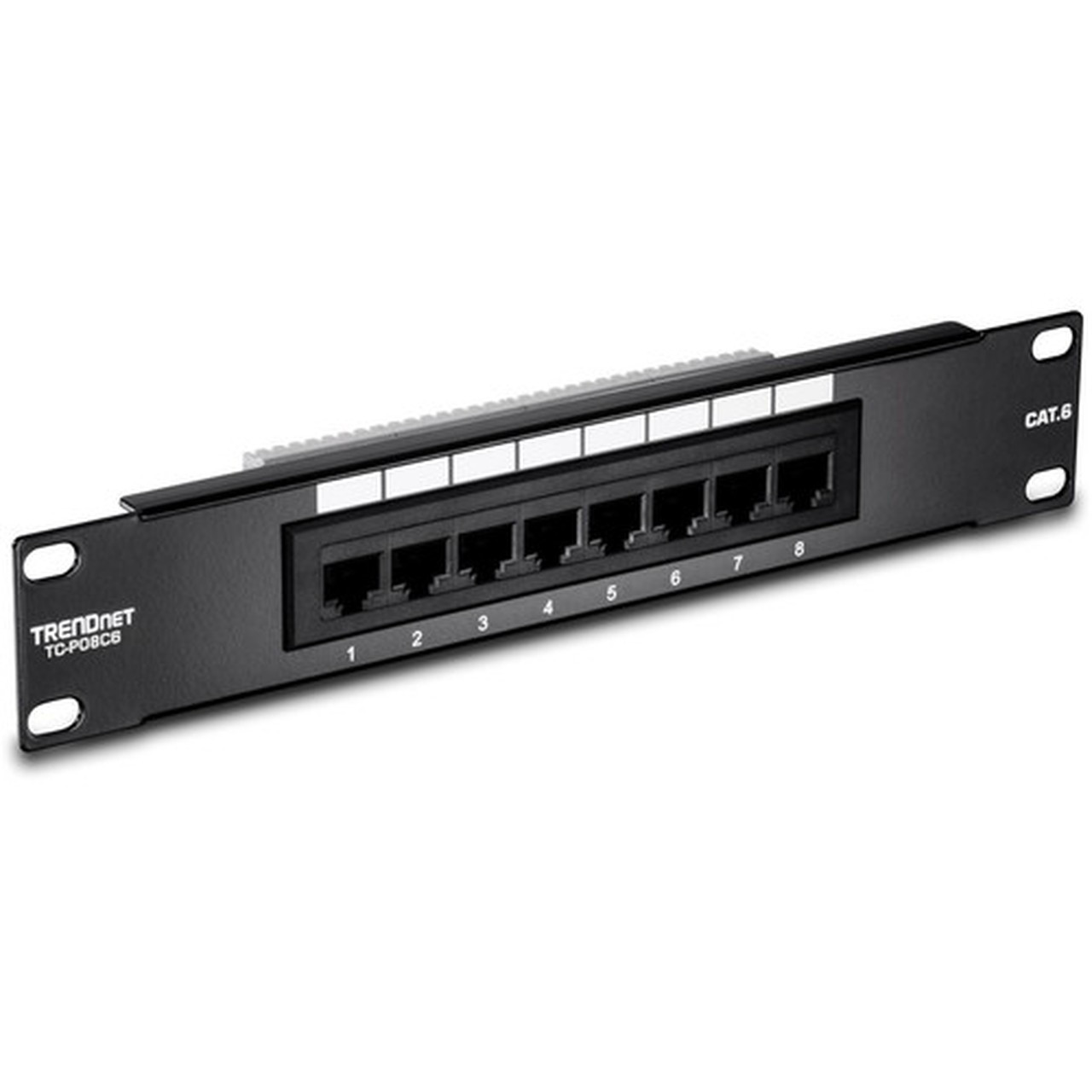

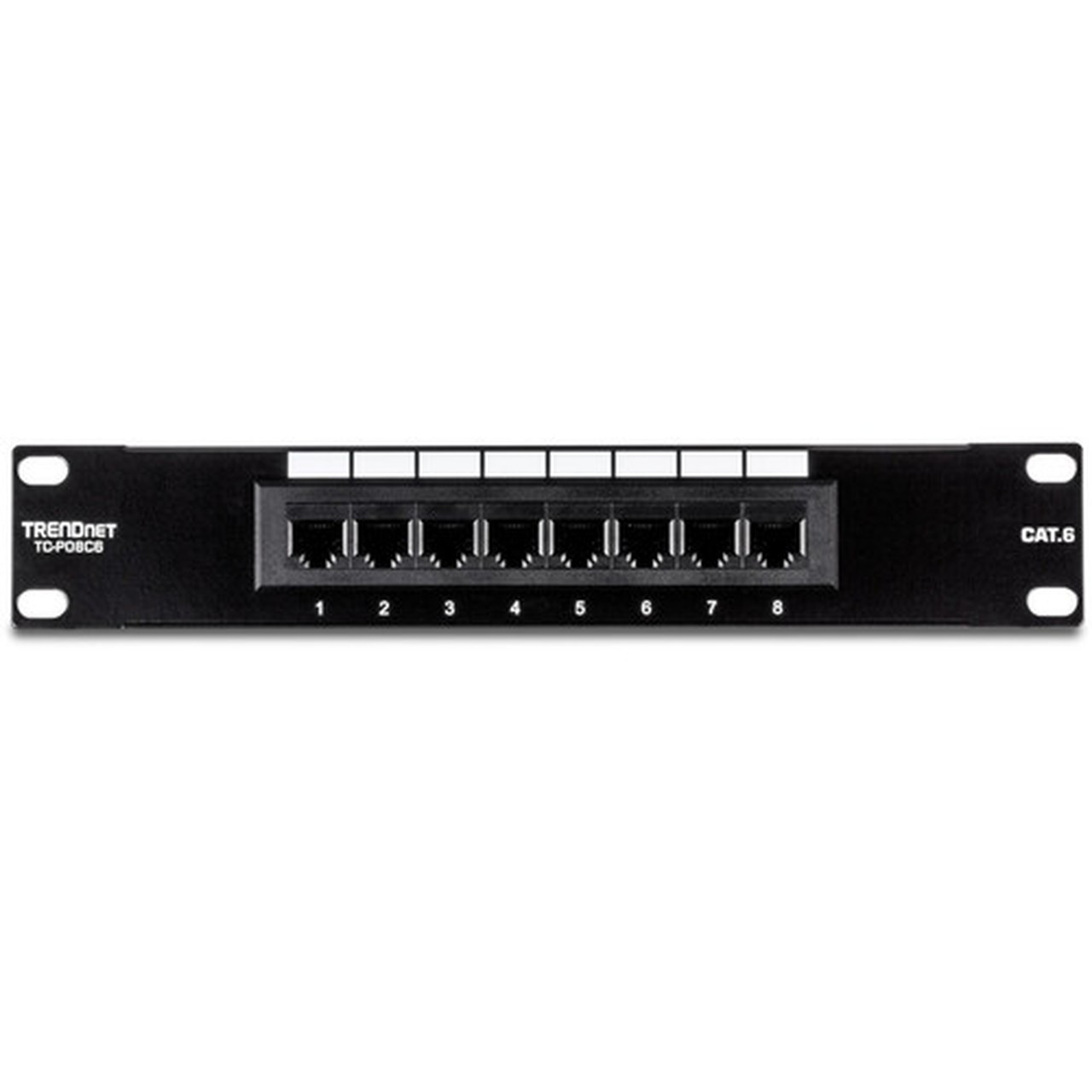

TRENDnet 8-Port Cat6 Unshielded Patch Panel, TC-P08C6, Rackmount, 10 Inch Wide, 8 x Gigabit RJ-45 Ethernet Ports, Pre-numbered Ports, (TC-P08C6)

Marketing Information:

• Designed for Category 6 cabling
• Certified for 250 MHz connection to 8 x Gigabit RJ-45 Ethernet ports
• 10 inch wide patch panel is well suited for home and SMB applications
• Includes cable management holders, tie, and port labels
• Use with TRENDnet TC-PDT Punch Down Tool
• Use with TRENDnet TC-CT68 RJ-11/RJ-45 crimp/cut/strip tool

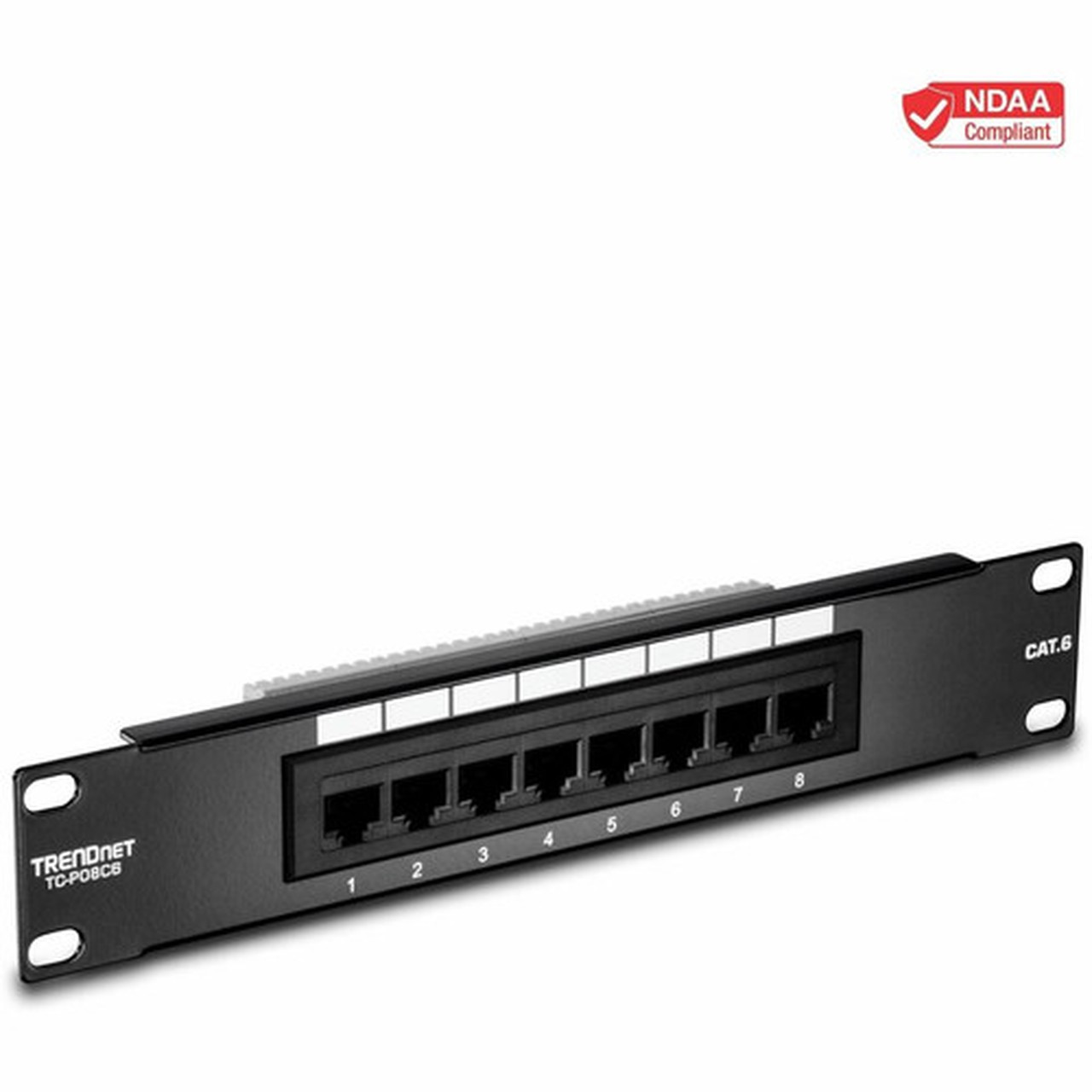

• NDAA compliant

The 8-Port Cat. 6 Unshielded Patch Panel, model TC-P08C6, provides a 250 MHz connection to 8 x Gigabit RJ-45 Ethernet ports. This 10 inch wide patch panel is well suited for home and SMB applications. Control cable clutter with included removable cable pass-through holders and cable ties. A writing surface above each port allows users to label respective connections. Use with TRENDnet's Punch Down Tool with 110 and Krone Blade, model TC-PDT, and RJ-11/RJ-45 crimp/cut/strip tool, model TC-CT68.

8 x 1000Base-T Gigabit RJ-45 ports

Supports a 250 MHz connection

10 inch wide patch panel

Cat. 6 color coded labeling for T568A and T568B wiring schemes

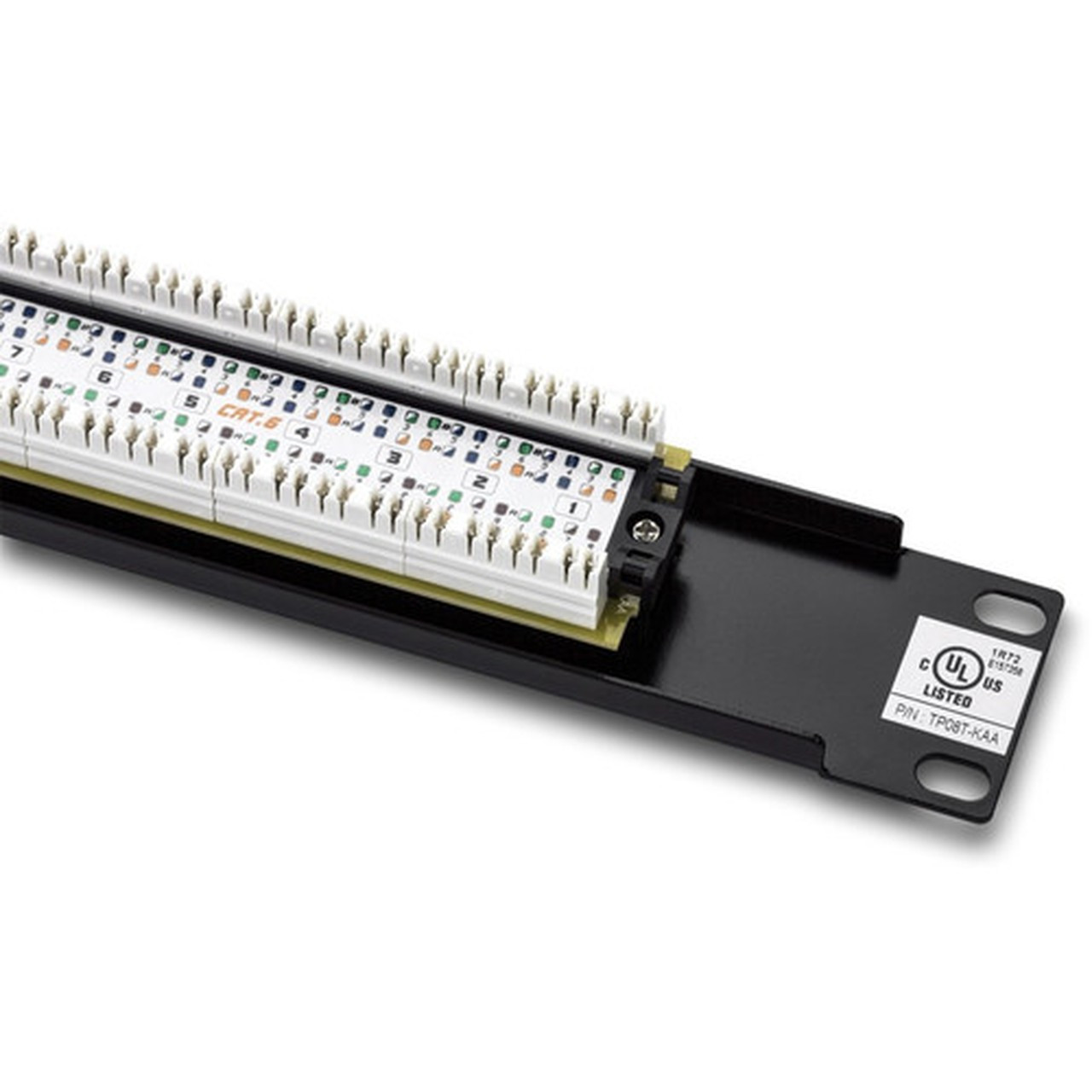

IDC terminal blocks are compatible with 110 and Krone style connectors

Labels above each port Cat. 6 transmission performance compliant with ANSI, TIA, and EIA 568 B.2 standards

Nylon cable ties and holders included

3-year limited warranty

PACKAGE CONTENTS

TC-P08C6

Quick Installation Guide

Cable holders and ties

More from the Manufacturer

Total Number of Ports: 8

Number of Network (RJ-45) Ports: 8

Compatible Rack Width: 10"

Height: 1.20" (30.48 mm)

Width: 1.70" (43.18 mm)

Depth: 10" (254 mm)

Weight (Approximate): 449.1 g

Package Contents:

• 8-Port Cat. 6 Unshielded Patch Panel (10" wide)
• Quick Installation Guide
• Cable Holders and Ties

Environmentally Friendly: Yes

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)

Country of Origin: Taiwan

Limited Warranty: 3 Year
