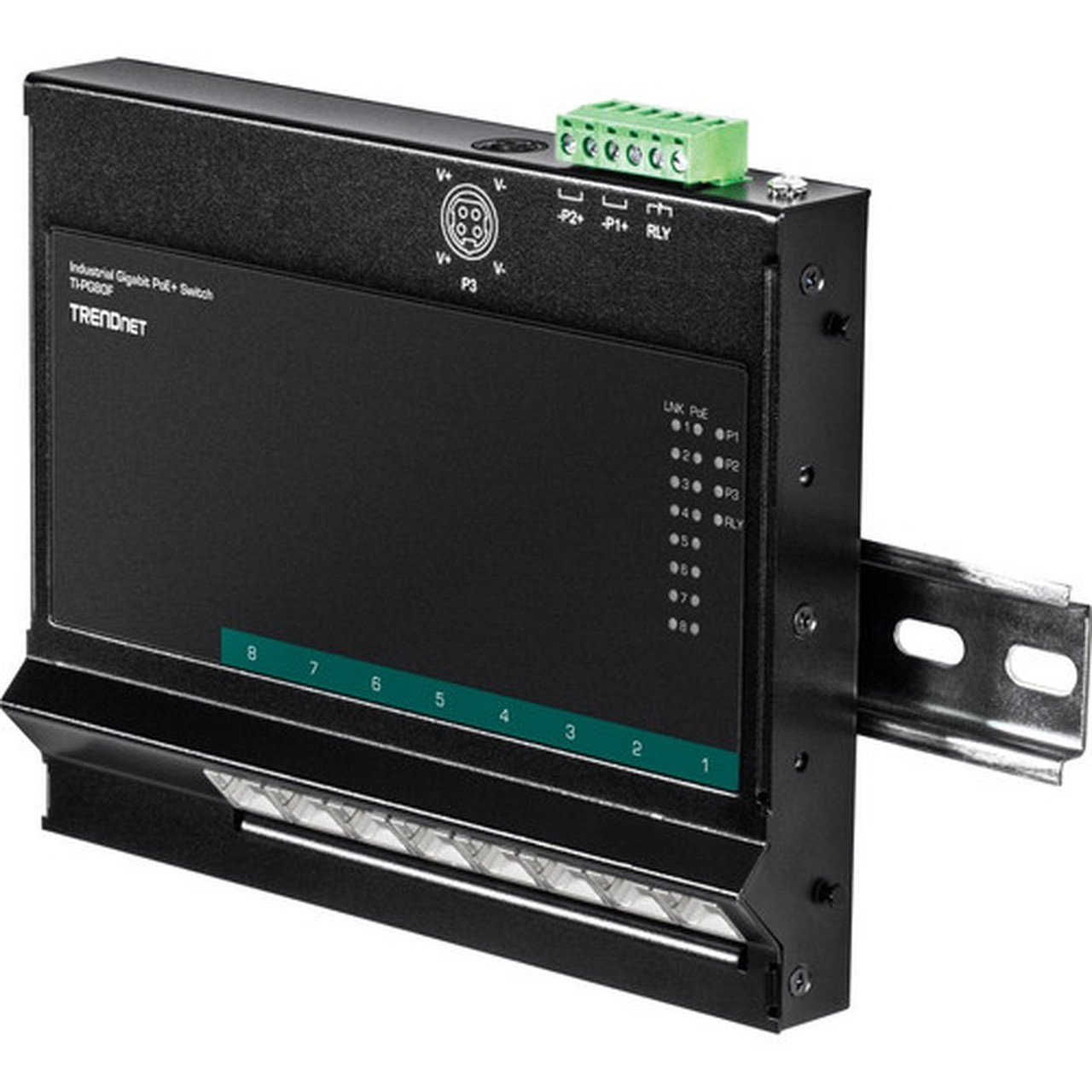

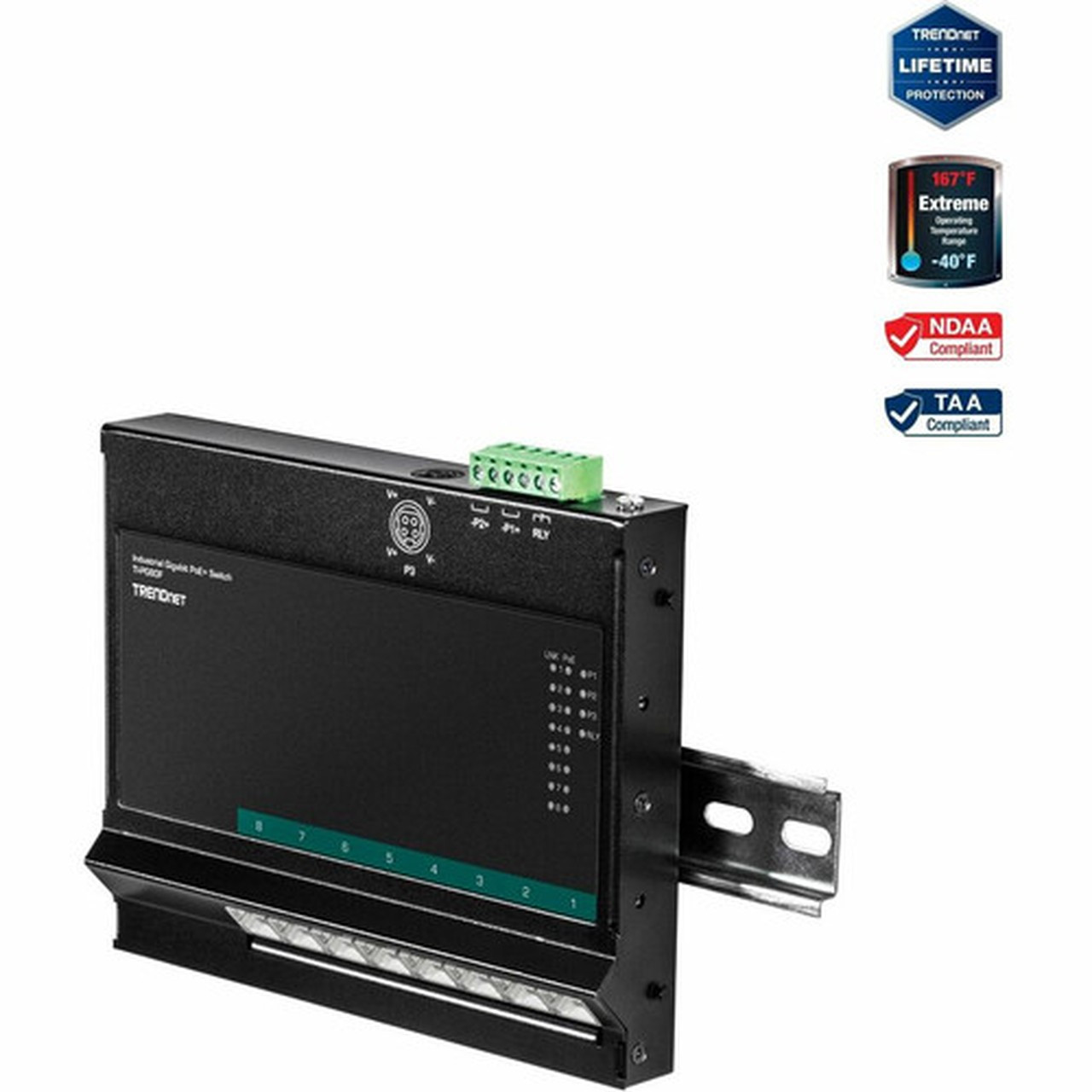

TRENDnet 8-Port Industrial Gigabit Poe+ Wall-Mounted Front Access Switch; 8X Gigabit Poe+ Ports; DIN-Rail Mount; 48 ?57V DC Power 200W (TI-PG80F)

Marketing Information: TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series are well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.

• 8 x Gigabit PoE+ ports
• 200W PoE power budget
• 16Gbps switching capacity
• Supports jumbo frames up to 9KB
• Hardened IP40 rated metal housing

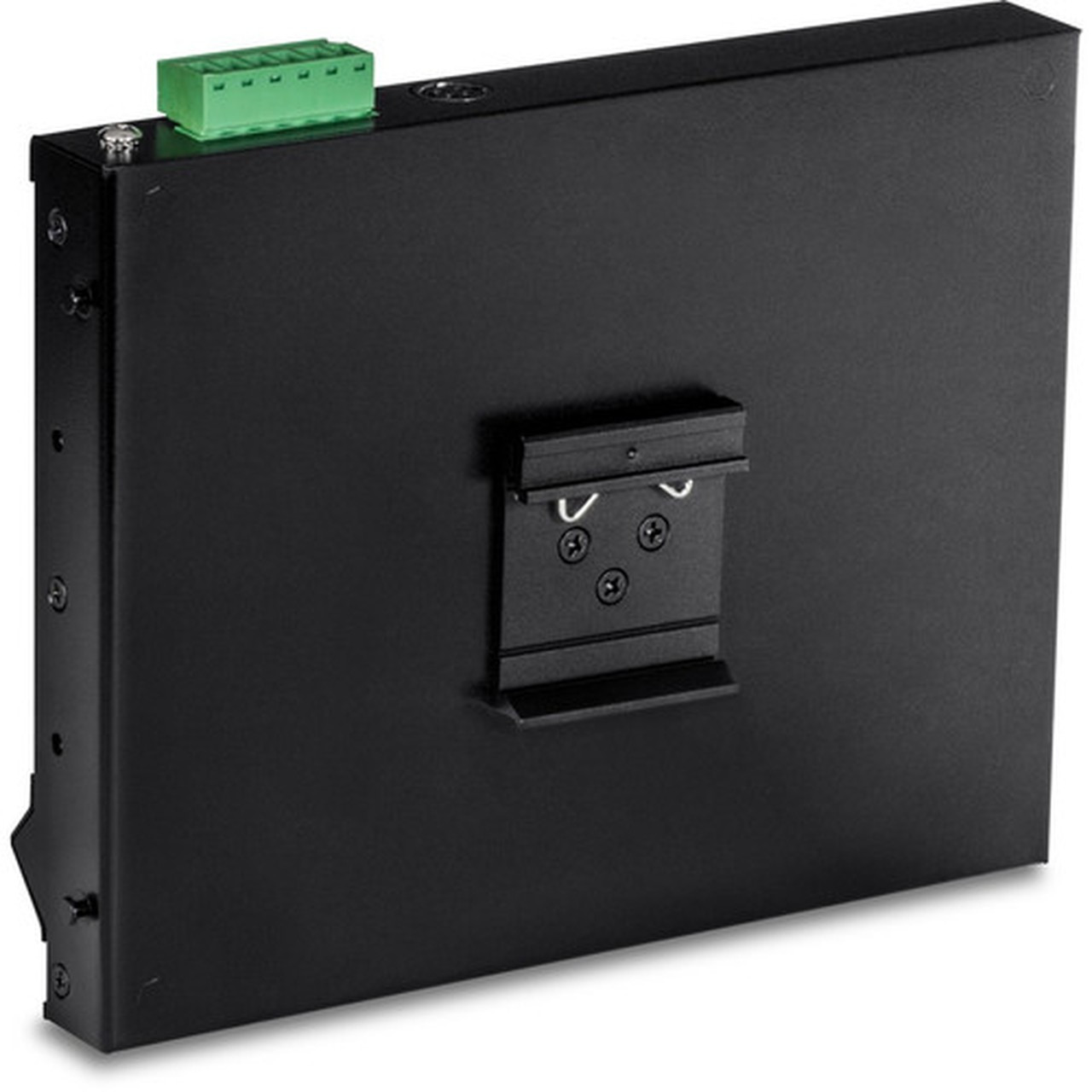

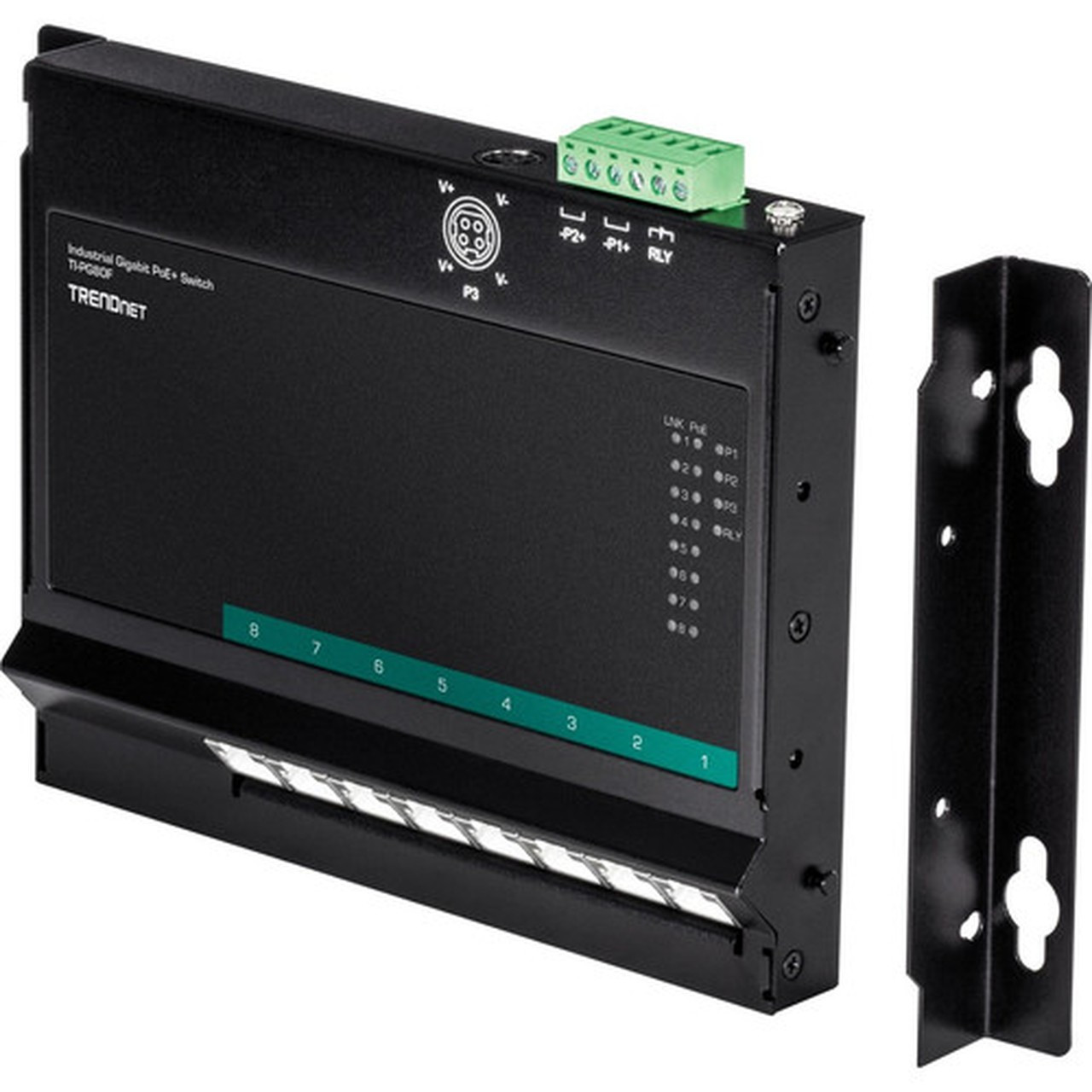

• Includes DIN-Rail bracket and magnetic wall mount kit
• Operating temperature range of -40° - 75° C (-40° - 167° F)
• Redundant power inputs with overload current protection
• Alarm relay triggered by power failure
• Power supply sold separately (models: TI-S24052, TI-S24048, TI-S48048, and 48VDC3000)
• NDAA / TAA compliant
• Lifetime Warranty

More from the Manufacturer

Total Number of Network Ports: 8

Modular: No

Port/Expansion Slot Details: 8 x Gigabit Ethernet Network

Media Type Supported: Twisted Pair

Ethernet Technology: Gigabit Ethernet

Network Technology: 10/100/1000Base-T

Layer Supported: 2

Power Source: Power Supply

Redundant Power Supply Supported: Yes

Form Factor: DIN Rail Mountable,Wall Mountable

Height: 3" (76.20 mm)

Width: 7" (177.80 mm)

Depth: 9" (228.60 mm)

Length: 5.90" (149.86 mm)

Weight (Approximate): 848.2 g

Country of Origin: Taiwan

TAA Compliant: Yes

Limited Warranty: Lifetime
