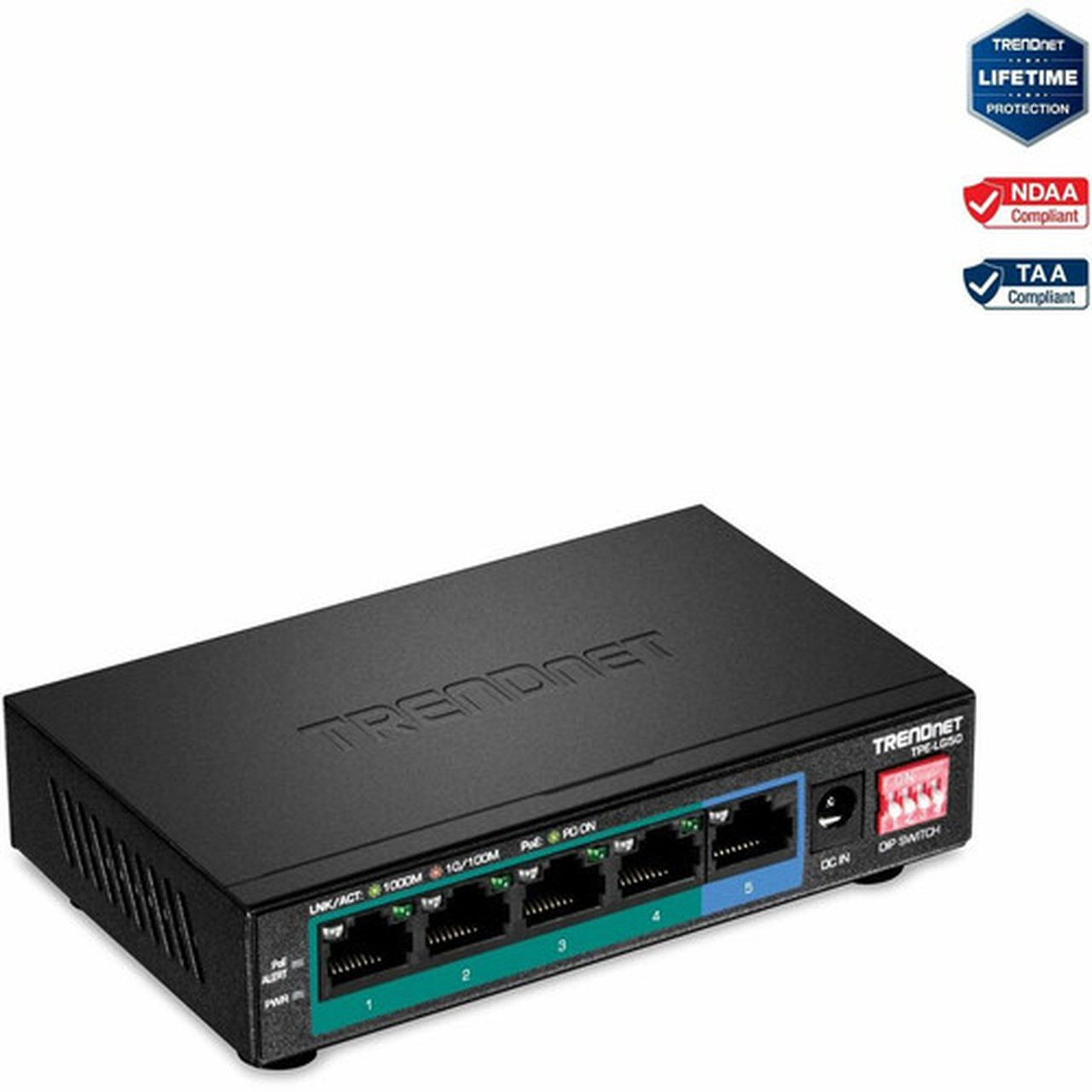

TRENDnet 5-Port Gigabit Long Range PoE+ Switch, 4 x Gigabit PoE+ Ports, 1 x Gigabit Port, 32W PoE Budget, 10Gbps Switching Capacity, - (TPE-LG50)

Marketing Information:

• ETHERNET PORT CONFIGURATION: 4 Port Gigabit Long Range PoE+ Switch includes 4 Gigabit PoE+ ports provide a 10Gbps switching capacity to support edge network installations.
• PoE+ POWER: A 32W PoE power budget supports up to four Power over Ethernet devices. TPE-LG50, delivers data and power over Ethernet cables to PoE devices such as access points, VoIP phones, and IP cameras.
• PoE and PoE+ SUPPORT: It supports both PoE and PoE+ devices with a 32W PoE power budget.
• LONG RANGE PoE+: Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations.
• PORT ISOLATION: Ideal for surveillance networking applications, the DIP switch also enables port isolation
• LOW-NOISE OPERATION: Fanless design lowers energy consumption and eliminates operating noise
• PLUG-AND-PLAY: Easy setup, simply power up the switch and plug in connected devices
• TRENDnet LIFETIME PROTECTION: Lifetime TRENDnet Manufacturer's Warranty

The 5-Port Gigabit Long Range PoE+ Switch, model TPE-LG50, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as access points, VoIP phones, and IP Cameras. It supports both PoE (802.3af) and PoE+ (802.3at) devices with a 32W PoE budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations. Plug and play this sturdy metal switch for reliable high speed PoE networking. Its fanless design is perfect for quiet environments that require silent operation. PoE+ Power A 32W PoE power budget supports up to four Power over Ethernet devices. Gigabit Five Gigabit ports provide a 10Gbps switching capacity to support edge network installations. Long Range PoE+ Switch Enable the DIP switch to extend PoE+ signal up to 200m (656 ft.) at 10Mbps. PACKAGE CONTENTS TPE-LG50 Quick Installation Guide Power adapter (54V DC, 0.7A)

More from the Manufacturer

Total Number of Network Ports: 5

Modular: No

Port/Expansion Slot Details: 5 x Gigabit Ethernet Network

Media Type Supported: Twisted Pair

Ethernet Technology: Gigabit Ethernet

Network Technology: 10/100/1000Base-T

Layer Supported: 2

Manageable: No

Power Source: Power Adapter

Redundant Power Supply Supported: No

Power Consumption: 36.30 W

Form Factor: Wall Mountable

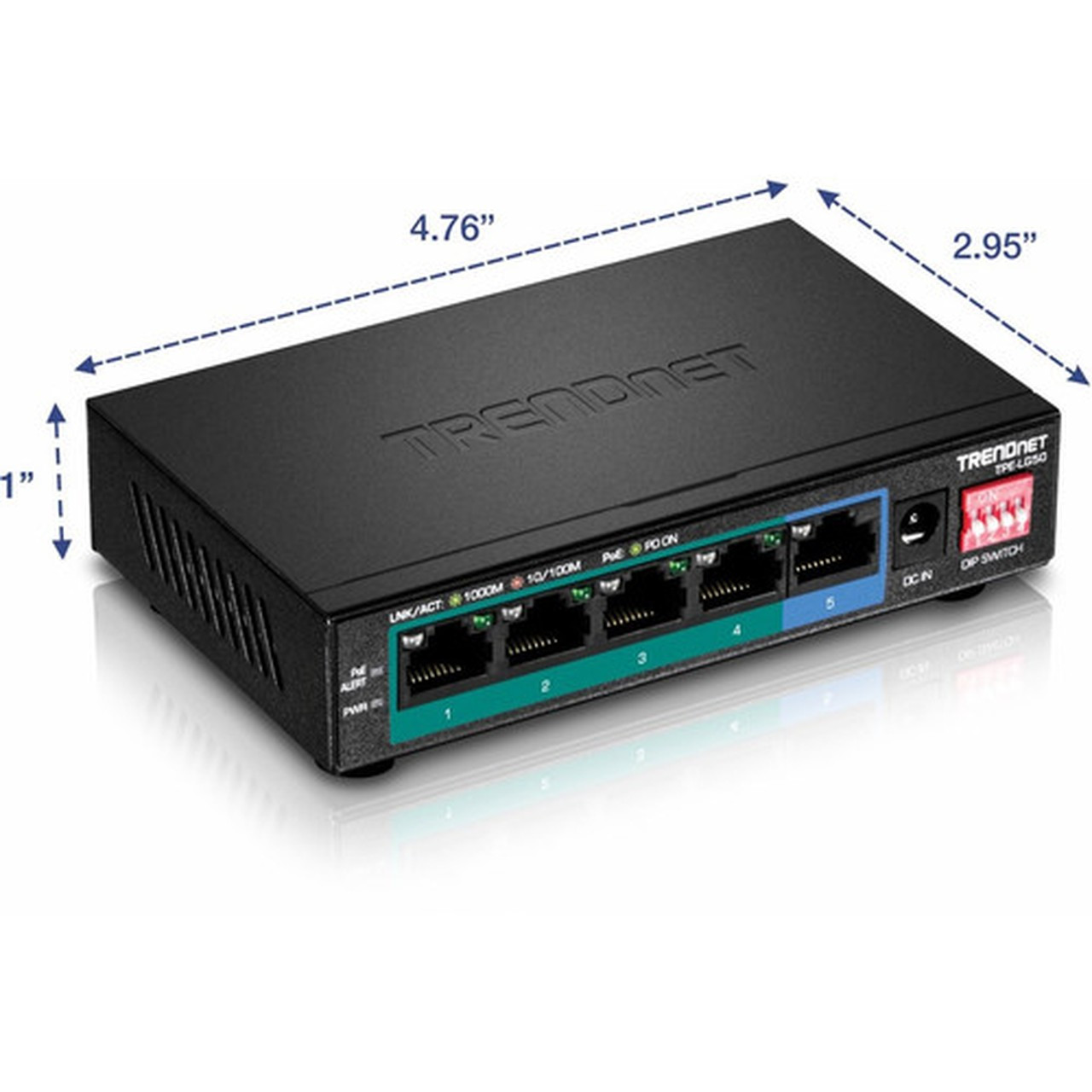

Height: 4" (101.60 mm)

Width: 8" (203.20 mm)

Depth: 11" (279.40 mm)

Length: 4.76" (120.90 mm)

Weight (Approximate): 2.20 kg

Country of Origin: China

TAA Compliant: Yes

Limited Warranty: Lifetime
