- ETHERNET PORT CONFIGURATION: 8 Port Gigabit Long Range PoE+ Switch includes 8 Gigabit PoE+ ports provide a 16Gbps switching capacity to support edge network installations.
- PoE+ POWER: A 65W PoE power budget supports up to eight Power over Ethernet devices. TPE-LG80, delivers data and power over Ethernet cables to PoE devices such as access points, VoIP phones, and IP cameras.
- PoE and PoE+ SUPPORT: It supports both PoE and PoE+ devices with a 65W PoE power budget.
- LONG RANGE PoE+: Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations.
- PORT ISOLATION: Ideal for surveillance networking applications, the DIP switch also enables port isolation
- LOW-NOISE OPERATION: Fanless design lowers energy consumption and eliminates operating noise
- PLUG-AND-PLAY: Easy setup, simply power up the switch and plug in connected devices
- TRENDnet LIFETIME PROTECTION: Lifetime TRENDnet Manufacturer's Warranty
- NDAA / TAA compliant (U.S. and Canada only)
Marketing Information: - ETHERNET PORT CONFIGURATION: 8 Port Gigabit Long Range PoE+ Switch includes 8 Gigabit PoE+ ports provide a 16Gbps switching capacity to support edge network installations.
- PoE+ POWER: A 65W PoE power budget supports up to eight Power over Ethernet devices. TPE-LG80, delivers data and power over Ethernet cables to PoE devices such as access points, VoIP phones, and IP cameras.
- PoE and PoE+ SUPPORT: It supports both PoE and PoE+ devices with a 65W PoE power budget.
- LONG RANGE PoE+: Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations.
- PORT ISOLATION: Ideal for surveillance networking applications, the DIP switch also enables port isolation
- LOW-NOISE OPERATION: Fanless design lowers energy consumption and eliminates operating noise
- PLUG-AND-PLAY: Easy setup, simply power up the switch and plug in connected devices
- TRENDnet LIFETIME PROTECTION: Lifetime TRENDnet Manufacturer's Warranty

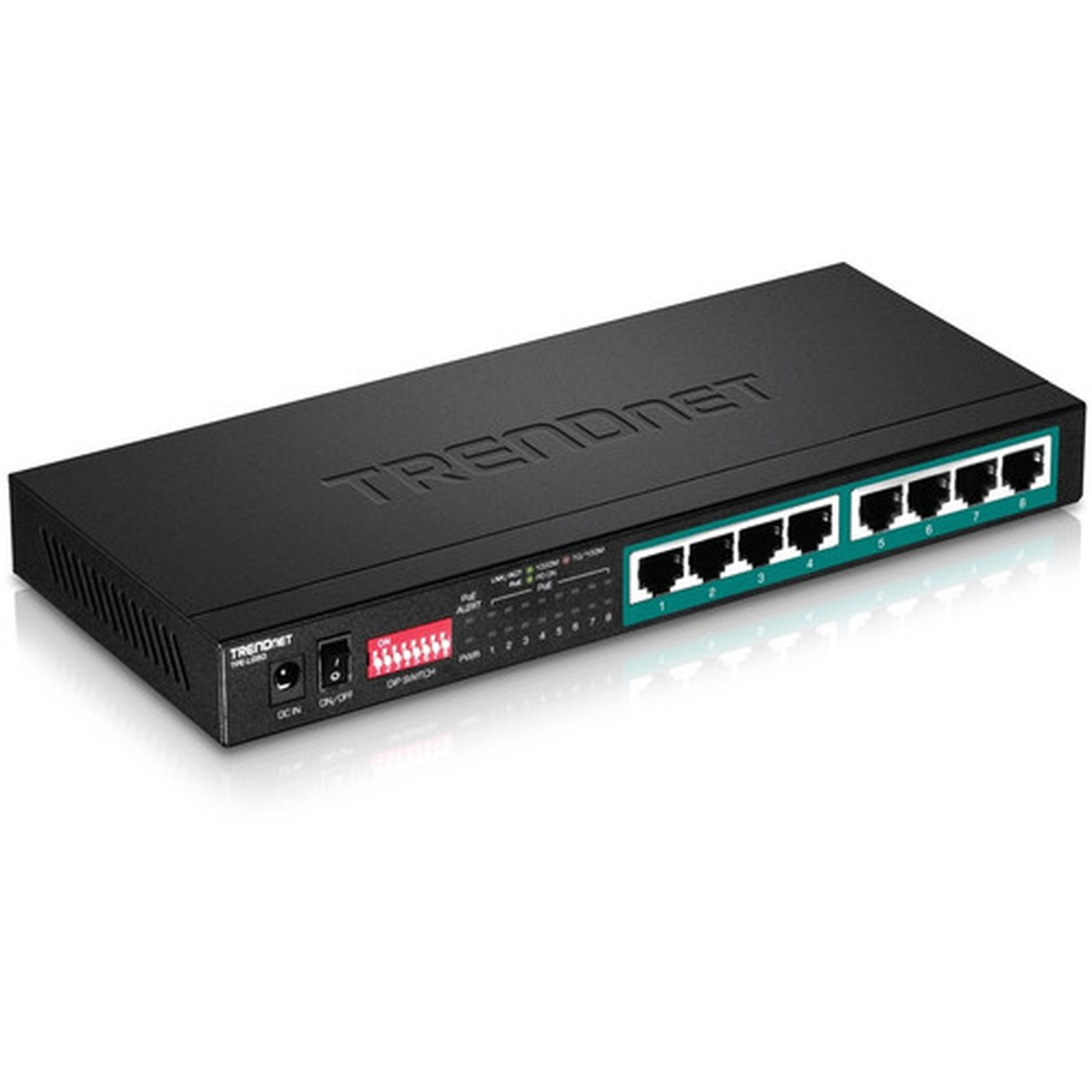

The 8-Port Gigabit Long Range PoE+ Switch, model TPE-LG80, delivers data and power over Ethernet cables to PoE devices such as access points, VoIP phones, and IP cameras. It supports both PoE and PoE+ devices with a 65W PoE power budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations. Plug and play this sturdy metal switch for reliable high-speed PoE networking. Its fanless design is perfect for quiet environments that require silent operation. PoE+ Power A 65W PoE power budget supports up to eight Power over Ethernet devices. Gigabit Eight gigabit ports provide a 16Gbps switching capacity to support edge network installations. Long Range PoE+ Switch Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps. PACKAGE CONTENTS TPE-LG80 Quick Installation Guide Power brick (55V DC, 1.3A) Power cord (1.8m/6 ft.)
- NDAA / TAA compliant (U.S. and Canada only)
More from the Manufacturer
Total Number of Network Ports: 8Modular: NoPort/Expansion Slot Details: 8 x Gigabit Ethernet NetworkMedia Type Supported: Twisted PairEthernet Technology: Gigabit EthernetNetwork Technology: 10/100/1000Base-TLayer Supported: 2Manageable: NoPower Source: AC AdapterRedundant Power Supply Supported: NoPower Consumption: 10.60 WForm Factor: Wall MountableHeight: 3" (76.20 mm)Width: 12" (304.80 mm)Depth: 18" (457.20 mm)Length: 9.45" (240.03 mm)Weight (Approximate): 4.09 kgCountry of Origin: ChinaTAA Compliant: YesLimited Warranty: Lifetime
[custom-specifications]
Specifications
Manufacturer: TRENDnet
Manufacturer Part Number: TPELG80
Manufacturer Website Address: http://www.trendnet.com
Brand Name: TRENDnet
Product Model: TPE-LG80
Product Name: 8-Port Gigabit Long Range PoE+ Switch
Product Condition: New
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Modular: No
Port/Expansion Slot Details: 8 x Gigabit Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Power Description
Power Source: AC Adapter
Redundant Power Supply Supported: No
Power Consumption: 10.60 W
Physical Characteristics
Form Factor: Wall Mountable
Height: 3" (76.20 mm)
Width: 12" (304.80 mm)
Depth: 18" (457.20 mm)
Length: 9.45" (240.03 mm)
Weight (Approximate): 4.09 kg
Miscellaneous
Country of Origin: China
TAA Compliant: Yes
Warranty
Limited Warranty: Lifetime
[/custom-specifications]
