TRENDnet TV-IP1514PI 5 Megapixel Indoor/Outdoor Network Camera - Color - Bullet - White - TAA Compliant - 98.43 ft (30 m) Infrared - - (TV-IP1514PI)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator

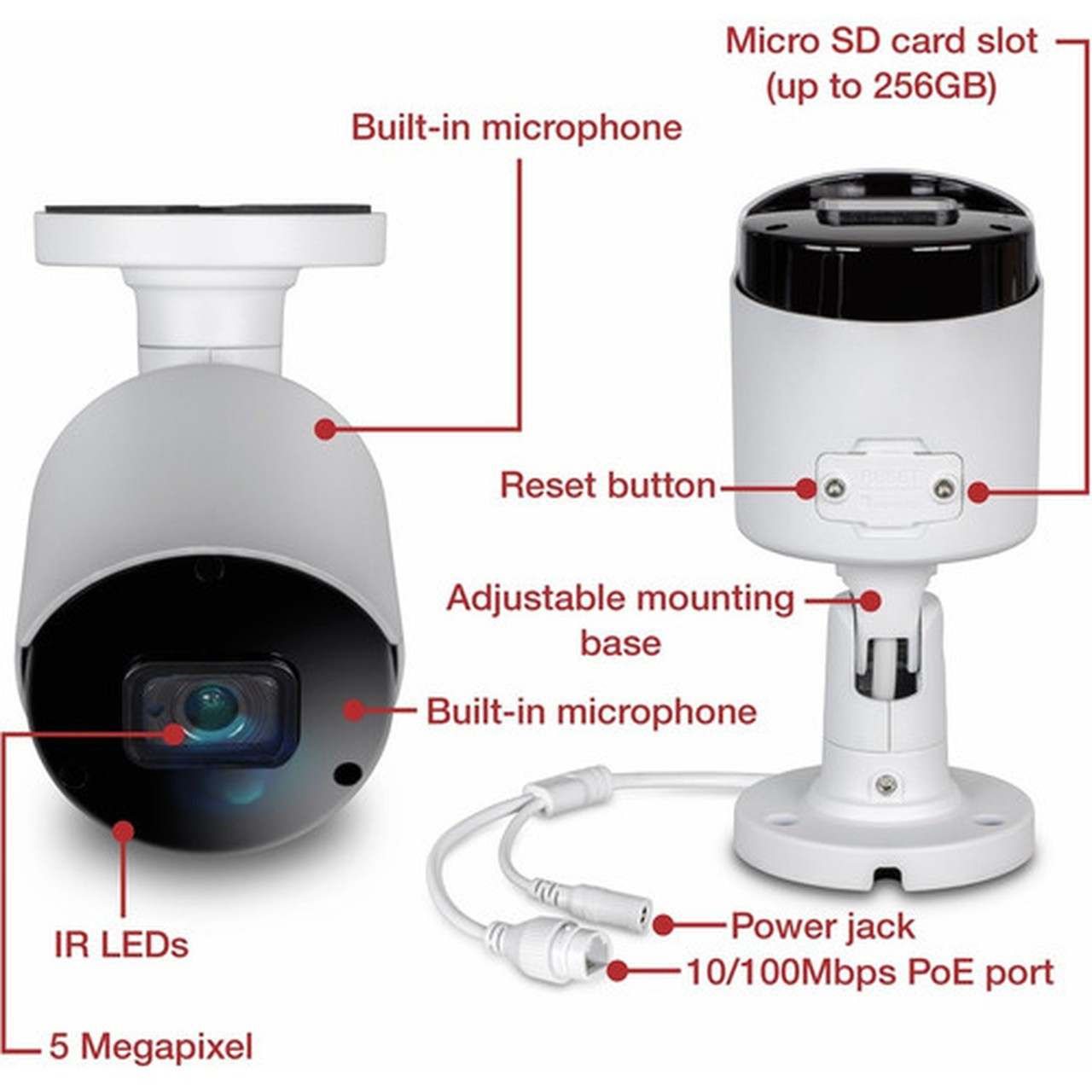

- DEVICE INTERFACE: 10/100Mbps PoE Port; Micro SD Card Slot; Power Jack; Built-in Microphone; Reset Button
- NIGHT VISION HD SURVEILLANCE: Powerful 5MP HD video (2592 x 1920) at 20fps and up to 30m (98 ft.) night vision provides 24-hour surveillance. Night vision Infrared LEDs dynamically adjusts the Infrared (IR) LEDs by lowering the IR intensity when objects are near, and increasing IR intensity when objects are farther away
- ONE-WAY AUDIO: The 5MP bullet network camera has a built-in microphone for one-way audio
- WIDE DYNAMIC RANGE (WDR): WDR setting improves image quality and focus when a camera is exposed to high contrast lighting environments by enhancing the dark areas of the image to make them more visible.
- VIEW MANAGER SOFTWARE: View live video, recording playback, custom viewing modes and options, and manage TRENDnet cameras with included complimentary software and Free Sentinel iOS® and Android™ mobile apps.
- MOTION DETECTION: Create custom motion detection zones to record video and send email notifications when a zone is triggered.
- POWER OVER ETHERNET (POE): PoE offers cost savings and the flexibility to install this night vision camera up to 100m (328 ft.) from the PoE source equipment.
- NETWORK STORAGE: Record video to a network storage device or to a Micro SD card (up to 128GB not included).
- OUTDOOR READY: Built for outdoor environments with an IP66 weather rating and an operating temperature range of -30° - 50° C (-22° - 122° F).

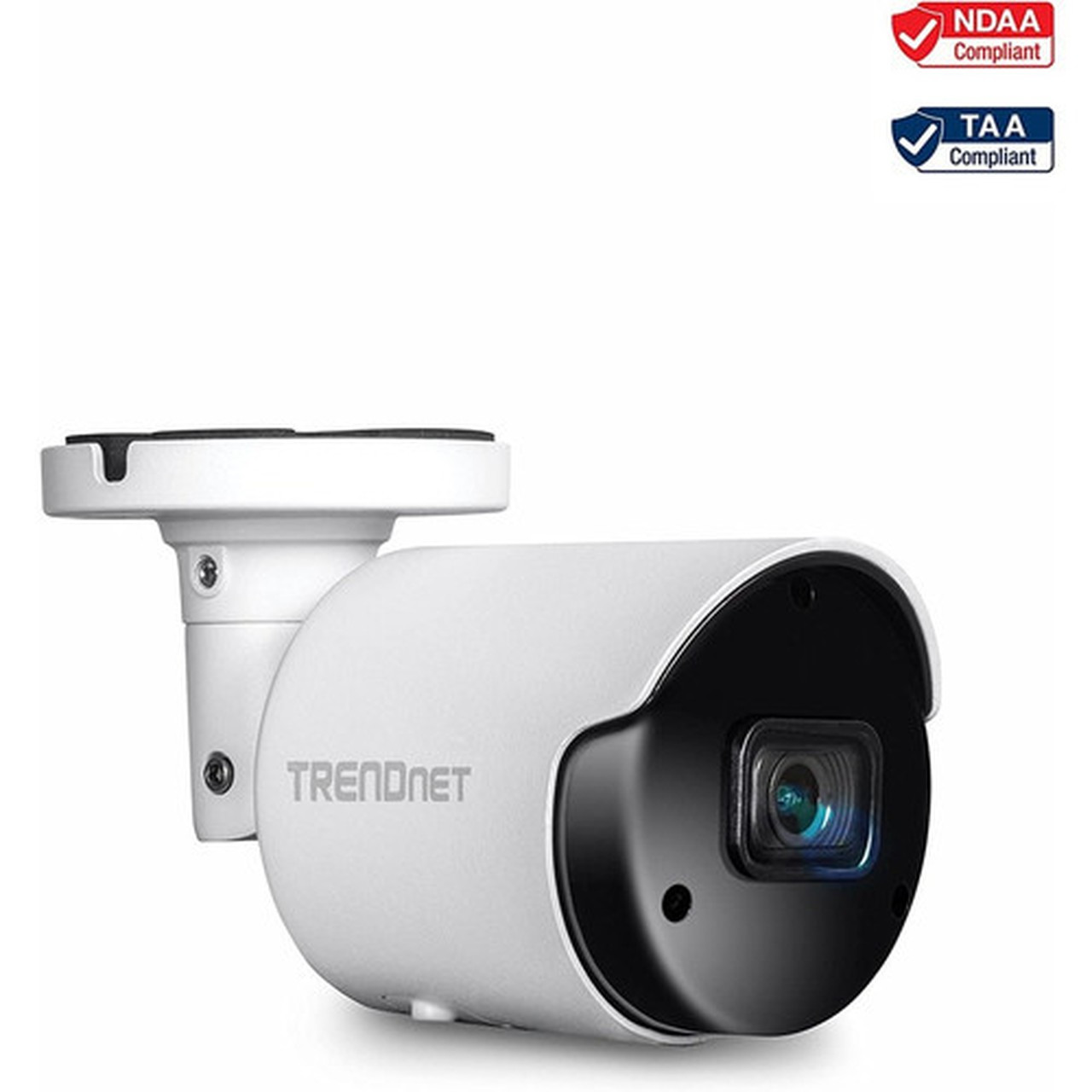

- NDAA / TAA compliant (U.S. and Canada only)
- TV-IP1514PI Network Camera
- Weather seal
- Quick installation guide
- Camera mounting hardware
Marketing Information: TRENDnet's Indoor/Outdoor 5MP H.265 PoE IR Bullet Network Camera, model TV-IP1514PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.). This bullet network camera delivers year-round surveillance with an IP66 weather rated housing to withstand outdoor environments. Record up to 5MP HD video at 20fps in a space saving H.265 compression format. Easily view live video from the 5MP PoE camera on your mobile device using our free Sentinel mobile app, or on your PC with our free View Manager desktop camera video management software.
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 98.43 ft (30 m)
Night Vision Type: Infrared
Image Sensor Type: CMOS
Color Supported: Color
Field of View: 106°
Effective Camera Resolution: 5 Megapixel
Video Formats: H.265,H.264
Maximum Video Resolution: 2608 x 1960
Maximum Frame Rate: 30 fps
Lens Type: Fixed
Maximum Focal Length: 3.6 mm
Lens Included: Yes
Maximum Aperture: f/1.6
Connectivity Technology: Wired
Remote Management: Yes
Storage Type: Memory Card
Network (RJ-45): Yes
Input Voltage: 100 V AC,240 V AC
Power Source Type: PoE
Color Family: White
Product Color: White
Form Factor: Bullet
Weight (Approximate): 389 g
Minimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 122°F (50°C)
Maximum Operating Humidity: 95%
Features: Built-in Microphone,Wide Dynamic Range,Day/Night,Motion Detection,3D Digital Noise Reduction,Mirror,Privacy Masking,Tamper Detection
Indoor/Outdoor: Indoor/Outdoor
Package Contents:
Ingress Protection Rating: IP66
Country of Origin: Taiwan
TAA Compliant: Yes
Limited Warranty: 3 Year
- For remote surveillance needs, this network camera is best suited
- Up to 2608 x 1960 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Provides night vision of objects at a distance of up to 98.43 ft (30 m)
[custom-specifications]
Specifications | |
Manufacturer | TRENDnet |
Manufacturer Part Number | TV-IP1514PI |
Manufacturer Website Address | http://www.trendnet.com |
Brand Name | TRENDnet |
Product Model | TV-IP1514PI |
Product Name | TV-IP1514PI Network Camera |
Product Type | Network Camera |
Technical Information | |
HD Recording | Yes |
Night Vision | Yes |
Night Vision Distance | 98.43 ft (30 m) |
Night Vision Type | Infrared |
Display & Graphics | |
Image Sensor Type | CMOS |
Color Supported | Color |
Field of View | 106° |
Effective Camera Resolution | 5 Megapixel |
Video | |
Video Formats | H.265,H.264 |
Maximum Video Resolution | 2608 x 1960 |
Maximum Frame Rate | 30 fps |
Lens | |
Lens Type | Fixed |
Maximum Focal Length | 3.6 mm |
Lens Included | Yes |
Maximum Aperture | f/1.6 |
Network & Communication | |
Connectivity Technology | Wired |
Remote Management | Yes |
Storage | |
Storage Type | Memory Card |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Power Description | |
Input Voltage | 100 V AC,240 V AC |
Power Source Type | PoE |
Physical Characteristics | |
Color Family | White |
Product Color | White |
Form Factor | Bullet |
Weight (Approximate) | 389 g |
Environmental Conditions | |
Minimum Operating Temperature | -22°F (-30°C) |
Maximum Operating Temperature | 122°F (50°C) |
Maximum Operating Humidity | 95% |
Miscellaneous | |
Features | Built-in Microphone,Wide Dynamic Range,Day/Night,Motion Detection,3D Digital Noise Reduction,Mirror,Privacy Masking,Tamper Detection |
Indoor/Outdoor | Indoor/Outdoor |
Package Contents |
|
Ingress Protection Rating | IP66 |
Country of Origin | Taiwan |
TAA Compliant | Yes |
Warranty | |
Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Infomartion
3 Year
