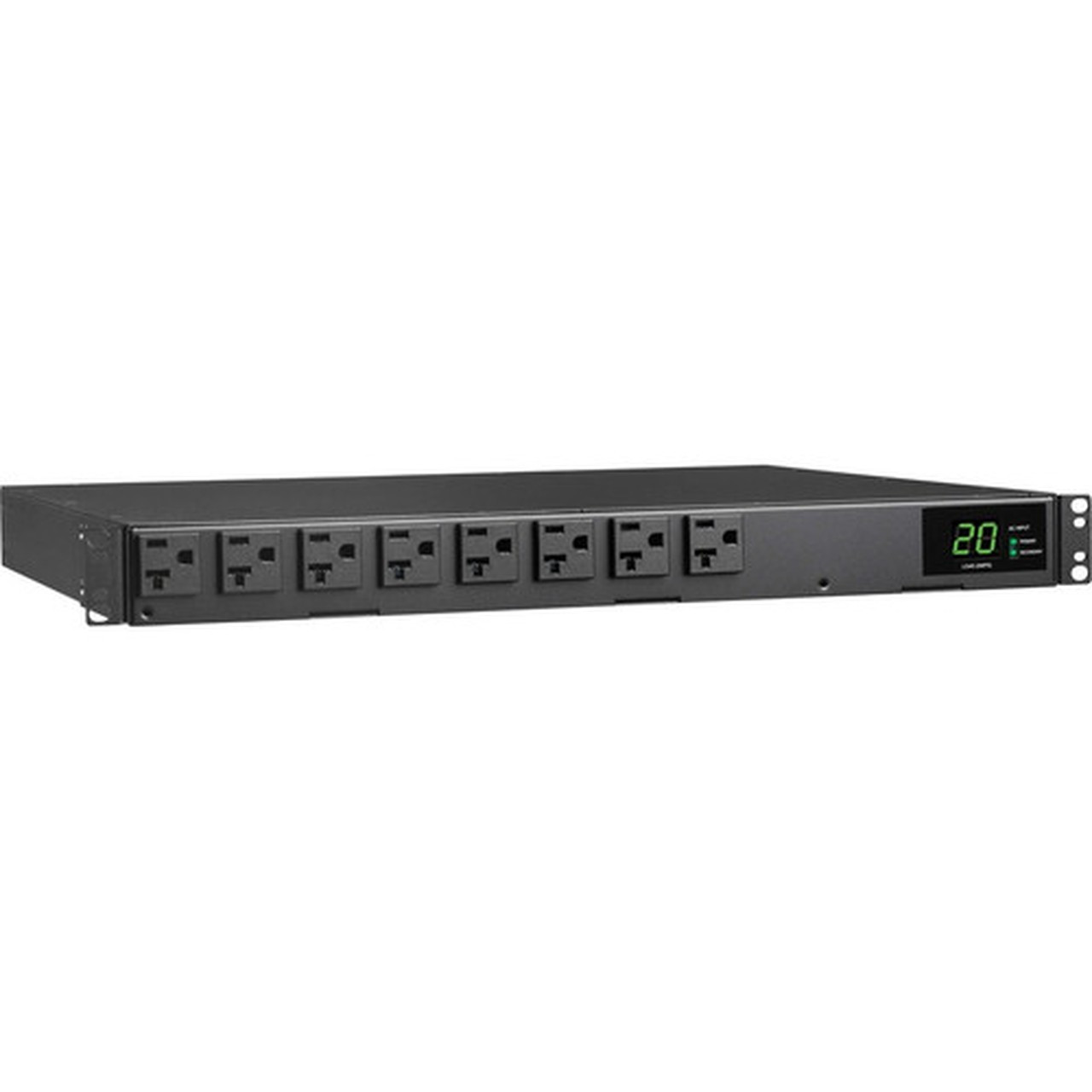

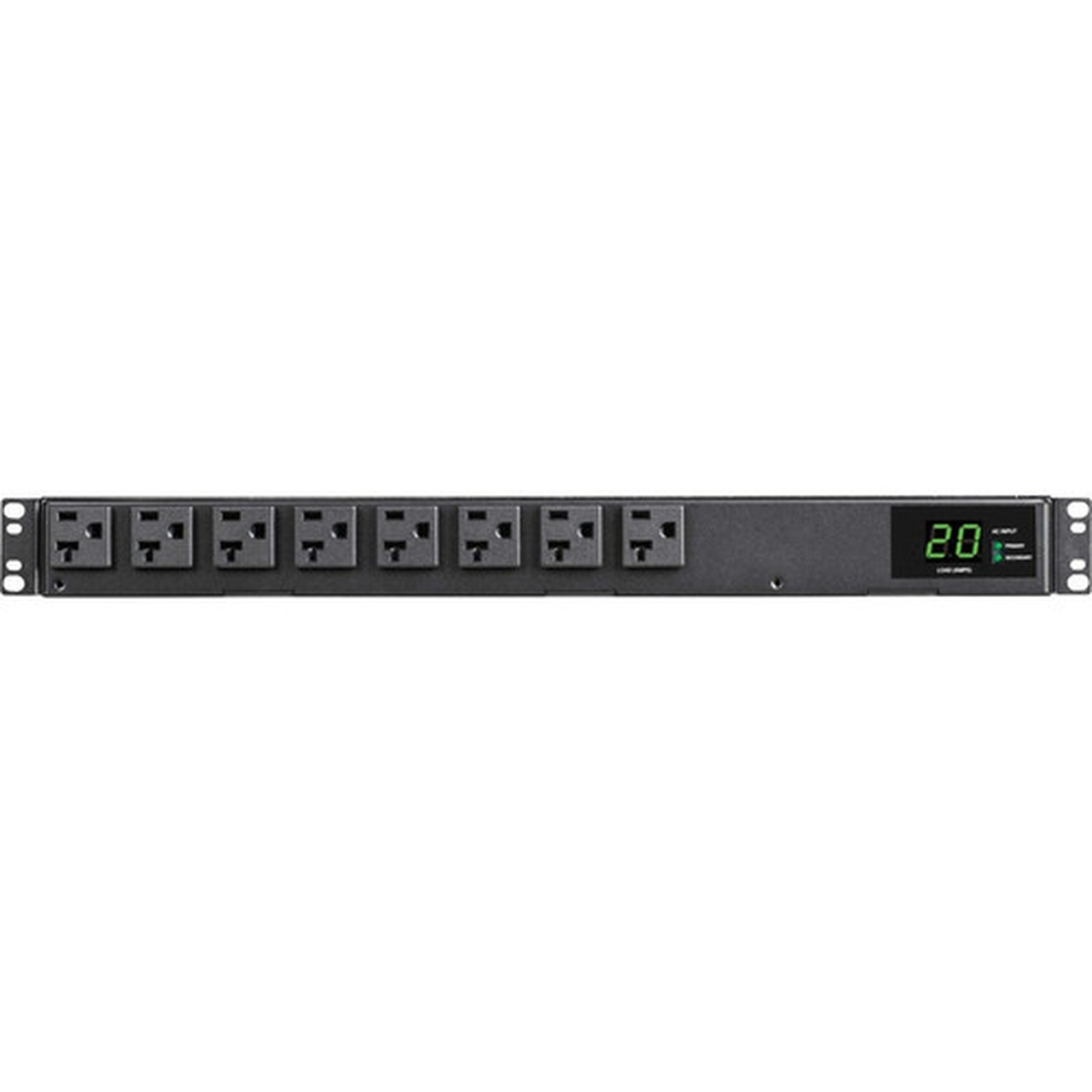

Tripp Lite 16-Outlets PDU - Metered Auto Transfer Switch - NEMA 5-20P, NEMA L5-20P - 16 x NEMA 5-15/20R - 120 V AC - 1U - Horizontal - (PDUMH20ATS)

Marketing Information:

Single-Phase 20A ATS PDU Distributes and Monitors Network-Grade Power in Real Time
This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20ATS features 16 NEMA 5-15/20R 120V outlets for connecting equipment. Dual 12-foot (3.7-meter) power cords with NEMA L5-20P inputs (two 5-20P adapters are included) connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.

Switches from Primary to Secondary Power Source in Milliseconds
Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2-7 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.

Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.

Mounts into 1U of Rack Space or on a Wall

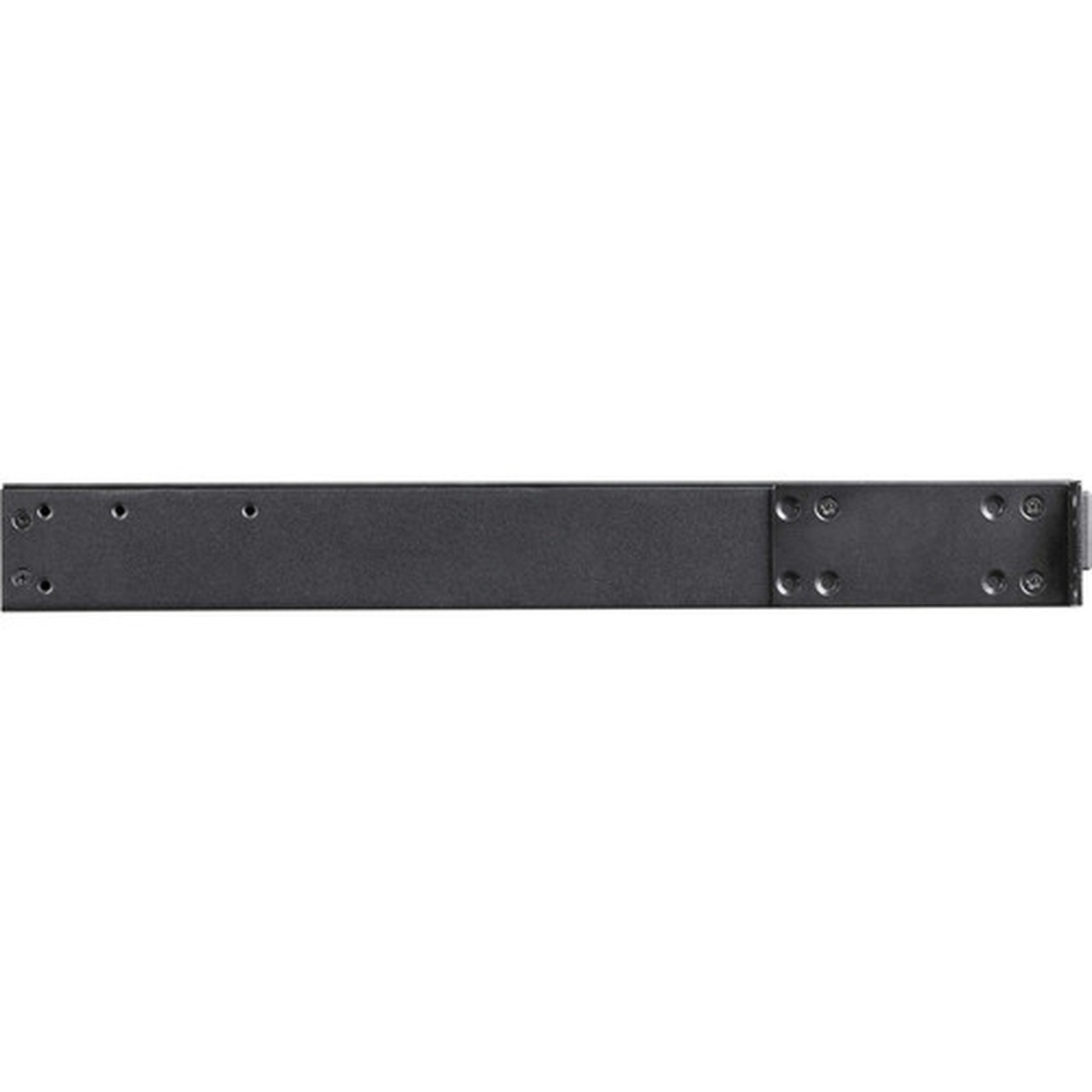

Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall or under a counter.

TAA-Compliant for GSA Schedule Purchases
The PDUMH20ATS is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

PDU Type: Metered Auto Transfer Switch

Phase: Single Phase

Plug/Connector Type: NEMA 5-20P,NEMA L5-20P

Plug/Connector Detail: 2 x NEMA L5-20P,2 x NEMA 5-20P

Receptacle Type: NEMA 5-15/20R

Receptacle Detail: 16 x NEMA 5-15/20R

Protection Type: Circuit Protection

Input Voltage: 120 V AC

Output Voltage: 100 V AC,120 V AC,127 V AC

Power Rating (Watt): 2.03 kW

Input Current: 20 A

Mounting Orientation: Horizontal

Mount Type: Rack-mountable,Wall-mountable

Rack Height: 1U

Height: 1.75" (44.45 mm)

Width: 17.50" (444.50 mm)

Depth: 14.50" (368.30 mm)

Weight (Approximate): 5.53 kg

Package Contents:

• 16-Outlets PDU
• Detachable C19 To NEMA L5-20P Secondary Input Cord, 12 Ft. (3.7 m)
• 2 x L5-20R To 5-20P Plug Adapters
• Cable Retention Kit
• Rack-Mounting Hardware
• Owner's Manual

Country of Origin: Taiwan

TAA Compliant: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
