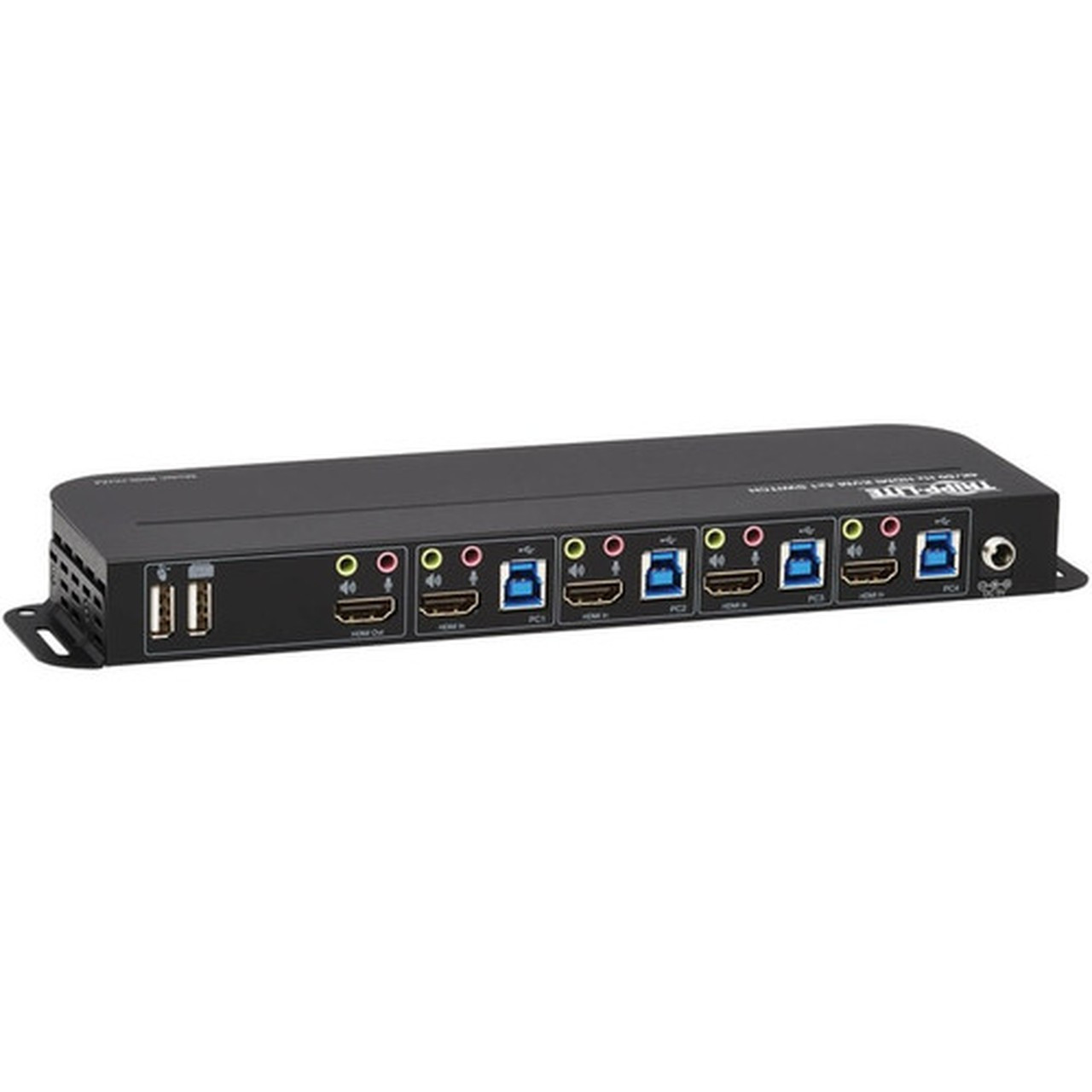

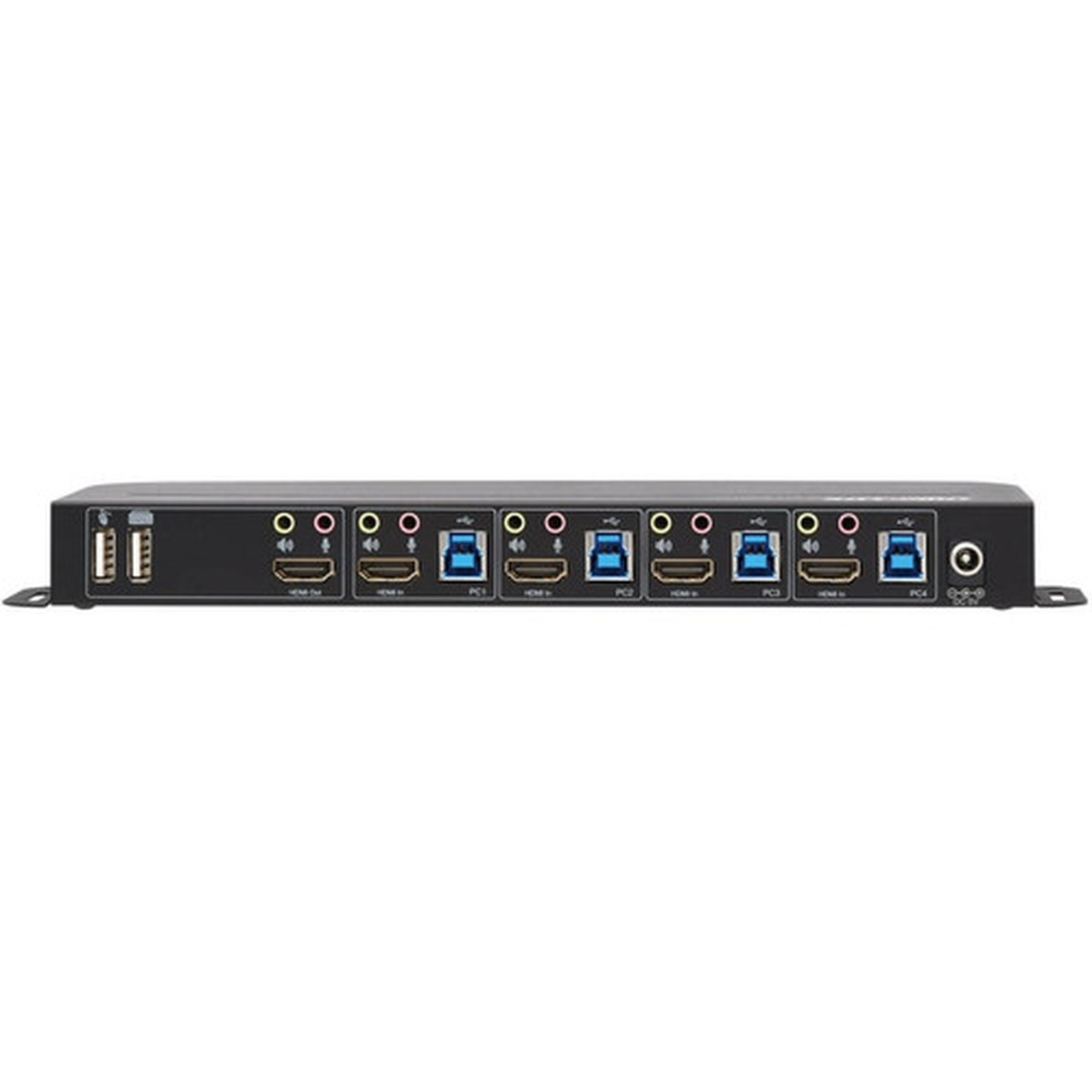

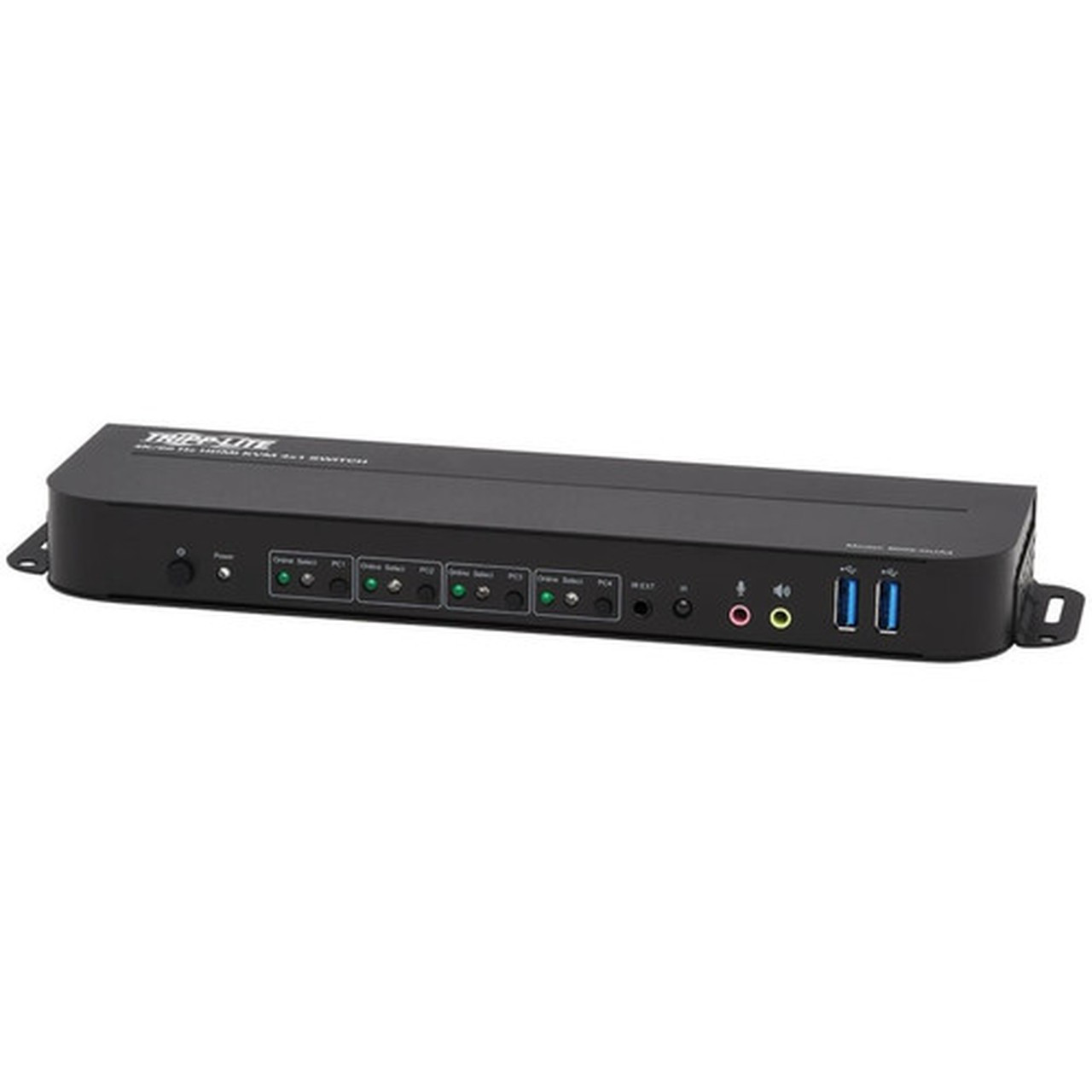

Tripp Lite B005-HUA4 4-Port HDMI/USB KVM Switch - 4 Computer(s) - 1 Local User(s) - 4096 x 2160 - 8 x USB - 5 x HDMI (B005-HUA4)

Marketing Information:

Features

Connects 4 HDMI-Enabled Devices to a Single HDMI Monitor, Keyboard and Mouse

This KVM switch lets you access, control, boot and reboot four computers with HDMI ports and switch between them. In addition to desktop and notebook computers, the switch also connects up to four media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other HDMI-enabled devices. All computers share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

Switching Between Computers Is Fast and Easy

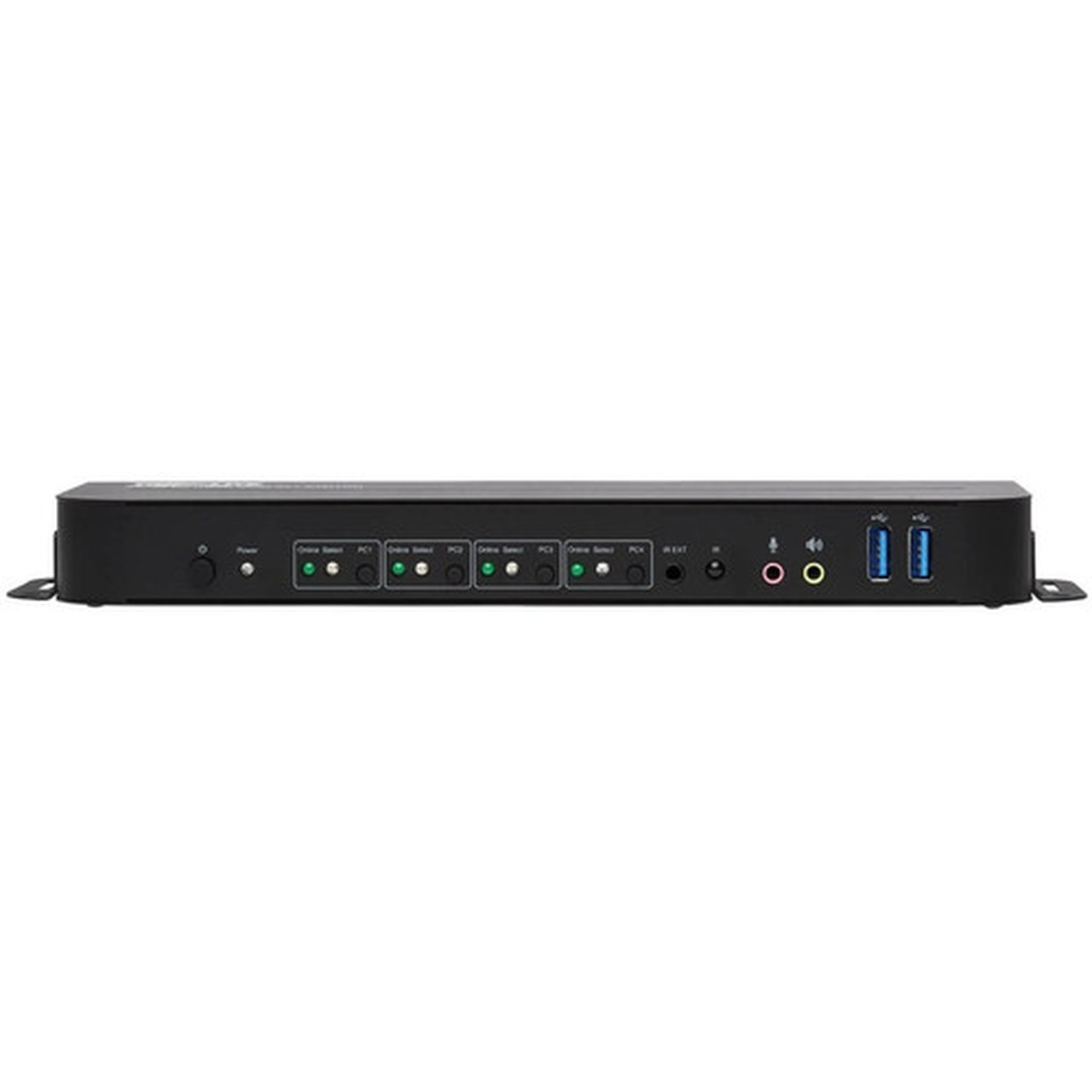

Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected.

USB Hub Lets You Share Peripherals Between Computers

Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. The hub is backward compatible with USB 1.1 devices.

Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color

The B005-HUA4 supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as 7.1-channel surround sound and HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

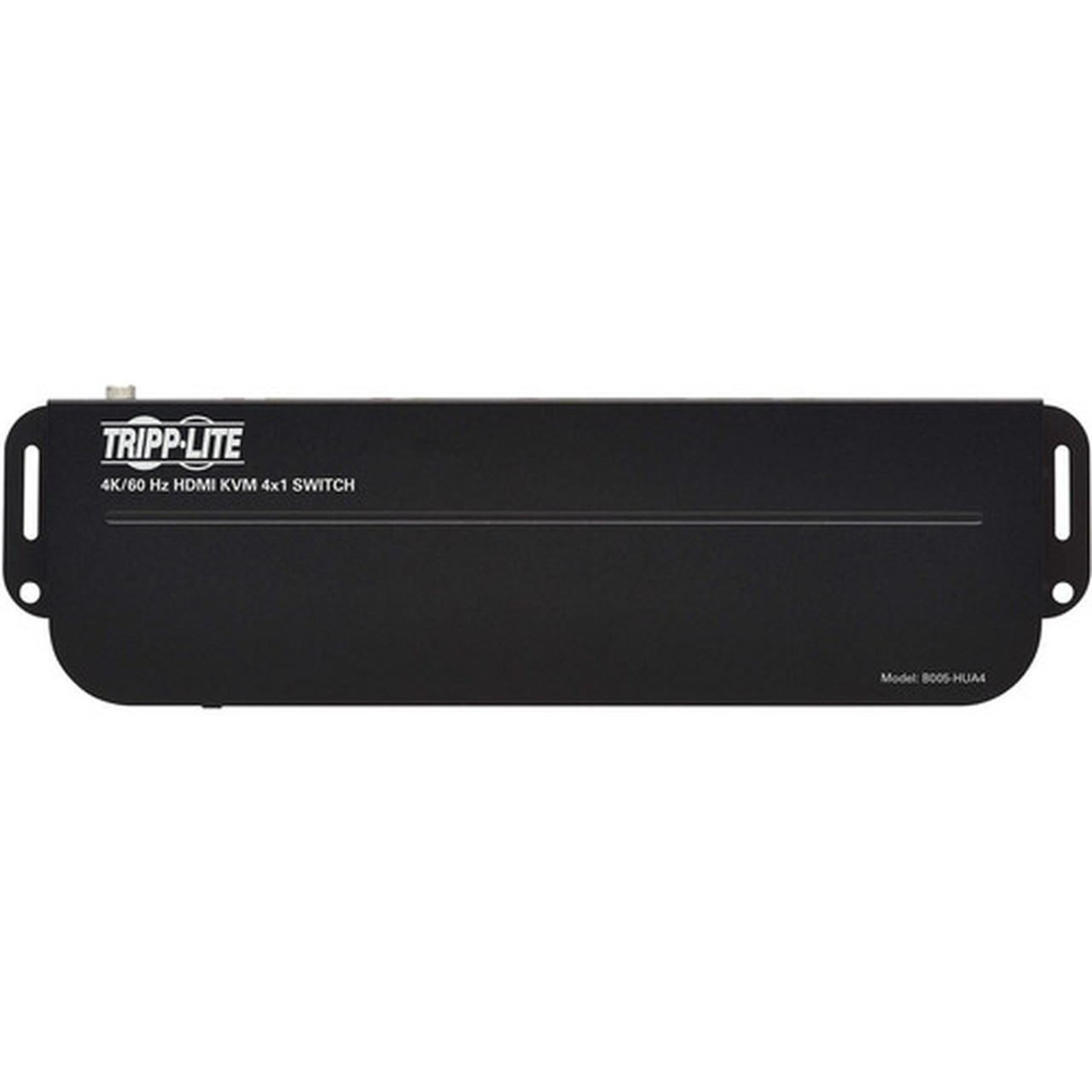

Designed for Convenient Mounting with Included Brackets

The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source. The plug-and-play B005-HUA4 requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, macOS and Linux.

Typical Applications

• Share a keyboard, mouse and HDMI display with 4 computers
• Connect 4 gaming consoles, media centers or other A/V devices for a home theater system with true 4K resolution
• Save money and space by sharing USB peripherals, such as a printer and external hard drive, between 4 connected computers

System Requirements

• Console with HDMI monitor, USB keyboard/mouse and (optional) speakers with 3.5 mm connectors
• Computer with HDMI port, USB-A port and (optional) 3.5 mm audio jack
• Windows, macOS or Linux operating system

Number of Computers Supported: 4

Number of Local Users Supported: 1

Maximum Video Resolution: 4096 x 2160

USB: Yes

HDMI: Yes

Number of USB Ports: 8

Number of HDMI Ports: 5

Input Voltage Range: 100V AC to 240V AC

Frequency: 50 Hz,60 Hz

Height: 1.02" (25.91 mm)

Width: 9.57" (243.08 mm)

Depth: 2.95" (74.93 mm)

Package Contents:

• B005-HUA4 4-Port HDMI/USB KVM Switch
• IR Extender
• IR Remote Control
• External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V 3A)
• Mounting Brackets
• Owner's Manual

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Country of Origin: Vietnam

Limited Warranty: 3 Year
