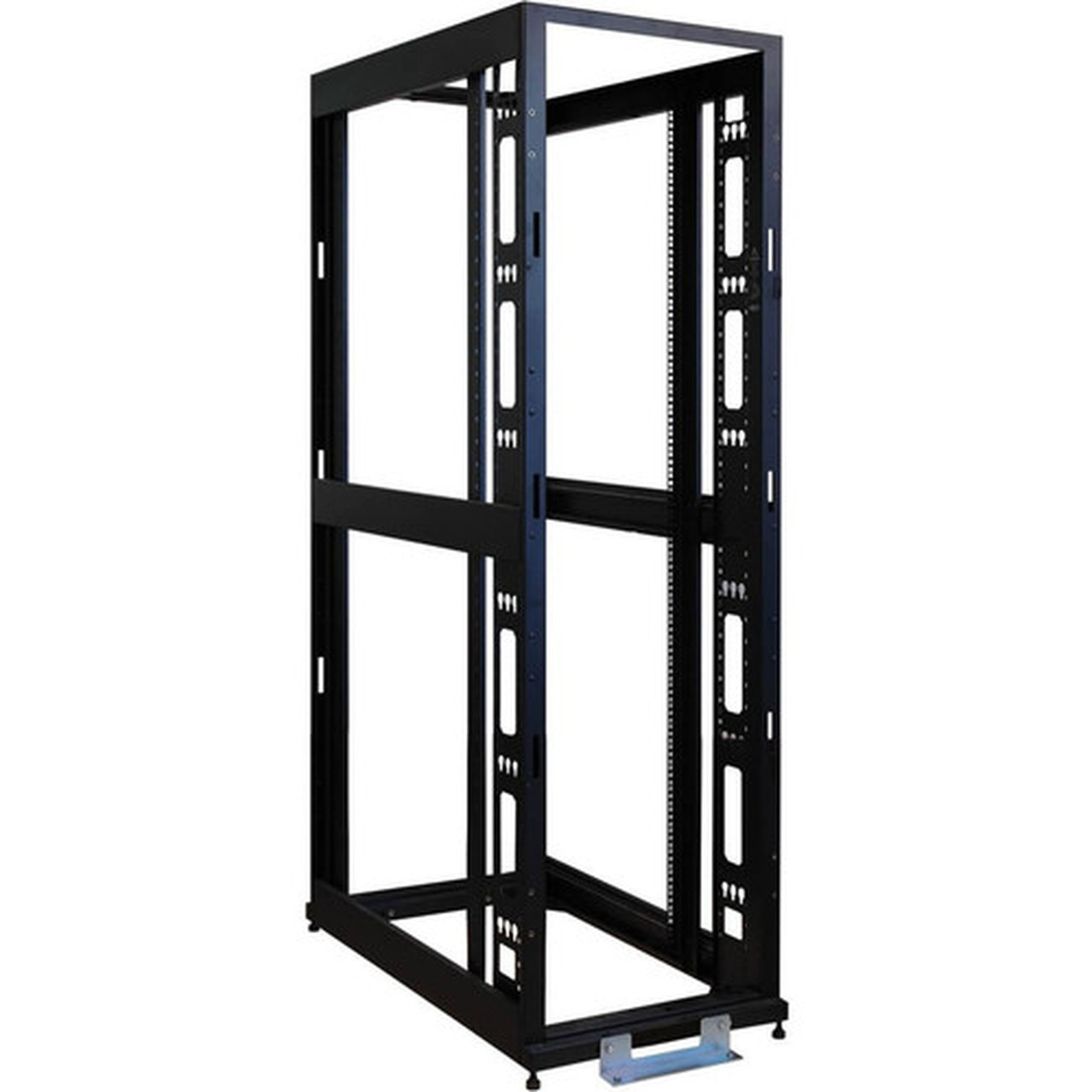

Tripp Lite by Eaton 42U 4-Post SmartRack Premium Open Frame Rack (No Sides, Doors or Roof) - 42U Rack Height x 19" (482.60 mm) Rack - (SR42UBEXPNDNR3)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Write a Review
Tripp Lite by Eaton
Tripp Lite by Eaton 42U 4-Post SmartRack Premium Open Frame Rack (No Sides, Doors or Roof) - 42U Rack Height x 19" (482.60 mm) Rack - (SR42UBEXPNDNR3)
- 42U 4-Post SmartRack Premium Open Frame Rack (No Sides, Doors or Roof)
- 50 x M6 Cage nuts
- 50 x M6 Screws
- Stabilizing Brackets
- Owner's Manual
Marketing Information:
The SR42UBEXPNDNR3 houses 3000 lb of standard 19-inch rack equipment in 42U. It is an expansion model that comes without sides, doors or roof. The front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference and supports tool-less button-mount 0U installation of up to four compatible PDUs and cable managers.
All components of the SR42UBEXPNDNR3 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.
To simplify deployment, the SR42UBEXPNDNR3 comes with preinstalled 3" casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.
The SR42UBEXPNDNR3 comes with a 5-year product warranty. As part of the SmartRack family, the SR42UBEXPNDNR3 is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.
Color Family: Black
Product Color: Black
Dynamic/Rolling Weight Capacity: 1360.78 kg
Static/Stationary Weight Capacity: 1360.78 kg
Height: 78.50" (1993.90 mm)
Width: 23.63" (600.20 mm)
Depth: 41.50" (1054.10 mm)
Rack Height: 42U
Rack Width: 19" (482.60 mm)
Weight (Approximate): 68.04 kg
Package Contents:
Assembly Required: No
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- 42U SmartRack Premium open frame rack (no sides, doors or roof)
- 4 interior vertical posts with unthreaded square hole openings
- Standard 24" (600mm) width and 42" (1050mm) depth for optimizing floor space
- Ships fully assembled
- 3000 lb stationary / 3000 lb rolling load capacity
- Preinstalled heavy duty 3" casters and leveling feet
- Rolls through standard 7 foot doorway
- Includes 50 pieces of M6 cage nuts and 50 pieces of M6 screws (equipment mounting hardware)
[custom-specifications]
| Specifications | |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SR42UBEXPNDNR3 |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartRack |
| Product Model | SR42UBEXPNDNR3 |
| Product Name | 42U 4-Post SmartRack Premium Open Frame Rack (No Sides, Doors or Roof) |
| Product Type | Rack Frame |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Dynamic/Rolling Weight Capacity | 1360.78 kg |
| Static/Stationary Weight Capacity | 1360.78 kg |
| Height | 78.50" (1993.90 mm) |
| Width | 23.63" (600.20 mm) |
| Depth | 41.50" (1054.10 mm) |
| Rack Height | 42U |
| Rack Width | 19" (482.60 mm) |
| Weight (Approximate) | 68.04 kg |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite Horizontal Cable Manager - Cable Cover - Black - 1U Rack Height - 19" Panel Width |
| SKU | SRCABLEDUCT1U |
| Sale Price | $73.68 |
| Product | Tripp Lite by Eaton Vertical Cable Management Bars - Cable Mount - 2 - 42U Rack Height |
| SKU | SRVRTBAR |
| Sale Price | $119.89 |
| Product | Tripp Lite SRBOLTDOWN - Aluminum |
| SKU | SRBOLTDOWN |
| Sale Price | $45.89 |
| Product | Tripp Lite Cage nuts and bolts - 50 Each |
| SKU | SRCAGENUTS |
| Sale Price | $32.53 |
| Product | Tripp Lite SRSHELF4PKYBD - Black - Cold-rolled Steel (CRS) - 11.34 kg Maximum Weight Capacity |
| SKU | SRSHELF4PKYBD |
| Sale Price | $290.59 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Infomartion
5 Year
