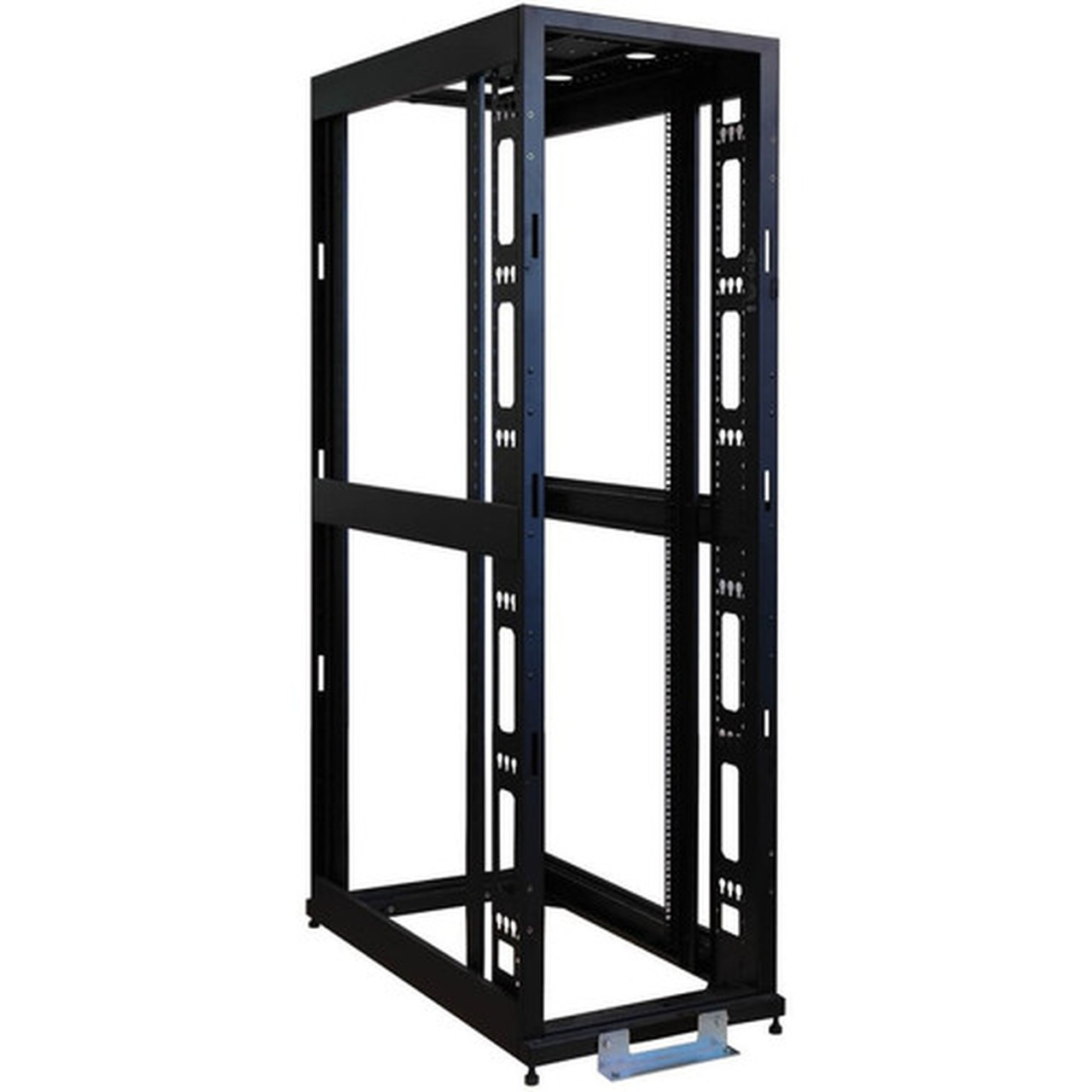

Tripp Lite by Eaton 45U 4-Post SmartRack Premium Open Frame Rack - 45U Rack Height x 19" (482.60 mm) Rack Width - Rack-mountable - - - (SR45UBEXPND)

Marketing Information:

The SR45UBEXPND is 45U SmartRack enclosure with NO doors and NO side panels. The 'EXP' version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.

The SR45UBEXPND houses 3000 lb of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.

All components of the SR45UBEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.

To simplify deployment, the SR45UBEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

The SR45UBEXPND comes with a 5-year product warranty. As part of the SmartRack family, the SR45UBEXPND is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.

More from the Manufacturer

Form Factor: Rack-mountable

Color Family: Black

Product Color: Black

Dynamic/Rolling Weight Capacity: 1020.58 kg

Static/Stationary Weight Capacity: 1360.78 kg

Height: 83.75" (2127.25 mm)

Width: 23.63" (600.20 mm)

Depth: 43" (1092.20 mm)

Rack Height: 45U

Rack Width: 19" (482.60 mm)

Weight (Approximate): 66.68 kg

Package Contents:

• 45U 4-Post SmartRack Premium Open Frame Rack
• 50 x M6 Cage Nuts
• 50 x M6 Screws
• Mounting Hardware
• Stabilizing Brackets

Assembly Required: No

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 5 Year
