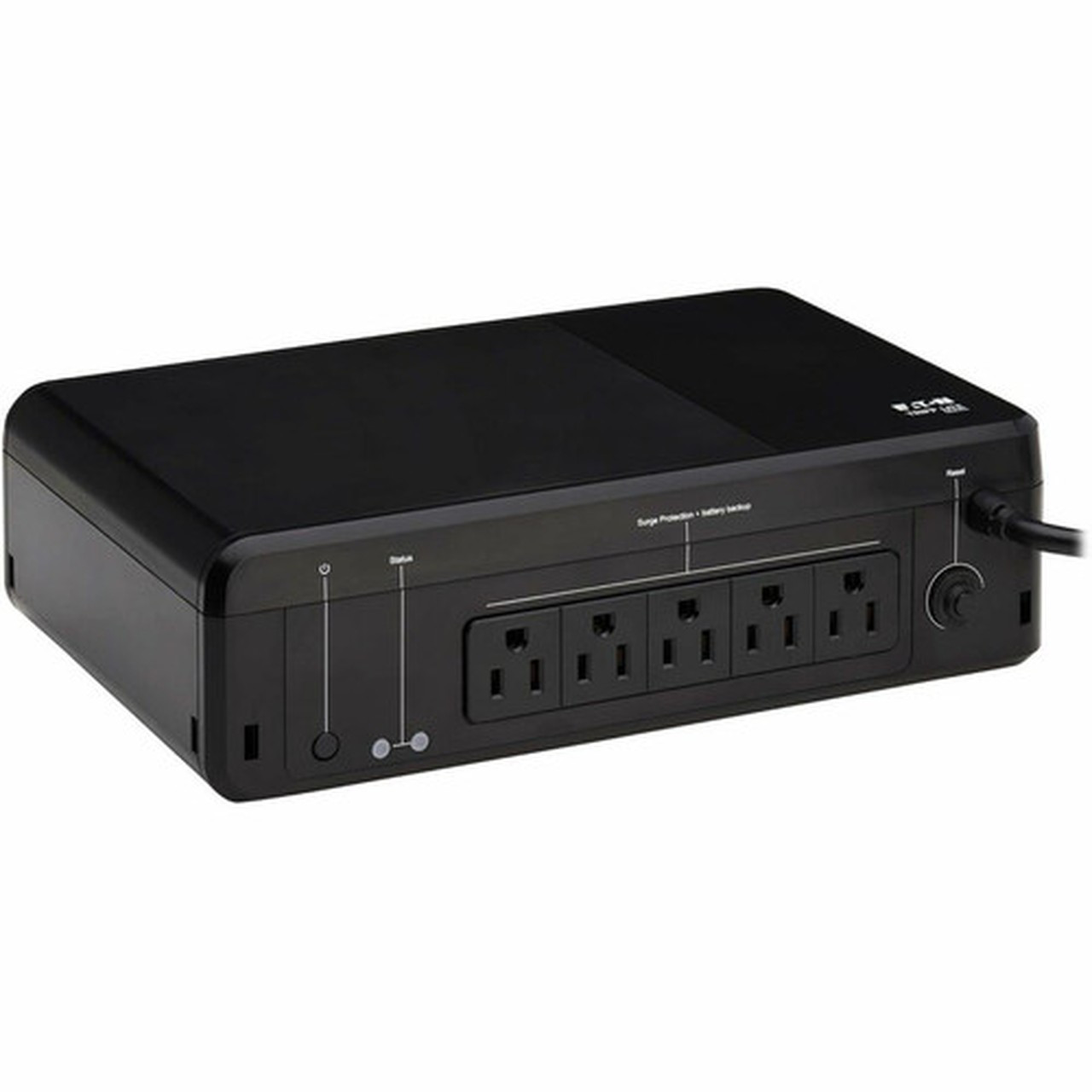

Tripp Lite by Eaton BC850R 850VA Desktop/Surface/Wall Mountable UPS - Desktop/Surface/Wall Mountable - 8 Hour Recharge - 2.50 Minute - (BC850R)

• Compact in size and offers highly efficient solution
• 450 W load capacity - backup power for your valuable electronics
• Keep your sensitive devices powered with a backup of up to 2.50 minute at full load
• 850 VA load capacity - work without any interruption during power outages

Marketing Information:

850VA/450W/120V Battery Backup for PCs and Retail Point-of-Sale Applications

The BC850R standby UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for computing, networking and point-of-sale equipment in retail, kiosks, food service, and light industrial environments. It's easy to set up in minutes. Just plug the BC850R into a properly grounded wall outlet, press the power button and connect equipment to the UPS outlets. For easy access, the input power cable, outlets, power button and status LEDs are all on the same side.

Allows Time to Back Up Critical Files During a Blackout

During short blackouts and brownouts, the BC850R switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the user-replaceable VRLA battery fully charged, so backup power is always available. The BC850R restarts automatically once power is restored, regardless of battery charge level, saving you a costly site visit.

Premium Protection from Surges and Line Noise Helps Your Equipment Perform Better

Rated for 190 joules of surge suppression, the BC850R and its five NEMA 5-15R outlets protect connected devices from the harmful effects of power surges. The BC850R also filters out disruptive electromagnetic interference (EMI) and radio frequency interference (RFI) that can complete a safe shutdown.

Easy Preventative Maintenance and Initial Troubleshooting

The BC850R's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.

Audible Alarm and Diagnostic LEDs Keep You Informed 24/7

An audible alarm and a red LED indicate a low battery or fault condition. A green LED indicates power and line/battery mode status.

Hardened Housing Compatible with Versatile Deployment Options

The rugged compact housing allows use in locations with uncontrolled temperature or humidity (operating temperature range: 32° to 122° F / 0° to 50° C). The BC850R's small size is suitable for desktop or floor placement. Keyhole mounting slots on the bottom enable wall mounting and are spaced in a 100 x 100 mm VESA pattern for mounting to the back of a monitor with the included hardware. Attachment points allow installation on a shelf or beam with user-supplied cable ties. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.


Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 5 x NEMA 5-15R
Number of Battery & Surge Outlets: 5
Cord Length: 5 ft
Transfer Time: 10 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Efficiency Detail: 97% (AC Mode)
Application/Usage:
• POS
• Network
• Retail
• Kiosk
• Industrial
• Food Service
• Home Network
• Wireless Access Point
• Desktop
• Computer Peripheral
• Home/Office
• Hospital

Features:
• Audible Alarm
• Cold Start Function
• Green Energy Saving

Load Capacity (VA): 850 VA
Load Capacity (Watt): 450 W
Input Voltage: 120 V AC
Input Current: 7.10 A
Output Voltage: 120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 190 J
Circuit Breaker: Yes
Output Power Factor: 0.53
Status Indicators:

LED Indicators:

• Low Battery or Fault Condition
• Power and Line/battery Mode Status

DC System Voltage: 12 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 2.50 Minute
Backup/Run Time (Half Load): 8 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Maximum Operating Elevation: 6561.68 ft (2000000 mm)
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 122°F (50°C)
Height: 3.15" (80.01 mm)
Width: 11.02" (279.91 mm)
Depth: 7.08" (179.83 mm)
Form Factor: Desktop/Surface/Wall Mountable
Weight (Approximate): 3.20 kg
Package Contents:
• BC850R 850VA Desktop/Surface/Wall Mountable UPS
• 4 x M4 x 12 mm Screws
• 4 x M4 x 20 mm Screws
• Quick Start Guide

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: RoHS
Limited Warranty: 2 Year
