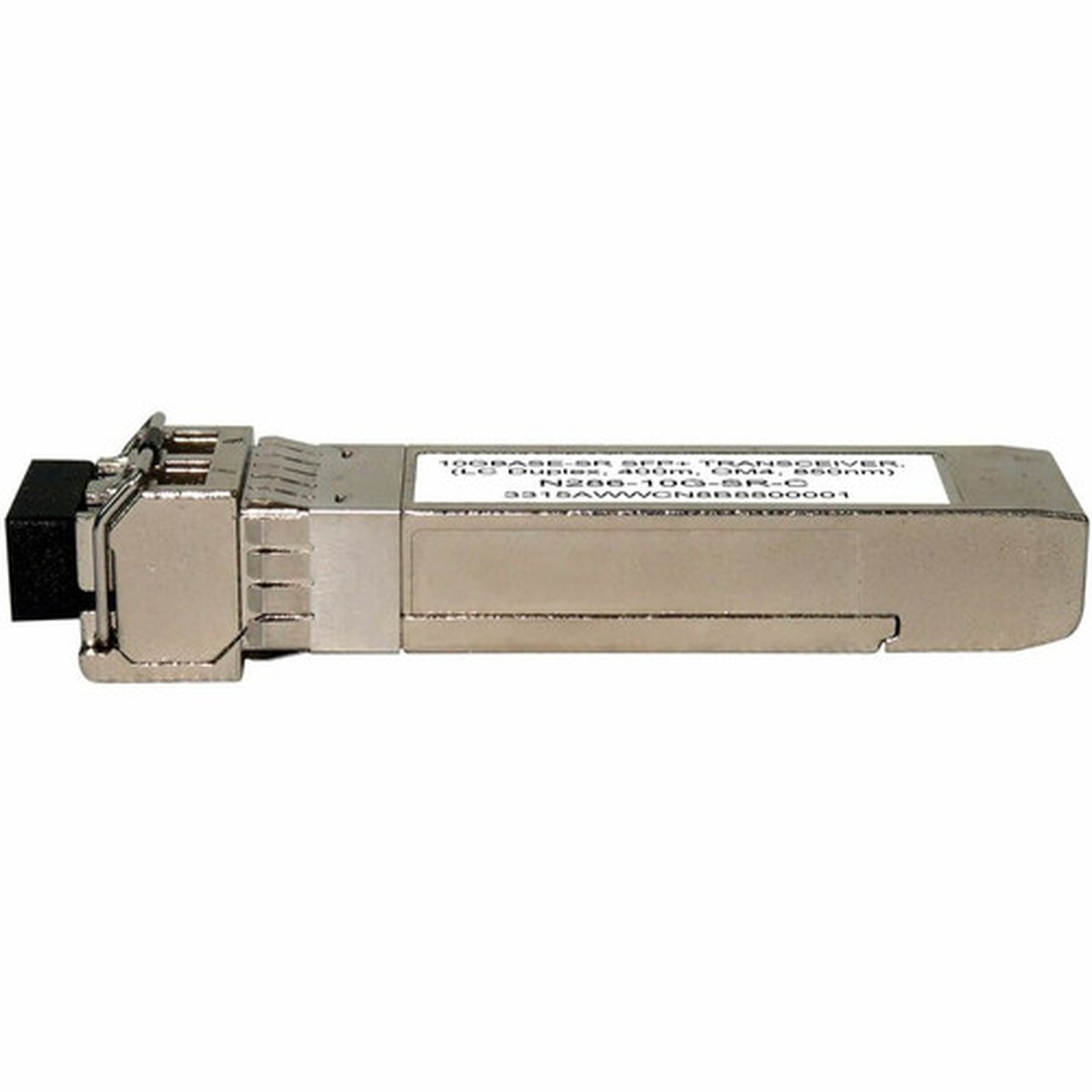

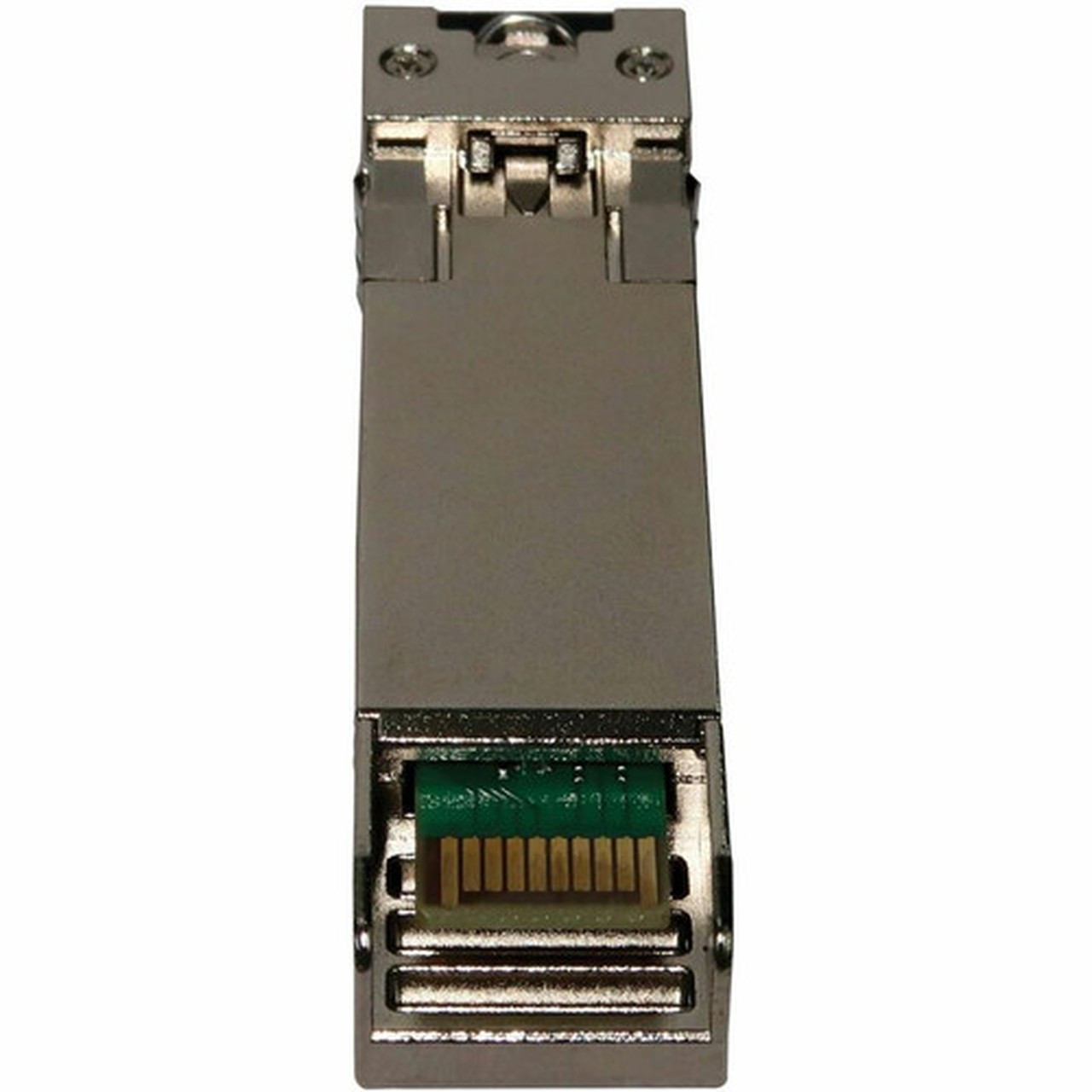

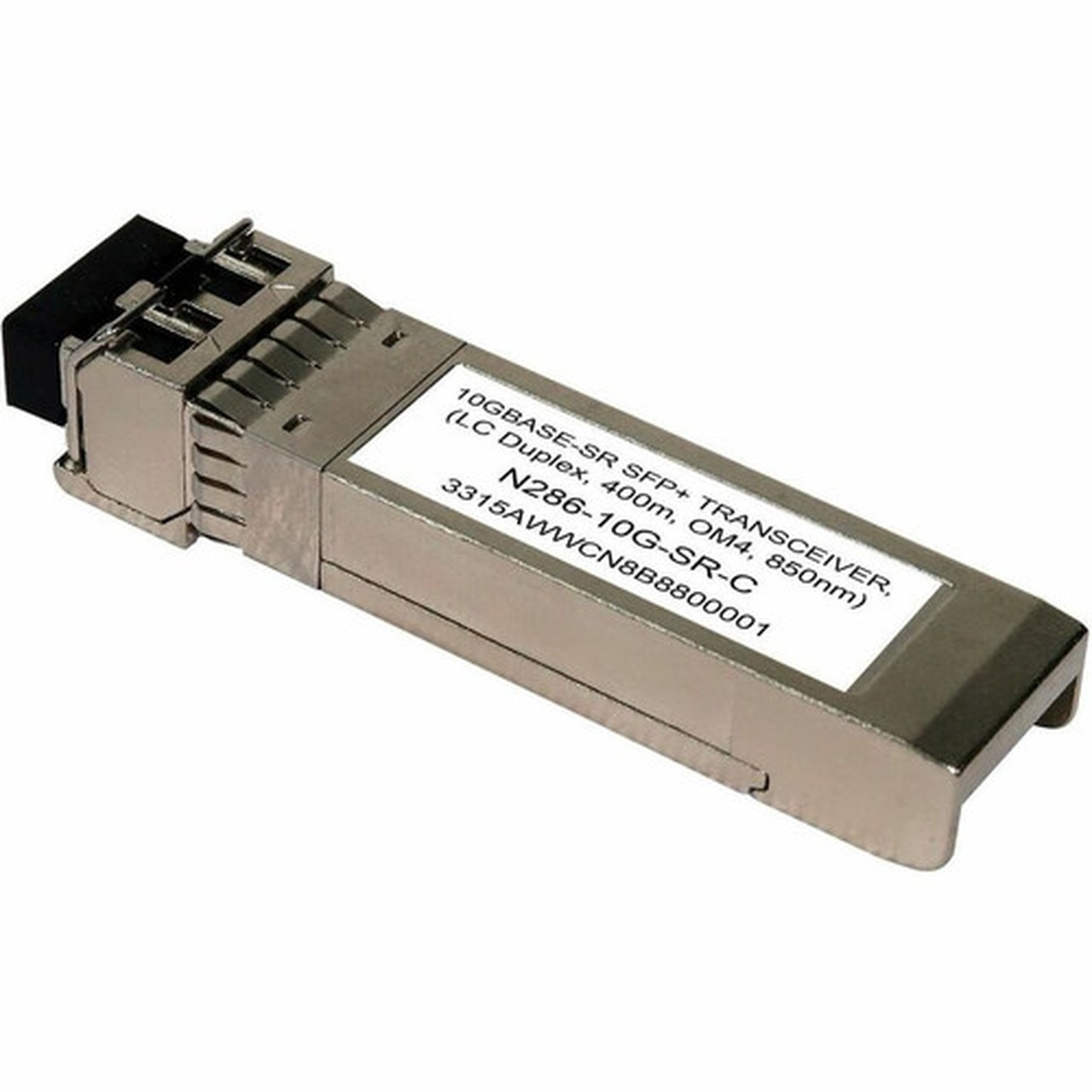

Tripp Lite by Eaton Cisco N286-10G-SR-C SFP+ Module - For Optical Network, Data Networking, Server, Switching Network - 1 x 10GBase-SR (N286-10G-SR-C)

Marketing Information:

SFP+ Transceiver for Connecting to Your Cisco Network Switch or Server

This SFP+ transceiver allows you to connect a multimode fiber optic cable to a 10 Gbps network router, server or switch. It transmits data up to 400 meters (1312 feet) using an 850 nm wavelength and supports bi-directional Gigabit Ethernet communication up to 10 Gbps. The metal housing protects against electromagnetic interference (EMI) and excessive power dissipation.

Functionally Equivalent to Cisco SFP-10G-SR Transceiver Module

The MSA-compliant N286-10G-SR-C functions just like the equivalent Cisco SFP-10G-SR transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the SFP-10G-SR.

Hot-Swappable for Installation Without Network Interruption

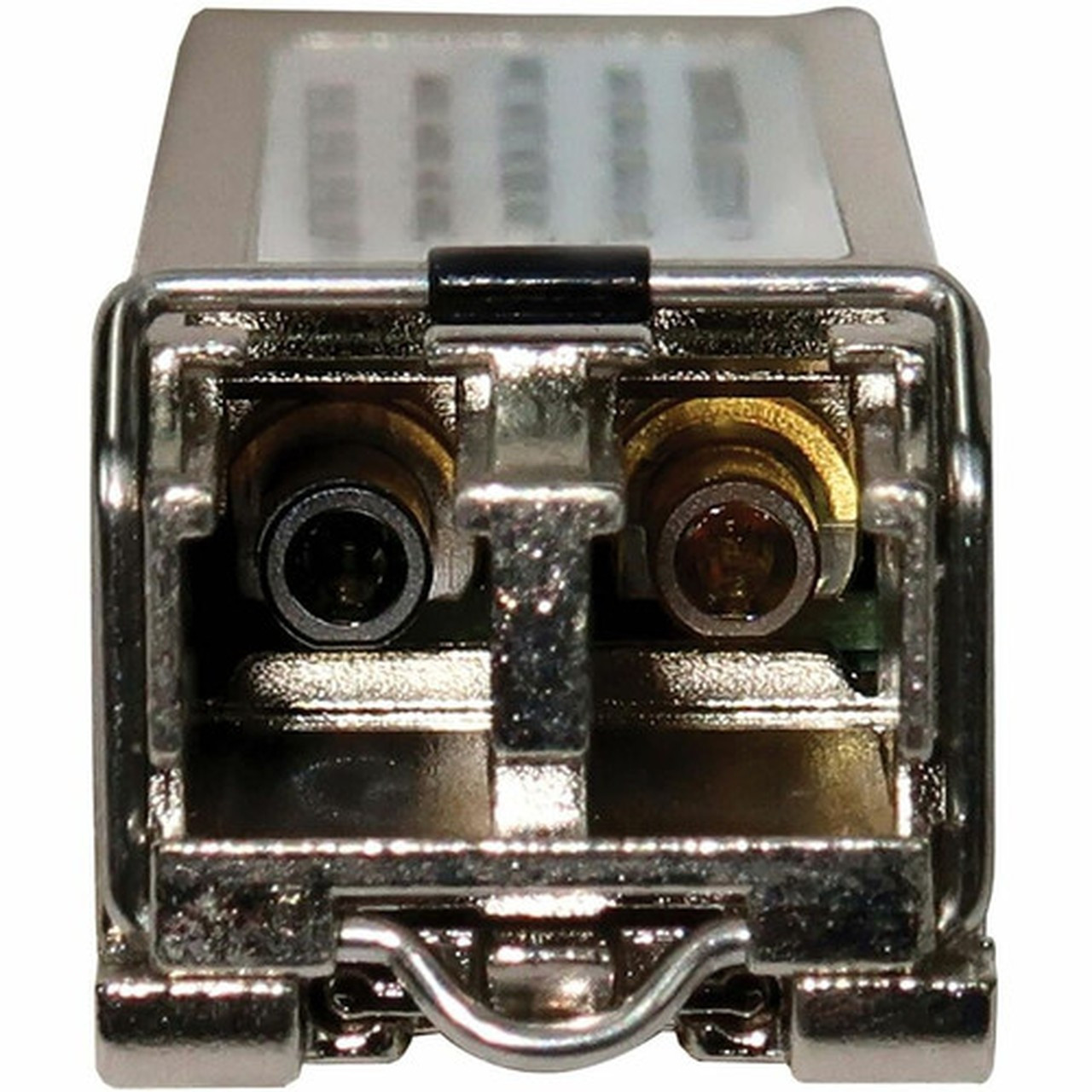

This input/output device is fully hot-swappable, so you can install it without a potentially costly 10 Gbps network shutdown or device reboot. Just plug the SFP+ end of the transceiver into your Cisco network device. The other end has an LC duplex connector to link with multimode fiber optic cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device.

Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring

DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage.

S-Class Transceiver Highly Recommended for Enterprise Networks

This S-class fiber transceiver module is better suited for enterprise network runs of shorter distances than other standard modules. The N286-10G-SR-C supports Ethernet protocol and operates within commercial temperature ranges (0 to 70°C).

Application/Usage: Optical Network,Data Networking,Server,Switching Network

Total Number of Ports: 1

Connector Type: LC

Interfaces/Ports Details: 1 x 10GBase-SR Network

Media Type Supported: Optical Fiber

Fiber Mode Supported: Multi-mode

Ethernet Technology: 10 Gigabit Ethernet

Network Technology: 10GBase-SR

Maximum Distance Supported: 1312.34 ft (400000 mm)

Form Factor: Hot-swappable

Height: 0.70" (17.78 mm)

Width: 3.10" (78.74 mm)

Depth: 5.70" (144.78 mm)

Weight (Approximate): 50 g

Compatibility:

MSA Compliant

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
