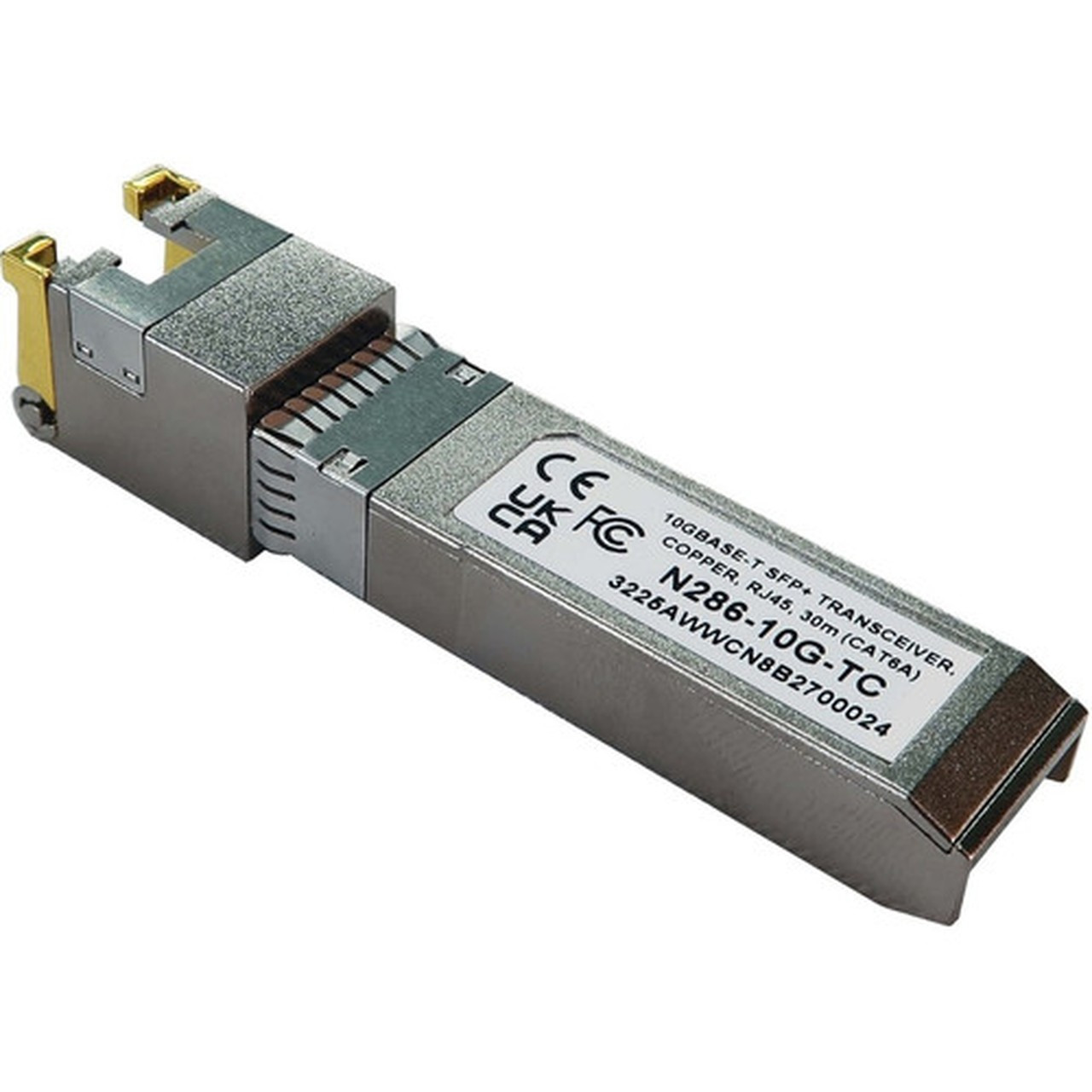

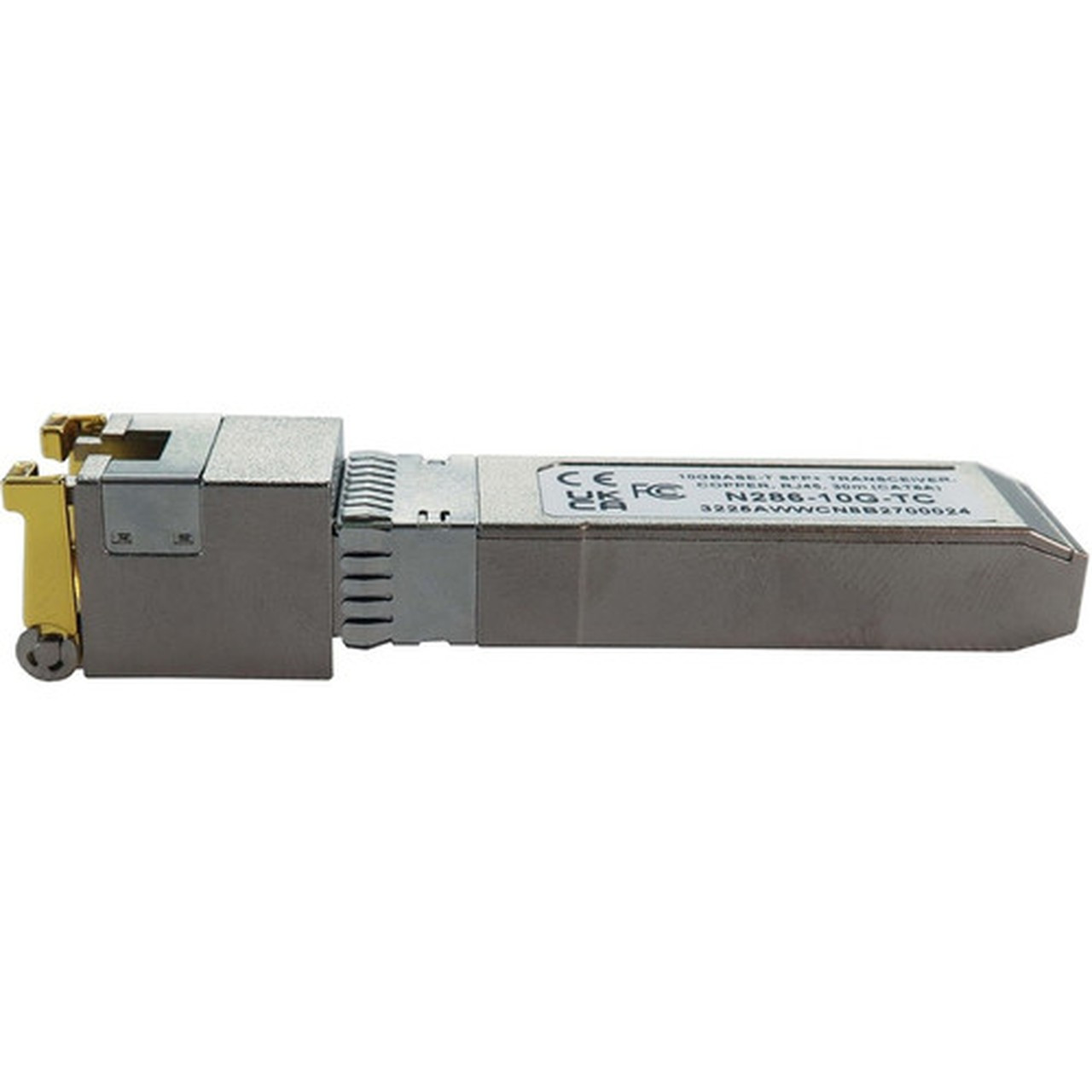

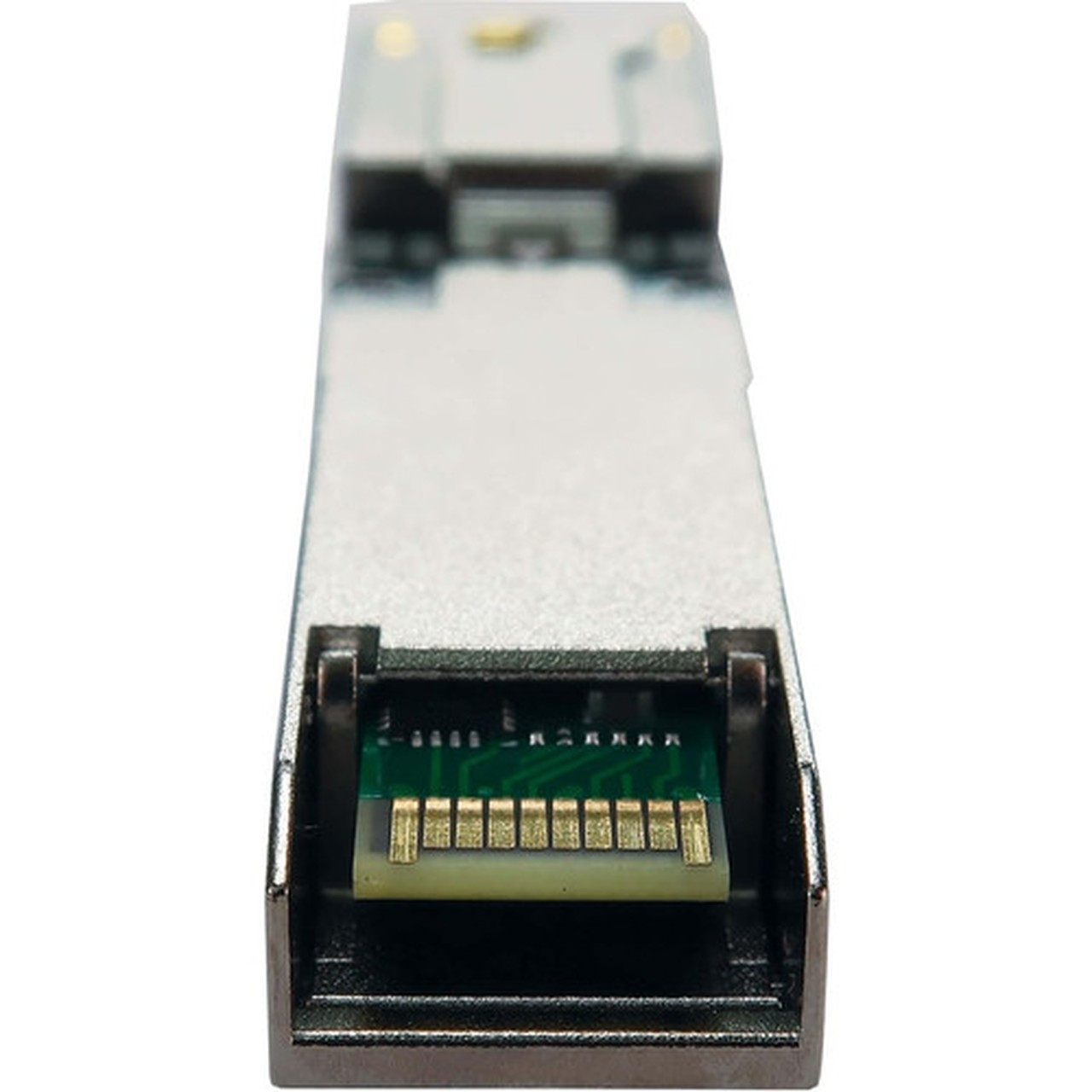

Tripp Lite by Eaton Cisco N286-10G-TC SFP+ Module - For Data Networking - 1 x RJ-45 10GBase-T Network LAN - Twisted Pair10 Gigabit - - (N286-10G-TC)

Marketing Information:

Features | SFP+ Transceiver for Connecting Copper Cabling to Your Cisco Network Switch or Router

This SFP+ transceiver allows you to connect a copper Cat6a cable to a 1/2.5/5/10 Gbps fiber network router, server or switch. It transmits data up to 98 feet (30 meters) and supports bi-directional Gigabit Ethernet communication up to 10 Gbps.

Functionally Equivalent to Cisco SFP-10G-T-X Transceiver Module

The MSA-compliant N286-10G-TC functions just like the equivalent Cisco SFP-10G-T-X transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the SFP-10G-T-X.

Hot-Swappable for Installation Without Network Interruption

This input/output device is fully hot-swappable, so you can install it without a potentially costly 1G/2.5G/5G/10G network shutdown or device reboot. Just plug the SFP end of the transceiver into your Cisco network device. The other end has an RJ45 connector to link with high-speed Cat6a patch cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device.

Premium Features for Superior Performance

The auto-sensing RJ45 port supports auto-negotiation and automatic MDI/MDI-X crossover to match the other end of the connection. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.

Application/Usage: Data Networking

Total Number of Ports: 1

Connector Type: RJ-45

Interfaces/Ports Details: 1 x RJ-45 10GBase-T Network LAN

Media Type Supported: Twisted Pair

Twisted Pair Cable Standard: Category 6a

Ethernet Technology: 10 Gigabit Ethernet

Network Technology: 10GBase-T

Maximum Distance Supported: 0.03 km

Maximum Data Transfer Rate: 10 Gbit/s

Form Factor: Hot-swappable

Height: 0.33" (8.38 mm)

Width: 0.53" (13.46 mm)

Depth: 2.68" (68.07 mm)

Compatibility:

• MSA Compliant
• Cisco or other compatible network Router, Server or Switch

Environmentally Friendly: Yes

Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
