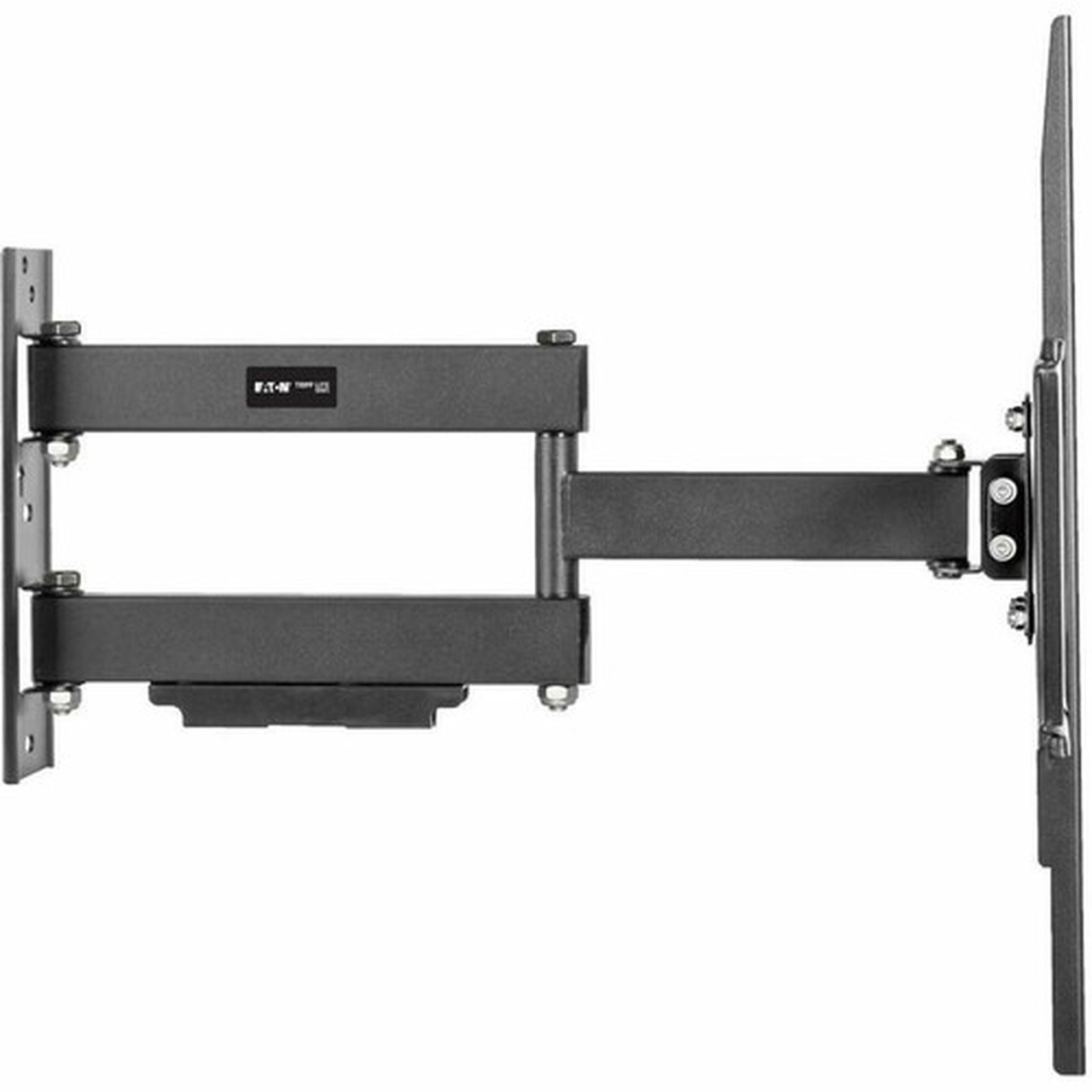

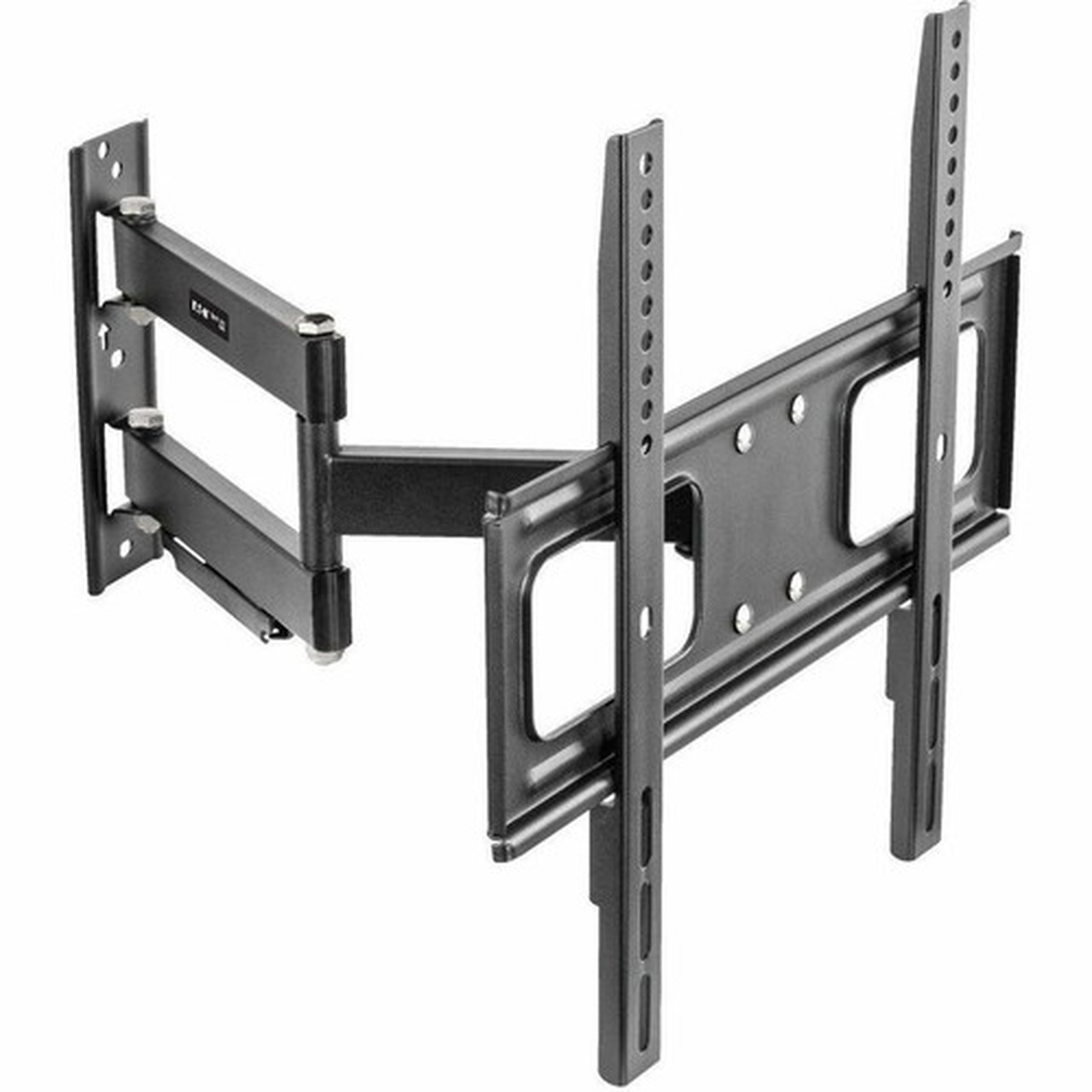

Tripp Lite by Eaton DWM3270XOUT Wall Mount for Monitor, HDTV, TV - Black - 1 Display(s) Supported - 80" Screen Support - 49.90 kg Load (DWM3270XOUT)

Marketing Information:

Outdoor TV Wall Mount Positions Your Monitor at the Perfect Viewing Angle

This VESA-compliant full-motion TV wall mount lets you place your outdoor display where everyone can see it best. It's ideal for not only digital signage, but also decks, balconies, patios, swimming pools and anywhere else people watch a television set or monitor outdoors. It fits most flat-panel TVs from 32 to 80 inches and supports up to 110 lbs (49.9 kgs).

Swivel and Tilt the Screen to Find the Perfect and Most Comfortable Viewing Angle

The full-motion articulating arm adjusts independently to optimize viewing angles, minimize glare and improve ergonomics. To minimize screen glare, reduce eye fatigue and increase viewing comfort, the mount features -20° to +10° tilt and -90° to +90° swivel for positioning your screen just right. Easy -3° to +3° screen adjustment lets you quickly find just the right angle without interrupting your day.

VESA-Compliant Mounting Ensures Display Compatibility

VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this TV wall mount supports the following VESA mounting hole patterns: 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300 and 400 x 400. Hardware for mounting on wood or concrete block is included.

Sure to Stand Up Against Weather and Other Outdoor Elements

The weatherproof steel frame, high-grade powder-coated finish, stainless steel hardware and wall plate covers are specifically designed to withstand the stress of repeated adjustments and outdoor use. Monitor cables clip to the arm to eliminate clutter and keep your outdoor setting organized.

More from the Manufacturer

Device Supported: Monitor,HDTV,TV

Number of Displays Supported: 1

Maximum Load Capacity: 49.90 kg

Maximum Screen Size Supported: 80"

Features: Tilt,90° Swivel,Articulating,Durable,Full Motion,Adjustable Arm,Weather Proof

Color Family: Black

Product Color: Black

Product Material: Steel

Mounting Pattern: 200 x 200,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400

Height: 18.90" (480.06 mm)

Width: 16.90" (429.26 mm)

Depth: 8.60" (218.44 mm)

Weight (Approximate): 3.81 kg

Package Contents:

• DWM3270XOUT Wall Mount
• 2 x Adapter Brackets
• Hex Wrench
• 4 x M5 x 14 screws
• 4 x M6 x 14 screws
• 4 x M6 x 30 screws
• 4 x M8 x 30 screws
• 4 x M8 x 50 screws
• 4 x D6 washers
• 4 x D8 washers
• 8 x Small spacers
• 8 x Large spacers
• 4 x Tapping screws
• 4 x Concrete anchors
• 4 x Washers
• Owner's manual

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS) 3,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Limited Warranty: 5 Year
