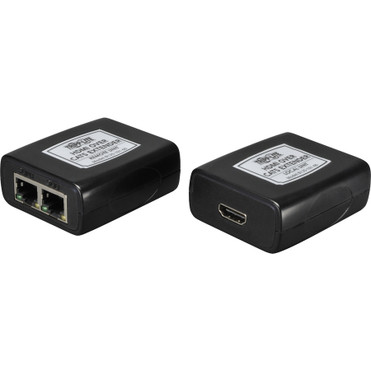

Tripp Lite HDMI Over Dual Cat6 Extender Kit For 150 Ft Range With Quad Network Support Device Output Eaton Input By Mm X B125-101-60
Write a Review
Tripp Lite by Eaton
Tripp Lite HDMI Over Dual Cat6 Extender Kit For 150 Ft Range With Quad Network Support Device Output Eaton Input By Mm X B125-101-60
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Local Transmitter and Receiver Units
- External Power Supply ( Input: 100-240V, 50/60Hz, 0.5A - Output: 5V, 2A )
- Screwdriver for Equalization Adjustment
- Owner's Manual
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 150 ft (45720 mm)
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 4
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Color Family: Black
Product Color: Black
Transmitter Height: 0.75" (19.05 mm)
Transmitter Width: 2.38" (60.33 mm)
Transmitter Depth: 1.75" (44.45 mm)
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 1 Year
- Extends a 1080p @ 60Hz (or 1920 x 1200) signal up to 150 ft. using 24Awg, Solid Wire Cat6* cabling (Tripp Lite N202-Series)
- Extends a 3D signal up to 125 ft. using 24Awg, Solid Wire Cat6* cabling (Tripp Lite N202-Series)
- Supports 24-bit True Color (8-bits per channel)
- Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
- Supports HDCP, EDID and DDC
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- *When using Cat5 cable, the maximum extension distance is reduced by 50 ft.
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B125-101-60 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite by Eaton |
| Product Model | B125-101-60 |
| Product Name | HDMI over Dual Cat6 60Hz Extender Kit |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 150 ft (45720 mm) |
| Video | |
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 0.75" (19.05 mm) |
| Transmitter Width | 2.38" (60.33 mm) |
| Transmitter Depth | 1.75" (44.45 mm) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite N202-050-BL Cat6 Patch Cable - Category 6 - 50ft - 1 x RJ-45 Male Network - 1 x RJ-45 Male Network - Blue |
| SKU | N202-050-BL |
| Sale Price | $24.09 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
1 Year| Qty | Price | Available |
|---|
