- PDU121506 13-Outlets PDU
- Rack-mounting hardware
- Owner's Manual
Marketing Information:
Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

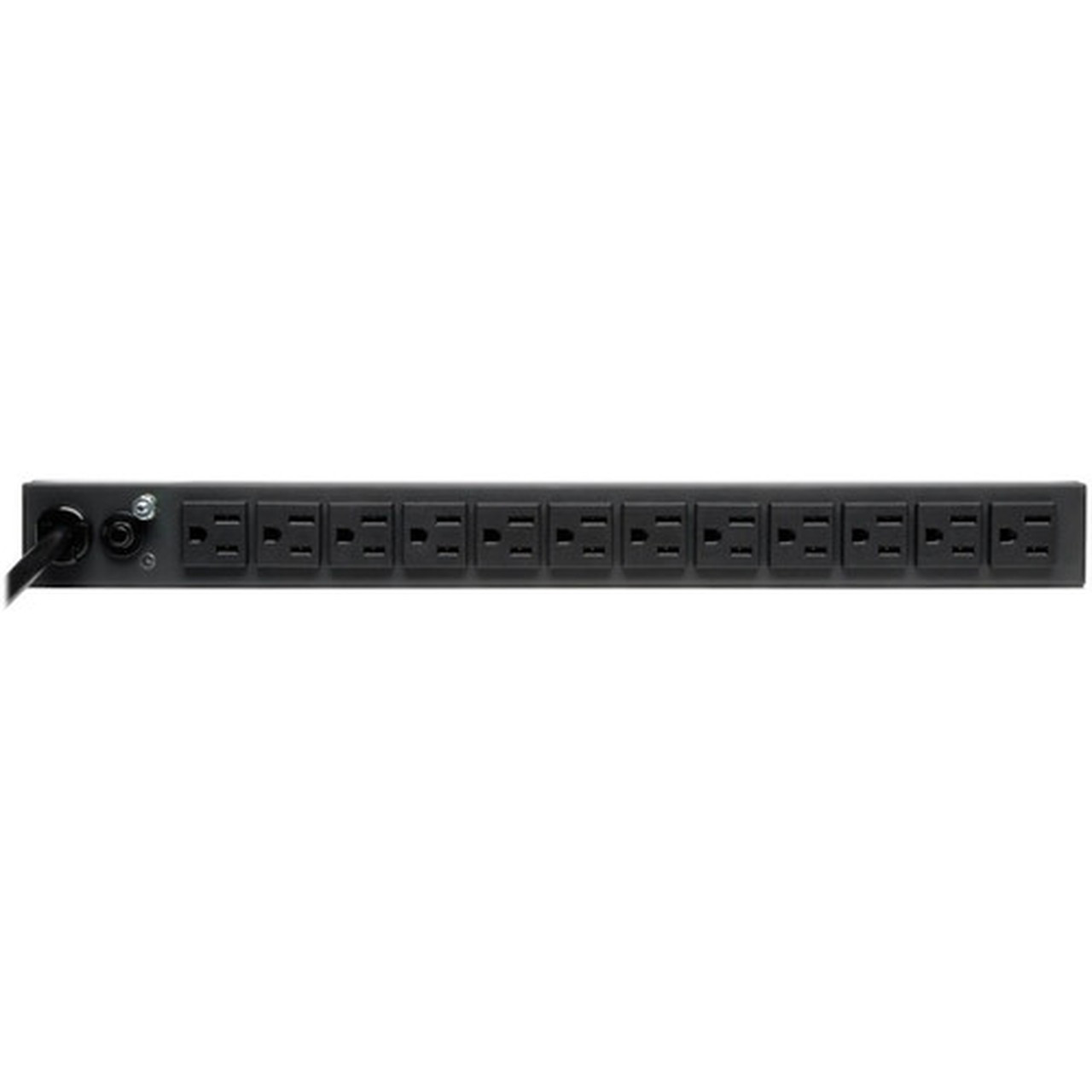

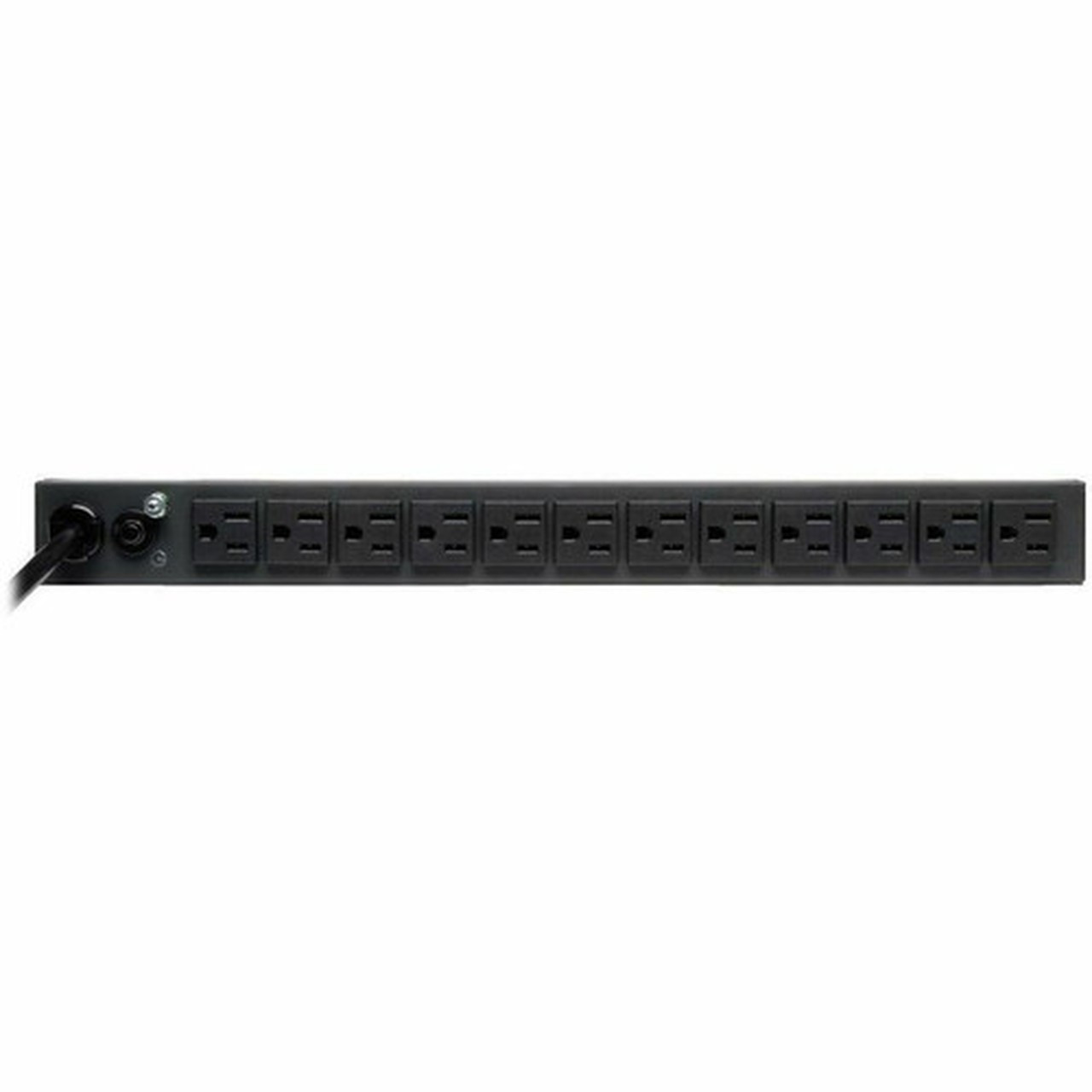

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU121506 features a single breakered load bank with 13 NEMA 5-15R outlets - 12 in the rear and one in front. A six-foot cord with NEMA 5-15P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 15A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. With a compatible rack and Tripp Lite's PDUSIDEBRKT accessory (sold separately), you can adapt the PDU121506 for vertical 0U rack-mounting as well.
PDU Type: Basic
Phase: Single Phase

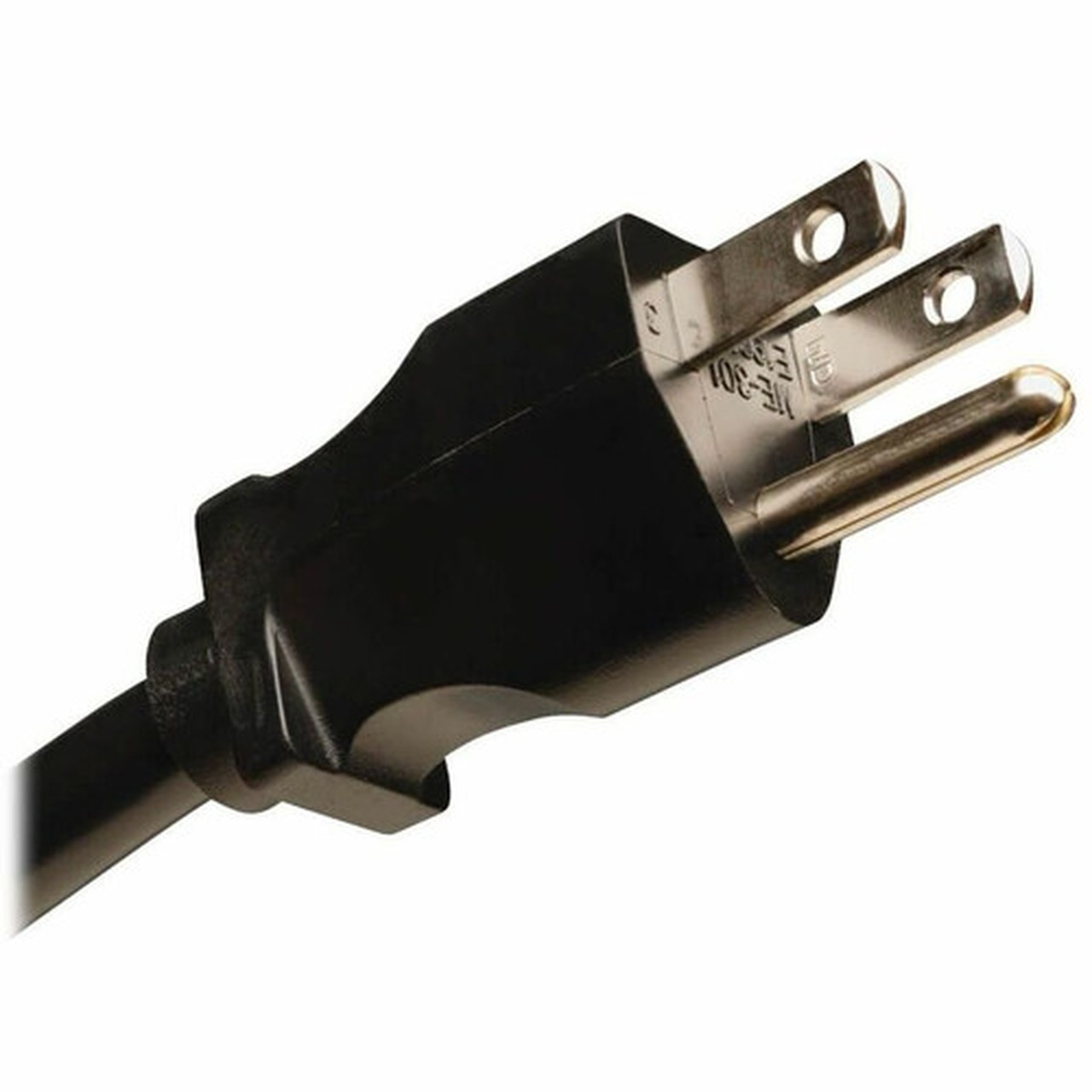

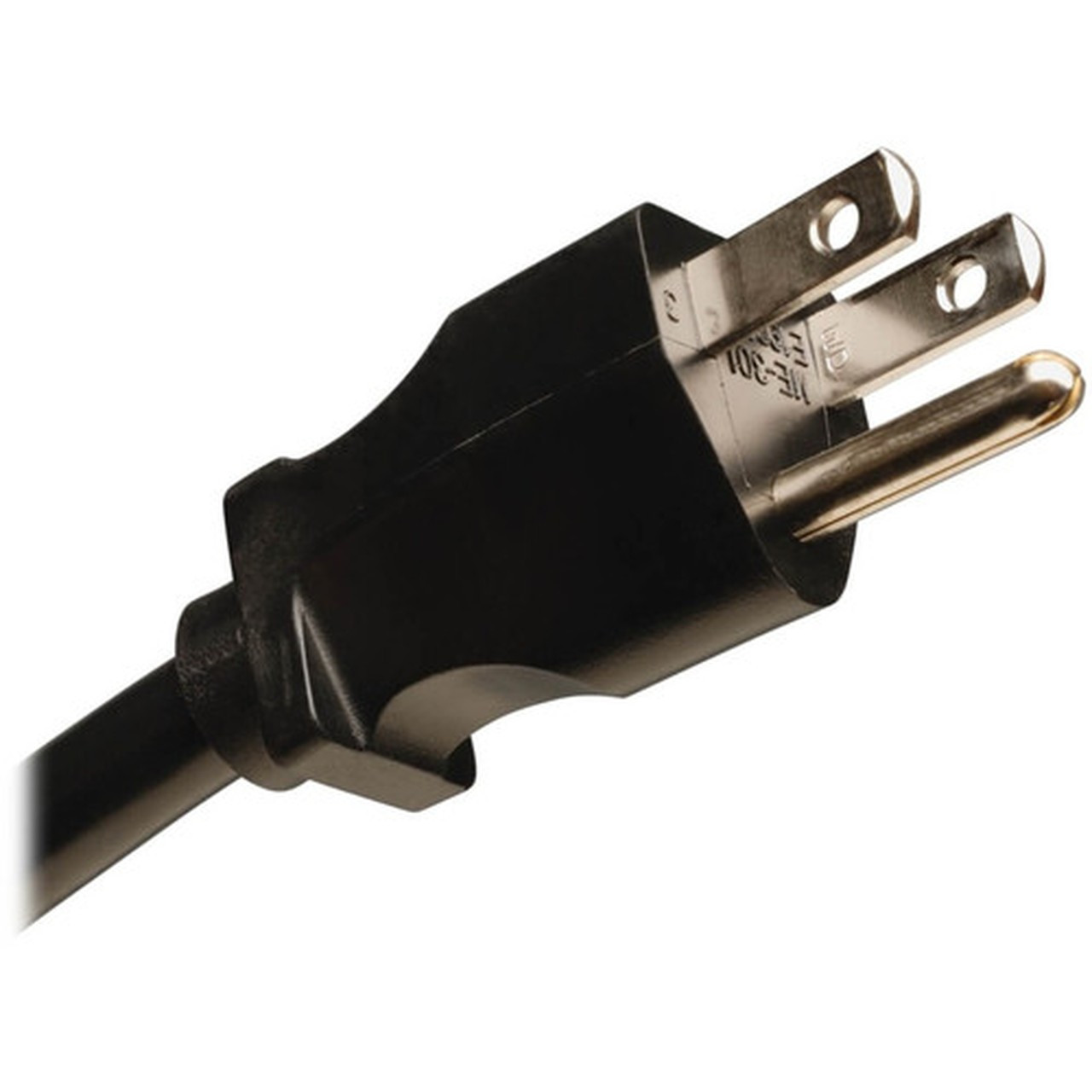

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 13 x NEMA 5-15R
Protection Type: Overload Protection
Input Voltage: 120 V AC
Output Voltage: 100 V AC,120 V AC,127 V AC
Power Rating (Watt): 1.90 kW
Input Current: 15 A
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Rack Height: 1U
Cord Length: 6 ft
Height: 1.75" (44.45 mm)
Width: 17.50" (444.50 mm)
Depth: 4.50" (114.30 mm)
Weight (Approximate): 2.22 kg
Package Contents:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- PDU improves efficiency, uptime and growth of data centers
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
[custom-specifications]
Specifications | |
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | PDU121506 |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Model | PDU121506 |
Product Name | PDU121506 13-Outlets PDU |
Product Type | PDU |
Technical Information | |
PDU Type | Basic |
Phase | Single Phase |
Plug/Connector Type | NEMA 5-15P |
Receptacle Type | NEMA 5-15R |
Receptacle Detail | 13 x NEMA 5-15R |
Protection Type | Overload Protection |
Power Description | |
Input Voltage | 120 V AC |
Output Voltage | 100 V AC,120 V AC,127 V AC |
Power Rating (Watt) | 1.90 kW |
Input Current | 15 A |
Physical Characteristics | |
Mounting Orientation | Horizontal |
Mount Type | Rack-mountable |
Rack Height | 1U |
Cord Length | 6 ft |
Height | 1.75" (44.45 mm) |
Width | 17.50" (444.50 mm) |
Depth | 4.50" (114.30 mm) |
Weight (Approximate) | 2.22 kg |
Miscellaneous | |
Package Contents |
|
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 5 Year |
[/custom-specifications]
[custom-options]

Product | Tripp Lite by Eaton Warranty/Support - Extended Warranty - 1 Year - Warranty - Maintenance - Labor - Physical |
SKU | WEXT1A |
Sale Price | $8.87 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Infomartion
5 Year
