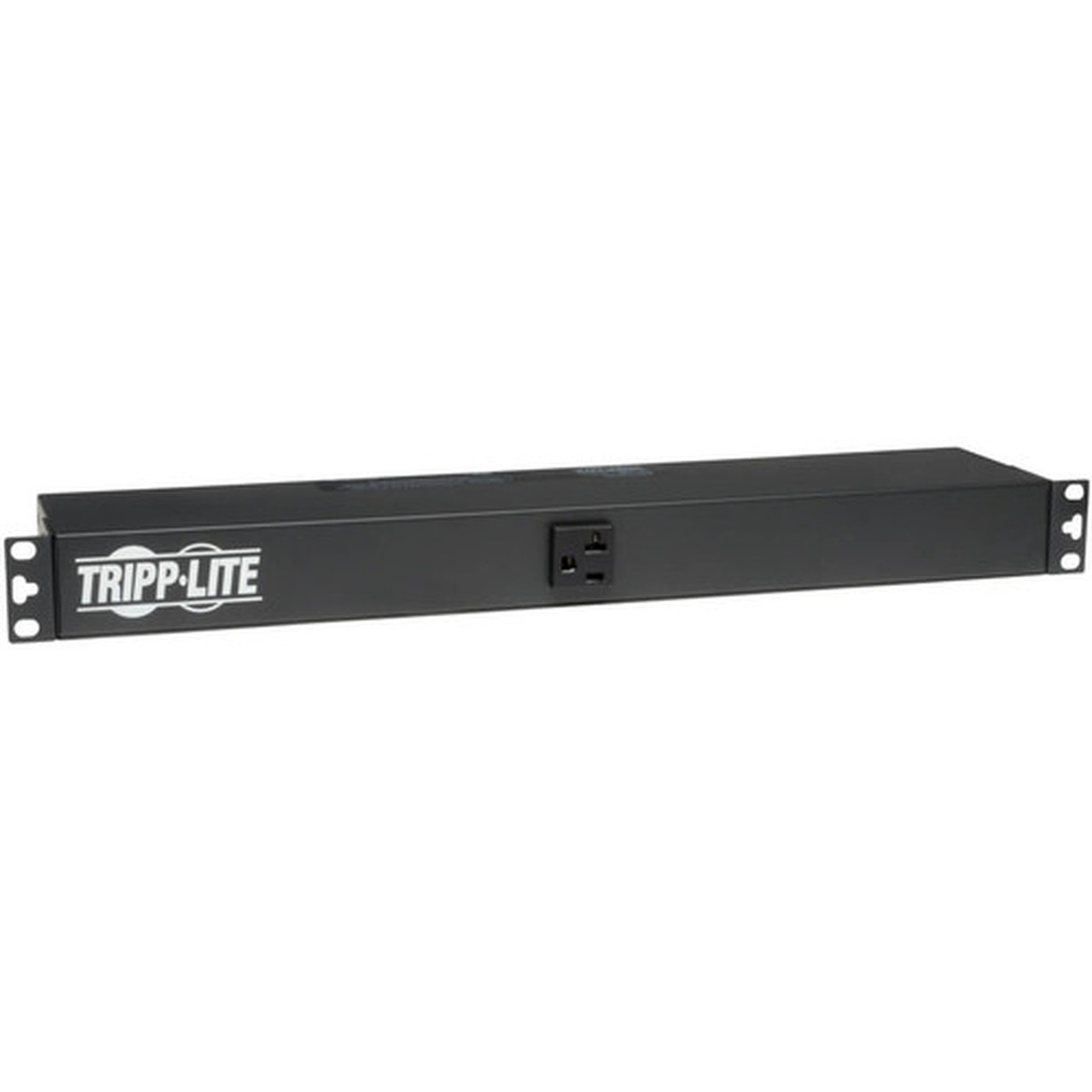

Tripp Lite by Eaton PDU1226 13-Outlets PDU - Basic - NEMA 5-20P - 13 x NEMA 5-15/20R - 120 V AC - 1U - Horizontal/Vertical - (PDU1226)

Marketing Information:

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU1226 features a single breakered load bank with 13 NEMA 5-15/20R outlets - 12 in the rear and one in front. A six-foot cord with NEMA 5-20P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment

The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices

The reversible all-metal housing comes with mounting brackets for installation in 1U or 0U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.

PDU Type: Basic

Phase: Single Phase

Plug/Connector Type: NEMA 5-20P

Receptacle Type: NEMA 5-15/20R

Receptacle Detail: 13 x NEMA 5-15/20R

Protection Type: Overload Protection,Circuit Protection,Accidental Power Shutdown

Input Voltage: 120 V AC

Output Voltage: 100 V AC,120 V AC,127 V AC

Power Rating (Watt): 2.50 kW

Input Current: 20 A

Mounting Orientation: Horizontal/Vertical

Mount Type: Rack-mountable,Wall-mountable

Rack Height: 1U

Height: 1.75" (44.45 mm)

Width: 17.50" (444.50 mm)

Depth: 4.50" (114.30 mm)

Weight (Approximate): 2.36 kg

Package Contents:

• PDU1226 13-Outlets PDU
• Rack-mounting Hardware
• Owner's Manual

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 5 Year
