Tripp Lite by Eaton PDU3V6H50A 45-Outlets PDU - Basic - Hubbel CS8365C 50A - 36 x IEC 60320 C13, 6 x IEC 60320 C19, 3 x NEMA L6-30R - (PDU3V6H50A)

Marketing Information:

3-Phase 208V PDU Distributes Network-Grade Power to Multiple Loads

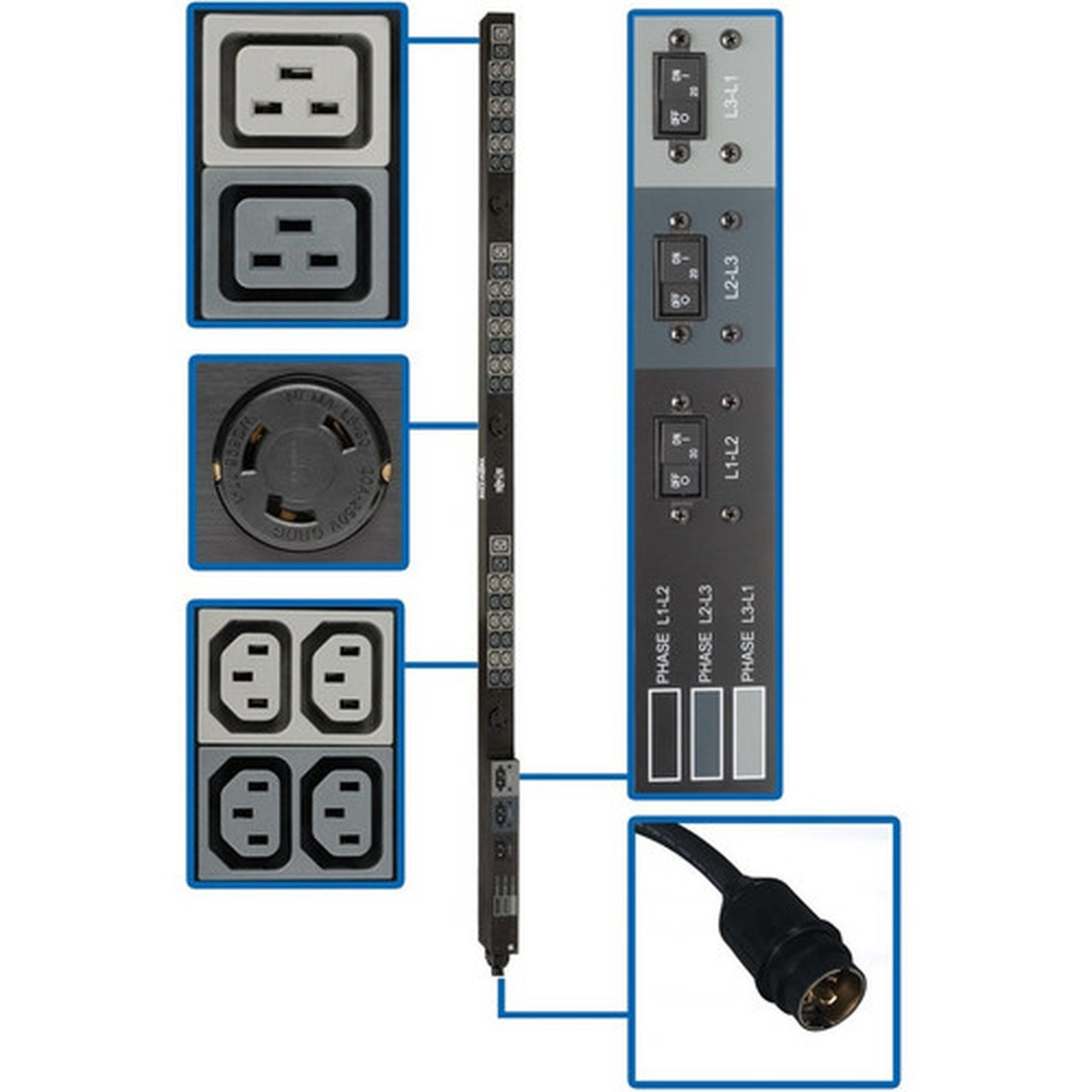

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3V6H50A features 36 C13, six C19 and three NEMA L6-30R outlets in three breakered single-phase output load banks for connecting equipment. A six-foot (1.8-meter) cord with Hubbell 50A CS8365C (3P+E) 3-phase input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Easy to Install Vertically in an EIA-Standard 19 in. Rack

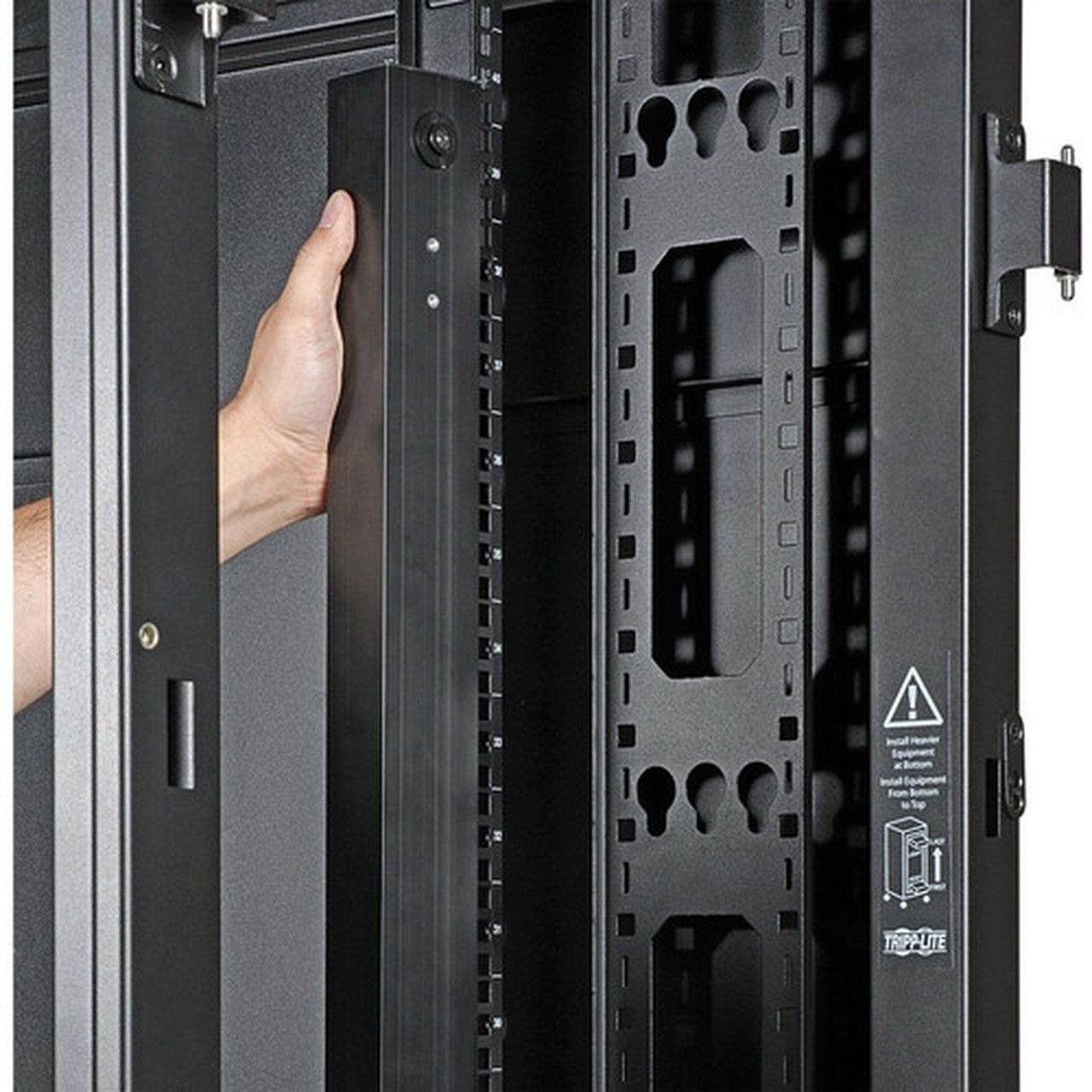

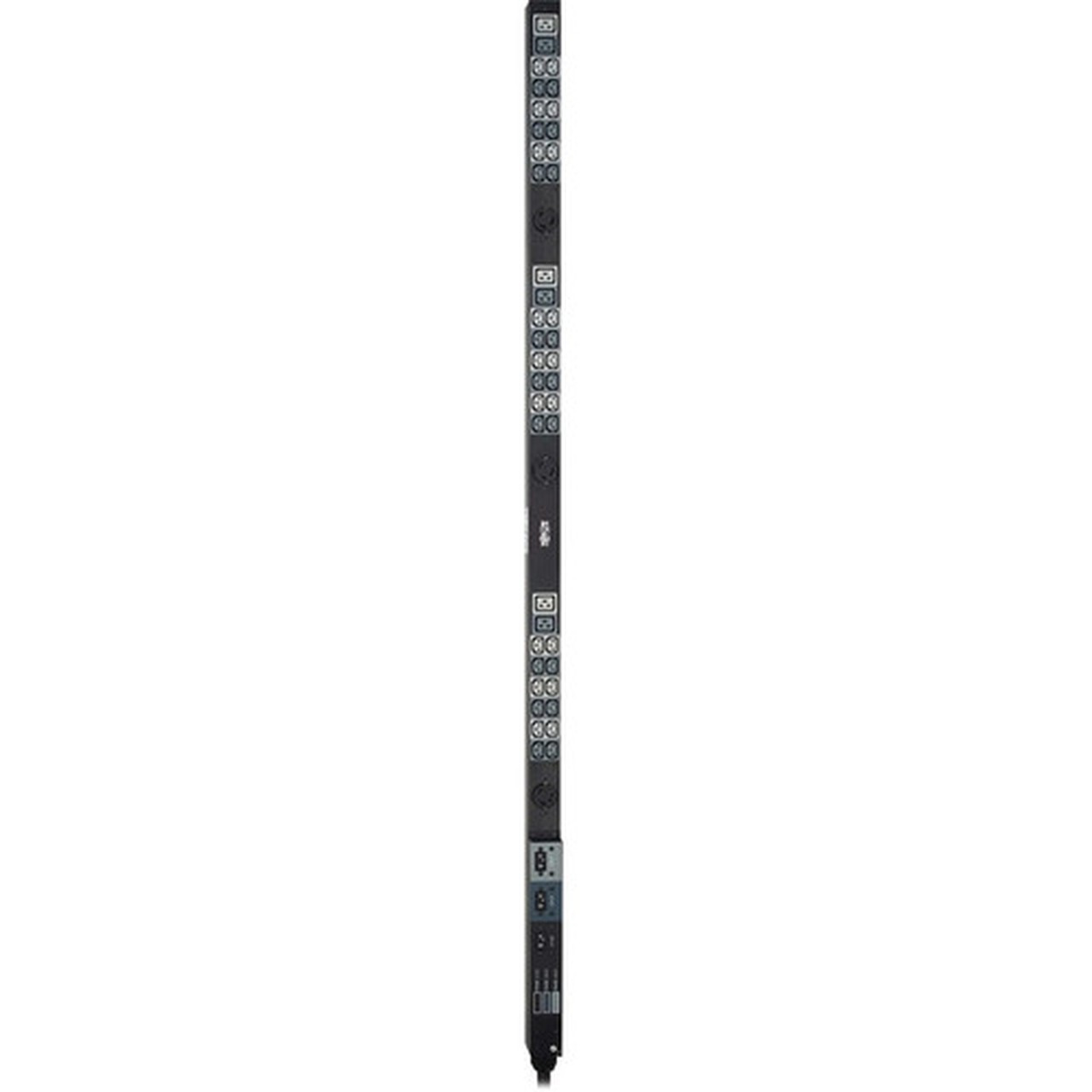

The 70-inch 0U PDU's all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter. The PDU's switchless design helps prevent an accidental shutdown, which could lead to costly downtime.

TAA-Compliant for GSA Schedule Purchases
The PDU3V6H50A is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

PDU Type: Basic

Phase: Three Phase

Plug/Connector Type: Hubbel CS8365C 50A

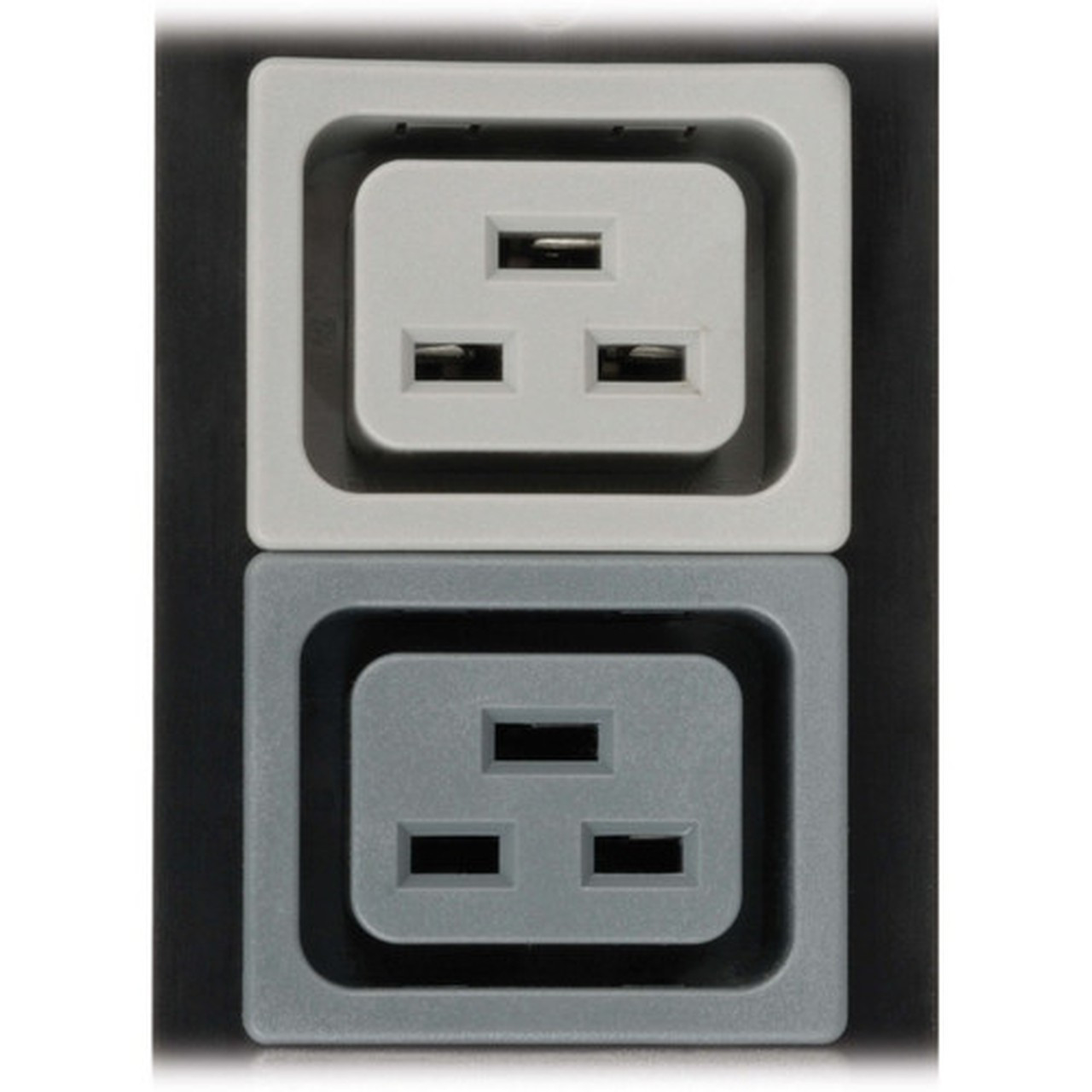

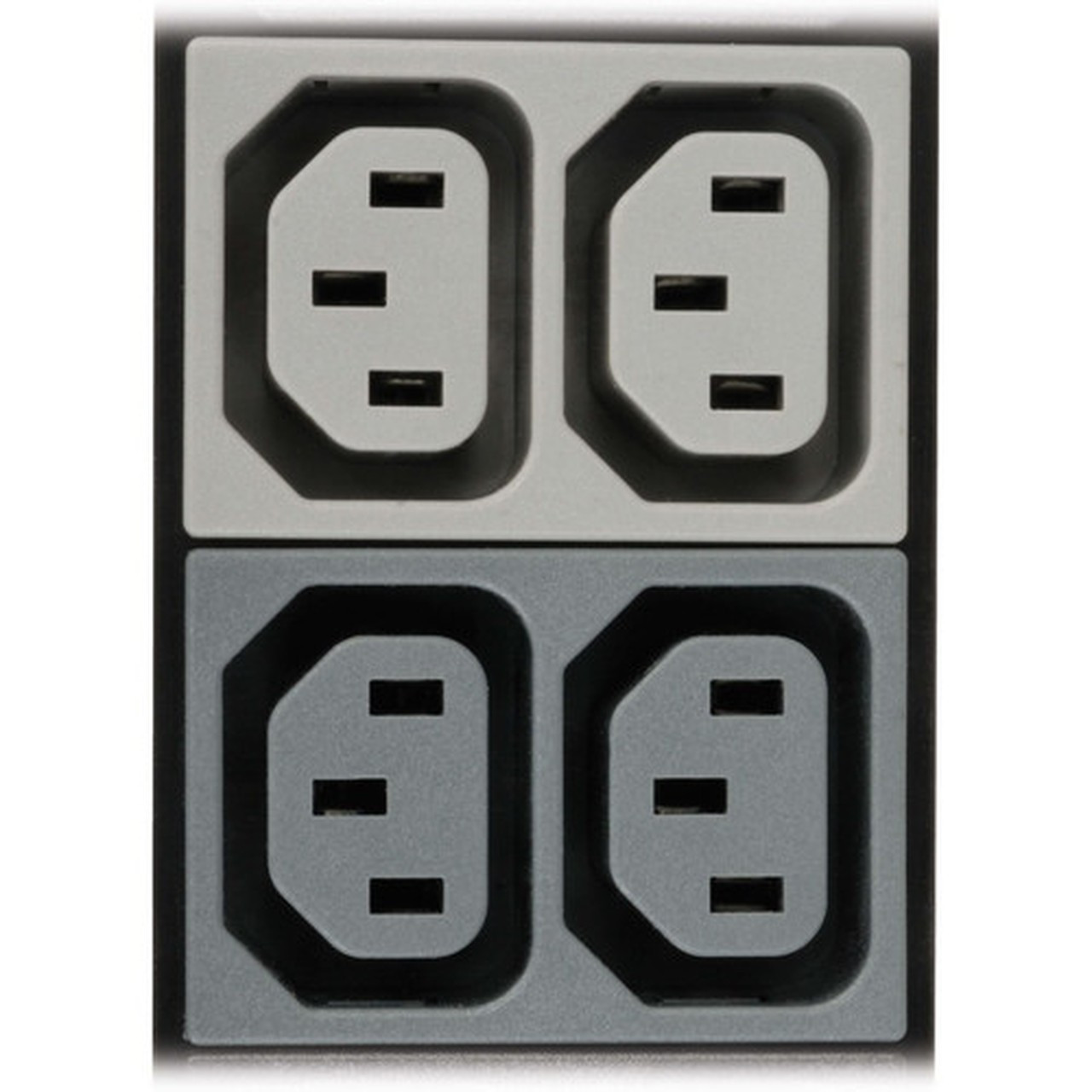

Receptacle Type: IEC 60320 C13,IEC 60320 C19,NEMA L6-30R

Receptacle Detail: 36 x IEC 60320 C13,6 x IEC 60320 C19,3 x NEMA L6-30R

Protection Type: Accidental Power Shutdown,Overload Protection,Circuit Protection

Locking Receptacles: Cord Retention Bracket

Input Voltage: 230 V AC

Output Voltage: 208 V AC

Power Rating (Watt): 14.40 kW

Input Current: 40 A

Mounting Orientation: Vertical/Toolless

Mount Type: Rack-mountable

Rack Height: 0U

Height: 70" (1778 mm)

Width: 2.65" (67.31 mm)

Depth: 1.73" (43.94 mm)

Weight (Approximate): 6.58 kg

Package Contents:

• PDU3V6H50A 45-Outlets PDU
• Plug Retention Brackets With Installation Hardware
• Rack-mounting Hardware
• Owner's Manual

Country of Origin: Taiwan

TAA Compliant: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
