Tripp Lite by Eaton PDUH20-ISO6 14-Outlets PDU - Basic - NEMA L5-20P, NEMA 5-20P - 2 x NEMA 5-15R, 12 x NEMA 5-15/20R - 120 V AC - 1U (PDUH20-ISO6)

(No reviews) Write a Review
$405.44
$393.28
$241.10
(You save $164.34 )
SKU: PDUH20-ISO6
UPC: 37332255990
Weight: 5.60 LBS
Adding to cart… The item has been added
    Marketing Information:

    Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

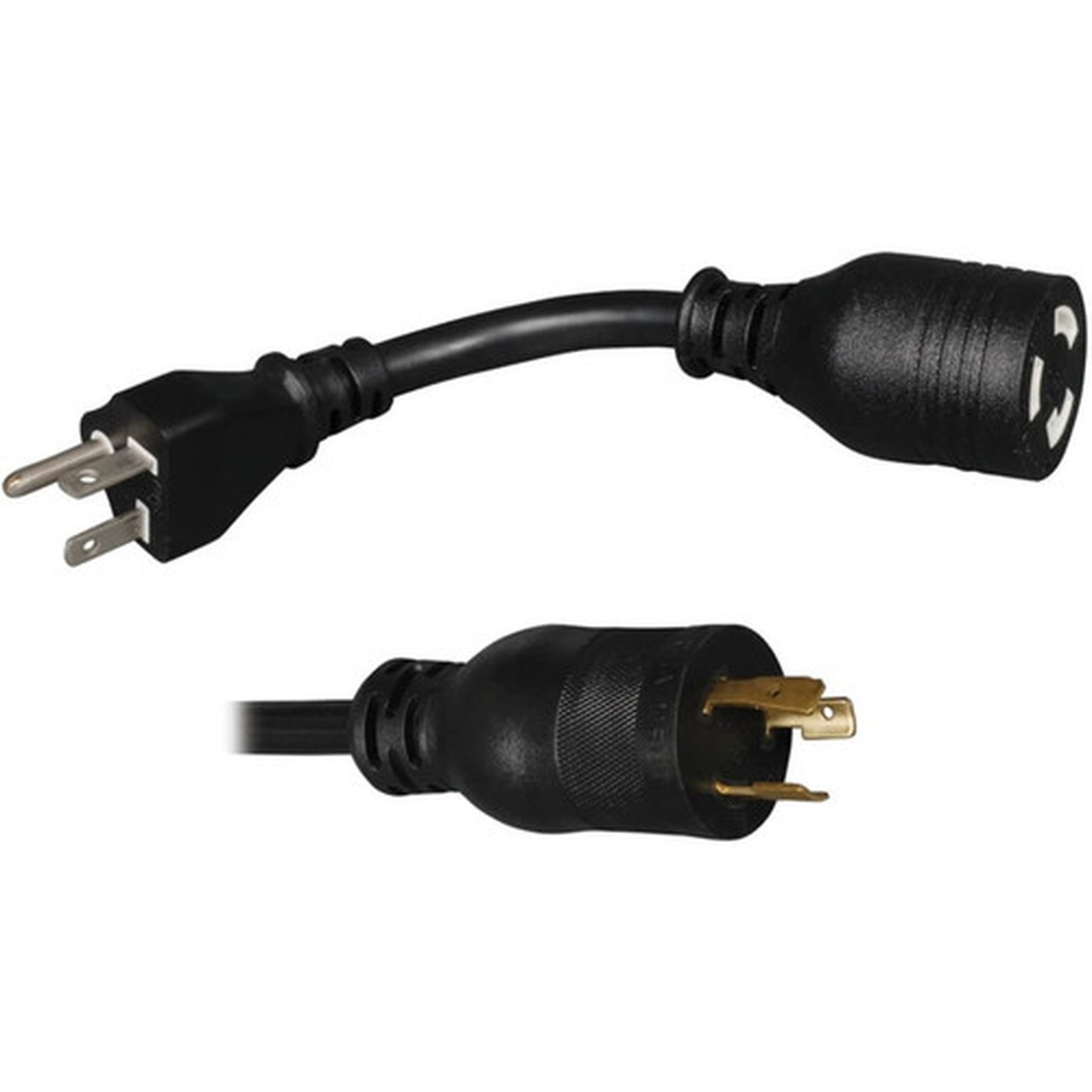

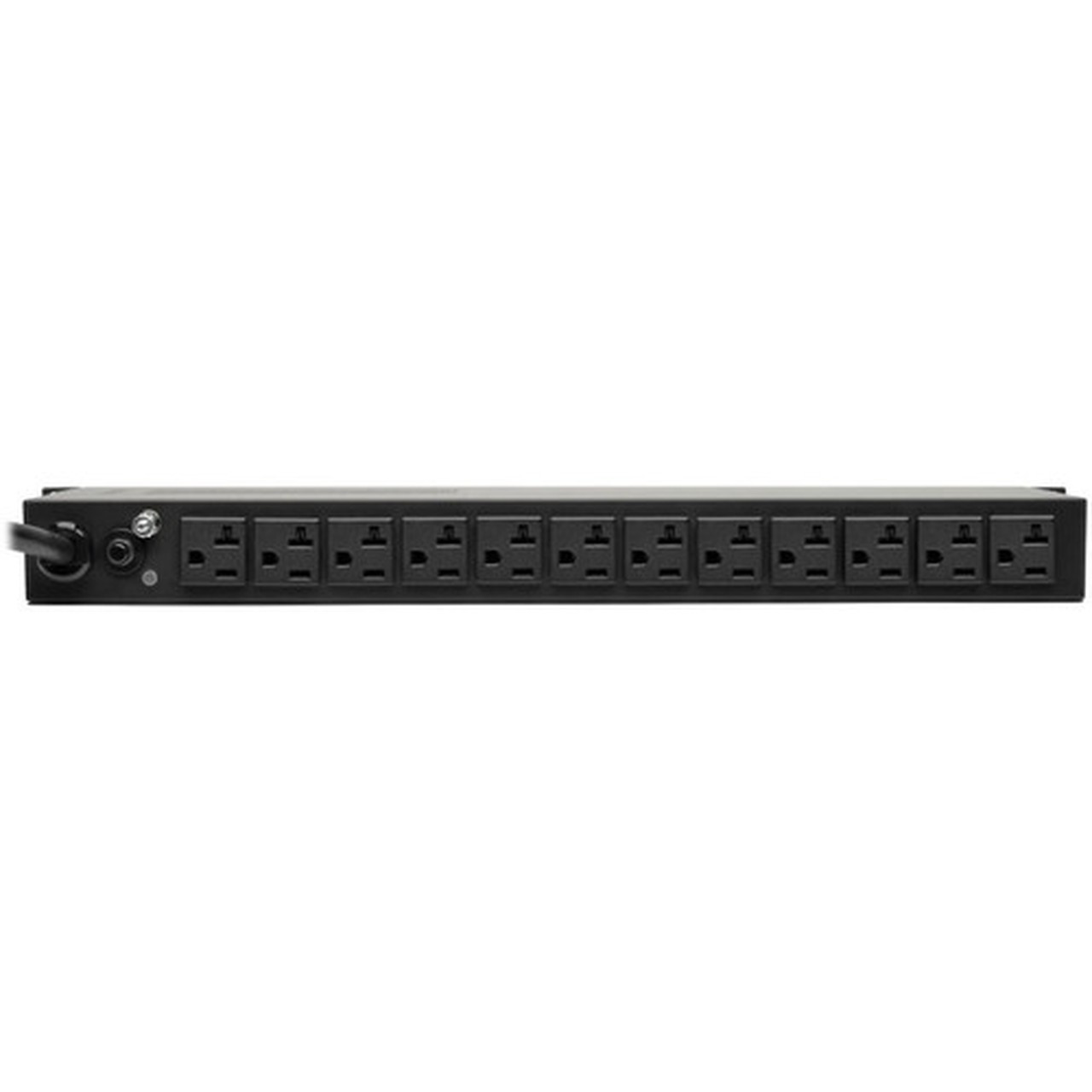

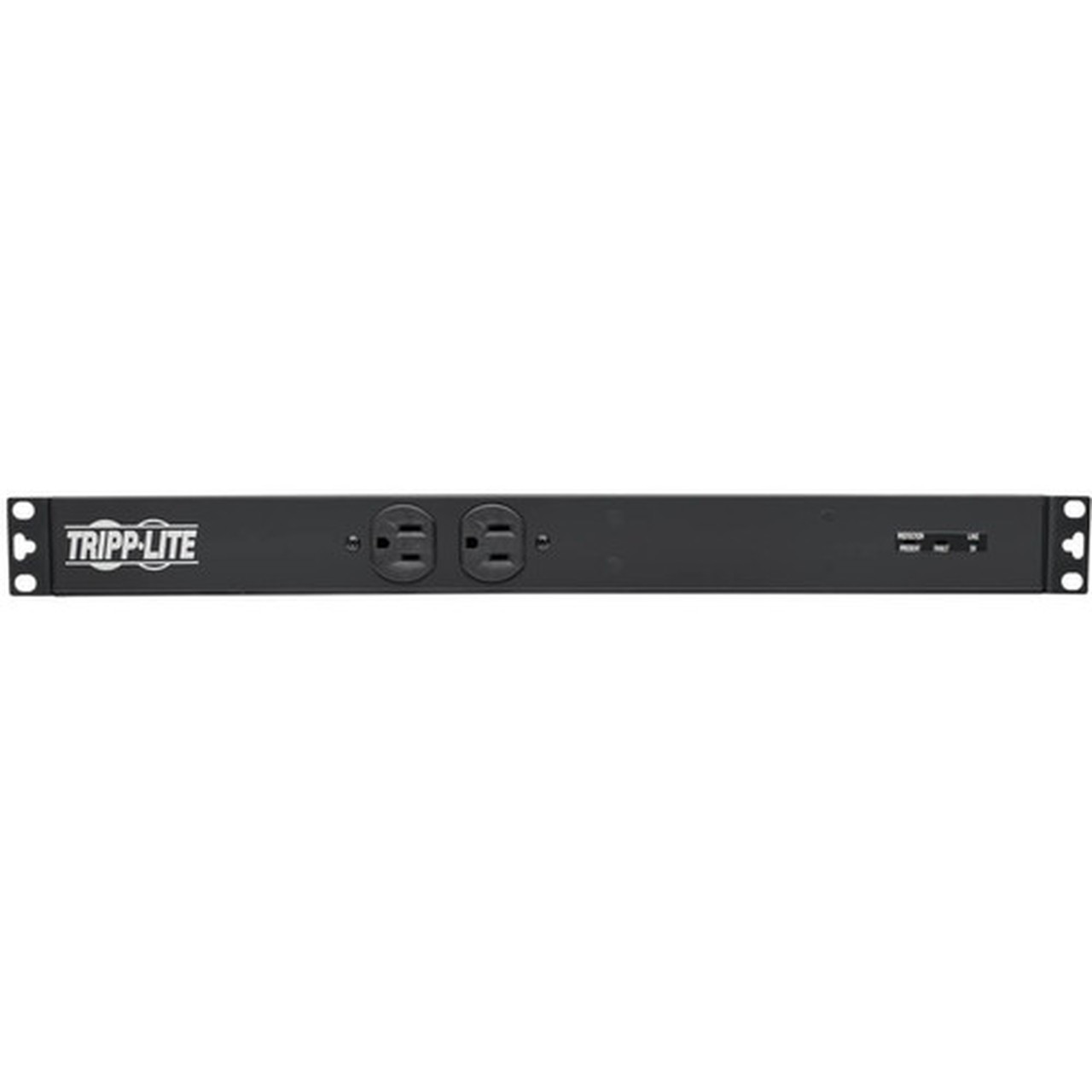

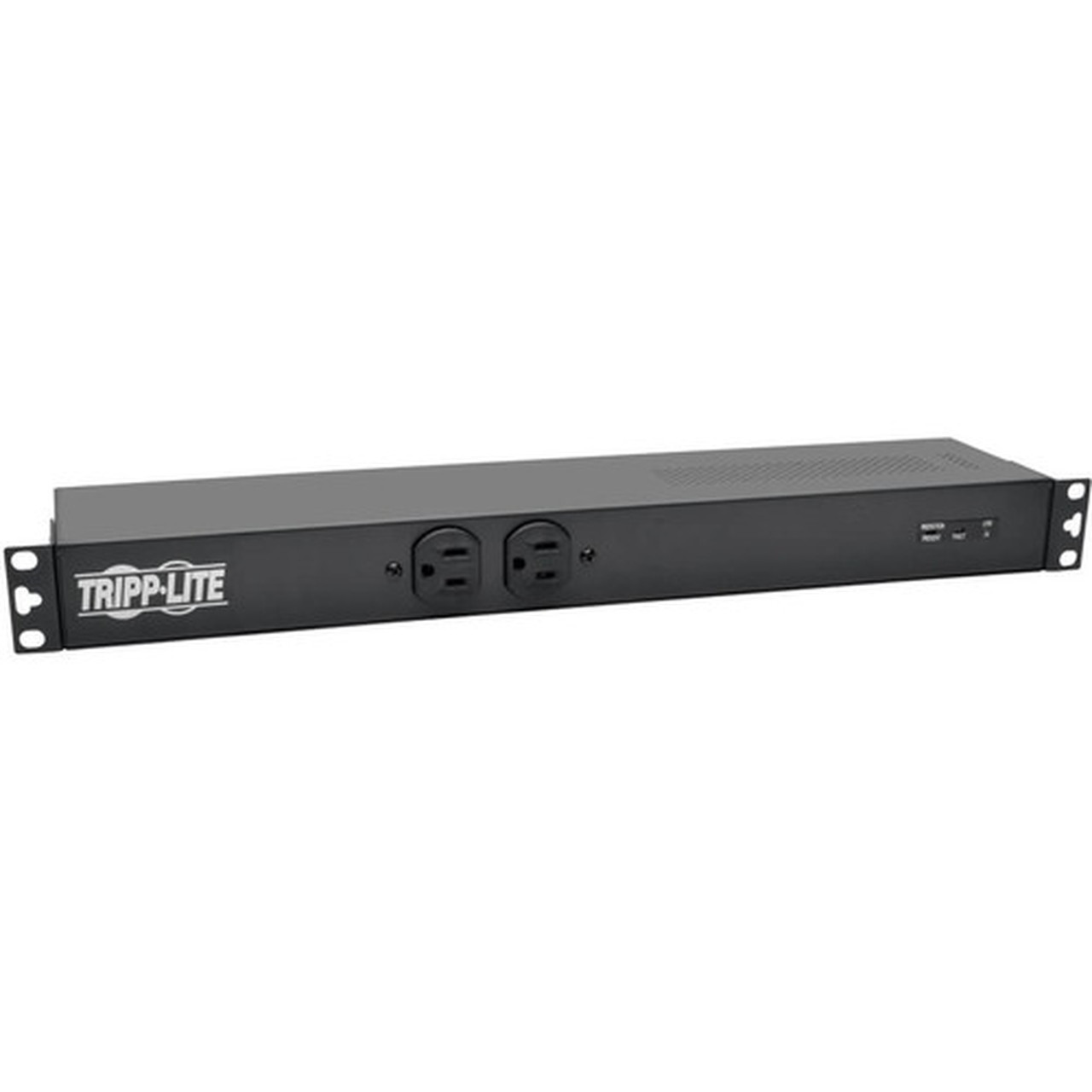

    This basic PDU is an ideal no-frills unit for telecom, security, audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments, the PDUH20-ISO6 features 12 NEMA 5-20R outlets in the rear and two 5-15R outlets in front. A six-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

    3840 Joules Fight Back Against Unexpected Power Surges

    Protecting your valuable electronics is ISOBAR® network-grade AC surge and noise suppression. A 3840-joule surge protection rating defends your sensitive electronic components against even the strongest power surges, spikes and line noise. The PDUH20-ISO6 covers full normal (H-N) and common (N-G/H-G) protection modes. A green LED confirms your connected equipment is protected.

    Up-to-Date Safety Features Protect Your Vital Equipment

    The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads. A red LED signals a suppressor or wiring fault.

    Versatile Installation Options Give You Plenty of Choices

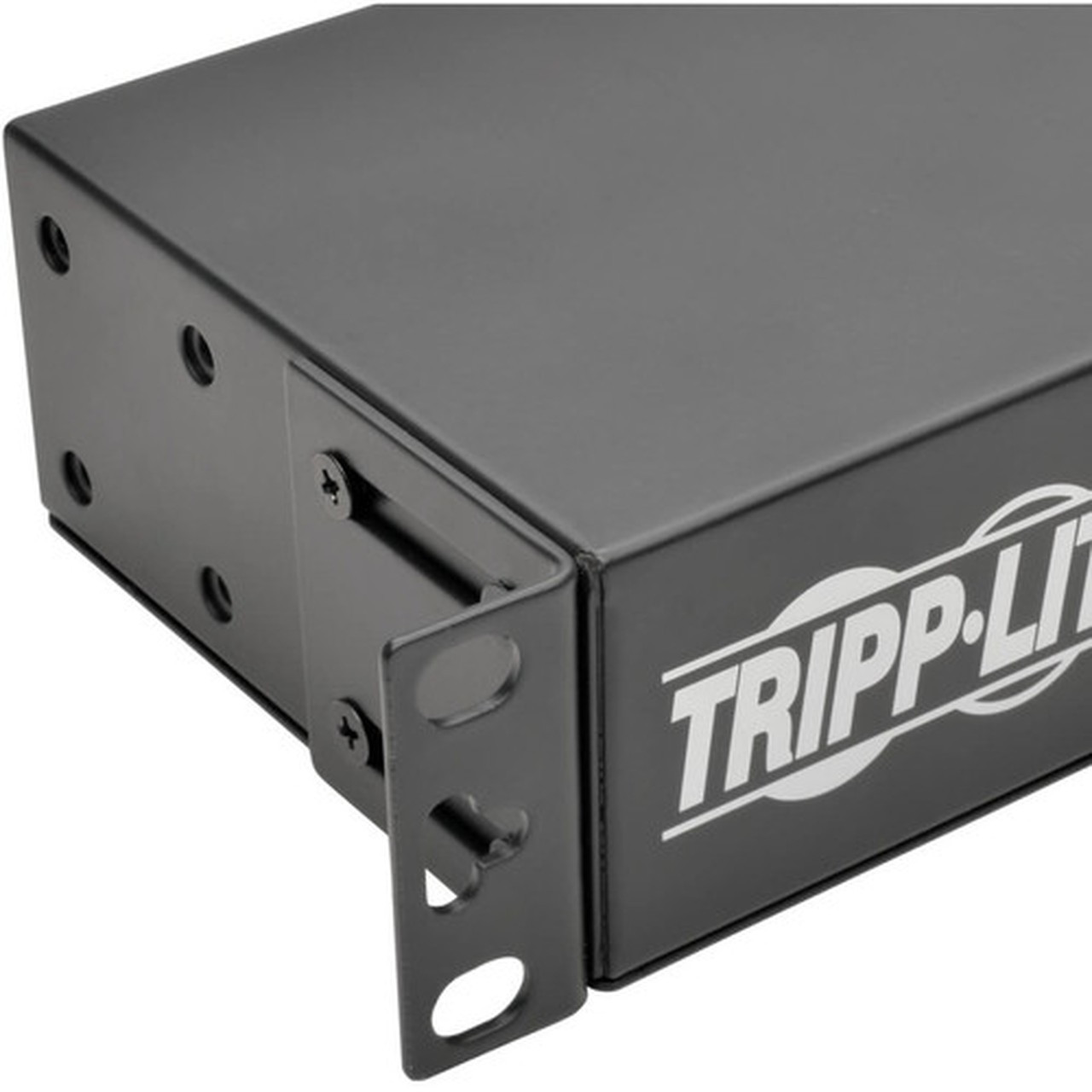

    The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.


    PDU Type: Basic
    Phase: Single Phase
    Plug/Connector Type:
    • NEMA L5-20P
    • NEMA 5-20P

    Receptacle Type:
    • NEMA 5-15R
    • NEMA 5-15/20R

    Receptacle Detail:
    • 2 x NEMA 5-15R
    • 12 x NEMA 5-15/20R

    Protection Type:
    • Surge Protection
    • Spike Protection
    • Accidental Power Shutdown
    • Overload Protection
    • Circuit Protection

    Input Voltage: 120 V AC
    Output Voltage:
    • 100 V AC
    • 120 V AC
    • 127 V AC

    Power Rating (Watt): 2.03 kW
    Input Current: 20 A
    Mounting Orientation: Horizontal/Vertical
    Mount Type:
    • Rack-mountable
    • Wall-mountable

    Rack Height: 1U
    Height: 1.75" (44.45 mm)
    Width: 17.50" (444.50 mm)
    Depth: 4.50" (114.30 mm)
    Weight (Approximate): 2.09 kg
    Package Contents:
    • PDUH20-ISO6 14-Outlets PDU
    • NEMA 5-20P Input Adapter
    • Rack-Mounting Hardware
    • Owner's Manual

    Environmentally Friendly: Yes
    Country of Origin: China
    Limited Warranty: 2 Year

[custom-specifications]

Specifications
Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: PDUH20-ISO6
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite by Eaton
Product Model: PDUH20-ISO6
Product Name: PDUH20-ISO6 14-Outlets PDU
Product Type: PDU
Technical Information
PDU Type: Basic
Phase: Single Phase
Plug/Connector Type:
  • NEMA L5-20P
  • NEMA 5-20P

Receptacle Type:
  • NEMA 5-15R
  • NEMA 5-15/20R

Receptacle Detail:
  • 2 x NEMA 5-15R
  • 12 x NEMA 5-15/20R

Protection Type:
  • Surge Protection
  • Spike Protection
  • Accidental Power Shutdown
  • Overload Protection
  • Circuit Protection

Power Description
Input Voltage: 120 V AC
Output Voltage:
  • 100 V AC
  • 120 V AC
  • 127 V AC

Power Rating (Watt): 2.03 kW
Input Current: 20 A
Physical Characteristics
Mounting Orientation: Horizontal/Vertical
Mount Type:
  • Rack-mountable
  • Wall-mountable

Rack Height: 1U
Height: 1.75" (44.45 mm)
Width: 17.50" (444.50 mm)
Depth: 4.50" (114.30 mm)
Weight (Approximate): 2.09 kg
Miscellaneous
Package Contents:
  • PDUH20-ISO6 14-Outlets PDU
  • NEMA 5-20P Input Adapter
  • Rack-Mounting Hardware
  • Owner's Manual

Environmentally Friendly: Yes
Country of Origin: China
Warranty
Limited Warranty: 2 Year
