Tripp Lite by Eaton PDUMV15NETLX 16-Outlet PDU - Switched - NEMA 5-15P - 16 x NEMA 5-15R - 120 V AC - 0U - Vertical - Rack-mountable - (PDUMV15NETLX)

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Free Shipping*

Write a Review
MSRP: $1,784.33
$1,784.33
$1,044.81
You save $739.52
SKU: PDUMV15NETLX
UPC: 037332205193
Availability: Stock In Canada - Ship UPS & Purolator
Weight: 10.00 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

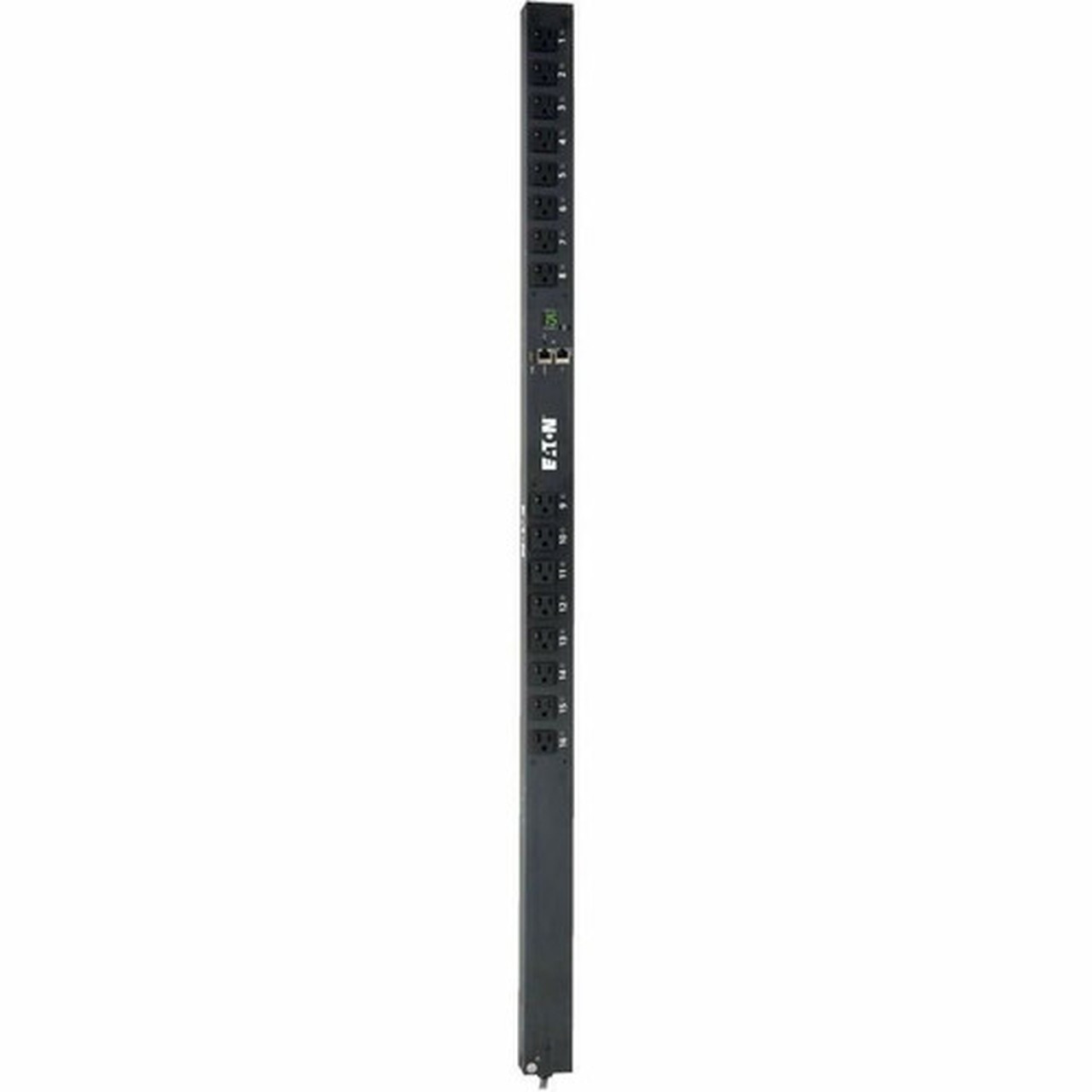

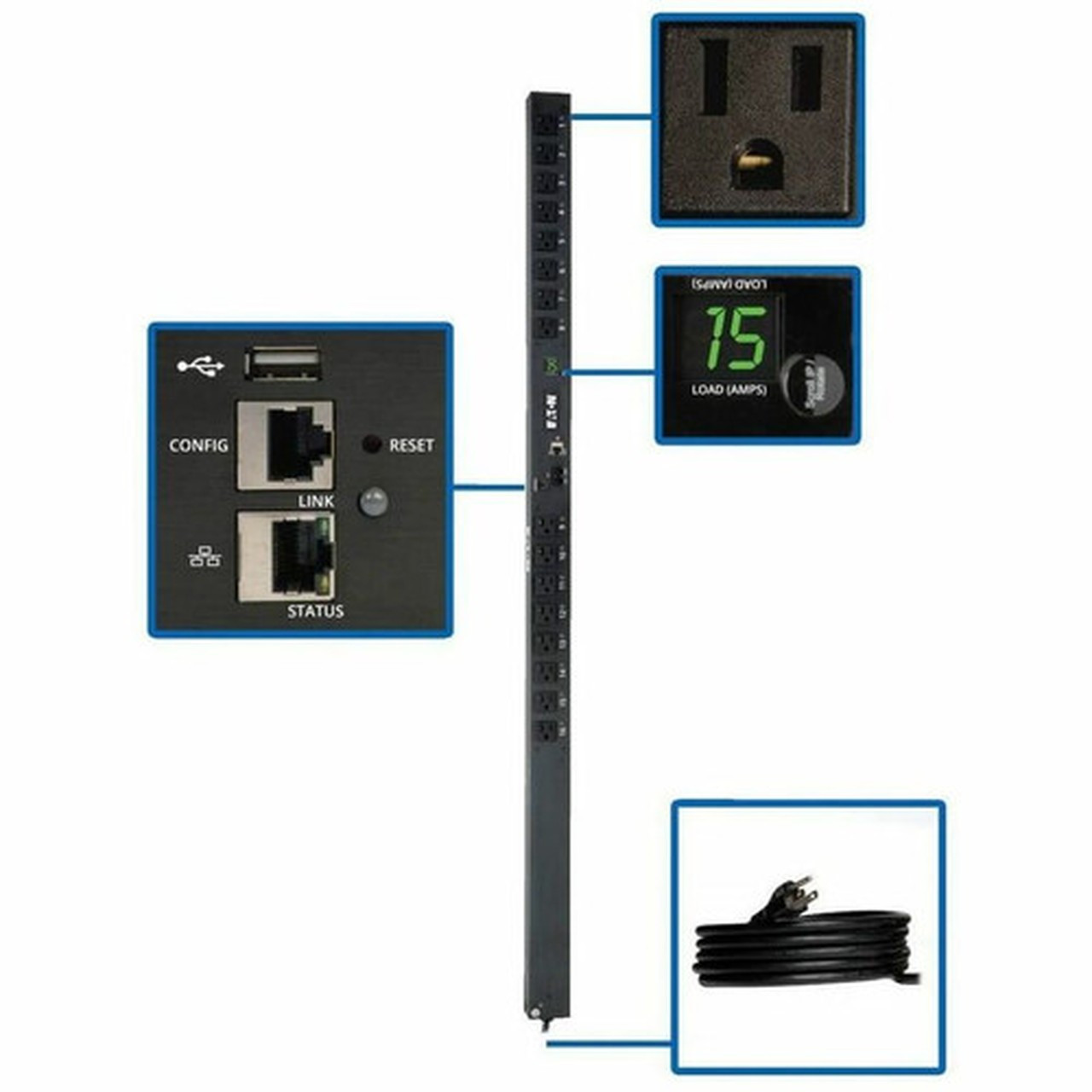

    Marketing Information: The PDUMV15NETLX 1.4kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for IT and industrial applications, the vertical PDU features 16 switched NEMA 5-15R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS.

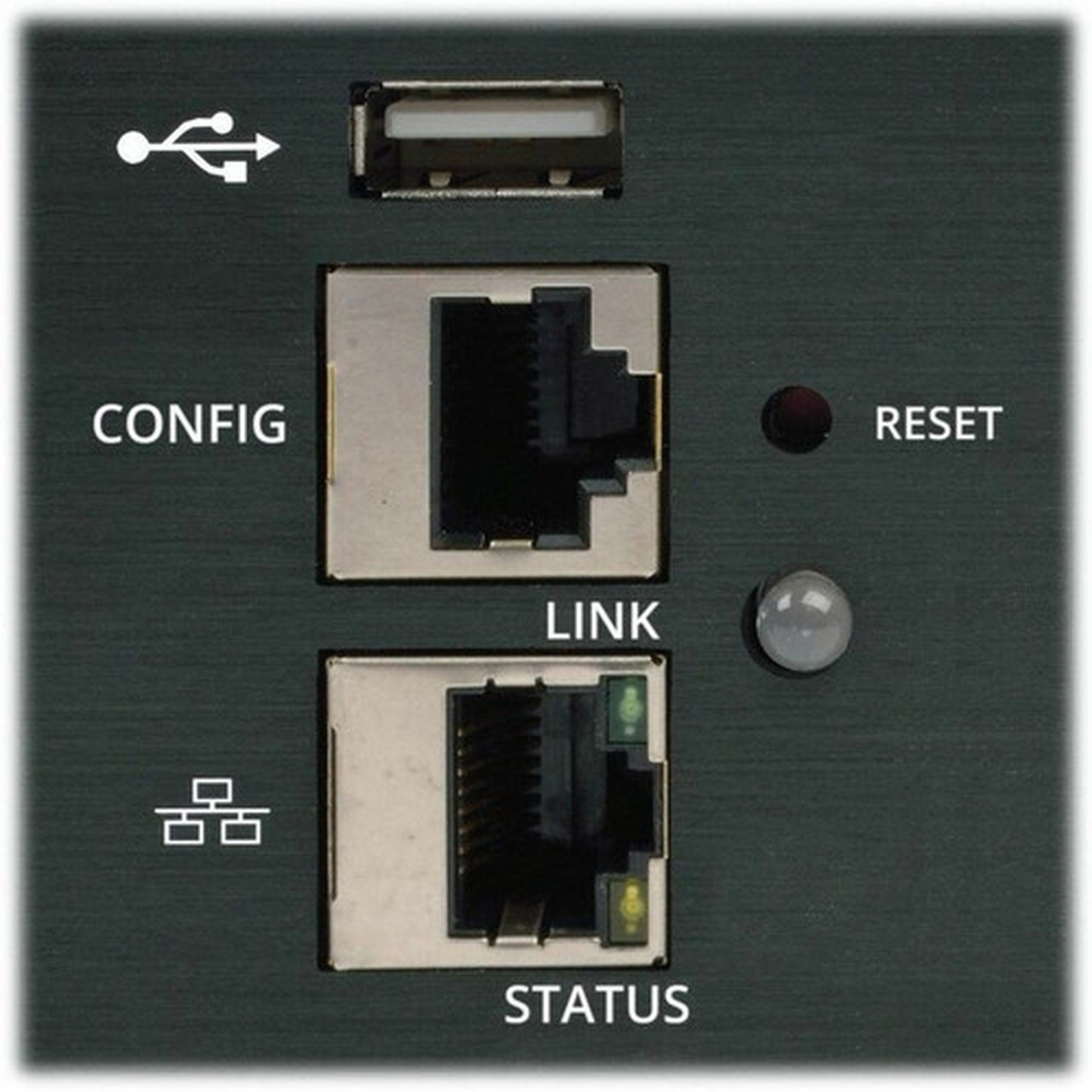

    The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

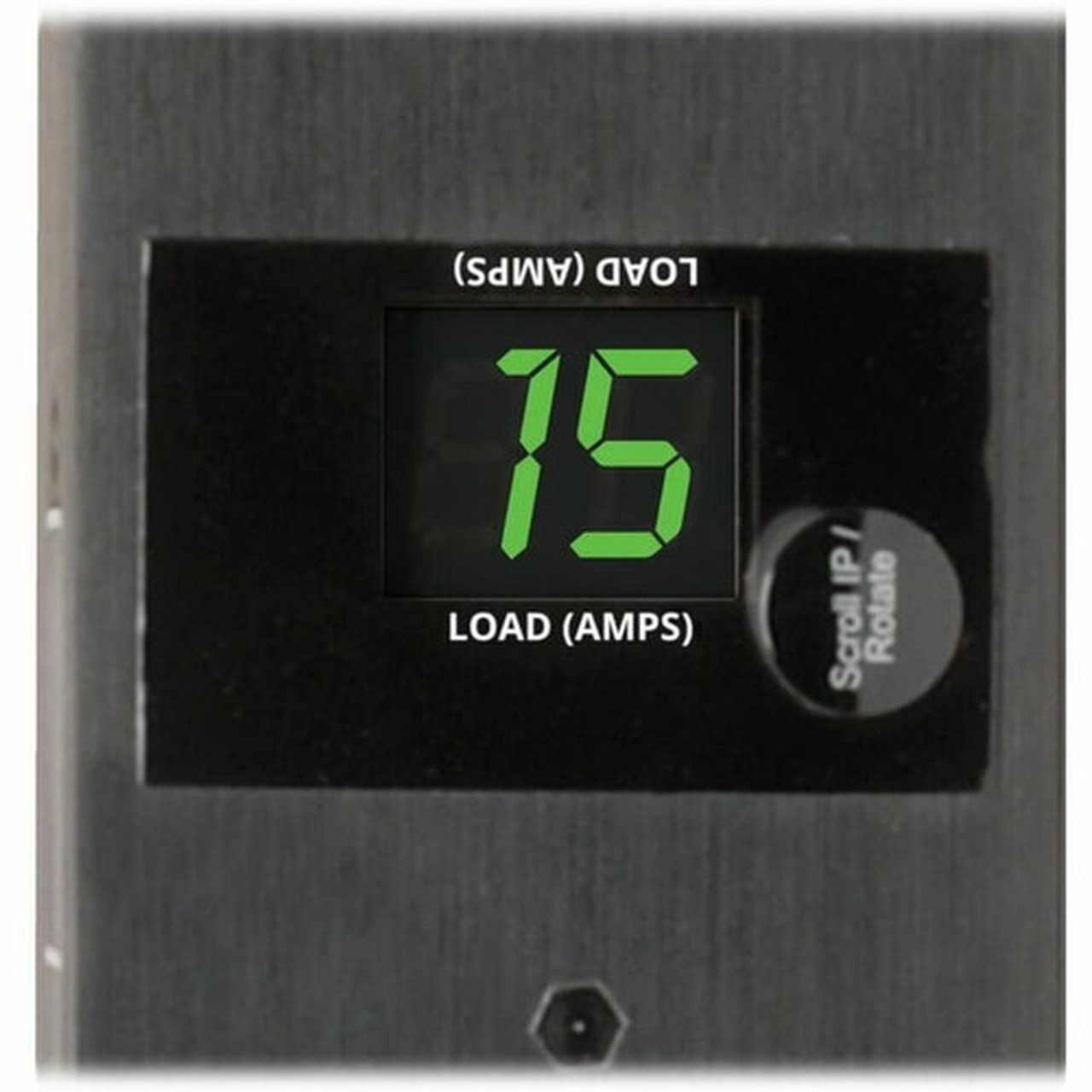

    A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

    More from the Manufacturer

    PDU Type: Switched

    Phase: Single Phase

    Plug/Connector Type: NEMA 5-15P

    Receptacle Type: NEMA 5-15R

    Receptacle Detail: 16 x NEMA 5-15R

    Input Voltage: 120 V AC

    Output Voltage: 100 V AC,120 V AC,127 V AC

    Power Rating (Watt): 1.52 kW

    Input Current: 15 A

    Management: Protocols:

    • IPv4
    • IPv6
    • HTTP
    • HTTPS
    • SMTP
    • SNMPv1
    • SNMPv2
    • SNMPv3
    • telnet
    • SSH
    • FTP
    • DHCP
    • NTP

    Mounting Orientation: Vertical

    Mount Type: Rack-mountable

    Rack Height: 0U

    Height: 49" (1244.60 mm)

    Width: 2.19" (55.63 mm)

    Depth: 2.65" (67.31 mm)

    Weight (Approximate): 3.18 kg

    Package Contents:

    • PDUMV15NETLX 16-Outlet PDU
    • Built-in LX Platform Interface
    • Configuration Cable
    • 16 x Cable Ties
    • 2 x Cord Retention Brackets
    • Rack-mounting Hardware
    • PDUMVROTATEBRKT Mounting Bracket Accessory
    • Owner's Manual

    Country of Origin: Taiwan

    TAA Compliant: Yes

    Environmentally Friendly: Yes

    Environmental Compliance: Restriction of Hazardous Substances (RoHS)

    Limited Warranty: 2 Year

[custom-highlights][/custom-highlights]

[custom-specifications]

Specifications
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberPDUMV15NETLX
Manufacturer Website Addresshttps://tripplite.eaton.com/
Brand NameTripp Lite by Eaton
Product ModelPDUMV15NETLX
Product NamePDUMV15NETLX 16-Outlet PDU
Product TypePDU
Technical Information
PDU TypeSwitched
PhaseSingle Phase
Plug/Connector TypeNEMA 5-15P
Receptacle TypeNEMA 5-15R
Receptacle Detail16 x NEMA 5-15R
Power Description
Input Voltage120 V AC
Output Voltage100 V AC,120 V AC,127 V AC
Power Rating (Watt)1.52 kW
Input Current15 A
Management
ManagementProtocols:
  • IPv4
  • IPv6
  • HTTP
  • HTTPS
  • SMTP
  • SNMPv1
  • SNMPv2
  • SNMPv3
  • telnet
  • SSH
  • FTP
  • DHCP
  • NTP
Physical Characteristics
Mounting OrientationVertical
Mount TypeRack-mountable
Rack Height0U
Height49" (1244.60 mm)
Width2.19" (55.63 mm)
Depth2.65" (67.31 mm)
Weight (Approximate)3.18 kg
Miscellaneous
Package Contents
  • PDUMV15NETLX 16-Outlet PDU
  • Built-in LX Platform Interface
  • Configuration Cable
  • 16 x Cable Ties
  • 2 x Cord Retention Brackets
  • Rack-mounting Hardware
  • PDUMVROTATEBRKT Mounting Bracket Accessory
  • Owner's Manual
Country of OriginTaiwan
TAA CompliantYes
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty2 Year
