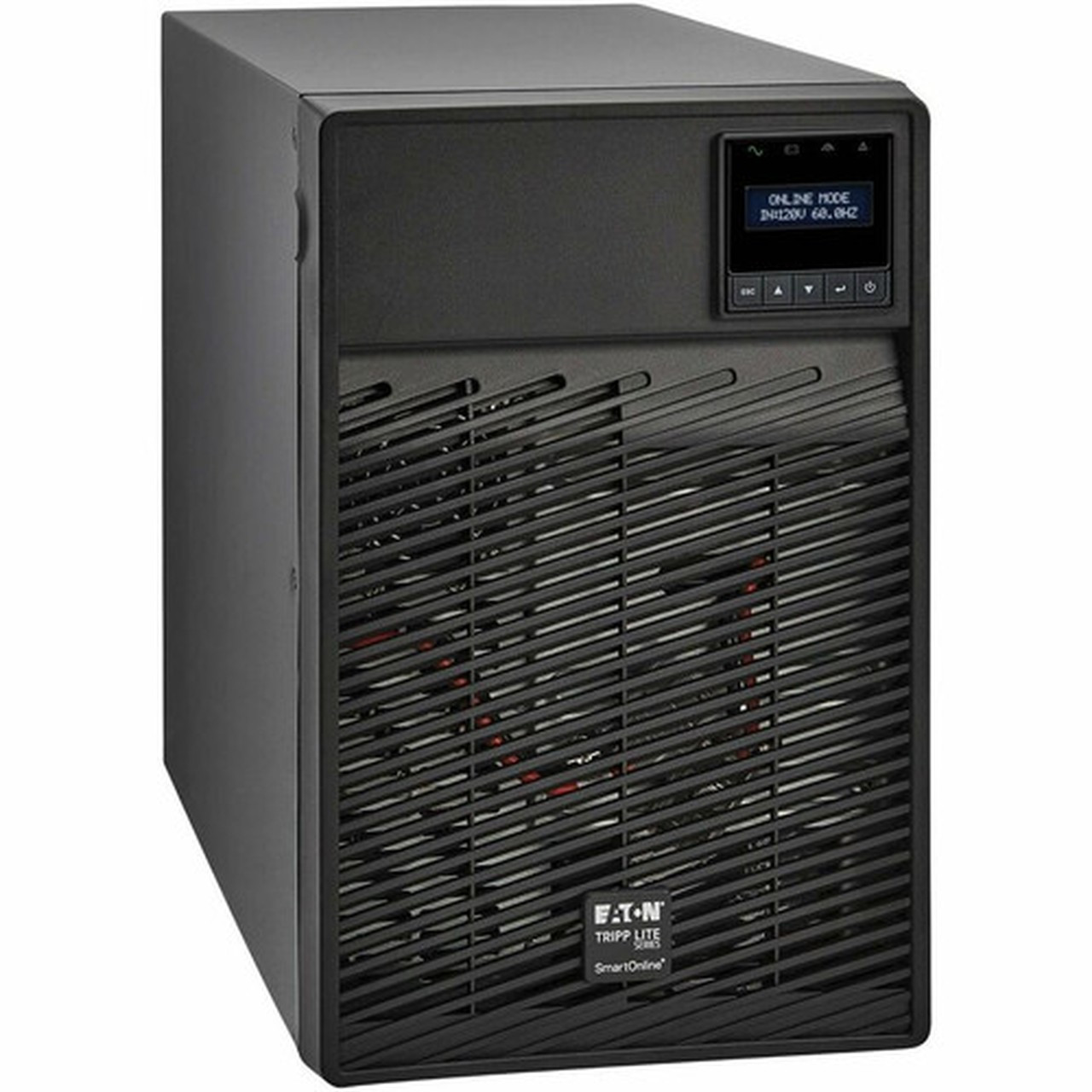

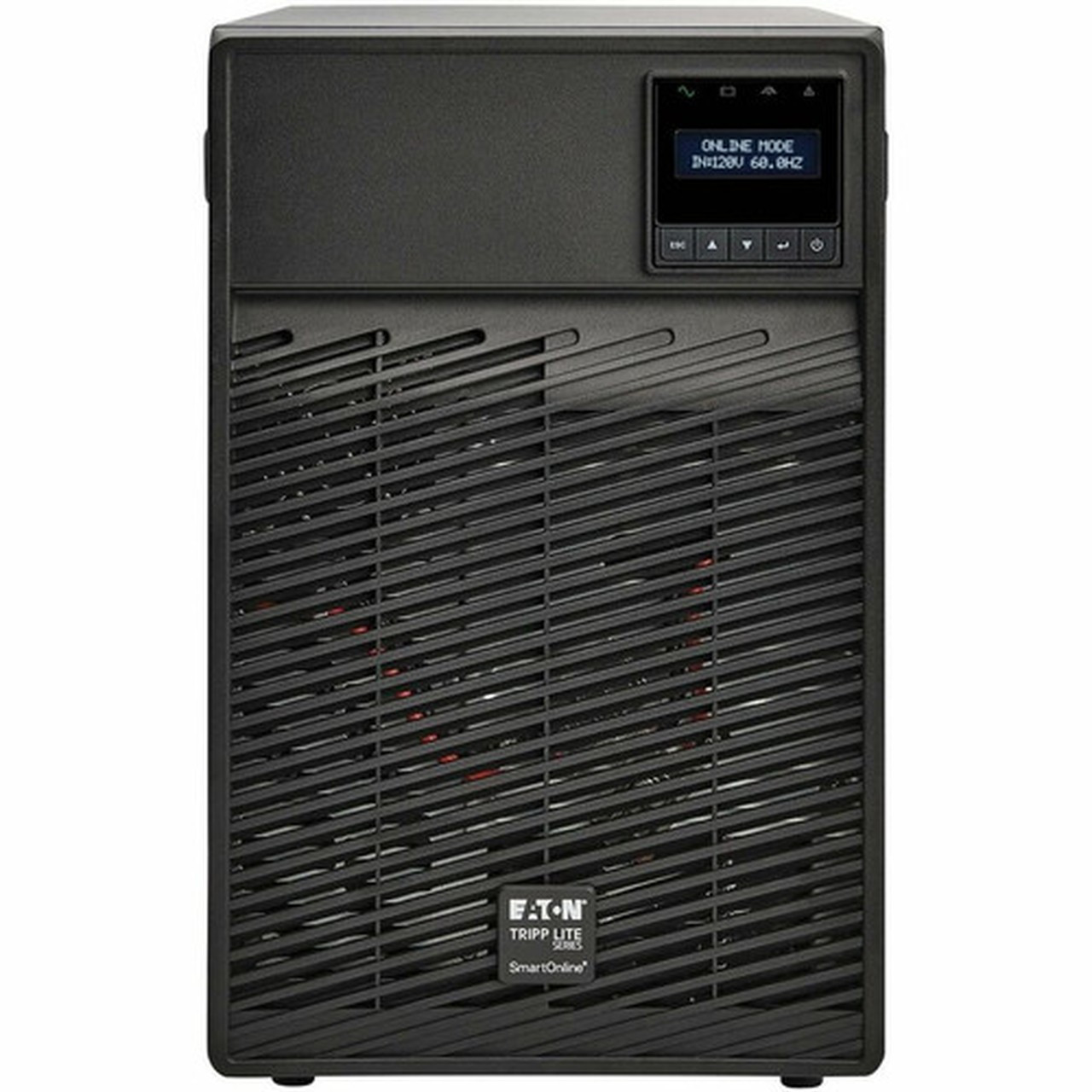

Tripp Lite by Eaton SmartOnline SU700XLCD 700VA Tower UPS - Tower - AVR - 5.90 Minute Stand-by - 120 V AC Input - 100 V AC, 110 V AC, (SU700XLCD)

• 630 W load capacity - backup power for your valuable electronics
• Up to 5.90 minute runtime on full load to preserve critical data from power shortage interruptions
• 700 VA load capacity - work without any interruption during power outages

Marketing Information:

Features |Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss

This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU700XLCD provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting.

Optional LX Platform Network Management Card Allows Remote Access 24/7

The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

NEMA 5-15R Outlets Protect Your Connected Components

Six NEMA 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better

This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

Clear LCD Interface Keeps You Informed at a Glance

The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment.

Automatically Turns Back On After Power Is Restored

Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even after a complete battery discharge.


AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Number of Load Management Outlets: 4
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage:
• Education
• Healthcare
• Military
• Government
• IT Equipment
• Network
• Mission Critical Equipment

Load Capacity (VA): 700 VA
Load Capacity (Watt): 630 W
Input Voltage: 120 V AC
Output Voltage:
• 100 V AC
• 110 V AC
• 120 V AC

Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 190 J
Input Power Factor: 0.99
Output Power Factor: 0.9
Display: LCD
Network Management:
• Network Card
• SNMP/Web
• DB-9 RS-232

Alarm:
• UPS StartUp
• Power Failure
• Low Battery
• Overload
• UPS Fault
• Remote Shutdown

Status Indicators:

4 Status-Indicating LEDs


Serial Port: Yes
USB: Yes
EPO Port: Yes
DC System Voltage: 24 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 5.90 Minute
Backup/Run Time (Half Load): 16.90 Minute
Hot Swappable: Yes
Replaceable Battery: Yes
Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Storage Temperature: 32°F (0°C) - 104°F (40°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission: 51 dB
Height: 9.93" (252.22 mm)
Width: 6.30" (160.02 mm)
Depth: 13.94" (354.08 mm)
Form Factor: Tower
Weight (Approximate): 11.50 kg
Package Contents:
• SmartOnline SU700XLCD 700VA Tower UPS
• USB Cable
• DB9 Cable
• Quick Start Guide

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification:
• RoHS
• REACH

Limited Warranty: 2 Year
