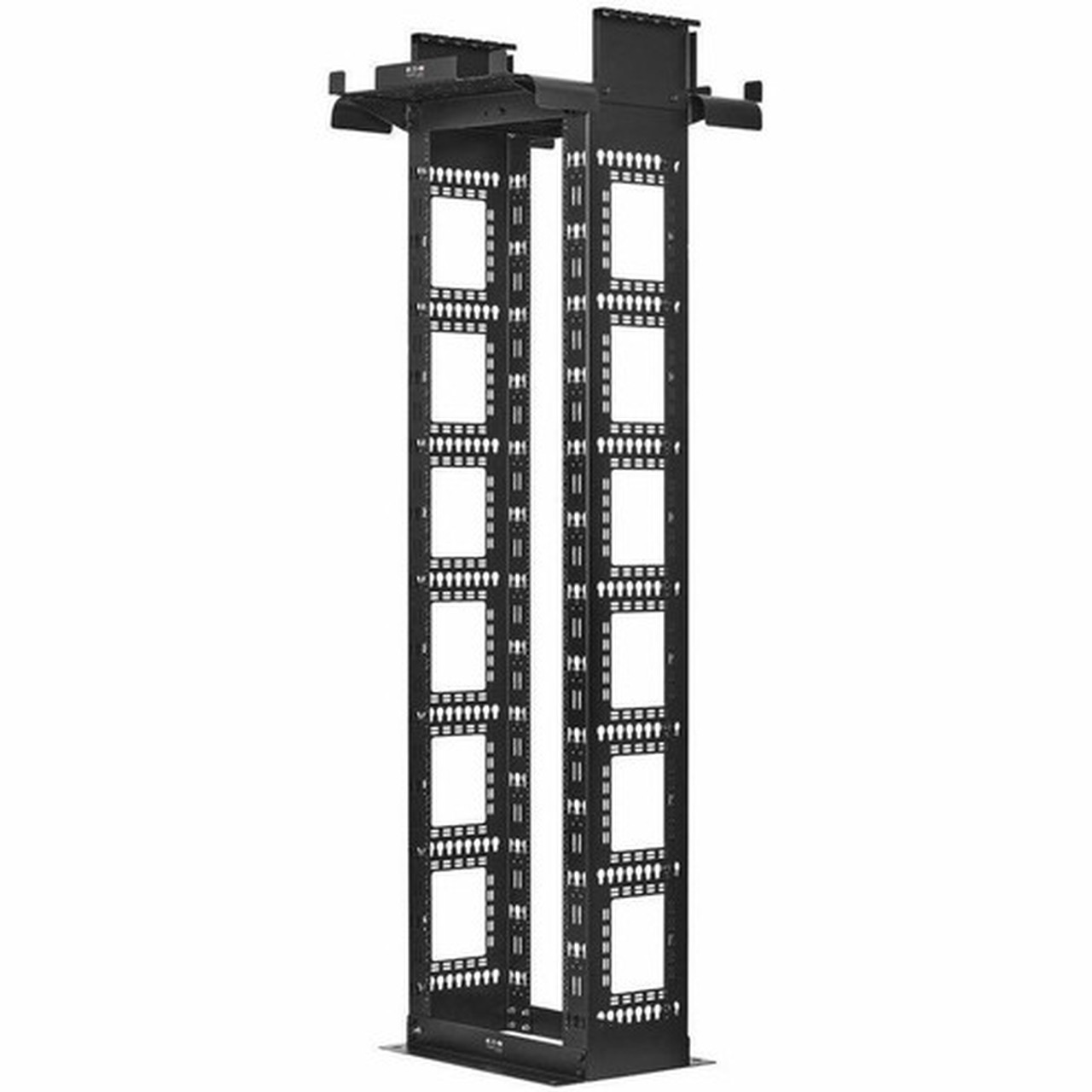

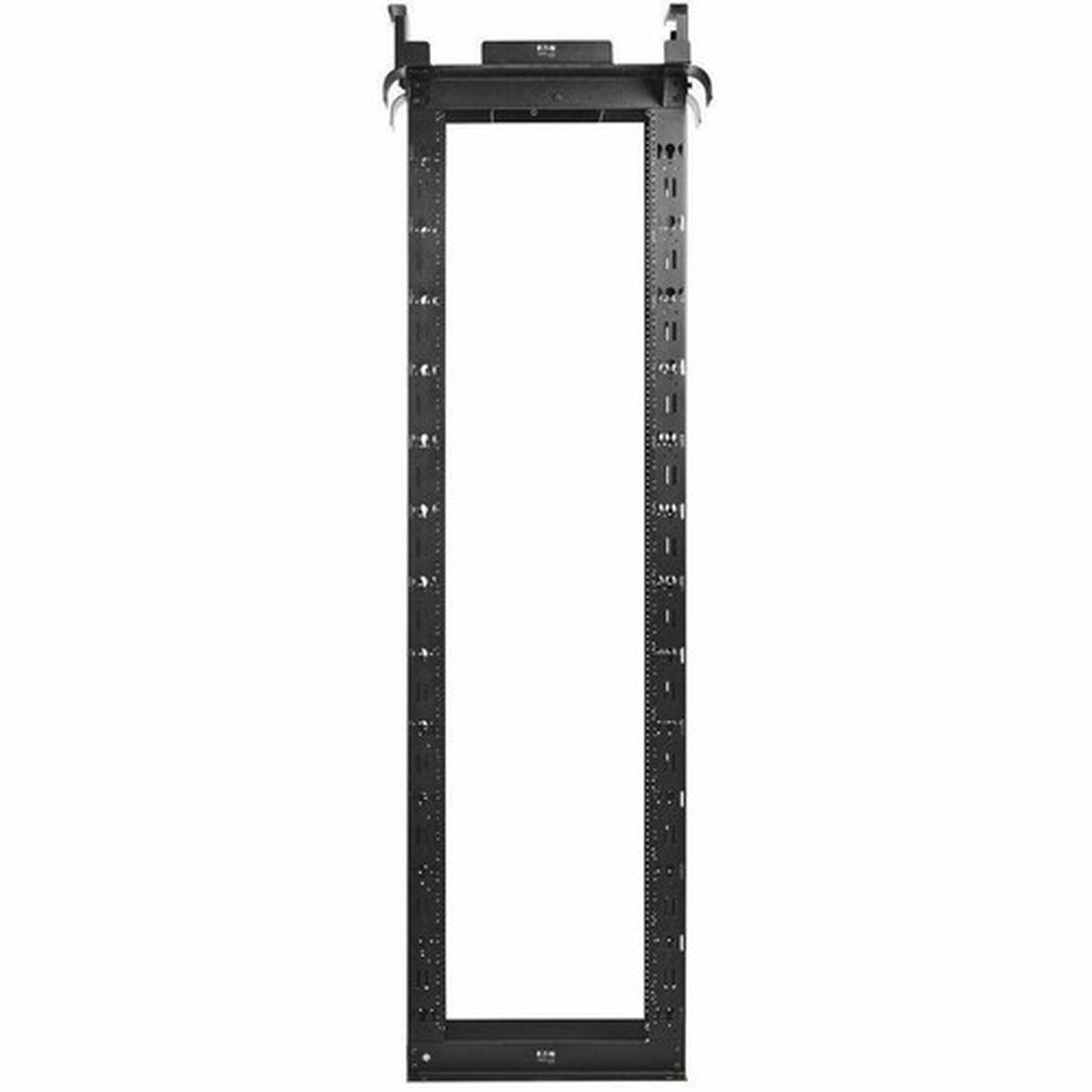

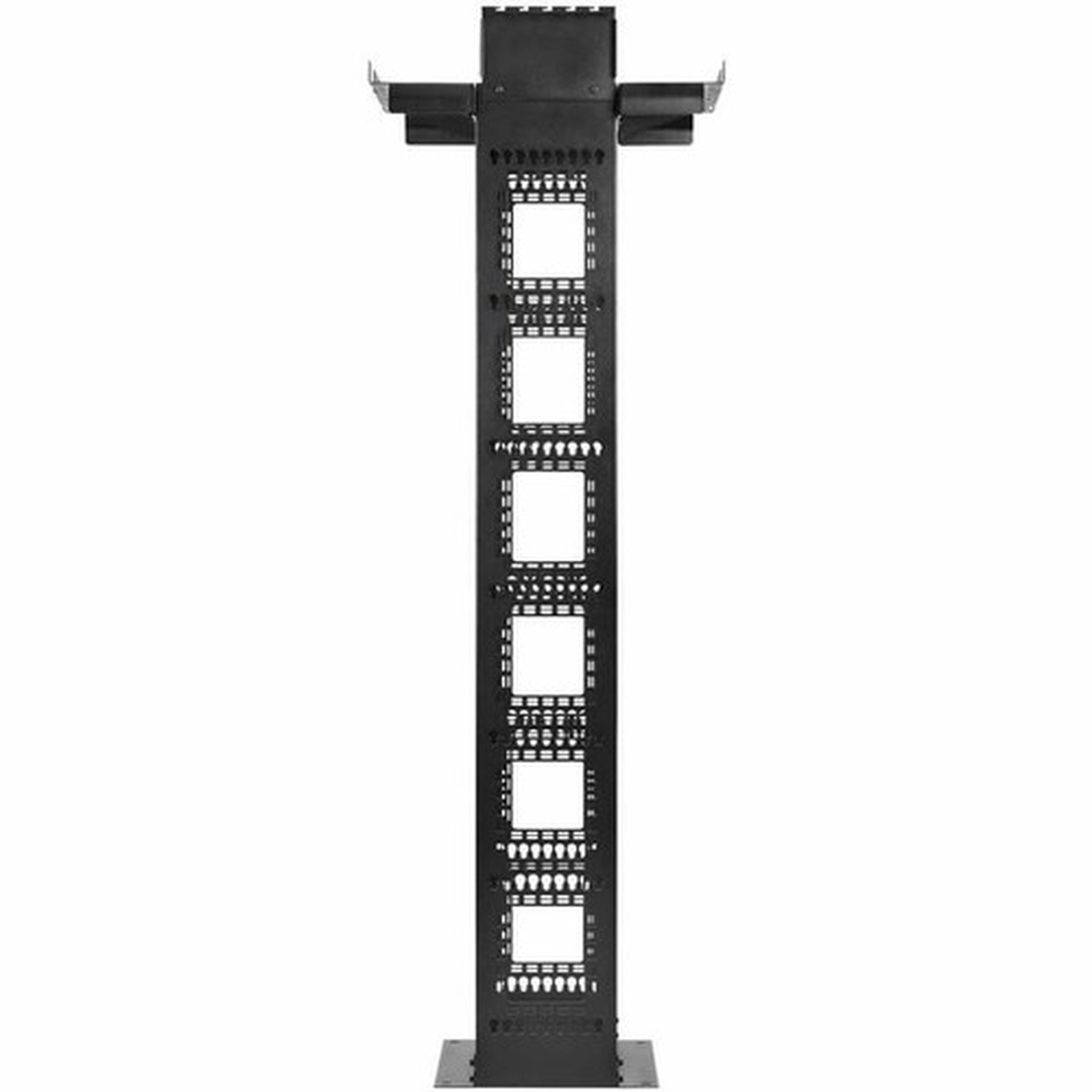

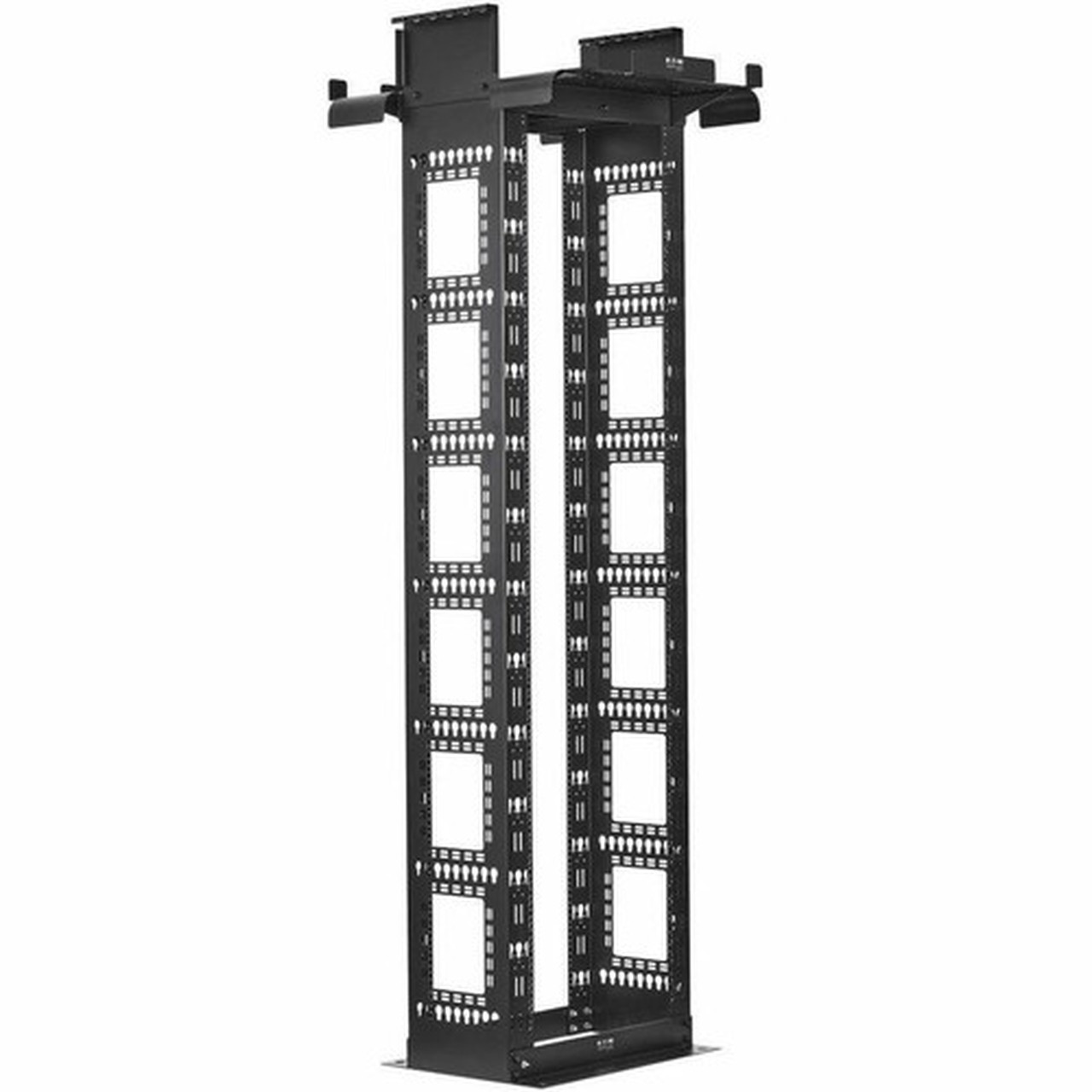

- SmartRack 45U Heavy-Duty 2-Post Open Frame Rack, 12-Inch Deep
- 2 x Side Channels
- 2 x Base Plates
- 2 x External Waterfall Brackets
- 14 x Cable Hooks
- 2 x Accessory Brackets For Wire Basket Attachment
- Internal Waterfall Brace
- Assembly Hardware
- Equipment Mounting Hardware
- Owner's Manual
Marketing Information:
Extra-deep open frame rack organizes 45U of 19-inch rack-mount equipment and provides enhanced cable management in secure IT locations.
Features | Heavy-Duty 2-Post Open Frame Rack Organizes Up to 45U of Equipment
The SR2POSTDP12HD floor-standing open frame rack houses and organizes 45U of 19-inch rack-mount equipment compatible with 2-post mounting. It is ideal for network wiring closets, back offices and other secure areas where a locked enclosure is not required. Made of heavy-duty steel, the rack is 12 inches deep and can safely support up to 2000 pounds (907 kilograms) of equipment. A black powder-coated finish provides scratch resistance.
Extra-Deep Open Frame Design Allows Easy Access
In addition to increased airflow, an open frame design allows fast, easy access for installing, configuring and servicing cables and equipment. It also occupies less space than a full-size rack enclosure. The 12-inch depth improves stability and provides a large number of mounting points for switches, servers and telecom equipment.
Compatibility with Above-Rack Cable Management
Cable waterfalls at the top of the rack help reduce stress on cables by maintaining a proper bend radius. The side channels have cable tie anchors and support installation of the included cable hooks for efficient cable routing. A removable accessory bracket allows you to attach a wire basket at the top of the rack for compatibility with above-rack cable management systems.
Easy Assembly and Equipment Mounting
Assemble the self-squaring SR2POSTDP12HD using standard hand tools and the included hardware. The base plates of the rack can be bolted to the floor for stability. Multiple racks can be bolted together side by side for easy expansion. The rack has numbered 12-24 threaded mounting holes and keyhole slots to accept button mounts for toolless installation of vertical (0U) PDUs and cable managers.
Rack Type: Open Frame
Application/Usage: Networking,Switch,PDU,Patch Panel,Server,UPS
Features: Cable Management,Heavy Duty,Adjustable Mounting Rails
Rack Post Quantity: 2
Form Factor: Floor Standing
Color Family: Black
Product Color: Black Powder Coat
Product Material: Steel
Static/Stationary Weight Capacity: 1999.59 lb (907000 g)
Height: 85.83" (2180 mm)
Width: 20.30" (515.60 mm)
Depth: 13.50" (342.90 mm)
Rack Height: 45U
Rack Width: 19" (482.60 mm)
Weight (Approximate): 92 lb (41730 g)
Package Contents:
Assembly Required: Yes
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- Rack Frame allows you to effectively utilize most of the space available with maximum dependability
- Comes in black powder coat color to better suit your theme and style
- Built with steel which enhances the design and general presentation style of #atr#1100#
- Floor Standing form factor for added reliability and dependability
- Networking application, usage offers maximum items, valuables, equipment organizational, storage, placement reliability
- Cable Management feature for maximum items, valuables, equipment organizational, storage, placement efficiency, and convenience
[custom-specifications]
Specifications | |
Manufacturer | Eaton Corporation |
Manufacturer Part Number | SR2POSTDP12HD |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Brand Name | Tripp Lite by Eaton |
Product Line | SmartRack |
Product Model | SR2POSTDP12HD |
Product Name | SmartRack 45U Heavy-Duty 2-Post Open Frame Rack, 12-Inch Deep |
Product Type | Rack Frame |
Technical Information | |
Rack Type | Open Frame |
Application/Usage | Networking,Switch,PDU,Patch Panel,Server,UPS |
Features | Cable Management,Heavy Duty,Adjustable Mounting Rails |
Rack Post Quantity | 2 |
Physical Characteristics | |
Form Factor | Floor Standing |
Color Family | Black |
Product Color | Black Powder Coat |
Product Material | Steel |
Static/Stationary Weight Capacity | 1999.59 lb (907000 g) |
Height | 85.83" (2180 mm) |
Width | 20.30" (515.60 mm) |
Depth | 13.50" (342.90 mm) |
Rack Height | 45U |
Rack Width | 19" (482.60 mm) |
Weight (Approximate) | 92 lb (41730 g) |
Miscellaneous | |
Package Contents |
|
Assembly Required | Yes |
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 5 Year |
