Tripp Lite by Eaton SmartRack SRRAILDPTH1U Mounting Rail Kit for Rack Server, Rack Equipment, Enclosure - Black - 2 (SRRAILDPTH1U)

Increase or Decrease the Depth of Your Server Rack by 4 in.
This SmartRack® rail-depth adapter kit lets you mount rack equipment so that it either extends four inches (10.2 centimeters) past the front vertical mounting rails or recesses four inches within the rails. This would benefit you, for instance, if you mounted extra-deep equipment that protruded out the front of the rack and prevented you from closing the door. Or it can allow you easier access to front cabling and help cut down on cable strain.

Easy Installation Using the Included Hardware

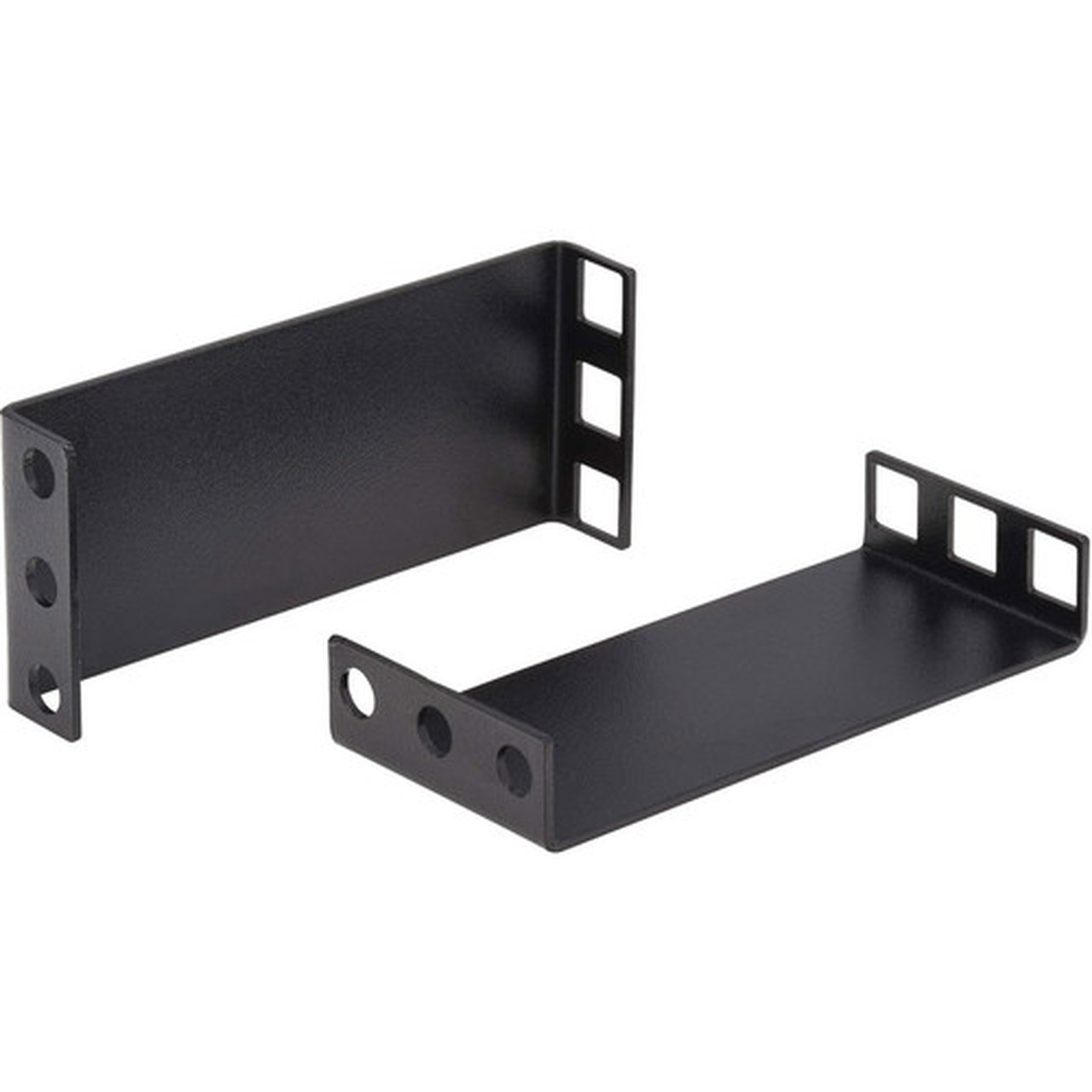

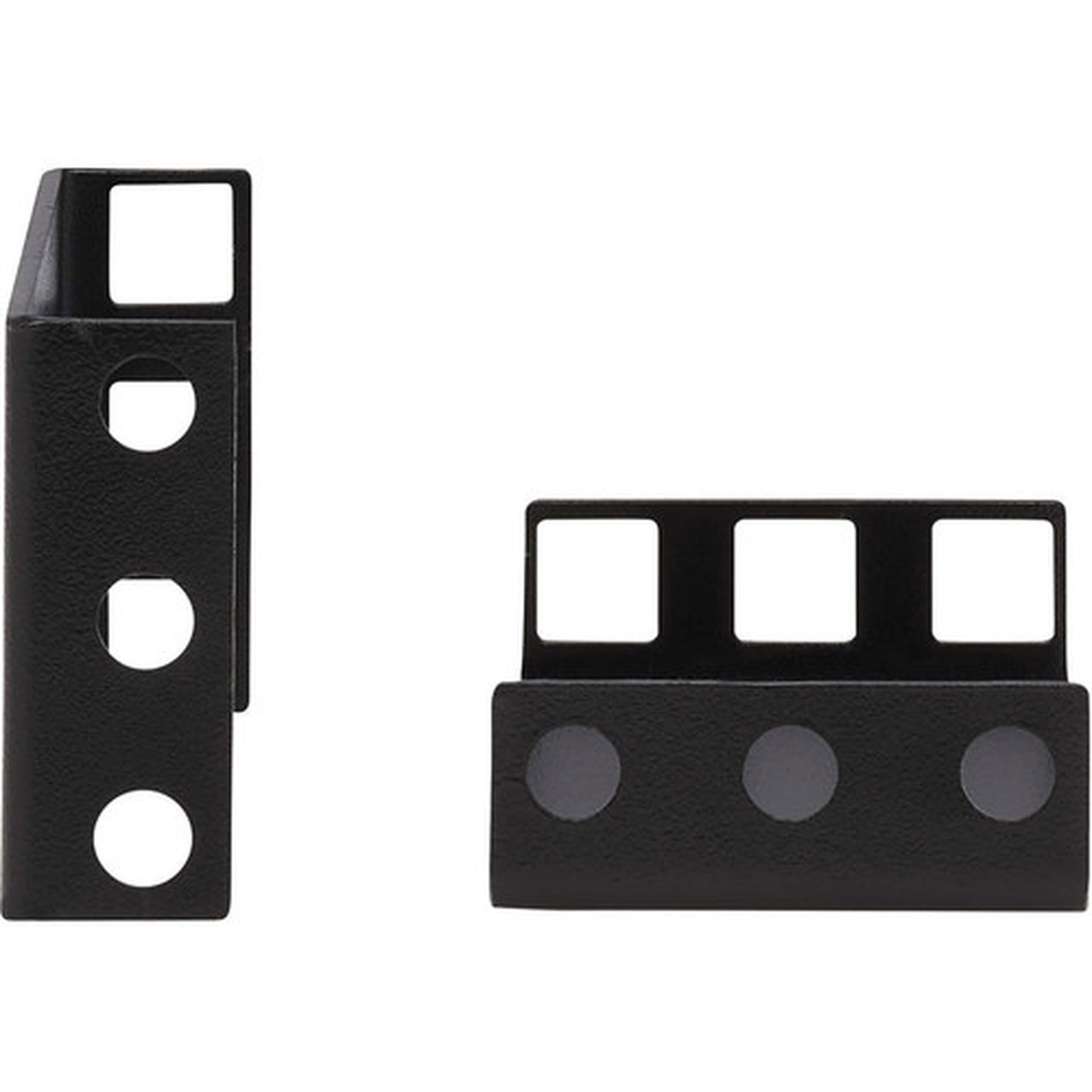

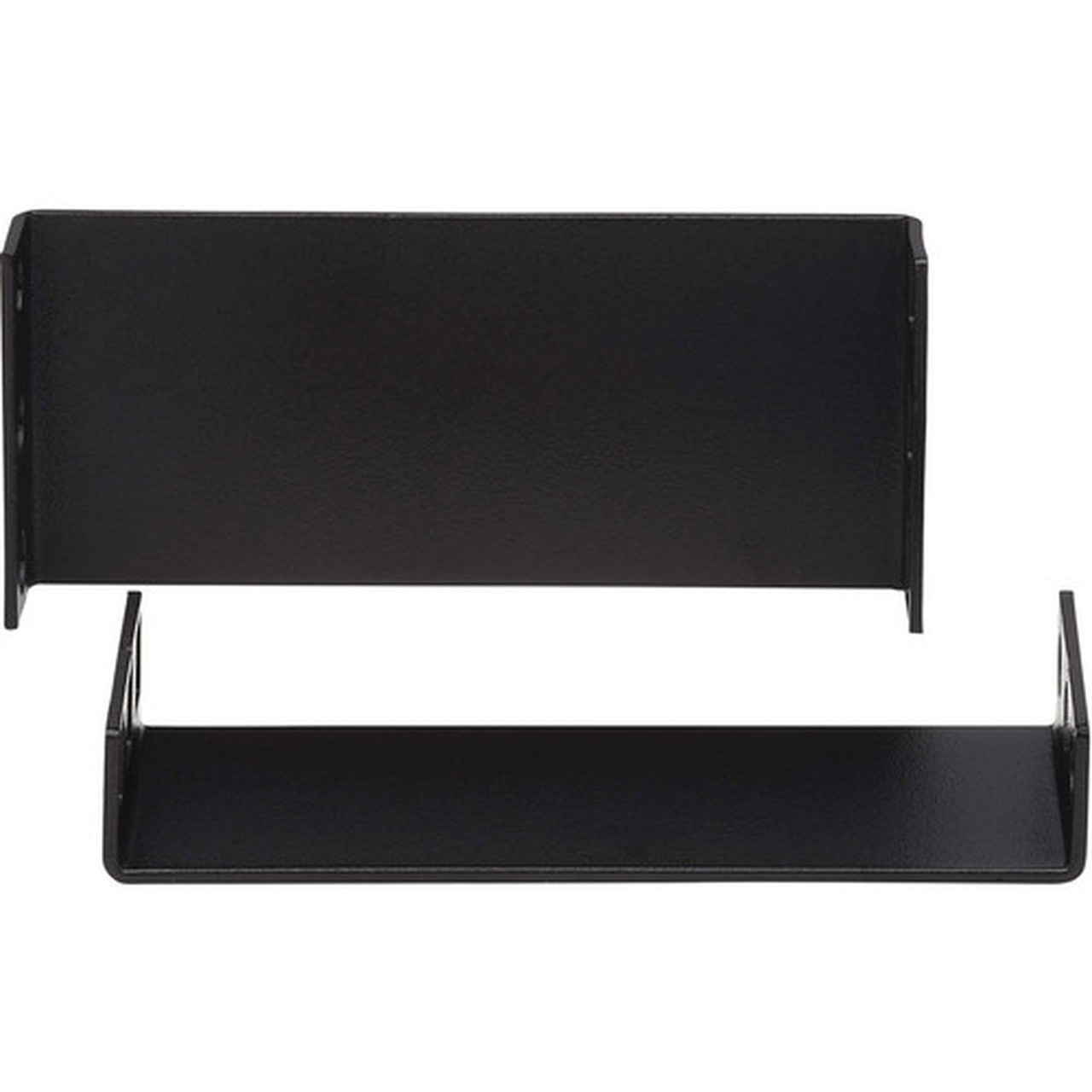

The SRRAILDPTH1U comes with two steel mounting brackets made from heavy-duty steel with a black powder-coated finish to mesh seamlessly with your rack. Connect the 1U extension brackets to the front rails using the included hardware. Position the brackets outside the rails to increase rack depth or inside the rails to decrease rack depth. Then mount the equipment to the brackets. The SRRAILDPTH1U is compatible with EIA-standard 19-inch open frame racks and enclosures.

• Rack Server
• Rack Equipment
• Enclosure

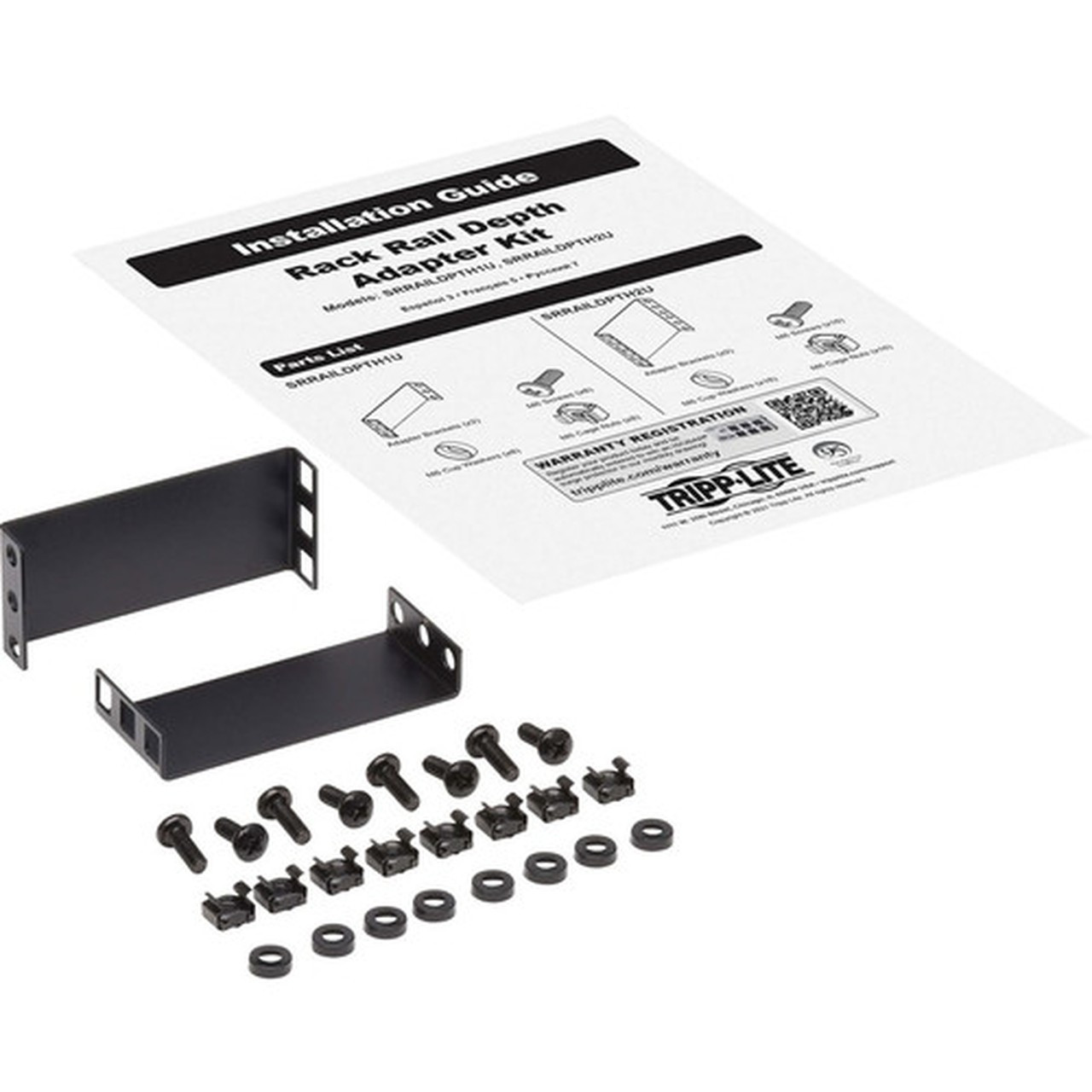

• 2 x Adapter Brackets
• 8 x M6 Screws
• 8 x M6 Cup Washers
• 8 x M6 Cage Nuts
• Installation Guide
