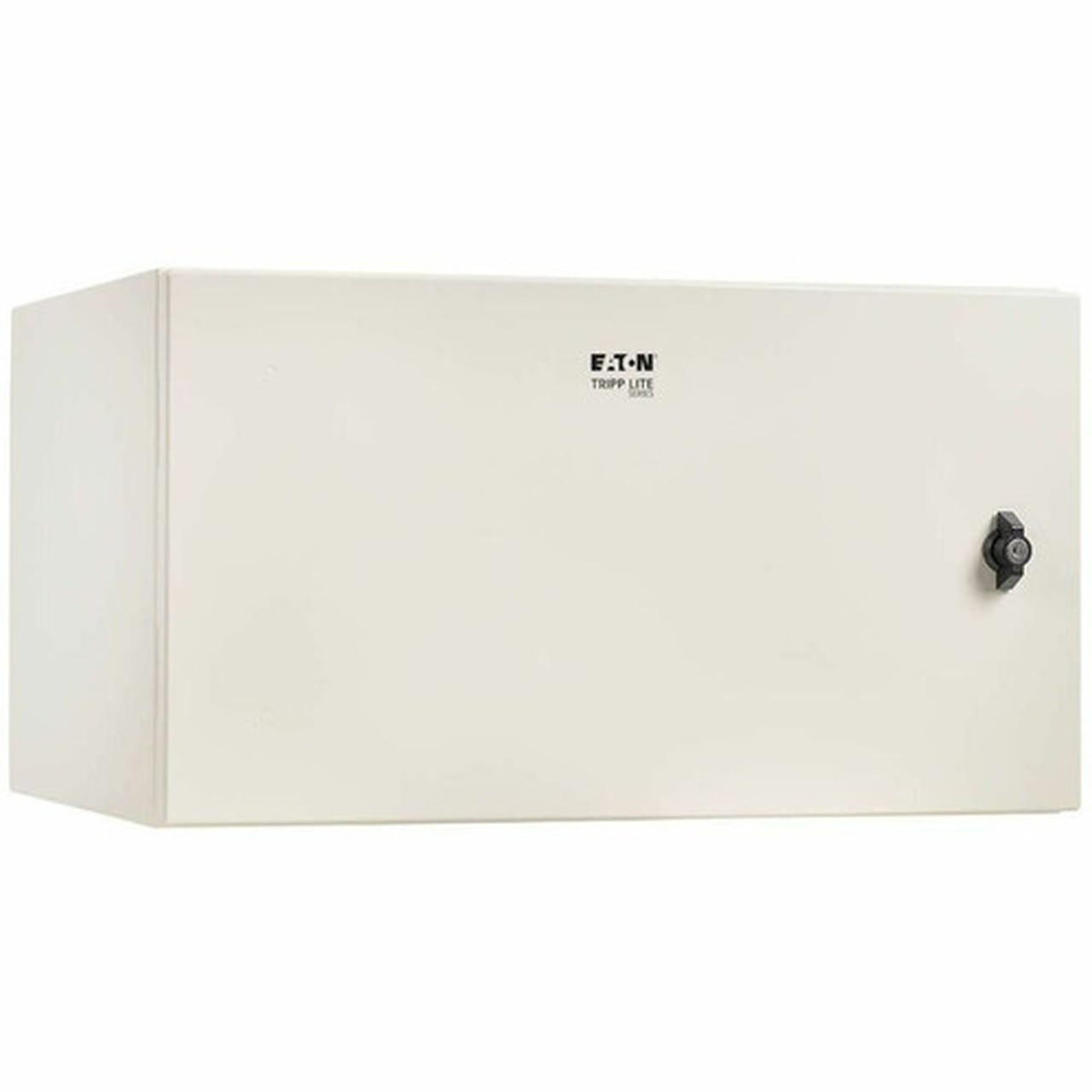

Tripp Lite by Eaton SRN4G6U Industrial Enclosure - For Computer, DVR, LAN Switch, PDU, Patch Panel, Server, UPS - 6U Rack Height16.50" (SRN4G6U)

Marketing Information:

Locking metal enclosure protects your rack-mount equipment against theft, damage, tampering, and excess moisture and debris.

Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 16.5 in. Deep
This SmartRack® industrial enclosure is designed to house 6U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from heavy-duty steel with a durable gray powder-coated finish, the SRN4G6U has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.

NEMA 4 Enclosure Designed for Protection Against Harsh Elements
The SRN4G6U protects its contents against the ingress of water (including rain, sleet, snow, splashing water and hose-directed water), solid foreign objects (including falling dirt and windblown dust) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.

Locks Securely to Help Prevent Theft, Damage and Tampering
The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering, dust and other contaminants. The weather-sealed door swings away on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.

Easy Enclosure and Equipment Installation
This 6U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 16.5 inches deep. Hardware for mounting equipment inside the enclosure is included.

Rack Type: Enclosed Cabinet

Application/Usage: Computer,DVR,LAN Switch,PDU,Patch Panel,Server,UPS

Features: Lockable,Key Lock,Swing Door,Heavy Duty,Anti-theft,Damage Resistant,Tamper Resistant,Moisture Resistant,Debris Resistant,Water Resistant,Snow Resistant,Splash Resistant,Dust Resisitant

Form Factor: Wall Mountable

Color Family: Gray

Product Color: Gray

Product Material: Steel,Metal

Static/Stationary Weight Capacity: 90.72 kg

Height: 13.58" (344.93 mm)

Width: 24" (609.60 mm)

Depth: 18.66" (473.96 mm)

Rack Height: 6U

Rack Depth: 16.50" (419.10 mm)

Weight (Approximate): 26.13 kg

Package Contents:

• SRN4G6U Industrial Enclosure
• 24 x 10-32 Screws
• 24 x M6 Washers
• 4 x LDPE Sheet Metal Plugs
• 4 x M10 Foam Washers
• 2 x Keys
• Owner's Manual

Assembly Required: No

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Limited Warranty: 5 Year
