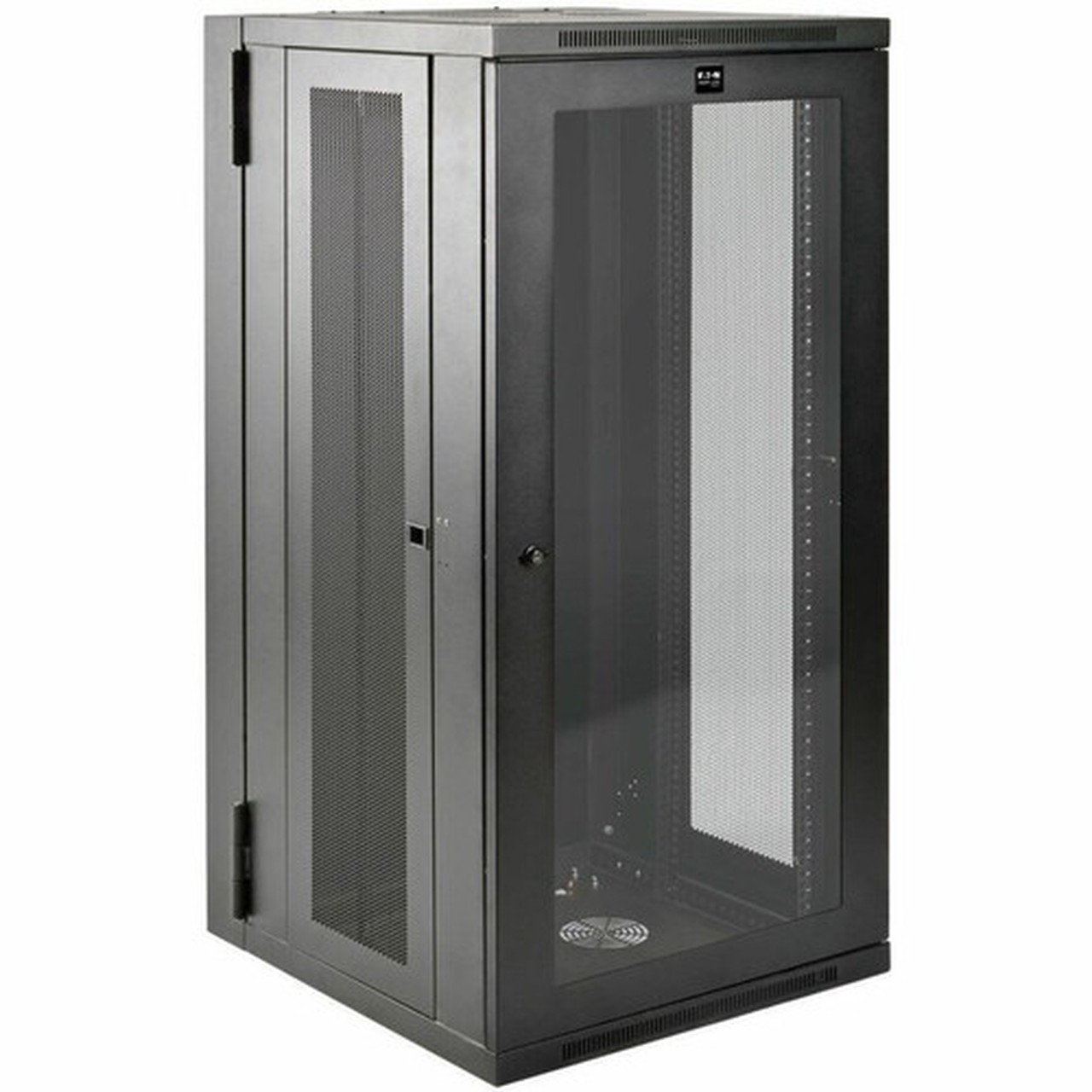

Tripp Lite by Eaton SRW26USDPG SmartRack 26U UPS-Depth Wall-Mount Rack Enclosure Cabinet - For UPS - 26U Rack Height x 19" (482.60 mm) (SRW26USDPG)

Marketing Information: The SRW26USDPG SmartRack 26U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.

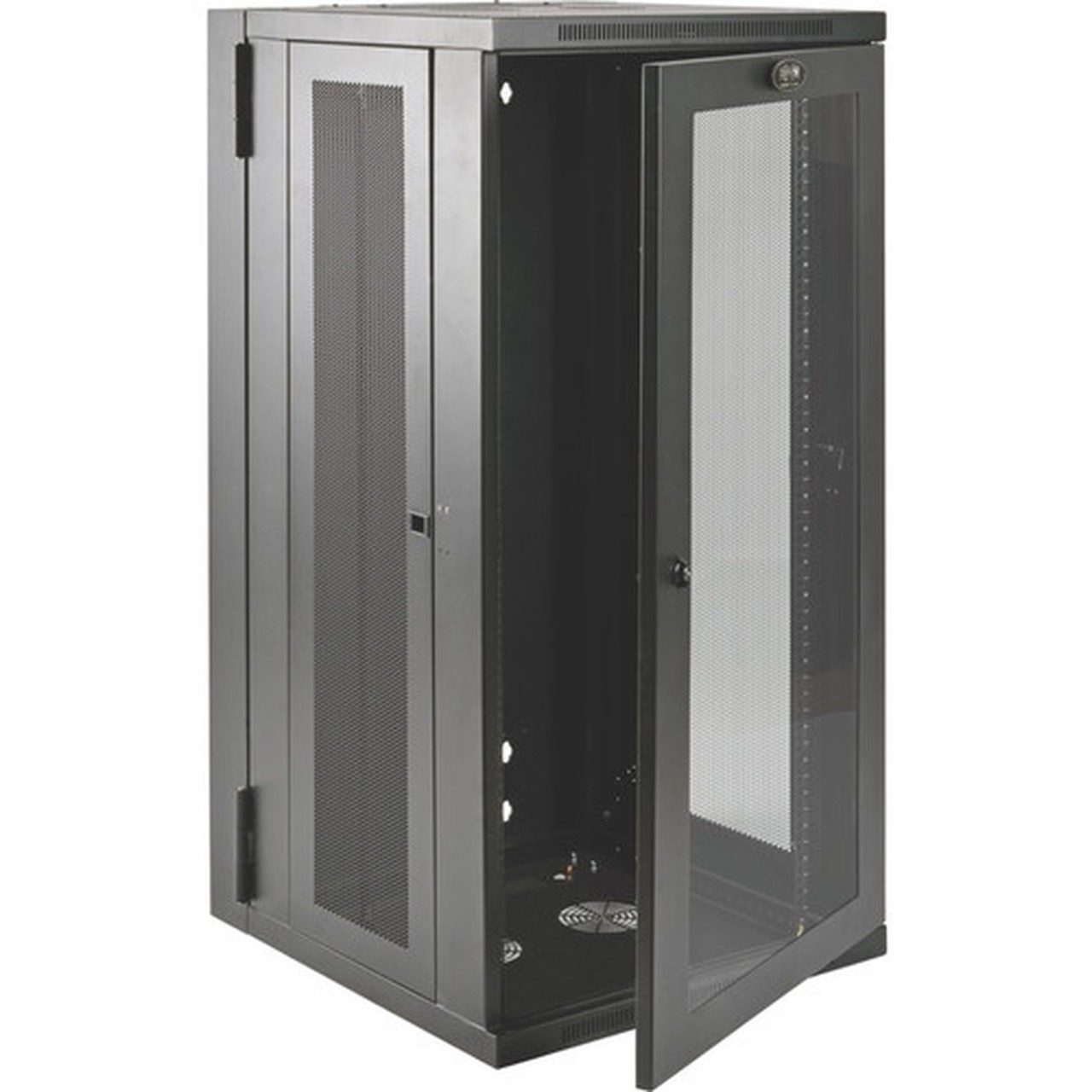

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

The SRW26USDPG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.

More from the Manufacturer

Application/Usage: UPS

Form Factor: Wall Mountable

Color Family: Dual Color

Product Color: Black,Clear

Product Material: Steel,Acrylic

Maximum Weight Capacity: 113.40 kg

Static/Stationary Weight Capacity: 113.40 kg

Height: 49.63" (1260.60 mm)

Width: 23.62" (599.95 mm)

Depth: 25.51" (647.95 mm)

Rack Height: 26U

Rack Width: 19" (482.60 mm)

Rack Depth: 24.50" (622.30 mm)

Weight (Approximate): 56.11 kg

Package Contents:

• SRW26USDPG SmartRack 26U UPS-Depth Wall-Mount Rack Enclosure Cabinet
• 48 x M6 Screws
• 48 x M6 Cage Nuts
• 48 x M6 Washers
• 48 x 12-24 Screws
• 2 x Keys
• Owner's Manual

Assembly Required: No

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 5 Year
