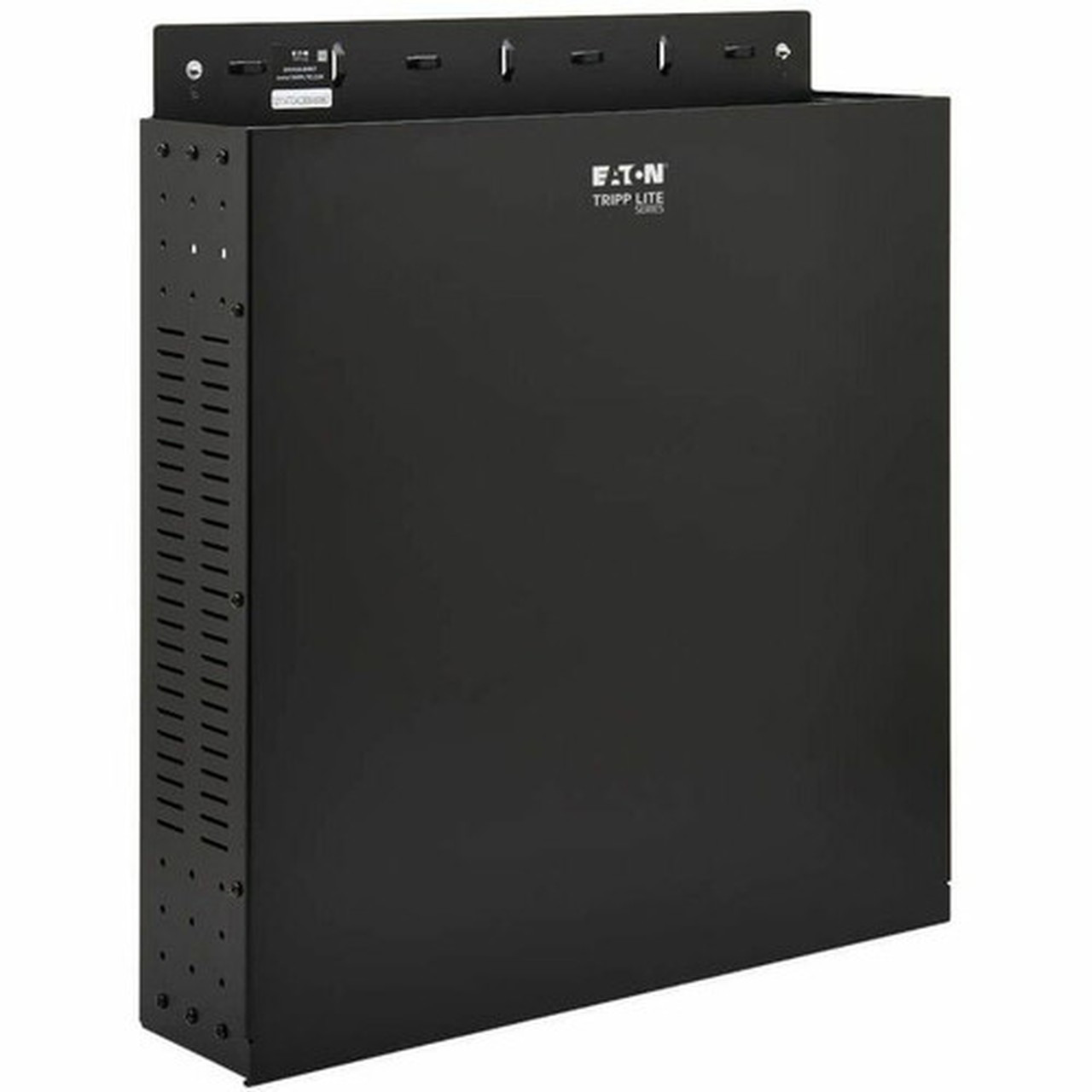

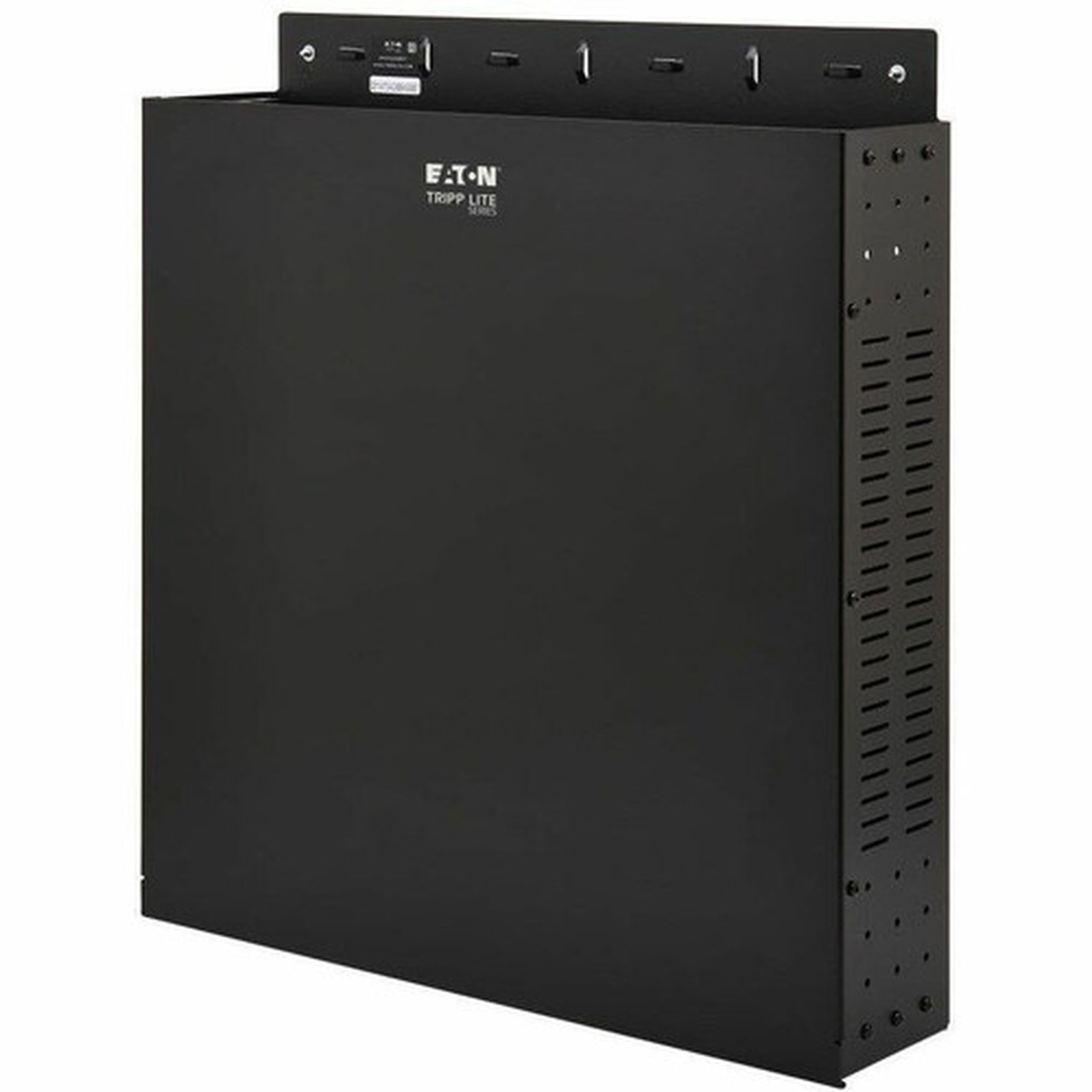

Tripp Lite by Eaton SRWO2UBRKT 2U Low-Profile Vertical-Mount Vented Wall- Mount Mini Rack Enclosure - For LAN Switch, Patch Panel, - - (SRWO2UBRKT)
- SRWO2UBRKT 2U Low-Profile Vertical-Mount Vented Wall-Mount Mini Rack Enclosure
- Front panel
- 16 x M6 Screws
- 16 x M6 Cup Washers
- 16 x M6 Cage Nuts
- Assembly Instructions
Marketing Information:
2U Vented Rack Enclosure Ideal for Housing Network Equipment in Small Spaces
This SmartRack cabinet is recommended for wiring closets, retail locations, classrooms, back offices and other confined spaces where you need server or network equipment to be organized and out of the way. Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, the vertical-mount SRWO2UBRKT has a maximum load capacity of 75 pounds (34 kilograms).
Low-Profile Design Accommodates Switches, Panels and Other Standard Rack Equipment
The 2U cabinet extends less than five inches (12.7 centimeters) from the wall while housing network components up to 19 inches (48.3 centimeters) deep, including switches and patch panels. It is vented on both sides to allow air to flow freely and keep equipment cool. The top and bottom are open for convenient cable routing and access.
Easy Enclosure Deployment and Equipment Installation

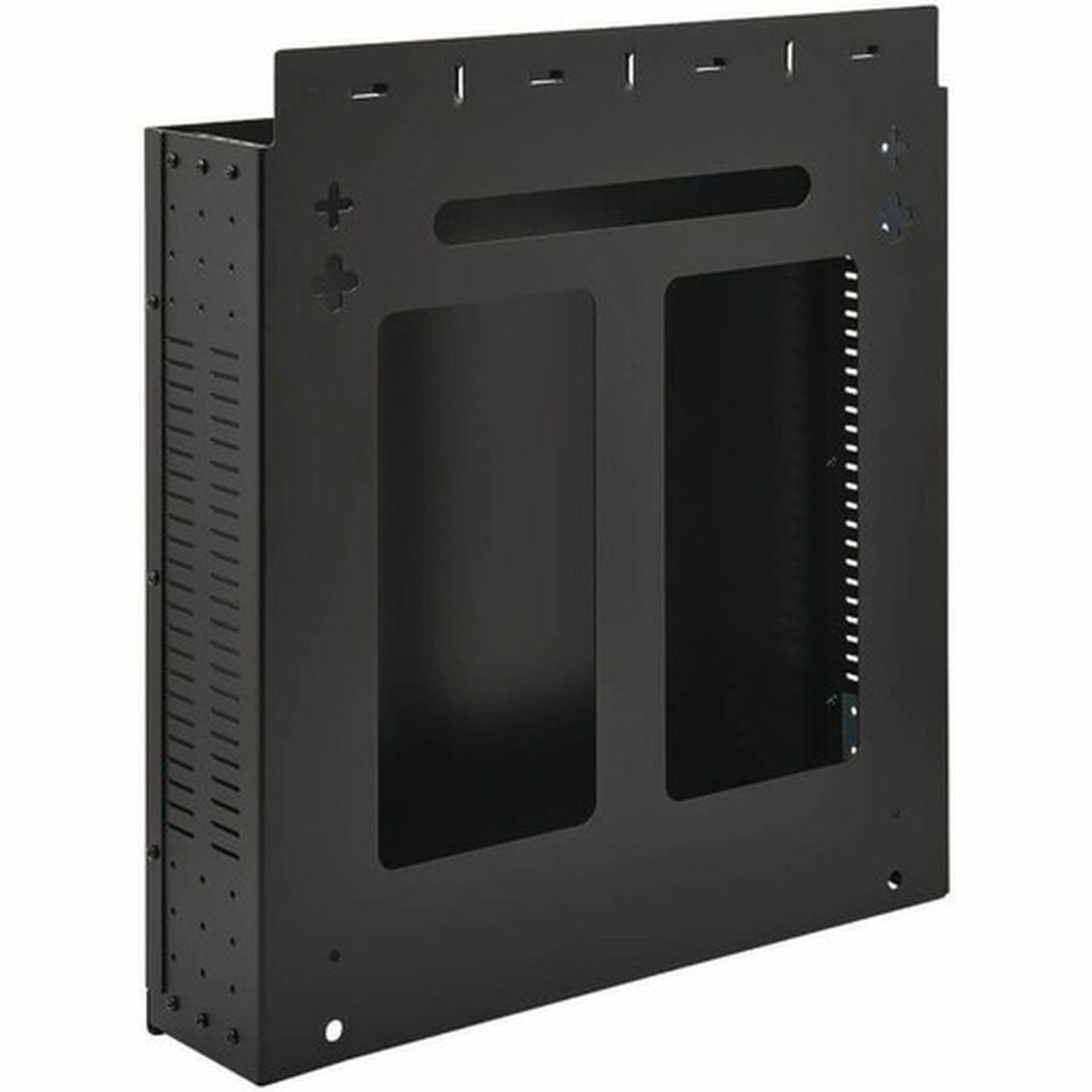

The SRWO2UBRKT comes assembled (except for the front panel) and ready to mount to a wall or beneath a desk. Rear keyhole mounting slots are spaced 16 inches (40.6 centimeters) apart to match standard wall studs. Hardware is included for equipment installation.
Rack Type: Enclosed Cabinet
Application/Usage: LAN Switch,Patch Panel,Router,Network Equipment
Features: Vented,Heavy Duty
Form Factor: Wall Mountable
Color Family: Black
Product Color: Black
Product Material: Cold Rolled Steel
Static/Stationary Weight Capacity: 75 lb (34019.43 g)
Height: 21.47" (545.26 mm)
Width: 20.14" (511.43 mm)
Depth: 4.45" (113.11 mm)
Rack Height: 2U
Weight (Approximate): 13.25 lb (6010.10 g)
Package Contents:
Assembly Required: Yes
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- Rack Mount Enclosure allows you to effectively utilize most of the space available with maximum dependability
- Comes in black color for an elegant and fashionable look
- Built with cold rolled steel for added firmness and maximum reliability
- Wall mountable rack mount enclosure significantly increases the aesthetic appeal of your room with improved safety
- LAN Switch application, usage offers maximum items, valuables, equipment organizational, storage, placement reliability
- Vented feature for maximum items, valuables, equipment organizational, storage, placement convenience
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRWO2UBRKT |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartRack |
| Product Model | SRWO2UBRKT |
| Product Name | SRWO2UBRKT 2U Low-Profile Vertical-Mount Vented Wall- Mount Mini Rack Enclosure |
| Product Type | Rack Mount Enclosure |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage | LAN Switch,Patch Panel,Router,Network Equipment |
| Features | Vented,Heavy Duty |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Cold Rolled Steel |
| Static/Stationary Weight Capacity | 75 lb (34019.43 g) |
| Height | 21.47" (545.26 mm) |
| Width | 20.14" (511.43 mm) |
| Depth | 4.45" (113.11 mm) |
| Rack Height | 2U |
| Weight (Approximate) | 13.25 lb (6010.10 g) |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
