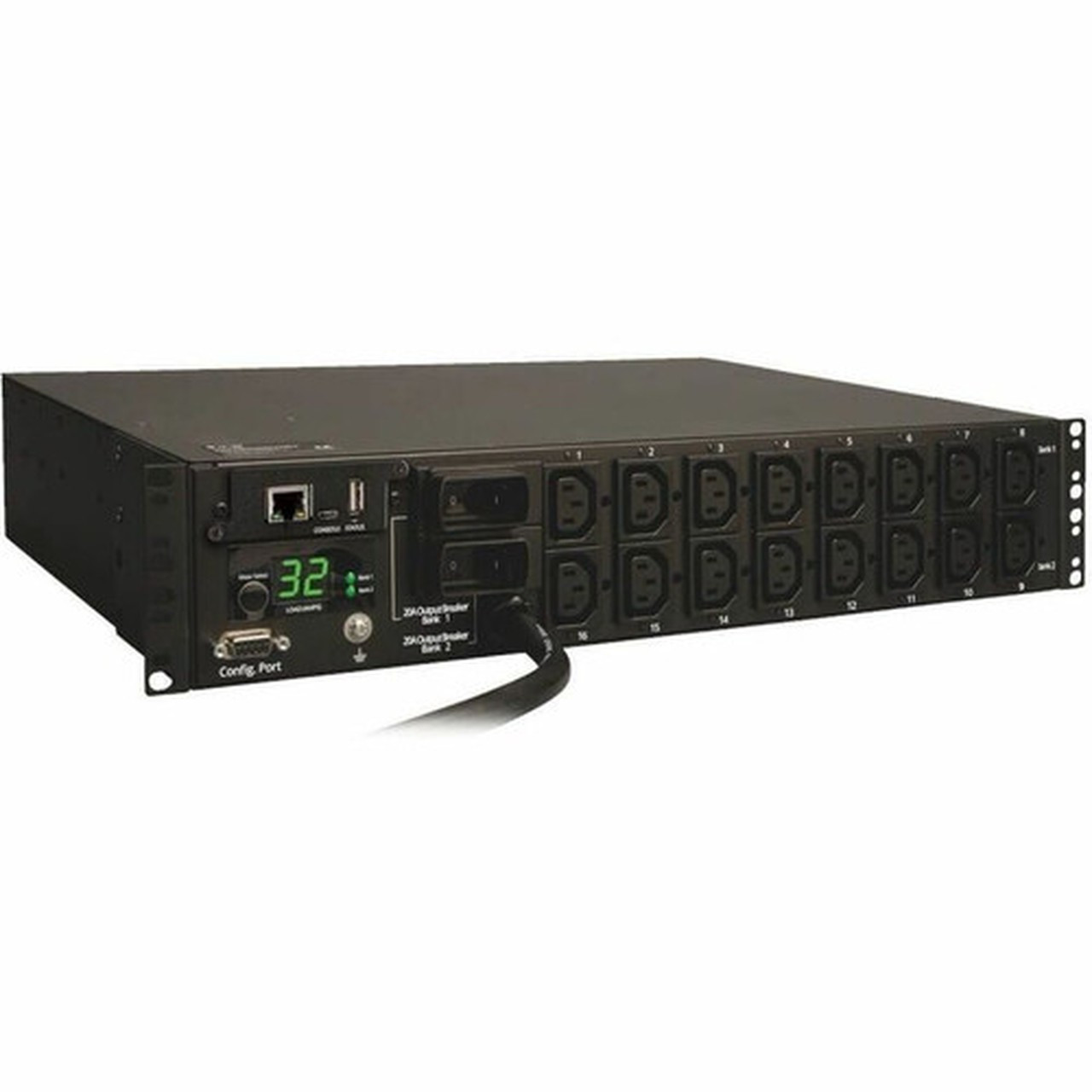

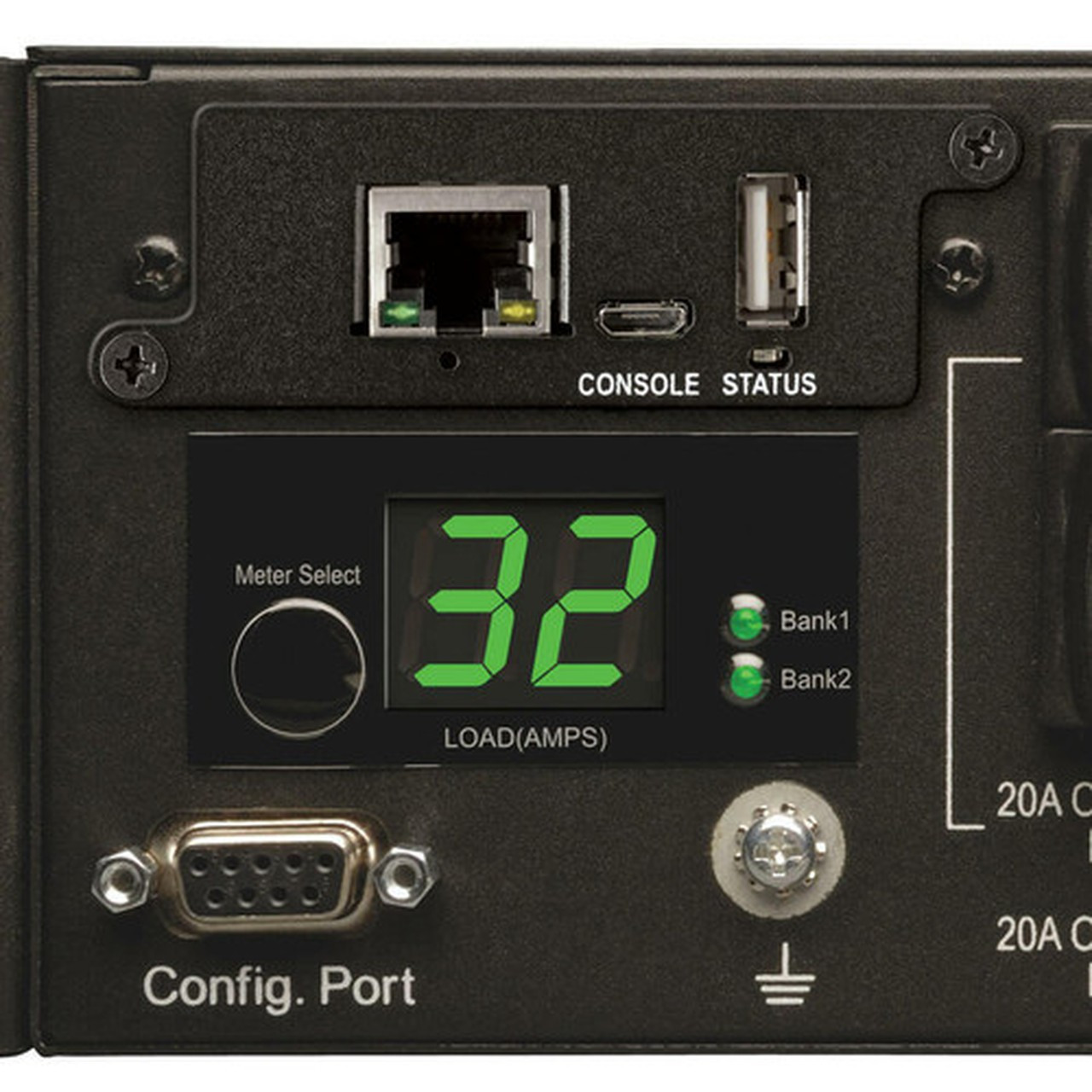

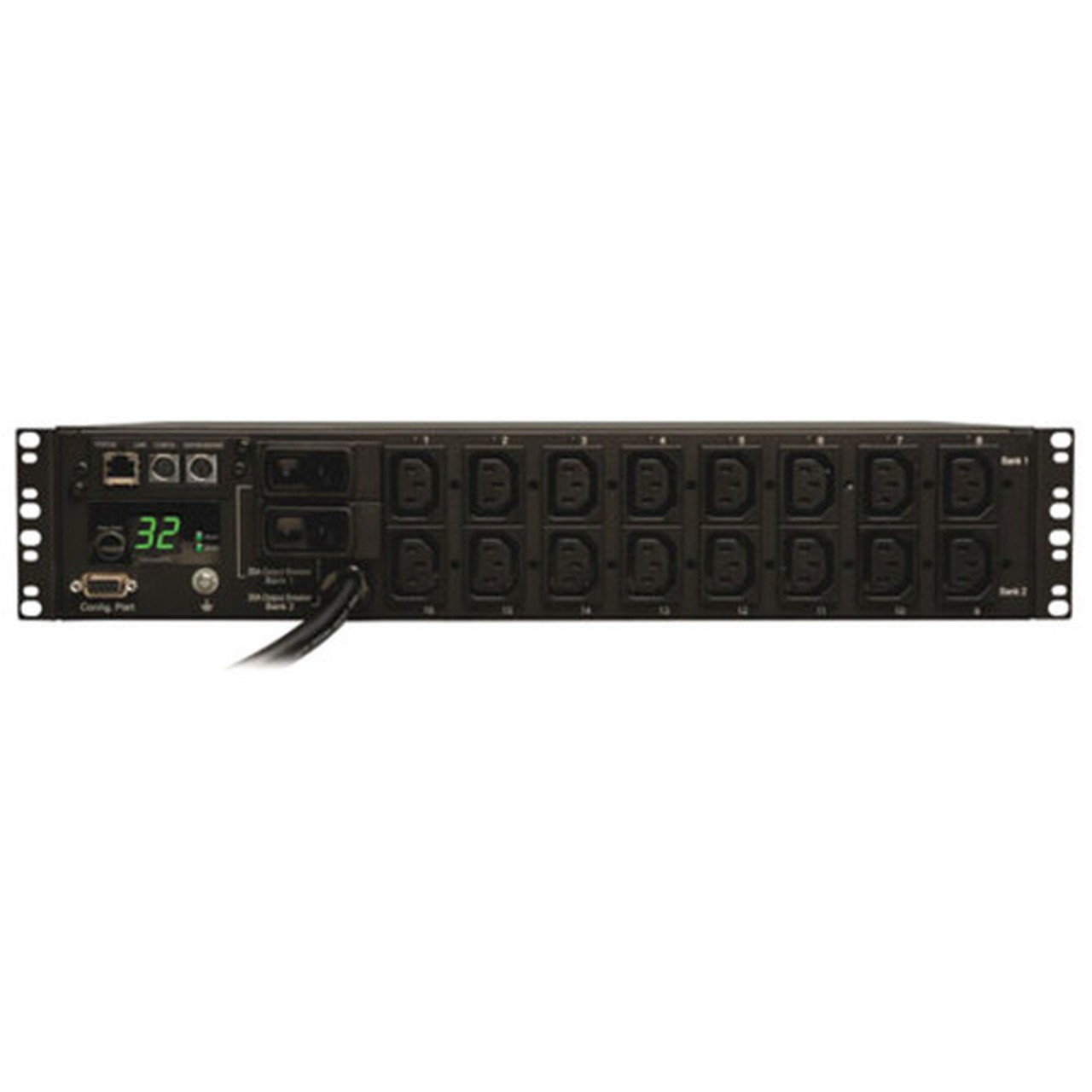

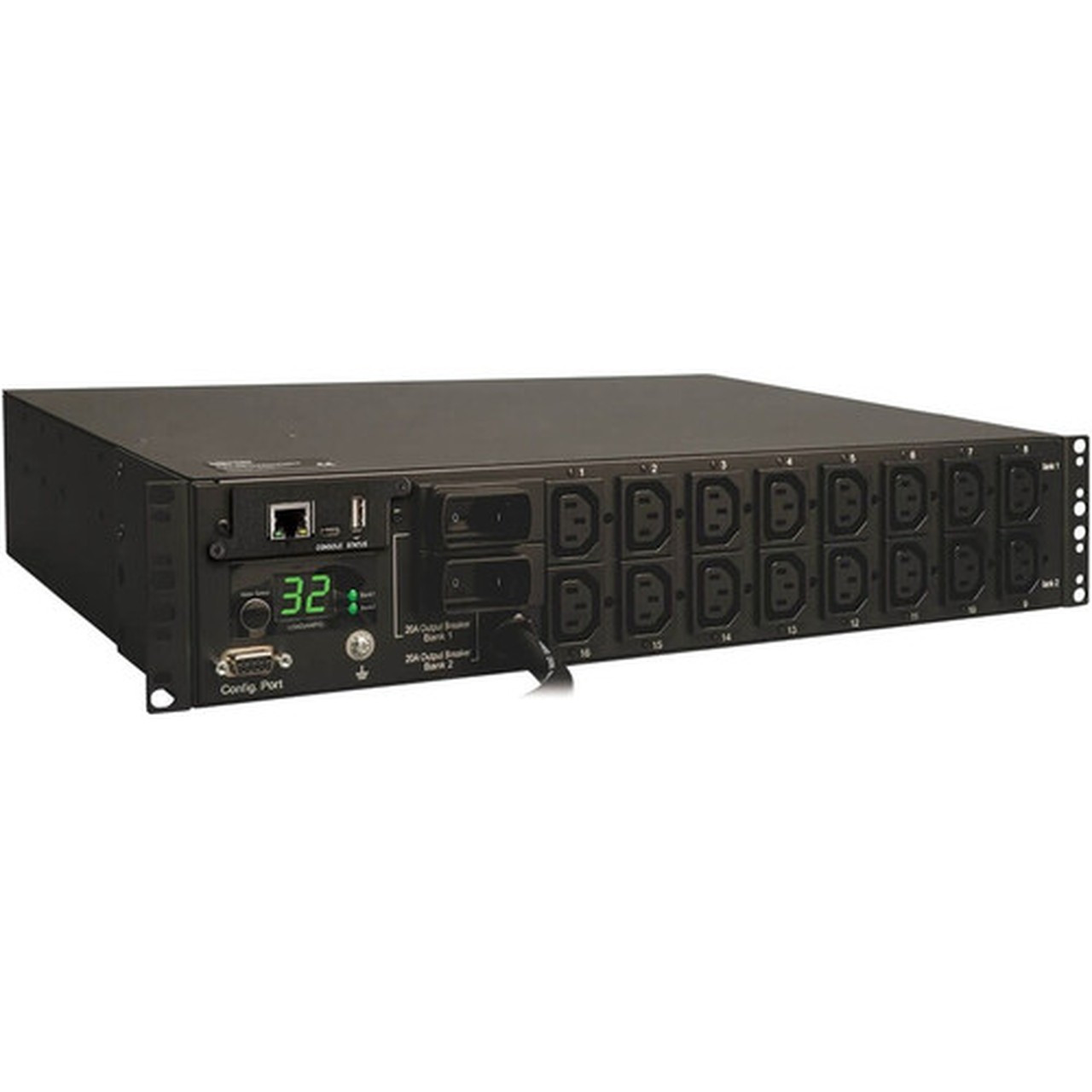

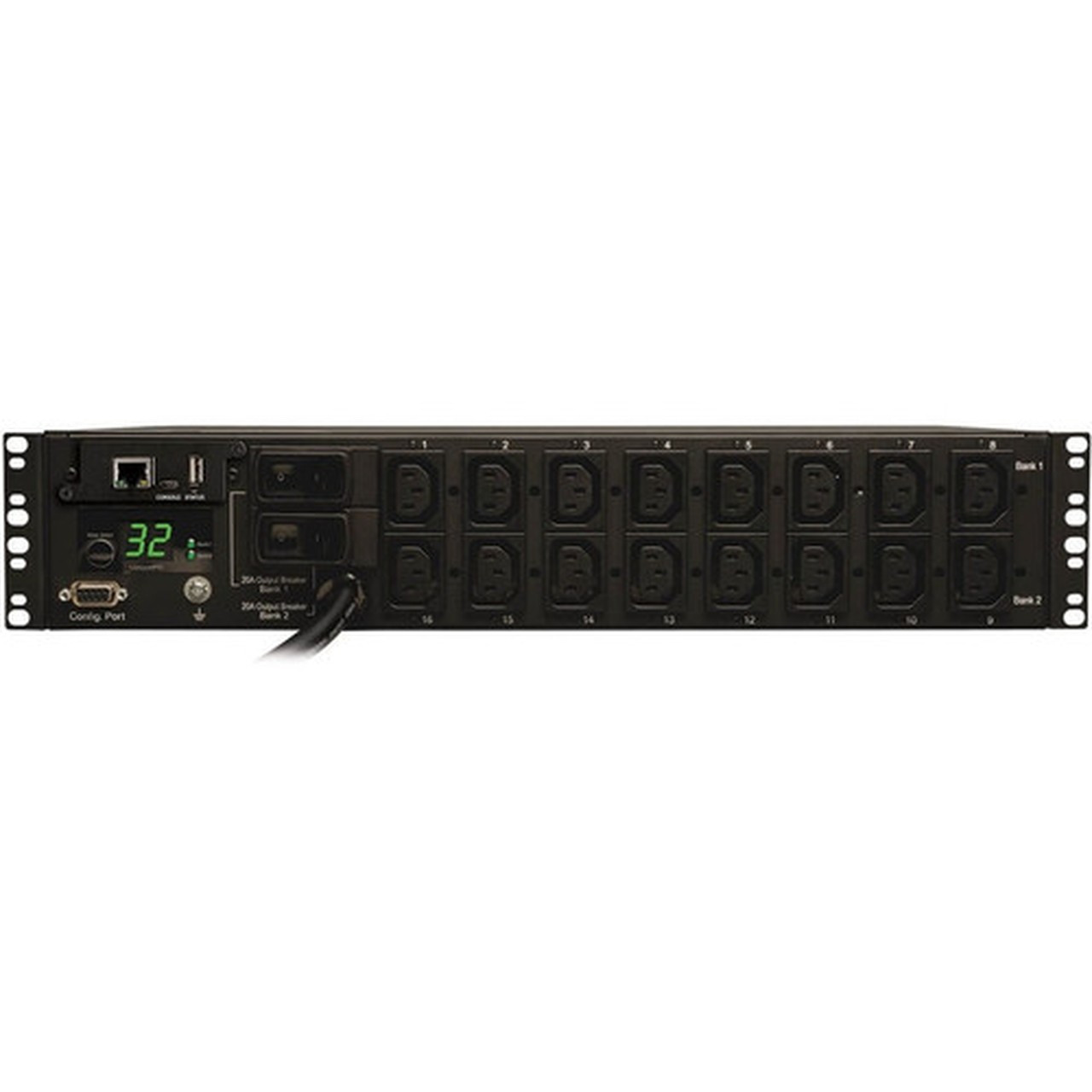

Tripp Lite by Eaton Switched PDUMH32HVNET 16-Outlets 7.4kW PDU - Switched - 16 x IEC 60320 C13 - 230 V AC - 7.36 kW - 2U - Horizontal (PDUMH32HVNET)

Marketing Information:

Tripp Lite Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. Built-in LX Platform network management interface. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is displayed locally via front panel current meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

More from the Manufacturer

PDU Type: Switched

Receptacle Type: IEC 60320 C13

Receptacle Detail: 16 x IEC 60320 C13

Protection Type: Overload Protection

Input Voltage: 230 V AC

Output Voltage: 230 V AC

Power Rating (Watt): 7.40 kW

Management:

Protocols:

• HTTP
• HTTPS
• SMTP
• SNMPv1
• SNMPv2
• Telnet
• FTP
• DHCP
• BOOTP
• NTP

Mounting Orientation: Horizontal

Mount Type: Rack-mountable

Rack Height: 2U

Height: 3.50" (88.90 mm)

Width: 17.50" (444.50 mm)

Depth: 12.50" (317.50 mm)

Weight (Approximate): 6.21 kg

Package Contents:

• Switched PDUMH32HVNET 16-Outlets 7.4kW PDU
• Rack Installation Brackets
• Cable Retention Ties
• SNMPWEBCARD Configuration Cable
• PowerAlert Software Kit
• User Manual

Country of Origin: Taiwan

TAA Compliant: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
