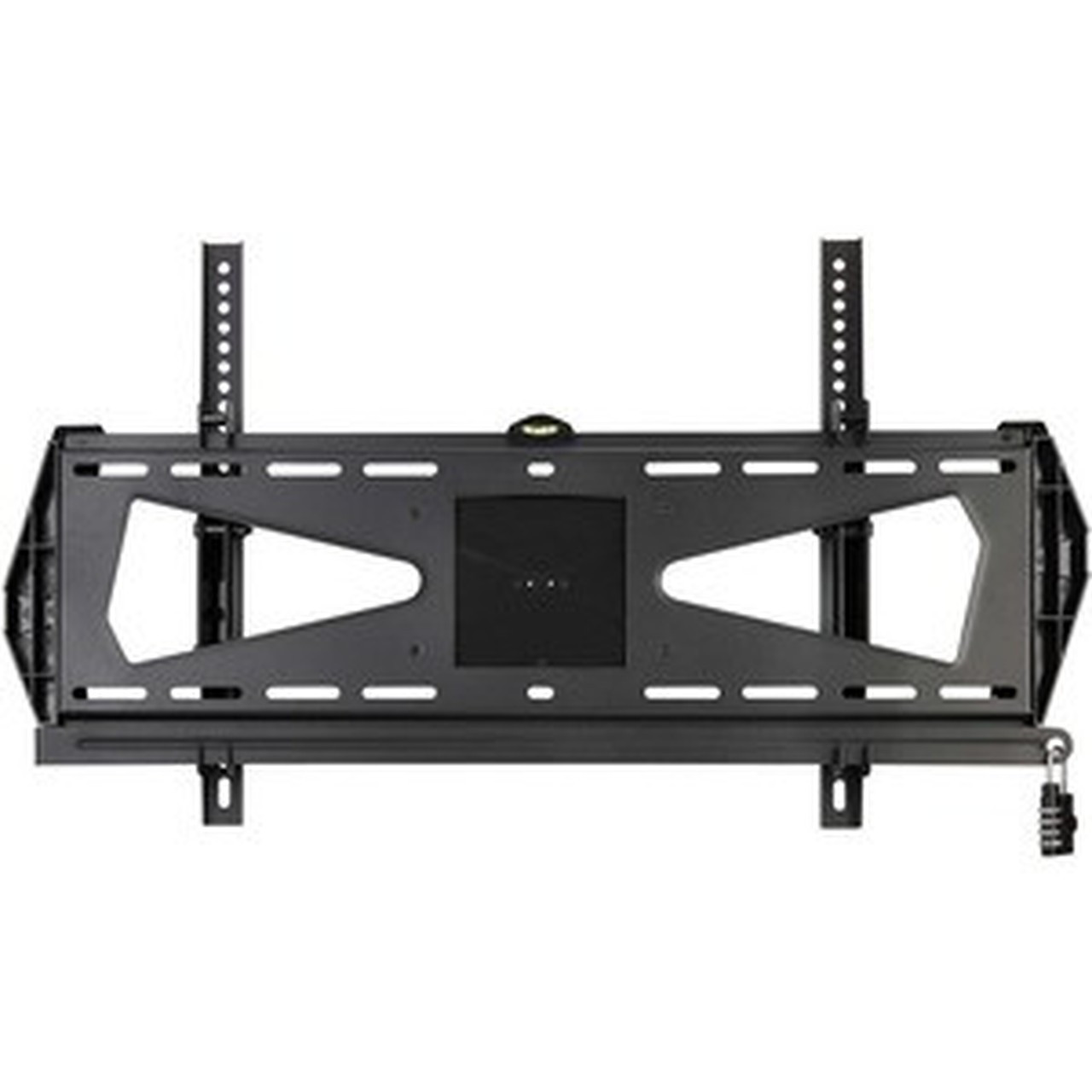

Tripp Lite DWTSC3780MUL Wall Mount for Flat Panel Display, Monitor, TV - Black - 1 Display(s) Supported80" Screen Support - 39.92 kg - (DWTSC3780MUL)

Sold out

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

(No reviews) Write a Review
MSRP: $109.39
$109.39
$98.63
Save: $10.76 (9.84%)
SKU: DWTSC3780MUL
UPC: 37332213747
Availability: Ready to ship - Stock in Canada
Weight: 9.15 LBS
Shipping: Calculated at Checkout

Ask for ETA! 🗨️

    Marketing Information:

    Features

    Hangs Your Flat-Panel or Curved-Screen TV or Monitor on the Wall

    Ideal for home theaters, classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor, this heavy-duty wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most flat-panel or curved-screen displays from 37 to 80 inches. Mounting hardware is included.

    Durable All-Metal Construction Provides Convenient Cable Access

    The security wall mount is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Rear openings with smooth edges enable easy access to cables. A built-in bubble level helps ensure your display is evenly mounted. This heavy-duty wall mount supports up to 88 pounds and meets UL Standard 2442.

    Designed to Keep Your Display Safe and Secure

    This security wall mount was conceived with your television or monitor's safety in mind, especially if the display is located in a public area with much unguarded traffic, such as a library, classroom or hotel lobby. It comes with a solid steel security bar that slides through the mounting brackets and is secured into place with an included four-position combination lock.

    Tilt Feature Lets You Adjust the Viewing Angle to Your Specifications

    You can adjust the horizontal angle of your display from -10° to +5°. This will minimize glare on the screen and allow you to customize the angle for comfortable viewing.

    Complies with VESA Standards

    VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing industry-wide standards for products like flat-panel TVs and monitors. To comply with these standards, most manufacturers use a series of universal mounting hole patterns, measured in millimeters, on the backs of the products. Measure the vertical and horizontal distances between the holes on the back of your display or refer to your display's owner's manual to find its VESA pattern. This heavy-duty wall mount conforms to VESA-compliant displays with any of the following standard mounting hole patterns: 300 x 300, 400 x 200, 400 x 400 and 600 x 400.

    5-Year Warranty and Environmentally Responsible Design

    The DWTSC3780MUL comes with a 5-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.

    Device Supported: Flat Panel Display,Monitor,TV

    Number of Displays Supported: 1

    Maximum Load Capacity: 39.92 kg

    Maximum Screen Size Supported: 80"

    Color Family: Black

    Product Color: Black

    Mounting Pattern: 400 x 400,400 x 200,300 x 300,200 x 200

    Height: 30.90" (784.86 mm)

    Width: 16.50" (419.10 mm)

    Depth: 0.90" (22.86 mm)

    Weight (Approximate): 2.36 kg

    Package Contents:

    • Wall Plate
    • 2 x Adapter Brackets
    • Security Bar
    • Wall Plate Level
    • 2 x End Caps
    • 4 x End Cap Screws
    • 4 x M5 x 14 Screws
    • 4 x M6 x 14 Screws
    • 4 x M6 x 30 Screws
    • 4 x M8 x 30 Screws
    • 4 x M8 x 20 Screws
    • 4 x Washers
    • 8 x Small Spacers
    • 8 x Large Spacers
    • 6 x Anchor Bolts
    • 6 x Concrete Anchors
    • 6 x 20 mm Washers
    • Combination Lock
    • Owner's Manual

    Country of Origin: China

    Environmentally Friendly: Yes

    Environmental Compliance: Restriction of Hazardous Substances (RoHS)

    Limited Warranty: 5 Year

[custom-highlights]
  • Sustains a maximum load capacity of 39.92 kg
  • Supports 80" displays
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberDWTSC3780MUL
Manufacturer Website Addresshttps://tripplite.eaton.com/
Brand NameTripp Lite by Eaton
Product ModelDWTSC3780MUL
Product NameDWTSC3780MUL Wall Mount
Product TypeWall Mount
Product Information
Device SupportedFlat Panel Display,Monitor,TV
Number of Displays Supported1
Maximum Load Capacity39.92 kg
Maximum Screen Size Supported80"
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Mounting Pattern400 x 400,400 x 200,300 x 300,200 x 200
Height30.90" (784.86 mm)
Width16.50" (419.10 mm)
Depth0.90" (22.86 mm)
Weight (Approximate)2.36 kg
Miscellaneous
Package Contents
  • Wall Plate
  • 2 x Adapter Brackets
  • Security Bar
  • Wall Plate Level
  • 2 x End Caps
  • 4 x End Cap Screws
  • 4 x M5 x 14 Screws
  • 4 x M6 x 14 Screws
  • 4 x M6 x 30 Screws
  • 4 x M8 x 30 Screws
  • 4 x M8 x 20 Screws
  • 4 x Washers
  • 8 x Small Spacers
  • 8 x Large Spacers
  • 6 x Anchor Bolts
  • 6 x Concrete Anchors
  • 6 x 20 mm Washers
  • Combination Lock
  • Owner's Manual
Country of OriginChina
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty5 Year

[/custom-specifications]

[custom-user-manual]

Available Documentation:


User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2

[/custom-user-manual]

Warranty Infomartion

5 Year
