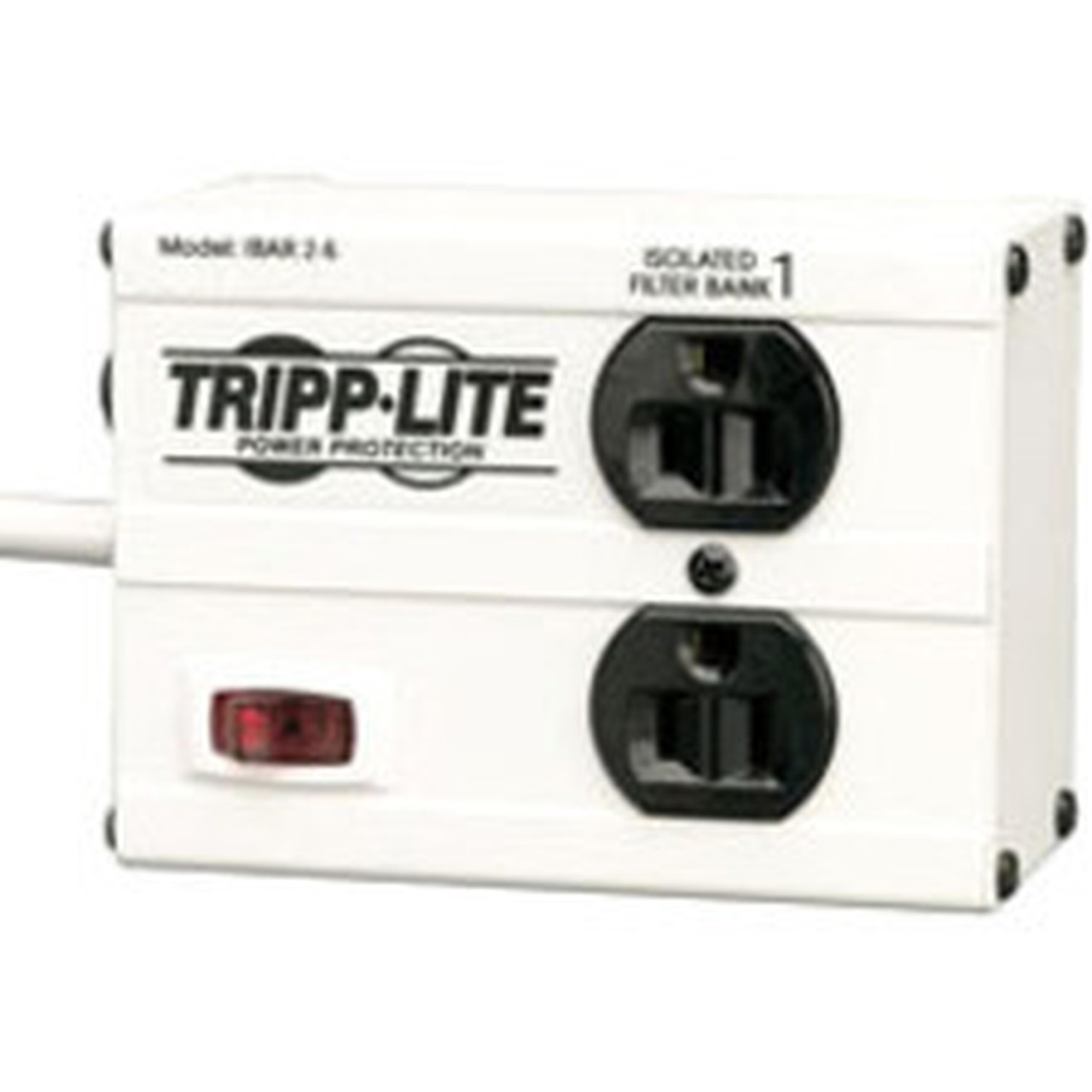

Tripp Lite ISOBAR2-6 Surge Suppressor - 2 x NEMA 5-15R - 1410 J - 125 V AC Input (IBAR2-6D)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian Distributor
Proud Canadian team since 2007
-
IT experts available
Consulting & Technicians services
-
Configuration services available
From VoiP phone to Cluster servers
-
Fast Delivery
Shipped Trough UPS & Purolator
- All metal housing
- 2 outlets / 6-ft. cord
- 1410 joule rating
- 25,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
- Marketing Information:
For more than 20 years, America's leading companies have trusted Tripp Lite's Isobar Premium surge and noise suppressors to protect sensitive computer, networking and telecom equipment. With more than 18 million satisfied customers, the Isobar remains the world's #1 selling premium surge suppressor. Loaded with a generous combination of high quality components, near indestructible all-metal case and enhanced noise filtration system, Isobars offer the highest level of protection. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test surges to harmless levels under 35 volts. Isobar's unique protection system combines large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into a complete surge and EMI/RFI noise reduction system. ISOBAR2-6 offers 2 outlets with network-grade surge suppression rated at 1410 joules/48,000 amps. Widely spaced NEMA 5-15 outlets accommodate up to 2 large transformer plugs. Includes 6 foot AC line cord with space-saving angled input plug and keyhole mounting tabs.
Receptacles: 2 x NEMA 5-15RInput Voltage: 125 V ACSurge Energy Rating: 1410 JPower Cord/Cable Length: 6 ftHeight: 5" (127 mm)Width: 2.50" (63.50 mm)Depth: 3.50" (88.90 mm)Weight (Approximate): 730 gEnvironmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: Lifetime[custom-specifications]
Manufacturer: Tripp Lite
Manufacturer Part Number: IBAR2-6D
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Series: Isobar
Product Model: ISOBAR2-6
Product Name: ISOBAR2-6 Surge Suppressor
Product Type: Surge Suppressor/Protector
Technical Information
Receptacles: 2 x NEMA 5-15R
Power Description
Input Voltage: 125 V AC
Surge Energy Rating: 1410 J
Physical Characteristics
Power Cord/Cable Length: 6 ft
Height: 5" (127 mm)
Width: 2.50" (63.50 mm)
Depth: 3.50" (88.90 mm)
Weight (Approximate): 730 g
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Warranty
Limited Warranty: Lifetime
[/custom-specifications]
