Tripp Lite Metered PDUMH30HV 18-Outlets PDU - 2 x IEC 60320 C19, 16 x IEC 60320 C13 - 230 V AC - 2U - Horizontal - Rack Mount - TAA (PDUMH30HV)

(No reviews) Write a Review
$716.15
$844.07
$508.27
(You save $207.88 )
SKU: PDUMH30HV
UPC: 37332159021
Availability: In Canada
Weight: 15.20 LBS

Pre-order! 🗨️📞

  • Two built-in meters report output current in amps for each load bank
  • TAA Compliant
  • Reversible housing, 2U 208/240V rackmount metered PDU
  • Metered single phase 30A 208/240V 2U horizontal rackmount PDU
  • Attached 12ft / 3.6m cord with NEMA L6-30P input plug
  • 18 total outlets (16 C13, 2 C19)
    Marketing Information:

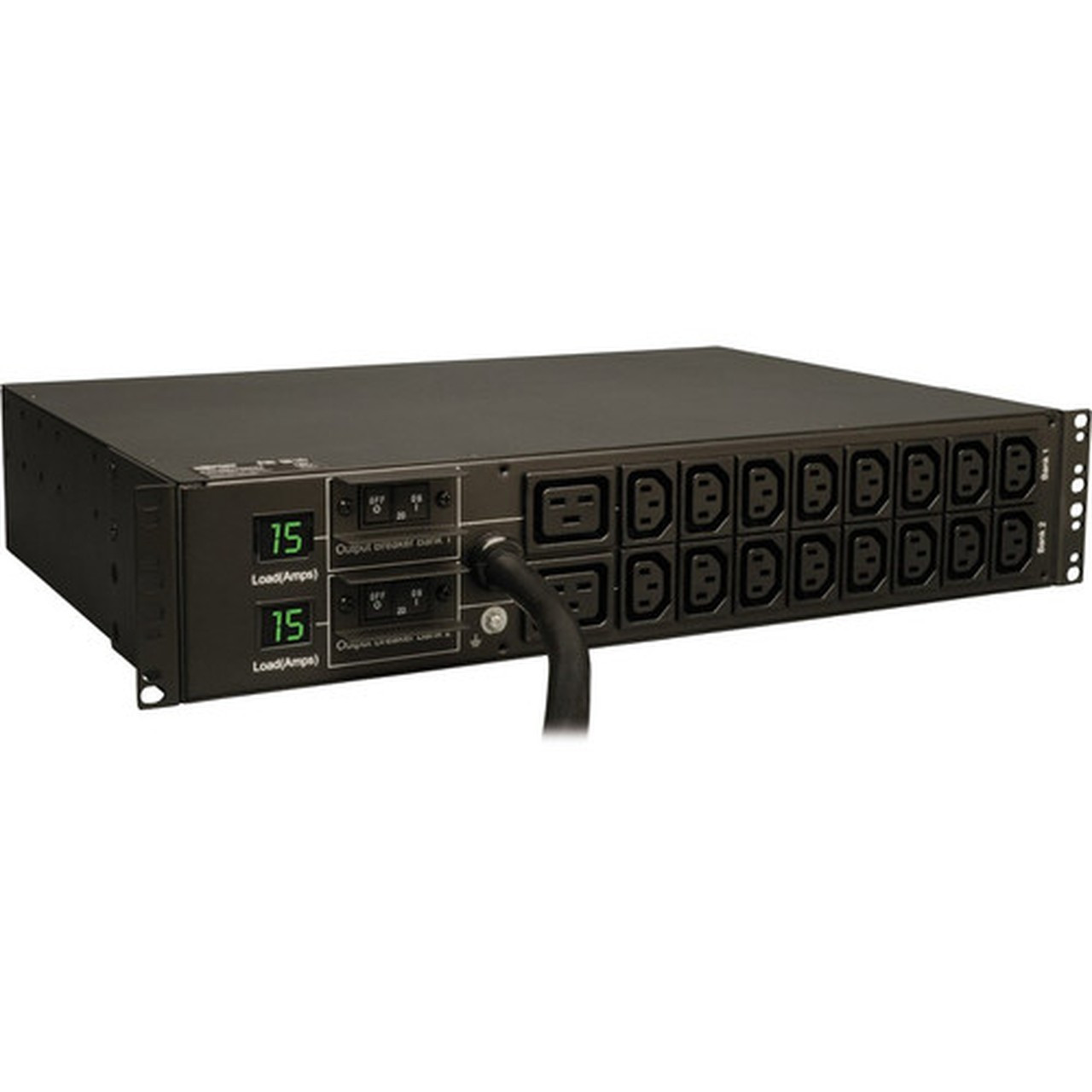

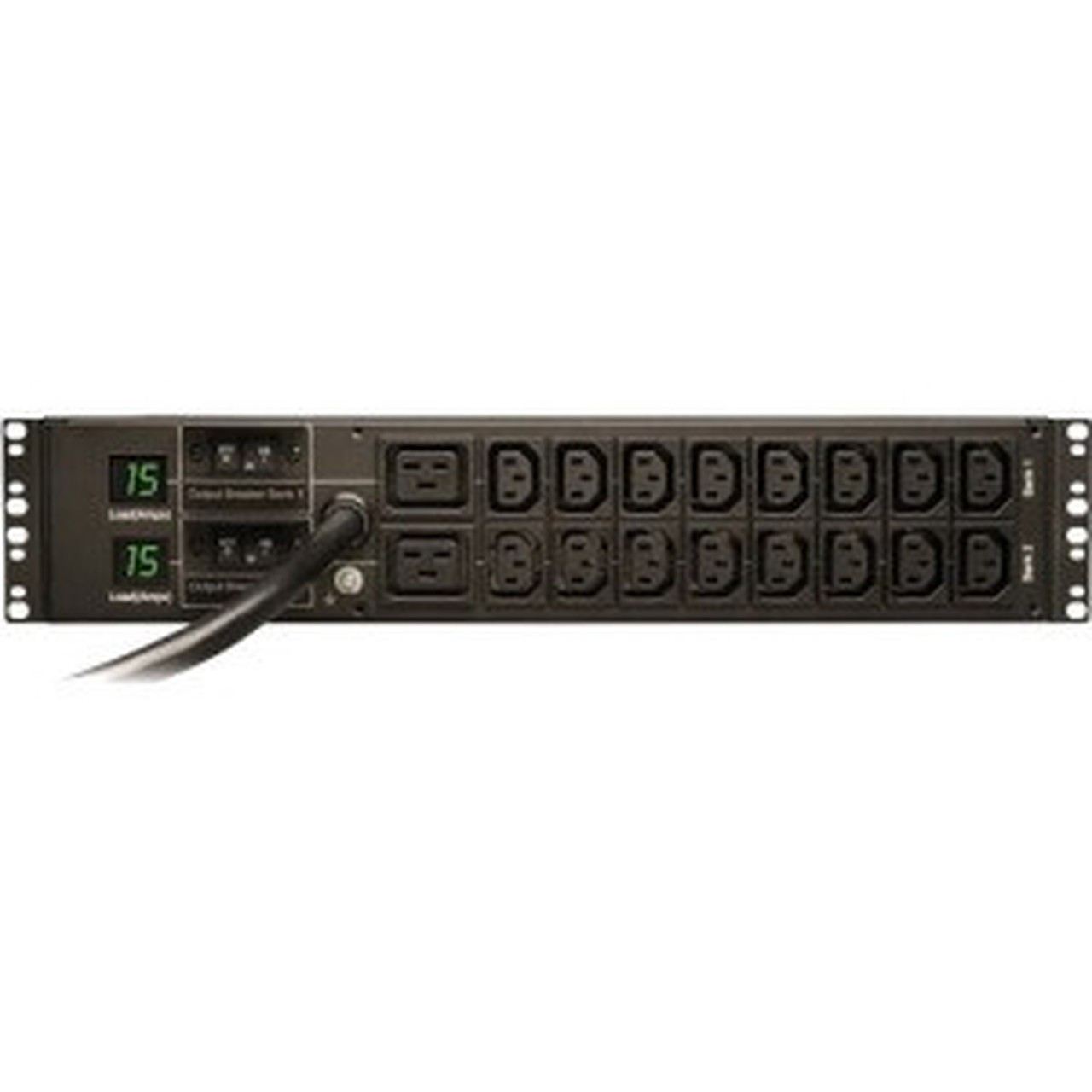

    PDUMH30HV horizontal 2U metered rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A continuous). Includes 12 ft / 3.6m attached line cord with L6-30P input plug and 18 output receptacles (16 C13, 2 C19). Outlets are arranged in two separately breakered 9 outlet load banks. Set of two visual current meters tracks the output current of each load bank separately. Supports 2U rackmount installation in 19 inch racks. Included cord retention brackets keeps vital network equipment plugged in and continuously powered.


    Input Receptacles: NEMA L6-30P
    Output Receptacles:
    • 2 x IEC 60320 C19
    • 16 x IEC 60320 C13

    Protection Type: Overload Protection
    Input Voltage: 230 V AC
    Input Voltage Range: 208 V AC - 240 V AC
    Output Voltage:
    • 208 V AC
    • 240 V AC

    Mounting Orientation: Horizontal
    Placement: Rack
    Rack Height: 2U
    Height: 3.50" (88.90 mm)
    Width: 17.50" (444.50 mm)
    Depth: 12.50" (317.50 mm)
    Weight (Approximate): 6.21 kg
    Package Contents:
    • Metered PDUMH30HV 18-Outlets PDU
    • Mounting Brackets
    • Plug Retention Plates
    • User Manual

    Environmentally Friendly: Yes
    Environmental Certification: RoHS
    TAA Compliant: Yes
    Limited Warranty: 2 Year

[custom-specifications]

Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: PDUMH30HV
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Series: Metered
Product Model: PDUMH30HV
Product Name: Metered PDUMH30HV 18-Outlets PDU
Product Type: PDU
Technical Information
Input Receptacles: NEMA L6-30P
Output Receptacles:
  • 2 x IEC 60320 C19
  • 16 x IEC 60320 C13

Protection Type: Overload Protection
Power Description
Input Voltage: 230 V AC
Input Voltage Range: 208 V AC - 240 V AC
Output Voltage:
  • 208 V AC
  • 240 V AC

Physical Characteristics
Mounting Orientation: Horizontal
Placement: Rack
Rack Height: 2U
Height: 3.50" (88.90 mm)
Width: 17.50" (444.50 mm)
Depth: 12.50" (317.50 mm)
Weight (Approximate): 6.21 kg
Miscellaneous
Package Contents:
  • Metered PDUMH30HV 18-Outlets PDU
  • Mounting Brackets
  • Plug Retention Plates
  • User Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
