Tripp Lite Metered PDUMV15-24 8-Outlets PDU - NEMA 5-15P - 8 x NEMA 5-15R - 120 V AC - 1.52 kW - 0U - Vertical - Wall-mountable, (PDUMV15-24)

Sold out

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Free Shipping*

(No reviews) Write a Review
MSRP: $356.78
$356.78
$209.08
Save: $147.70 (41.40%)
SKU: PDUMV15-24
UPC: 37332182852
Availability: Ready to ship - Stock in Canada
Weight: 3.50 LBS
Shipping: Calculated at Checkout

Ask for ETA! 🗨️

    Marketing Information: Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

    More from the Manufacturer

    Plug/Connector Type: NEMA 5-15P

    Receptacle Type: NEMA 5-15R

    Receptacle Detail: 8 x NEMA 5-15R

    Protection Type: Overload Protection

    Input Voltage: 120 V AC

    Input Voltage Range: 100 V AC - 127 V AC

    Output Voltage: 120 V AC

    Power Rating (Watt): 1.52 kW

    Input Current: 12 A

    Mounting Orientation: Vertical

    Mount Type: Wall-mountable,Rack-mountable

    Rack Height: 0U

    Height: 24" (609.60 mm)

    Width: 1.75" (44.45 mm)

    Depth: 1.25" (31.75 mm)

    Weight (Approximate): 1.20 kg

    Package Contents:

    • Metered PDUMV15-24 8-Outlets PDU
    • Mounting Hardware
    • Spare Mounting Buttons
    • Owner's Manual with Warranty Information

    Country of Origin: China

    Environmentally Friendly: Yes

    Environmental Compliance: Restriction of Hazardous Substances (RoHS)

    Limited Warranty: 2 Year

[custom-highlights]

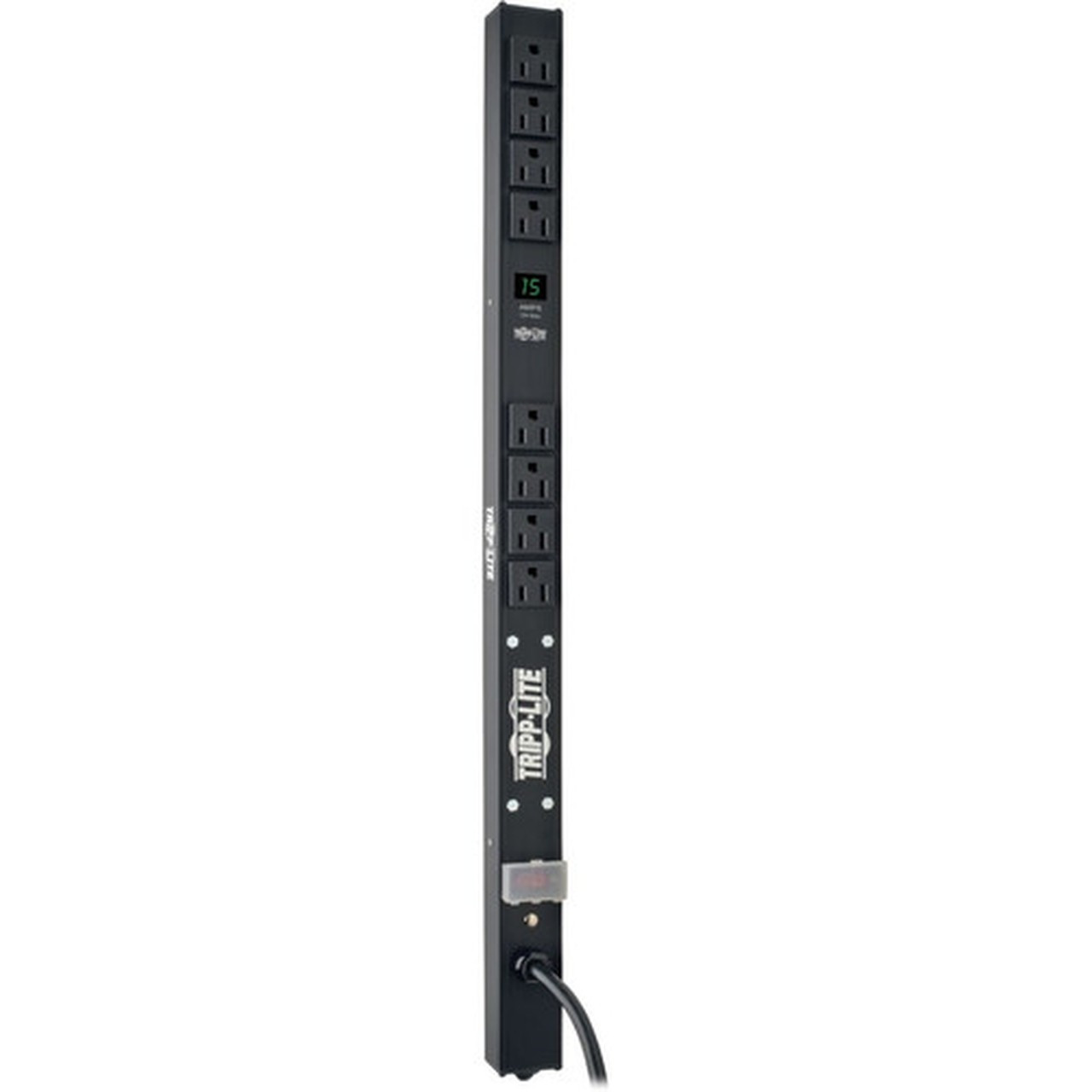

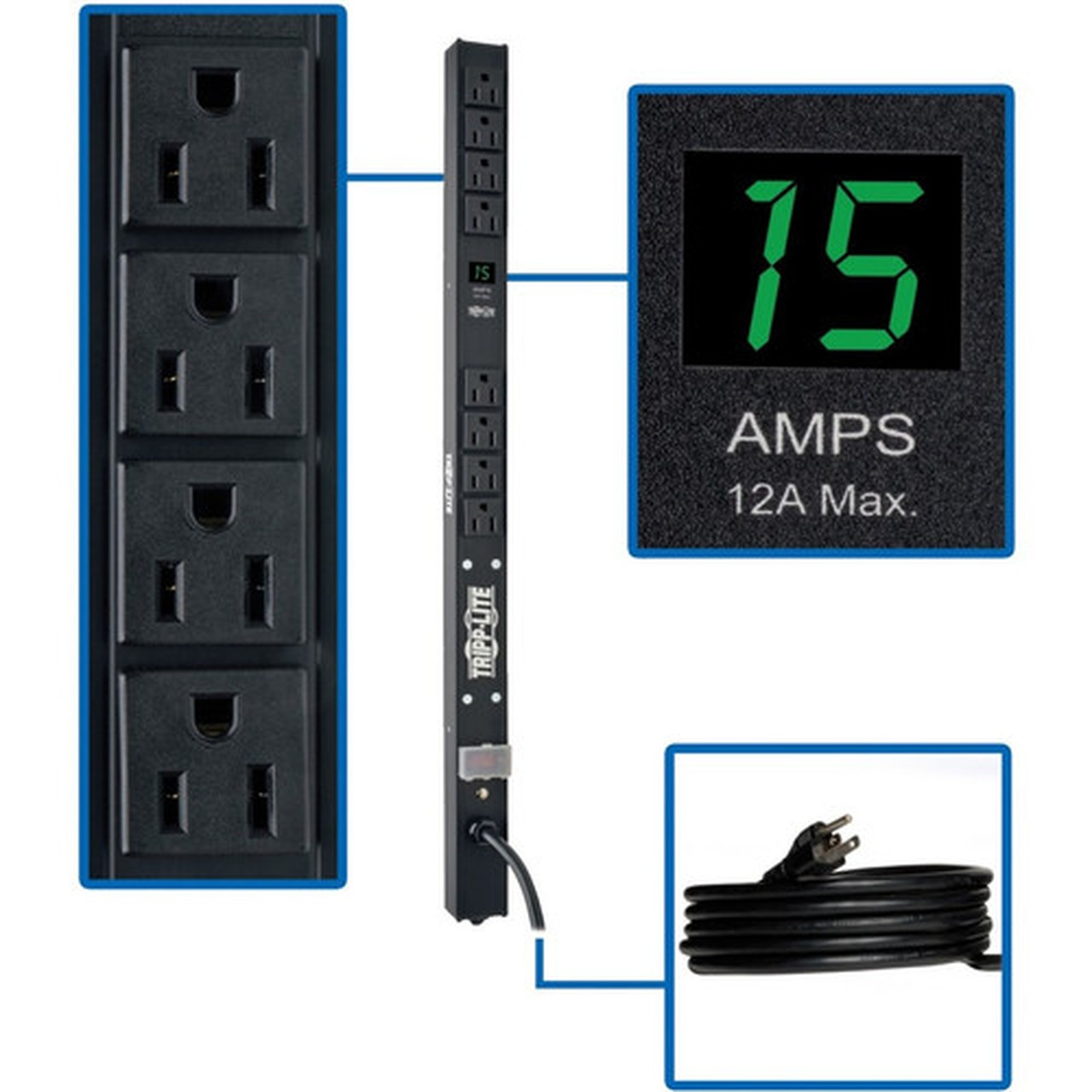

  • Metered single phase 15A 120V 0U 24in / 61cm vertical rackmount PDU

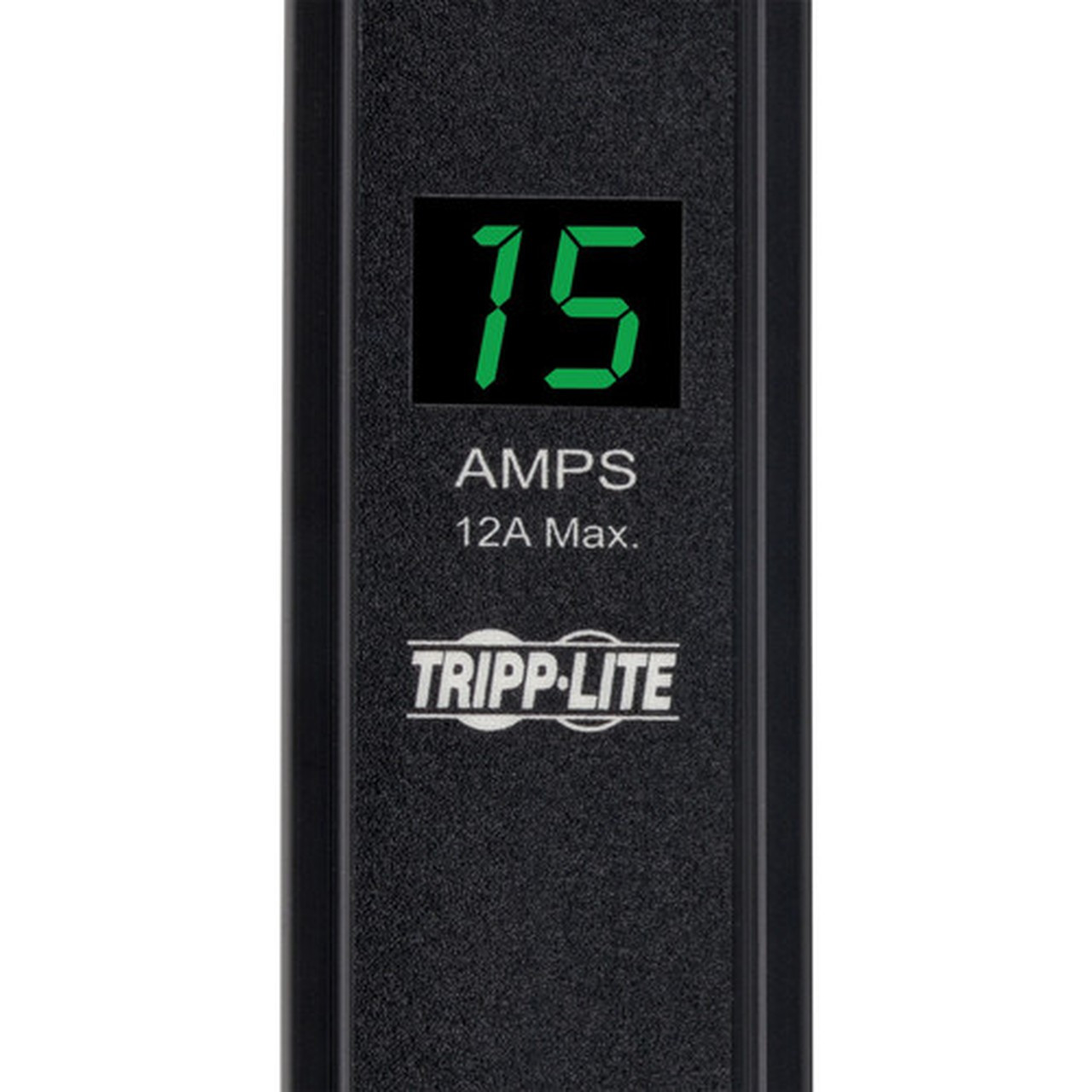

  • Two-digit current meter reports output current in amps
  • Attached 15ft / 4.5m cord with NEMA 5-15P input plug

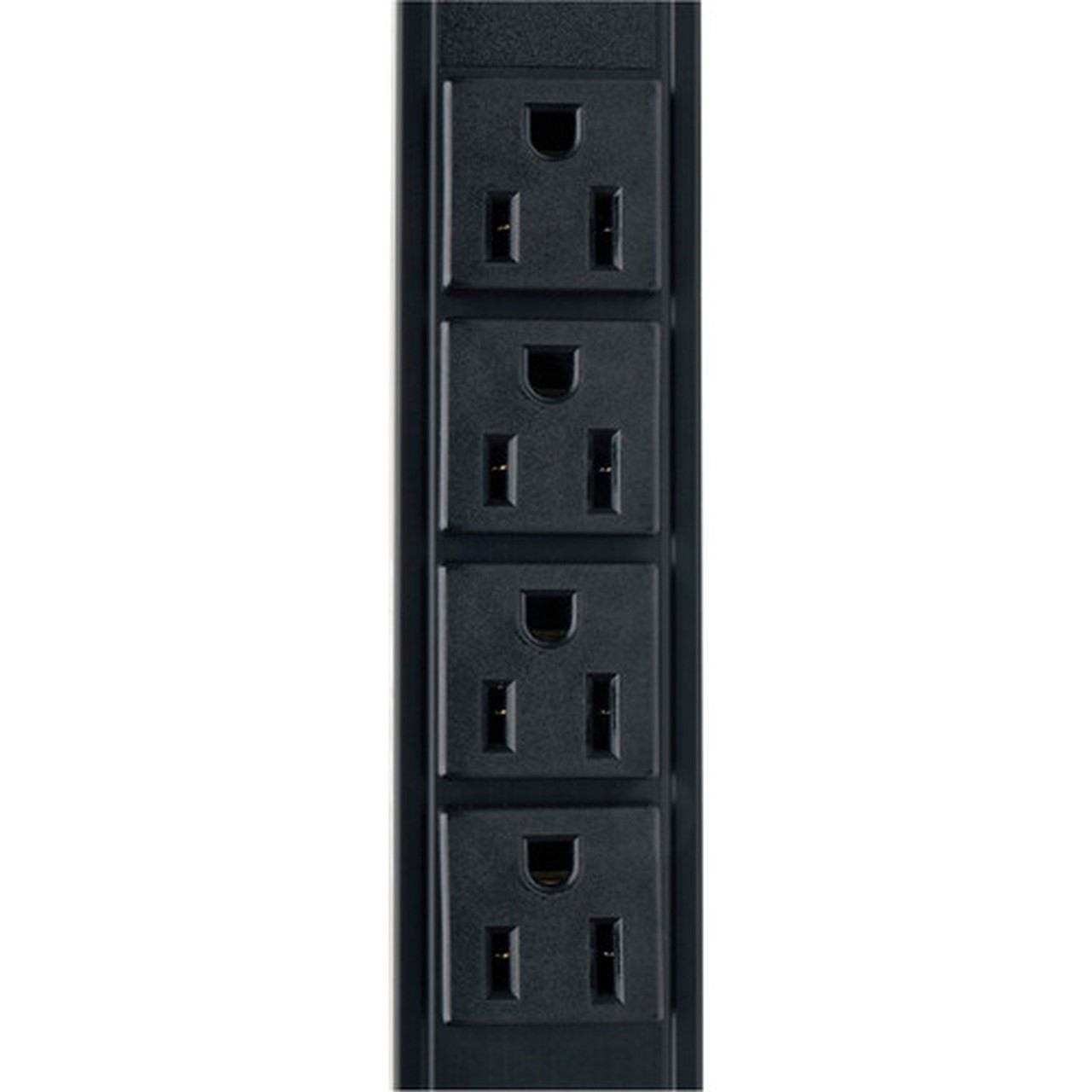

  • 8 NEMA 5-15R outlets
  • Toolless button mount and bolt-down bracket installation hardware included
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberPDUMV15-24
Manufacturer Website Addresshttps://tripplite.eaton.com/
Brand NameTripp Lite by Eaton
Product LineMetered
Product ModelPDUMV15-24
Product NameMetered PDUMV15-24 8-Outlets PDU
Product TypePDU
Technical Information
Plug/Connector TypeNEMA 5-15P
Receptacle TypeNEMA 5-15R
Receptacle Detail8 x NEMA 5-15R
Protection TypeOverload Protection
Power Description
Input Voltage120 V AC
Input Voltage Range100 V AC - 127 V AC
Output Voltage120 V AC
Power Rating (Watt)1.52 kW
Input Current12 A
Physical Characteristics
Mounting OrientationVertical
Mount TypeWall-mountable,Rack-mountable
Rack Height0U
Height24" (609.60 mm)
Width1.75" (44.45 mm)
Depth1.25" (31.75 mm)
Weight (Approximate)1.20 kg
Miscellaneous
Package Contents
  • Metered PDUMV15-24 8-Outlets PDU
  • Mounting Hardware
  • Spare Mounting Buttons
  • Owner's Manual with Warranty Information
Country of OriginChina
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty2 Year

[/custom-specifications]

[custom-options]











[/custom-options]

[custom-user-manual]

Available Documentation:


User-Manual
Manufacturer-Brochure

[/custom-user-manual]

Warranty Infomartion

2 Year
