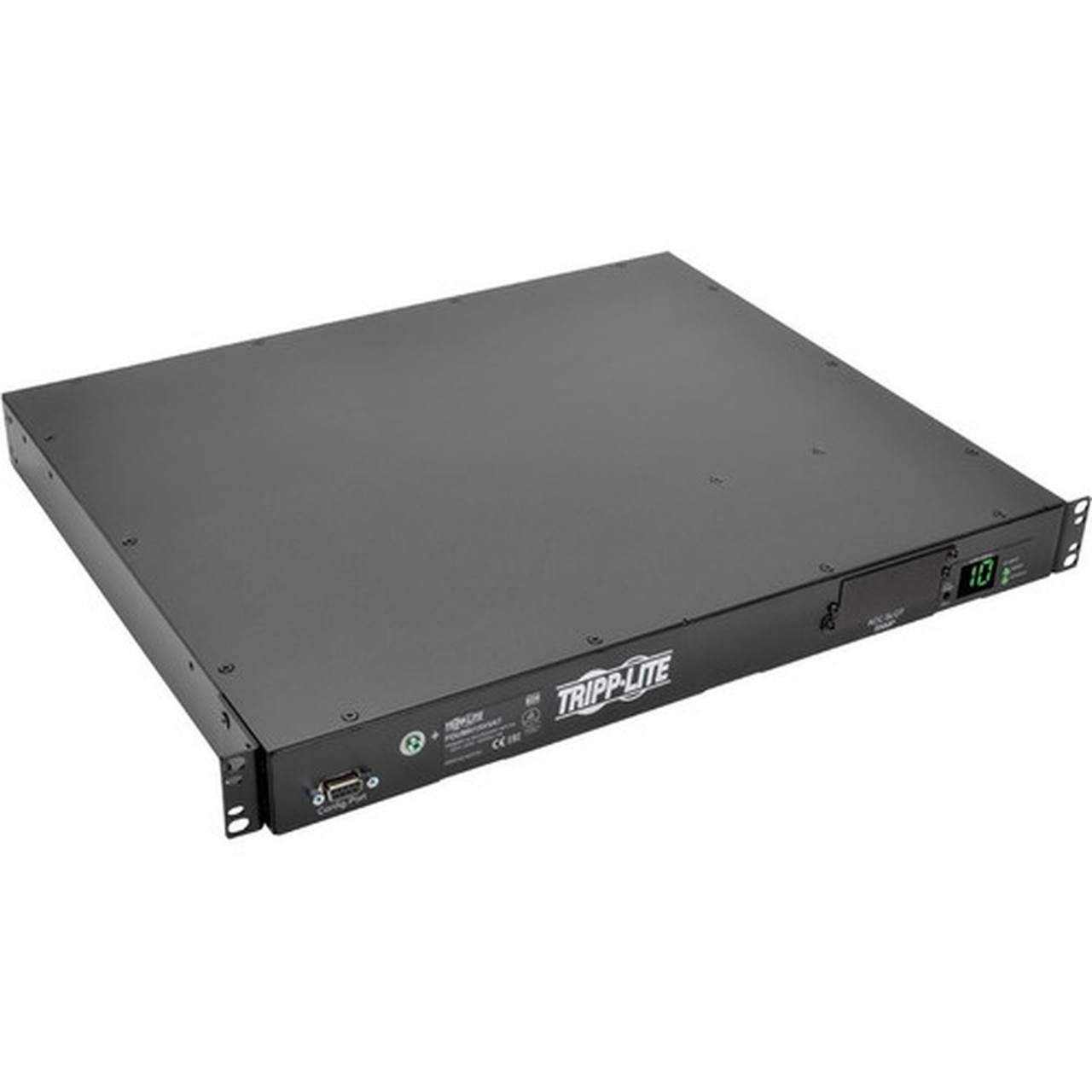

Tripp Lite PDUMH15HVAT 10-Outlet PDU - IEC 60320 C14 - 10 x IEC 60320 C13 - 230 V AC - 2.40 kW - 1U/2U - Horizontal - Rack Mount (PDUMH15HVAT)

Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: PDUMH15HVAT
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: PDUMH15HVAT
Product Name: PDUMH15HVAT 10-Outlet PDU
Marketing Information: The PDUMH15HVAT 2-2.4kW Single-Phase 200-240V ATS/Metered PDU enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features 10 C13 outlets.

Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200-240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.

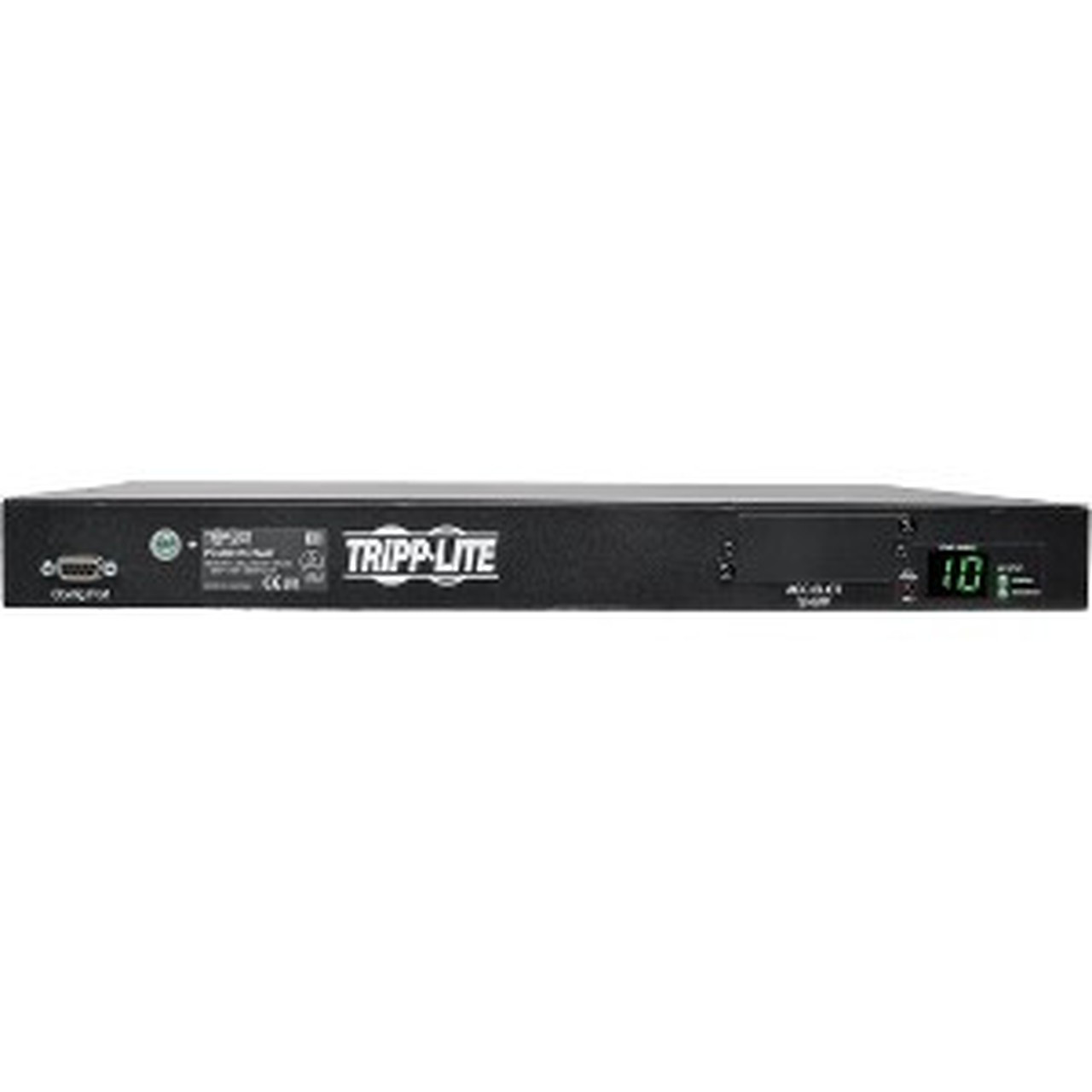

Built-in slot supports the optional SNMPWEBCARD and WEBCARDLX (sold separately), which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring, configuration, outlet control and notifications via web browser, SSH, telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs.
Packaged Quantity: 1
Product Type: PDU
Technical Information
Input Receptacles: 2 x IEC 60320 C14

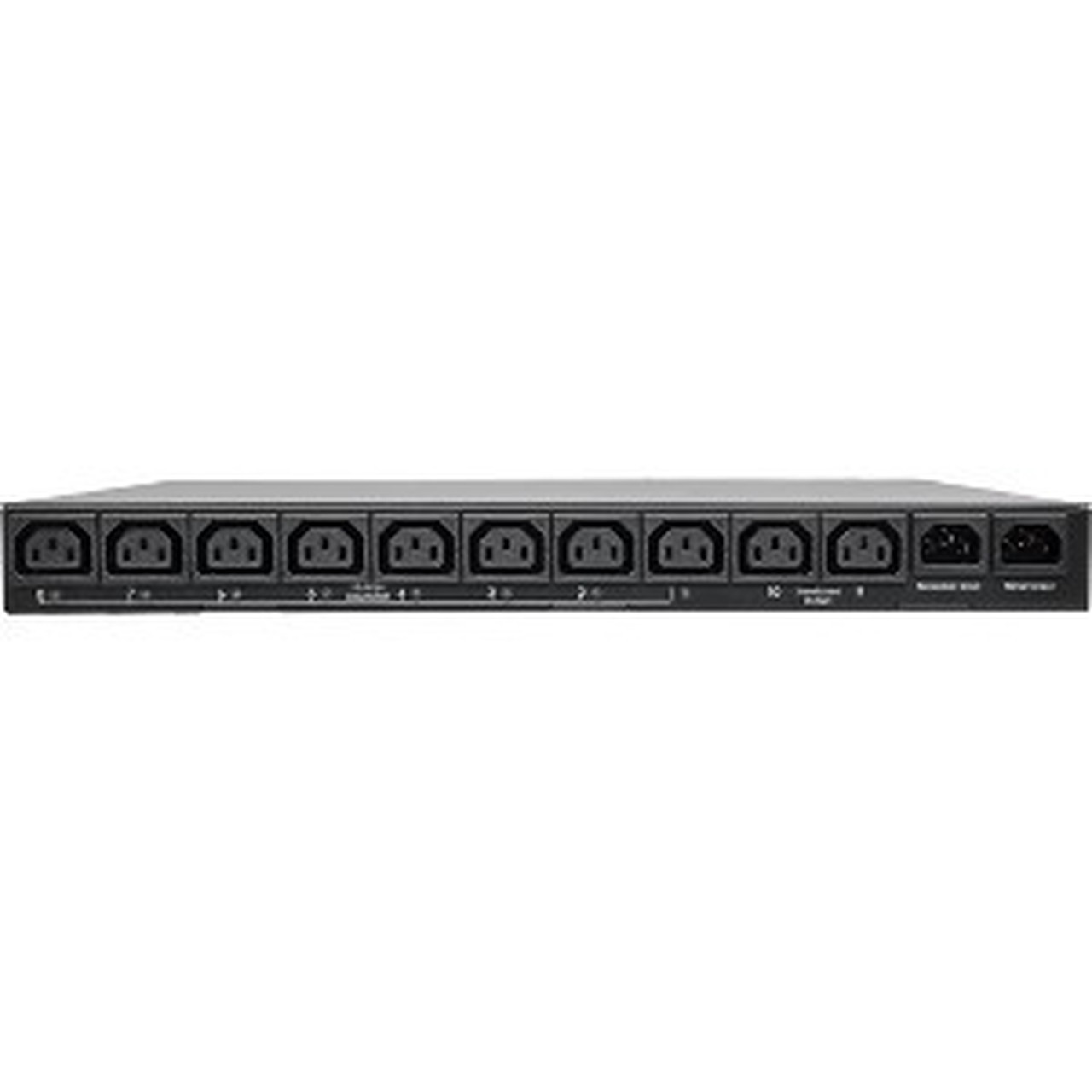

Output Receptacles: 10 x IEC 60320 C13
Protection Type: Overload Protection
Power Description
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC
Output Voltage:

• 200 V AC
• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC

Power Rating (Watt): 2.40 kW
Input Current: 10 A
Physical Characteristics
Mounting Orientation: Horizontal
Placement: Rack
Rack Height: 1U/2U
Height: 1.71" (43.40 mm)
Width: 17.32" (440 mm)
Depth: 14.45" (367 mm)
Weight (Approximate): 4.68 kg
Miscellaneous

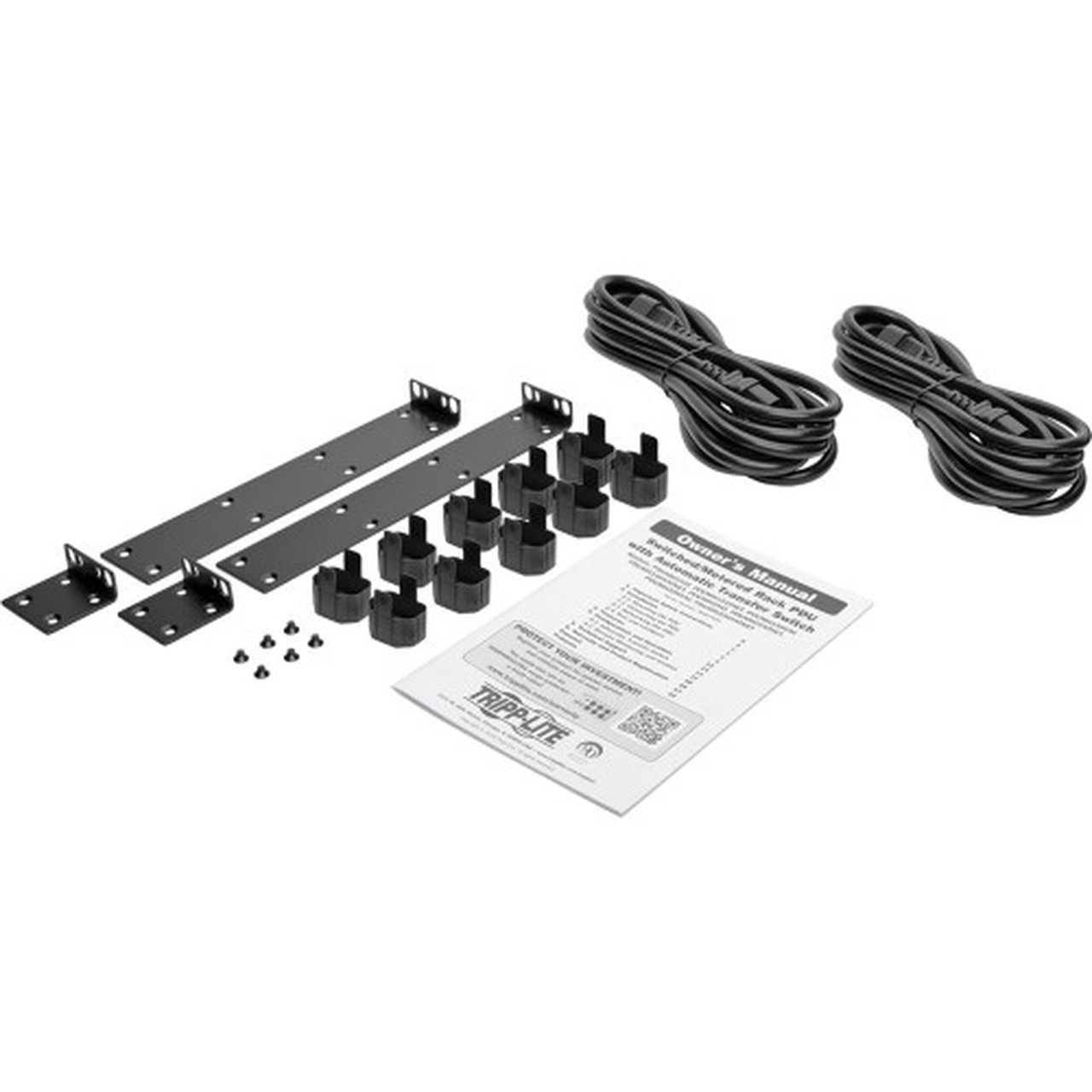

Package Contents:

• PDUMH15HVAT 10-Outlet PDU
• 10 x C14 plug lock inserts
• 2 x C13 to C14 power cords, 3.6 m (11.8 ft.)
• 2 x Mounting brackets, horizontal
• 2 x Mounting brackets, vertical
• 6 x Screws
• Owner's manual

Environmentally Friendly: Yes
Environmental Certification: RoHS
Warranty
Limited Warranty: 2 Year
