Tripp Lite PDUMNV30HV2LX 42-Outlet PDU - Monitored - NEMA L6-30P - 6 x IEC 60320 C19, 36 x IEC 60320 C13 - 230 V AC - 0U - Vertical - (PDUMNV30HV2LX)

Marketing Information: The PDUMNV30HV2LX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

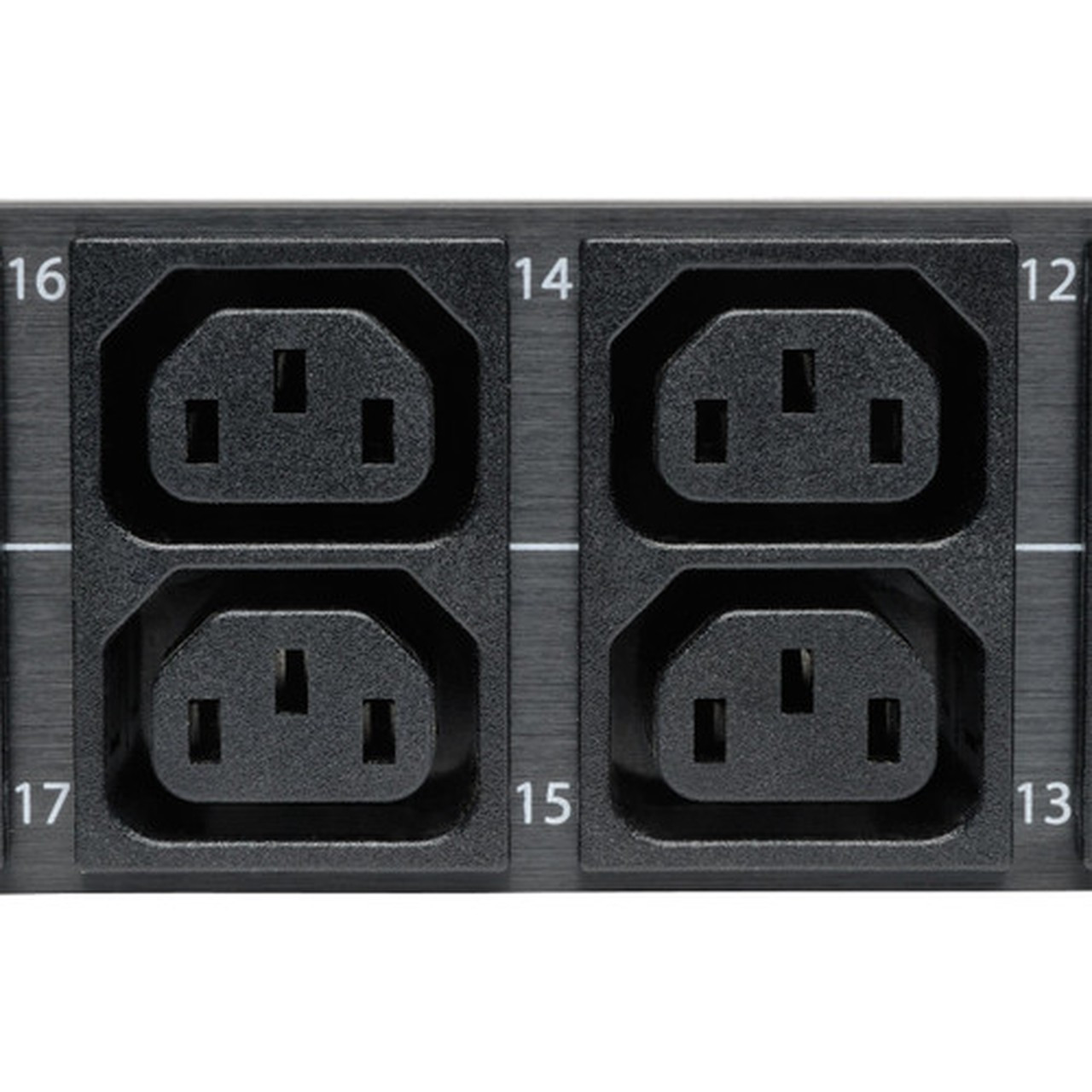

The 0U PDU features 42 outlets (36 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor each load bank's current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

More from the Manufacturer

PDU Type: Monitored

Phase: Single Phase

Plug/Connector Type: NEMA L6-30P

Receptacle Type: IEC 60320 C19,IEC 60320 C13

Receptacle Detail: 6 x IEC 60320 C19,36 x IEC 60320 C13

Input Voltage: 230 V AC

Output Voltage: 200 V AC,208 V AC,240 V AC

Power Rating (Watt): 5.80 kW

Input Current: 30 A

Management: Protocols:

• IPv4
• IPv6
• HTTP
• HTTPS
• SMTP
• SNMPv1
• SNMPv2
• SNMPv3
• telnet
• SSH
• FTP
• DHCP
• NTP

Mounting Orientation: Vertical

Mount Type: Rack-mountable

Rack Height: 0U

Height: 70" (1778 mm)

Width: 2.20" (55.88 mm)

Depth: 2.65" (67.31 mm)

Weight (Approximate): 6.80 kg

Package Contents:

• PDUMNV30HV2LX 42-Outlet PDU
• Built-in LX Platform Interface
• Configuration Cable
• 42 x Plug-lock Insert Sleeves
• Rack-mounting Hardware
• Mounting Bracket Accessory
• Owner's Manual

Country of Origin: Taiwan

TAA Compliant: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
