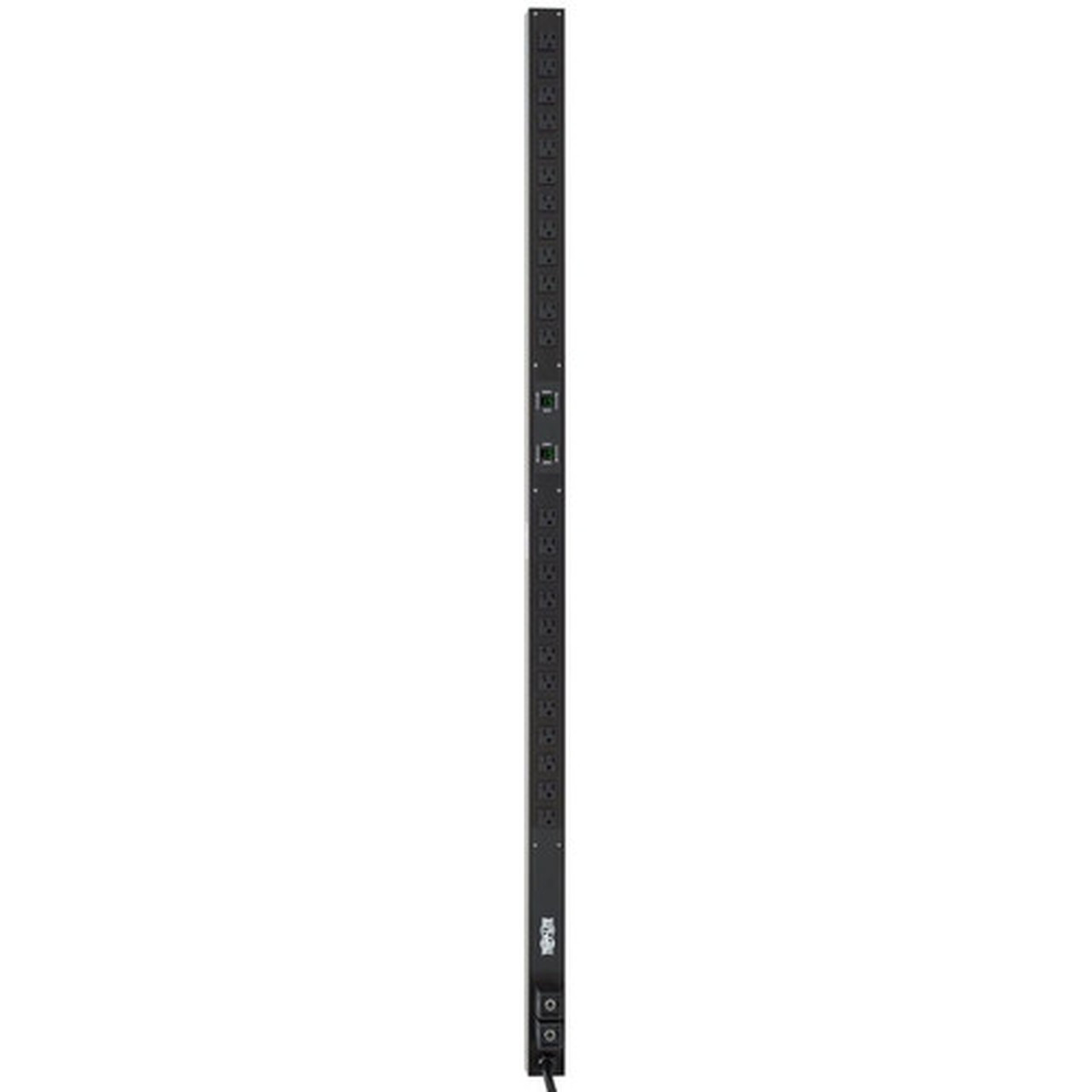

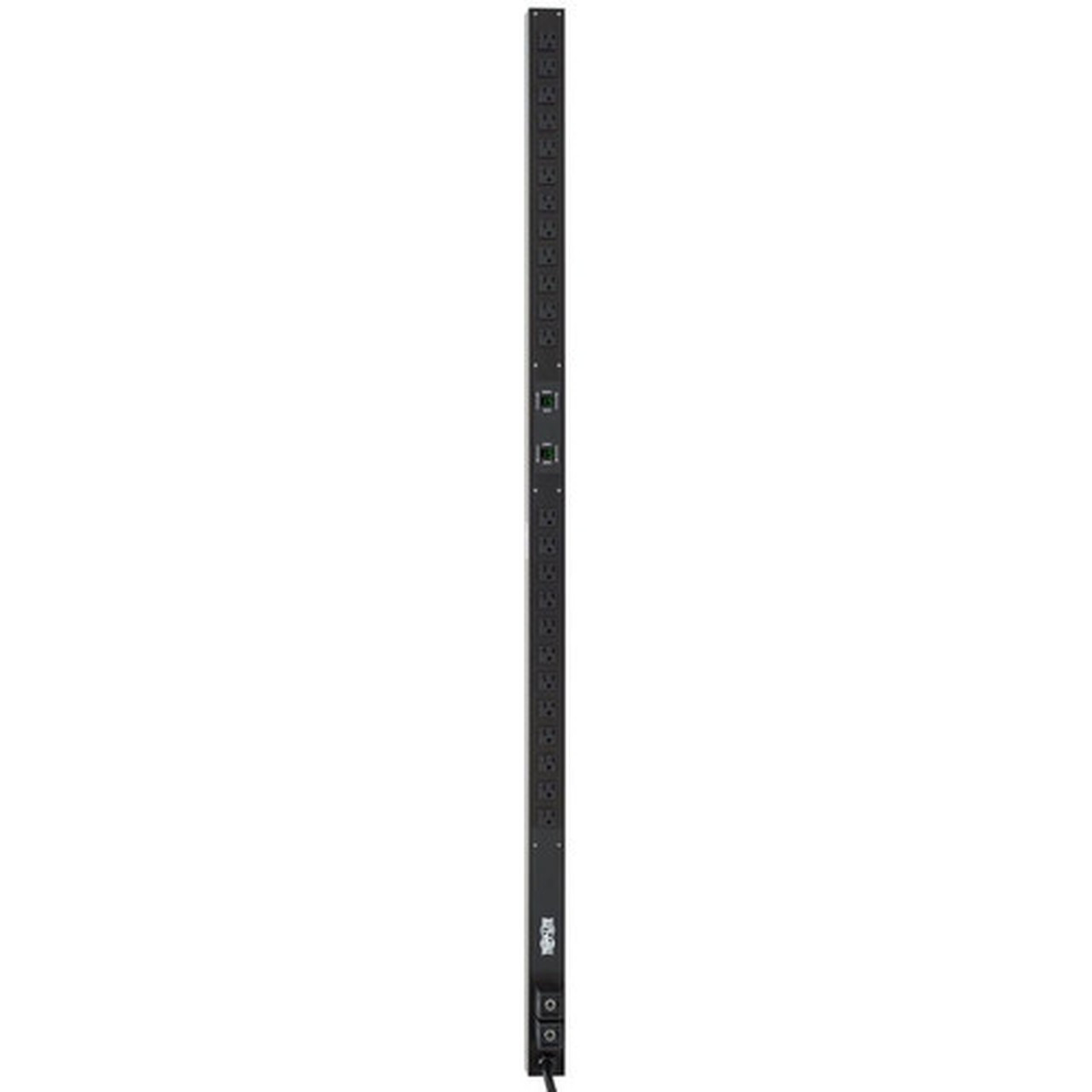

Tripp Lite PDUMV30 PDU Metered 120V 30A 24 Outlet - 24 x NEMA 5-15/20R - Zero U Vertical Rackmount, Wall-mountable (PDUMV30)

Marketing Information:

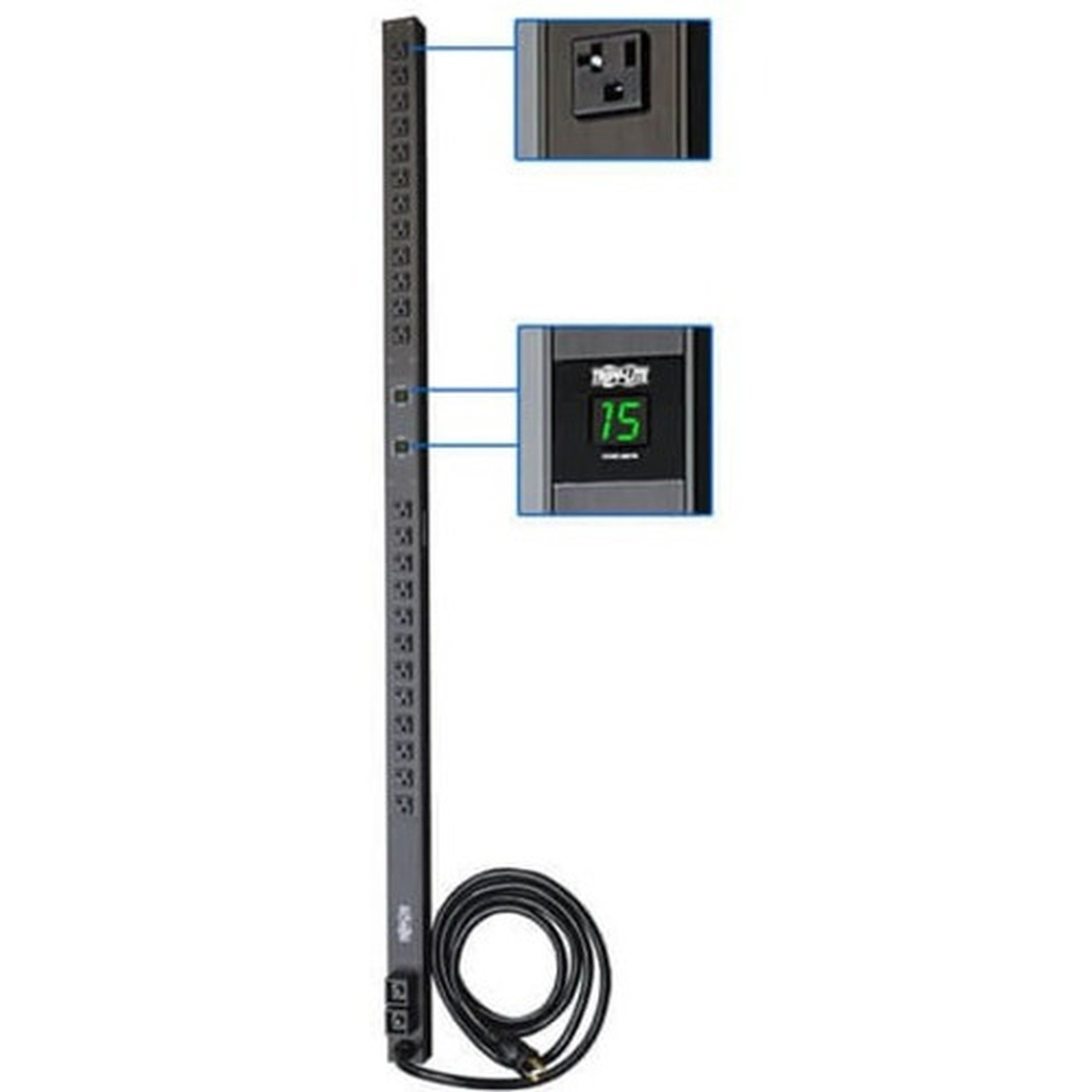

Tripp Lite Metered Power Distribution Units give IT Managers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to multiple servers and vital networking equipment in rack enclosures, network closets and more. Toolless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.PDUMV30 63.75 in. vertical 0U metered rack PDU supports 30A maximum capacity at 120V (agency derated to 24A). Includes 10-ft. attached line cord with L5-30P input plug. 24 5-15/20R outlets support networking equipment with 5-15P or 5-20P input plugs. Outlets are arranged in two separately metered and breakered 20A load banks (each with 12 5-15/20R outlets). Set of 2 built-in 2 character displays offer continuous information on PDU power consumption for each of the two built-in loading bank

More from the Manufacturer

Plug/Connector Type: NEMA L5-30P

Receptacle Type: NEMA 5-15/20R

Receptacle Detail: 24 x NEMA 5-15/20R

Protection Type: Overload Protection,Short Circuit Protection

Input Voltage: 120 V AC

Output Voltage: 120 V AC

Mounting Orientation: Vertical

Mount Type: Wall-mountable,Rack-mountable

Height: 63.75" (1619.25 mm)

Width: 2.25" (57.15 mm)

Depth: 3.75" (95.25 mm)

Weight (Approximate): 3.63 kg

Package Contents:

• PDUMV30 PDU Metered 120V 30A 24 Outlet
• PDUMV30 63.75 inch basic PDU with owner's manual
• Set of 2 bolt-on plug retention brackets and installation hardware
• Set of mounting brackets and installation hardware

Country of Origin: China

Limited Warranty: 2 Year
