Tripp Lite PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet - 6 x IEC 320 EN 60320 C19, 24 x IEC 320 EN 60320 C13 - Zero U Vertical (PDUMV30HV)

(No reviews) Write a Review
$711.10
$689.77
$422.88
(You save $288.22 )
SKU: PDUMV30HV
UPC: 37332139351
Availability: Toronto
Weight: 9.85 LBS
Adding to cart… The item has been added

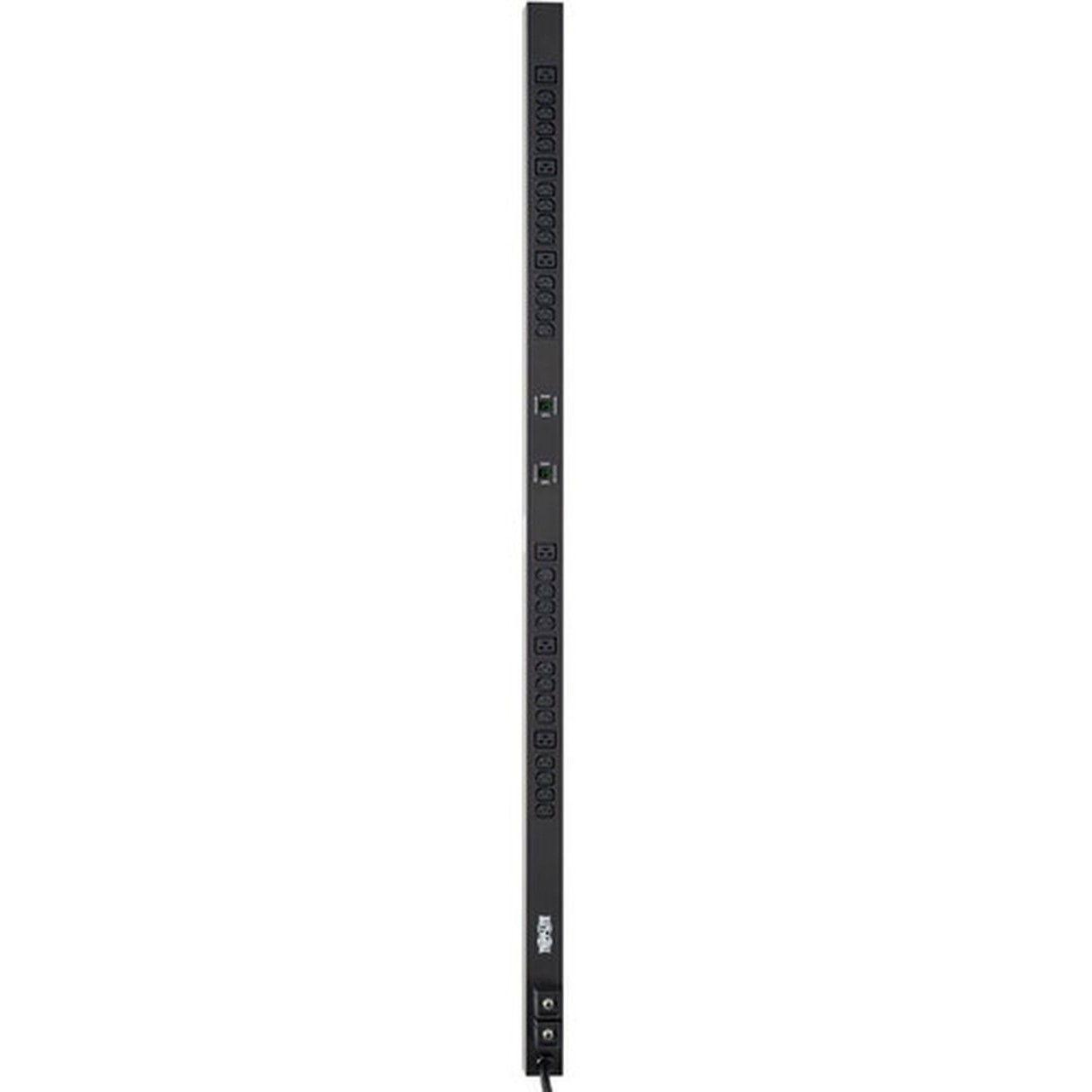

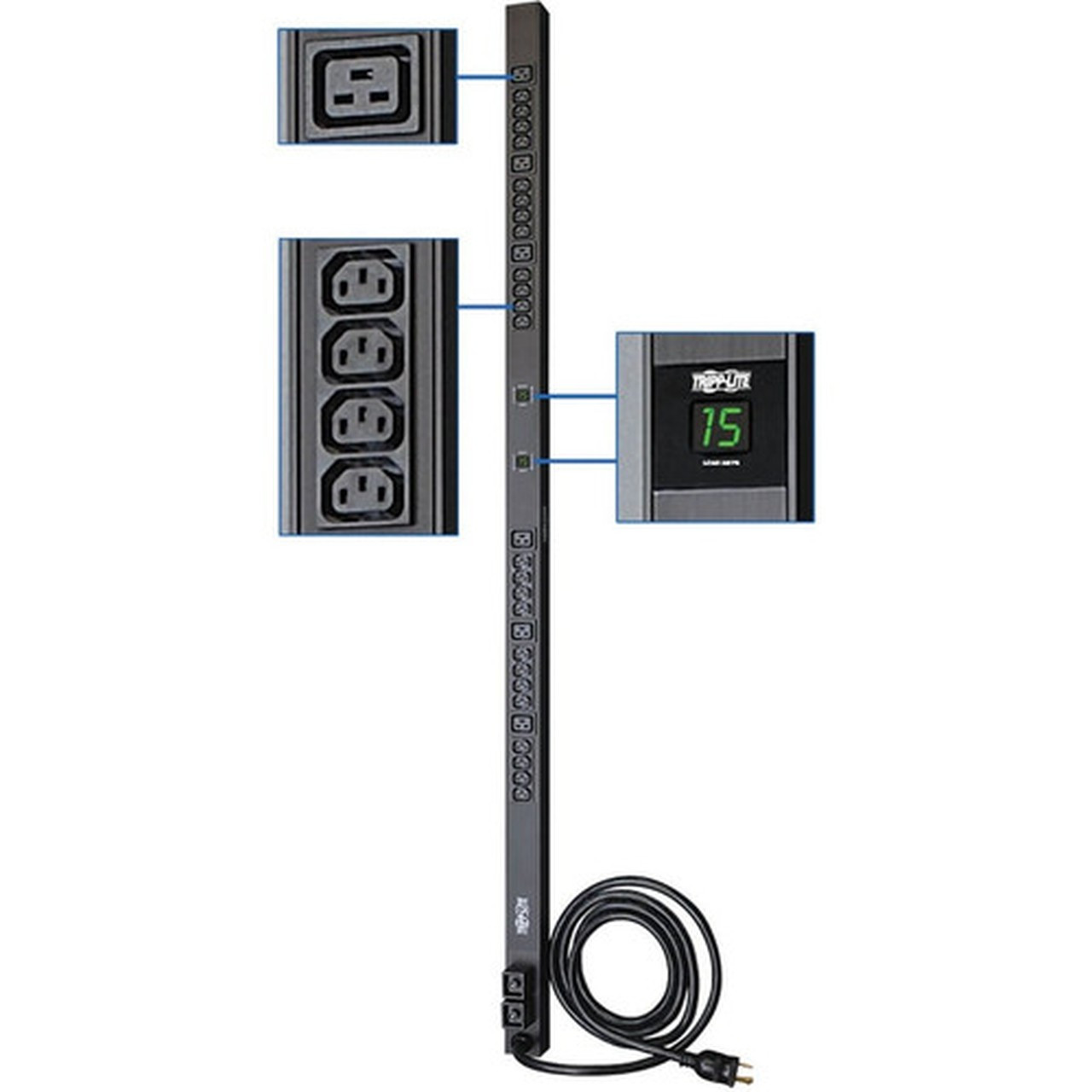

  • Metered single phase 30A 208/240V, 0U 63.75in / 162cm vertical rackmount PDU
  • Pair of digital meters report output current in amps for each load bank
  • Attached 10ft / 3m cord with NEMA L6-30P input plug
  • 30 outlets (6 C19, 24 C13) in two separately breakered load banks
    Marketing Information:

    PDUMV30HV 63.75 in. vertical 0U metered rack PDU supports 30A maximum capacity at 208/240V. Includes 10 ft attached line cord with L6-30P input plug. 24 C13 and 6 C19 outlets support up to 30 directly connected pieces of networking equipment. Outlets are arranged in two separately metered and breakered 15A load banks (each with 3 C19 and 12 C13 outlets). Set of 2 built-in 2 character displays offer continuous information on PDU power consumption for each of the two built-in loading banks. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.

    More from the Manufacturer


    Plug/Connector Type: NEMA L6-30P
    Receptacle Type:
    • IEC 60320 C19
    • IEC 60320 C13

    Receptacle Detail:
    • 6 x IEC 60320 C19
    • 24 x IEC 60320 C13

    Protection Type:
    • Overload Protection
    • Short Circuit Protection

    Input Voltage: 230 V AC
    Input Voltage Range: 208 V AC - 240 V AC
    Output Voltage:
    • 208 V AC
    • 240 V AC

    Mounting Orientation: Vertical
    Mount Type:
    • Wall-mountable
    • Rack-mountable

    Height: 63.75" (1619.25 mm)
    Width: 2.25" (57.15 mm)
    Depth: 3.75" (95.25 mm)
    Weight (Approximate): 3.63 kg
    Package Contents:
    • PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
    • PDUMV30HV 63.75 inch basic PDU with owner's manual
    • Set of 2 bolt-on plug retention brackets and installation hardware
    • Set of mounting brackets and installation hardware

    Country of Origin: China
    Limited Warranty: 2 Year

[custom-specifications]

Specifications
Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: PDUMV30HV
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite by Eaton
Product Model: PDUMV30HV
Product Name: PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
Product Type: PDU
Technical Information
Plug/Connector Type: NEMA L6-30P
Receptacle Type:
  • IEC 60320 C19
  • IEC 60320 C13

Receptacle Detail:
  • 6 x IEC 60320 C19
  • 24 x IEC 60320 C13

Protection Type:
  • Overload Protection
  • Short Circuit Protection

Power Description
Input Voltage: 230 V AC
Input Voltage Range: 208 V AC - 240 V AC
Output Voltage:
  • 208 V AC
  • 240 V AC

Physical Characteristics
Mounting Orientation: Vertical
Mount Type:
  • Wall-mountable
  • Rack-mountable

Height: 63.75" (1619.25 mm)
Width: 2.25" (57.15 mm)
Depth: 3.75" (95.25 mm)
Weight (Approximate): 3.63 kg
Miscellaneous
Package Contents:
  • PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
  • PDUMV30HV 63.75 inch basic PDU with owner's manual
  • Set of 2 bolt-on plug retention brackets and installation hardware
  • Set of mounting brackets and installation hardware

Country of Origin: China
Warranty
Limited Warranty: 2 Year
