Tripp Lite PDUV15-48 16-Outlets PDU - Basic - NEMA 5-15P - 16 x NEMA 5-15R - 120 V AC - 0U - Vertical (PDUV15-48)

Marketing Information:

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

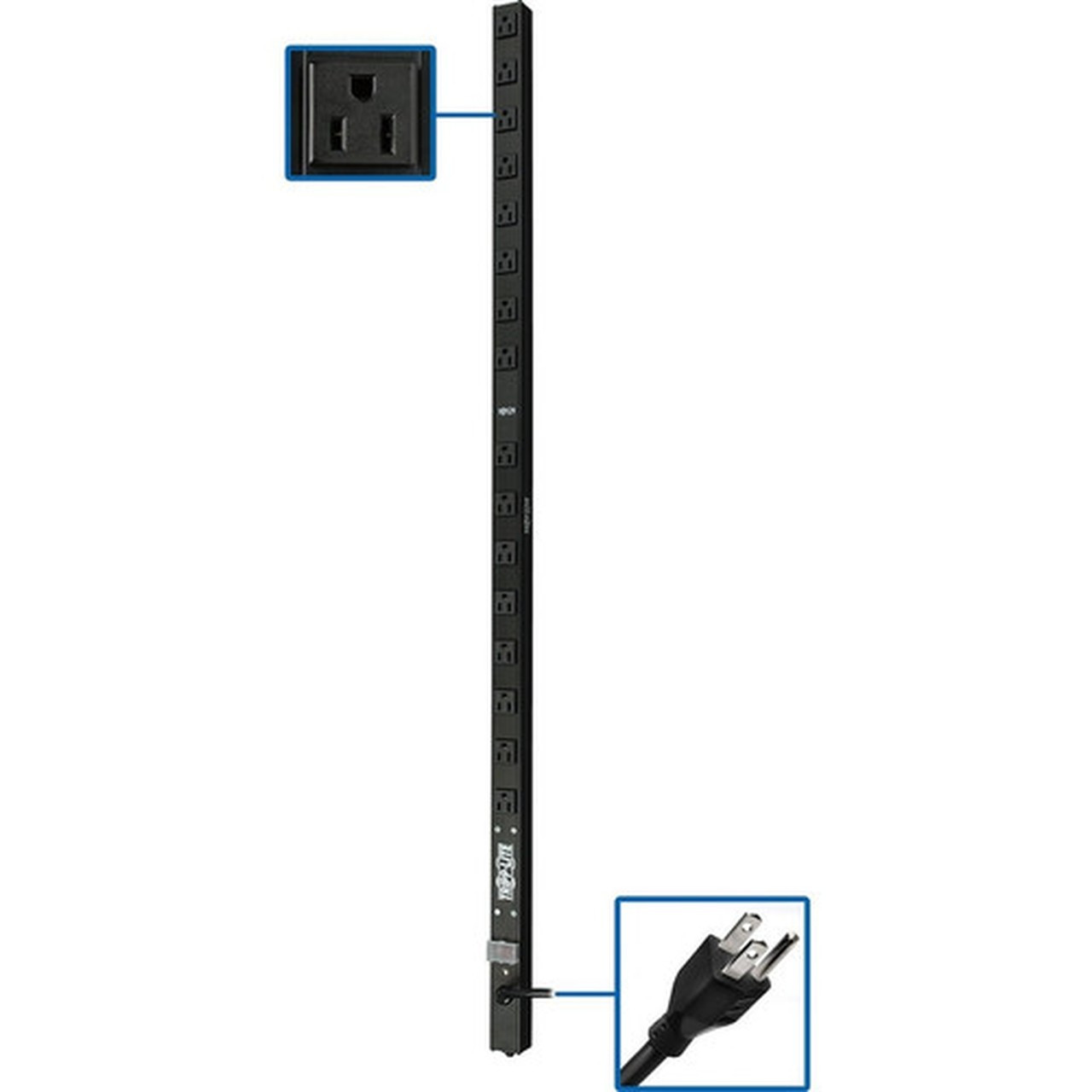

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV15-48 features 16 NEMA 5-15R outlets for connecting equipment. A 15-foot cord with 5-15P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment

A lighted on/off switch is protected by a transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 15A circuit breaker protects connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices

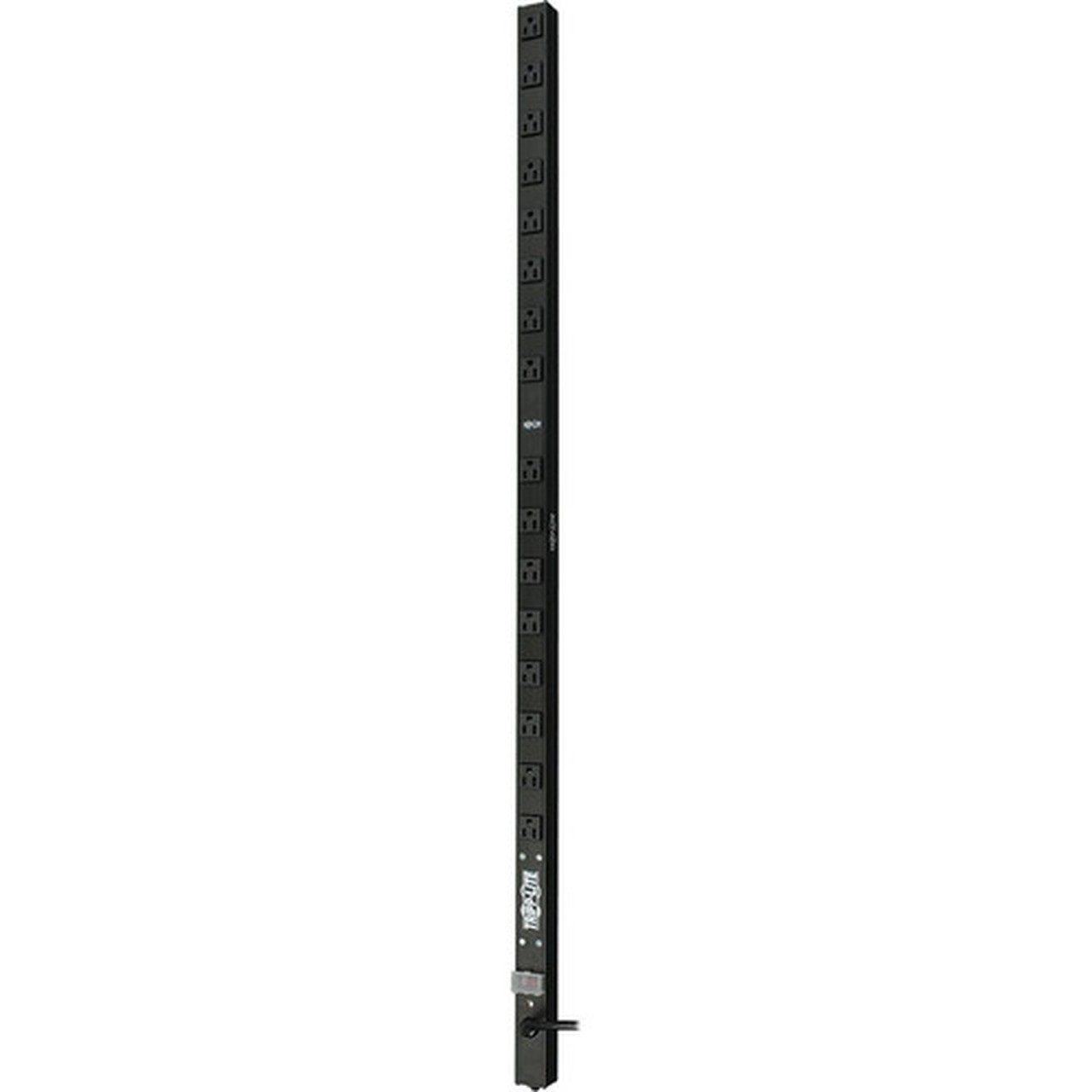

The 48-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface.

PDU Type: Basic

Phase: Single Phase

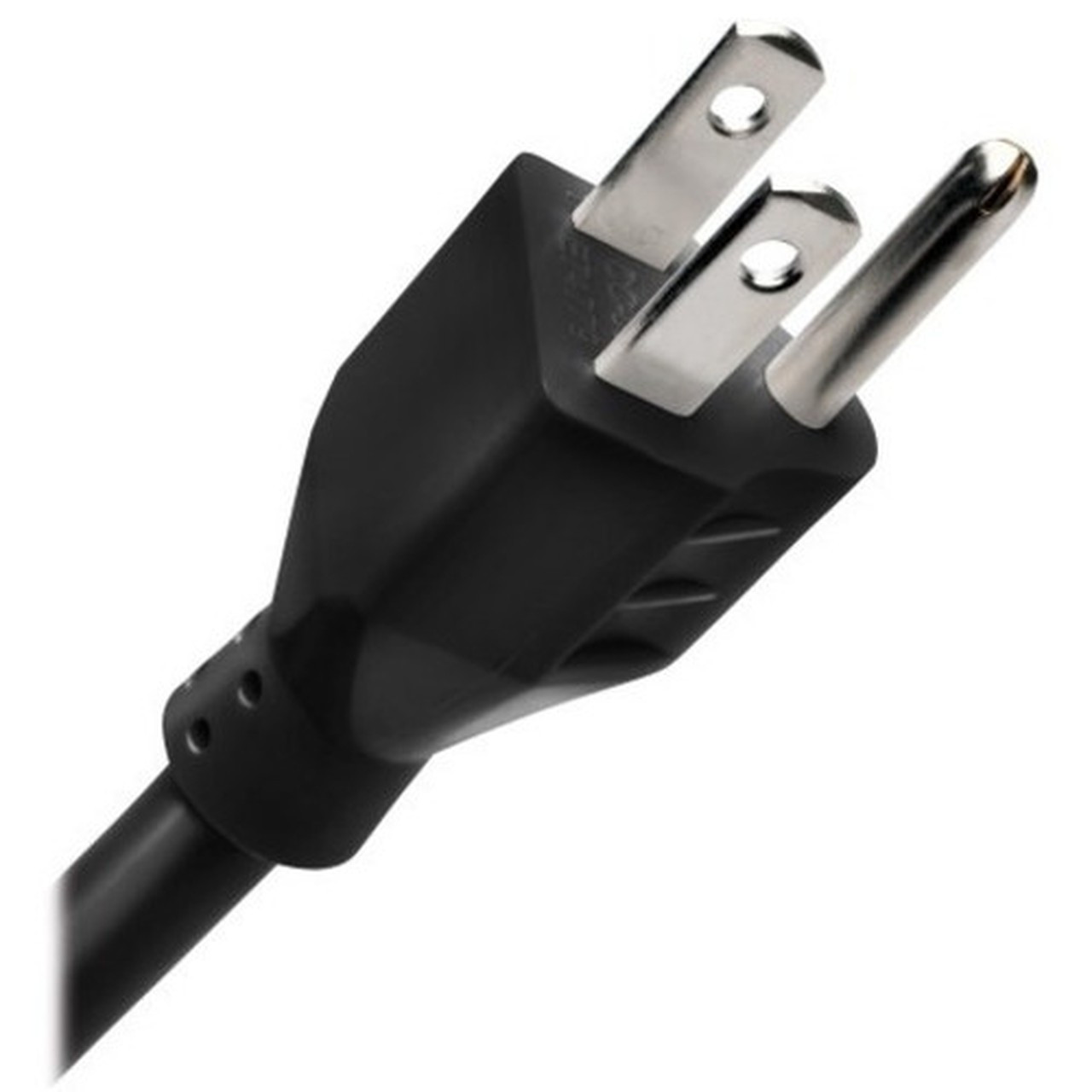

Plug/Connector Type: NEMA 5-15P

Receptacle Type: NEMA 5-15R

Receptacle Detail: 16 x NEMA 5-15R

Protection Type: Overload Protection,Accidental Power Shutdown

Input Voltage: 120 V AC

Output Voltage: 100 V AC,120 V AC,127 V AC

Power Rating (Watt): 1.44 kW

Input Current: 15 A

Mounting Orientation: Vertical

Placement: Under-counter

Rack Height: 0U

Cord Length: 15 ft

Height: 48.47" (1231.14 mm)

Width: 1.50" (38.10 mm)

Depth: 1.64" (41.66 mm)

Weight (Approximate): 1.70 kg

Package Contents:

• PDUV15-48 16-Outlets PDU
• Rack-Mounting Hardware
• Owner's Manual

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
