Tripp Lite PDUV30 24-Outlet PDU - Basic - NEMA L5-30P - 24 x NEMA 5-15/20R - 120 V AC - 0U - Vertical - Rack-mountable (PDUV30)

Marketing Information:

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

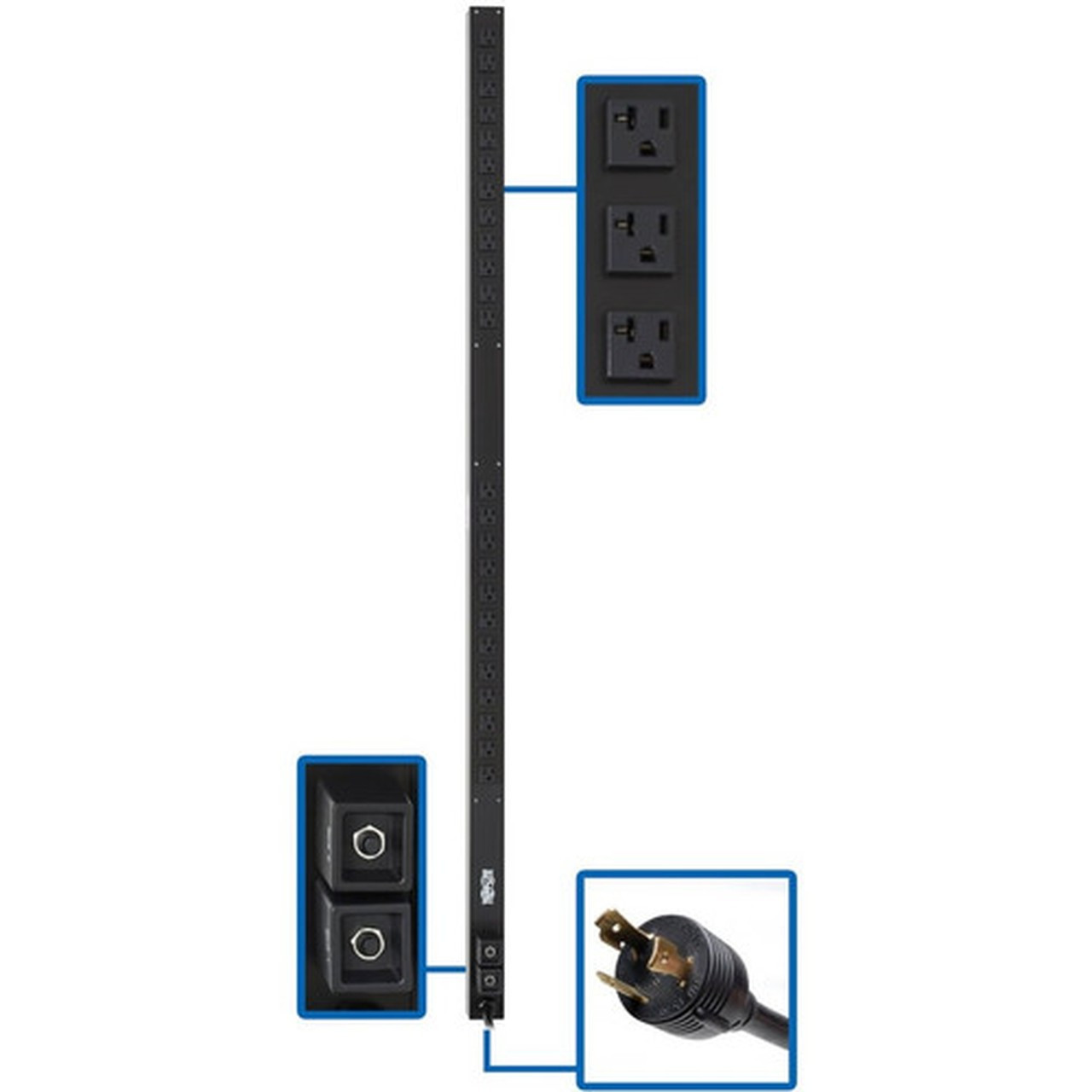

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-size data centers, computer rooms and network closets, the PDUV30 features two breakered load banks, each with 12 NEMA 5-15/20R outlets for connecting equipment. A 10-foot cord with NEMA L5-30P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment

The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices

The 63.75-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware. You may also use the brackets to secure the PDU to the underside of a counter with the addition of two user-supplied screws. Bolt-down retention brackets keep power cords organized and your rack free of clutter.

Typical Applications

Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications

PDU Type: Basic

Phase: Single Phase

Plug/Connector Type: NEMA L5-30P

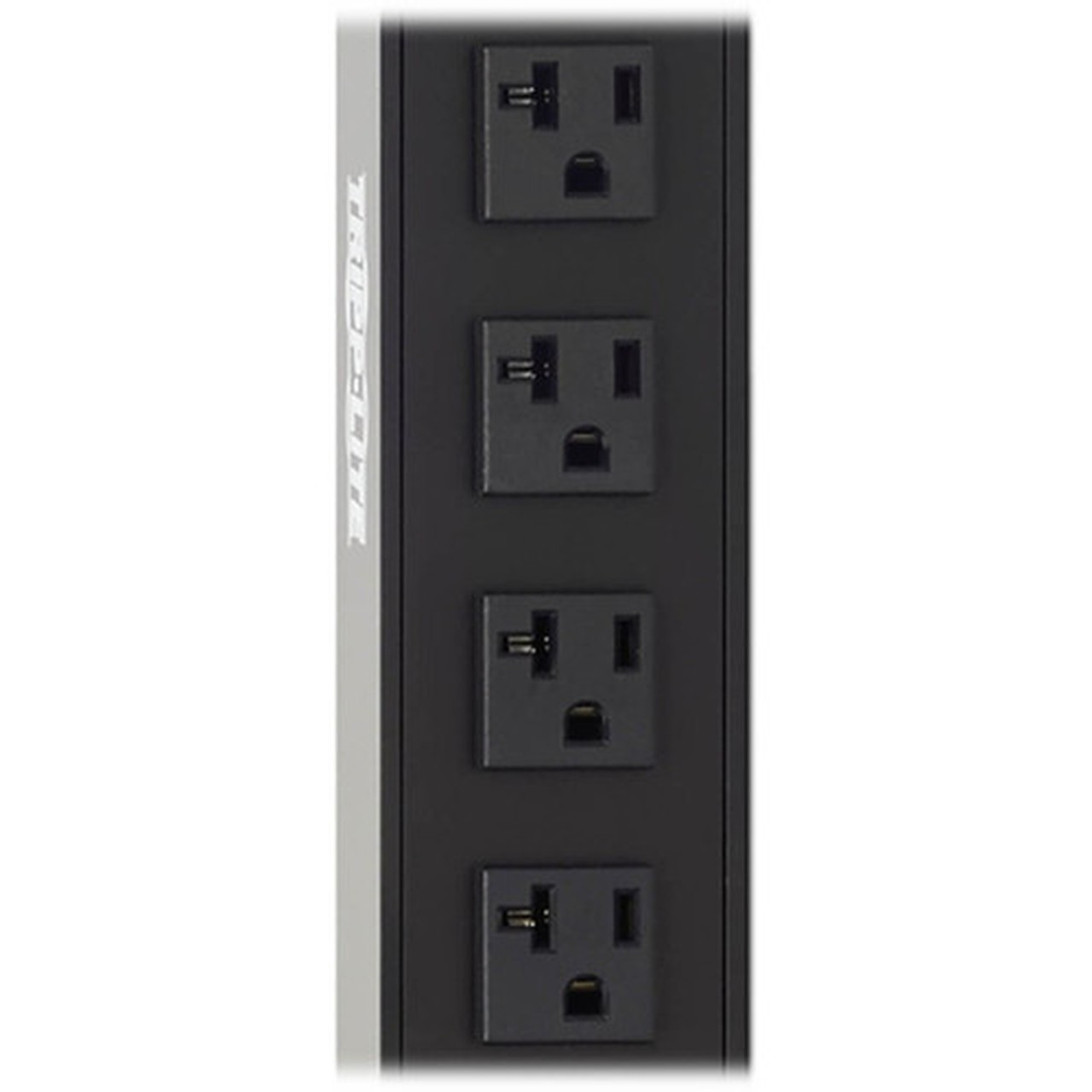

Receptacle Type: NEMA 5-15/20R

Receptacle Detail: 24 x NEMA 5-15/20R

Protection Type: Overload Protection

Input Voltage: 120 V AC

Output Voltage: 100 V AC,120 V AC,127 V AC

Power Rating (Watt): 3.05 kW

Input Current: 30 A

Mounting Orientation: Vertical

Mount Type: Rack-mountable

Rack Height: 0U

Height: 63.75" (1619.25 mm)

Width: 2.25" (57.15 mm)

Depth: 3.75" (95.25 mm)

Weight (Approximate): 3.63 kg

Package Contents:

• PDUV30 24-Outlet PDU
• 2 x Plug Retention Brackets with Installation Hardware
• Rack-mounting Hardware
• Owner's Manual

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
