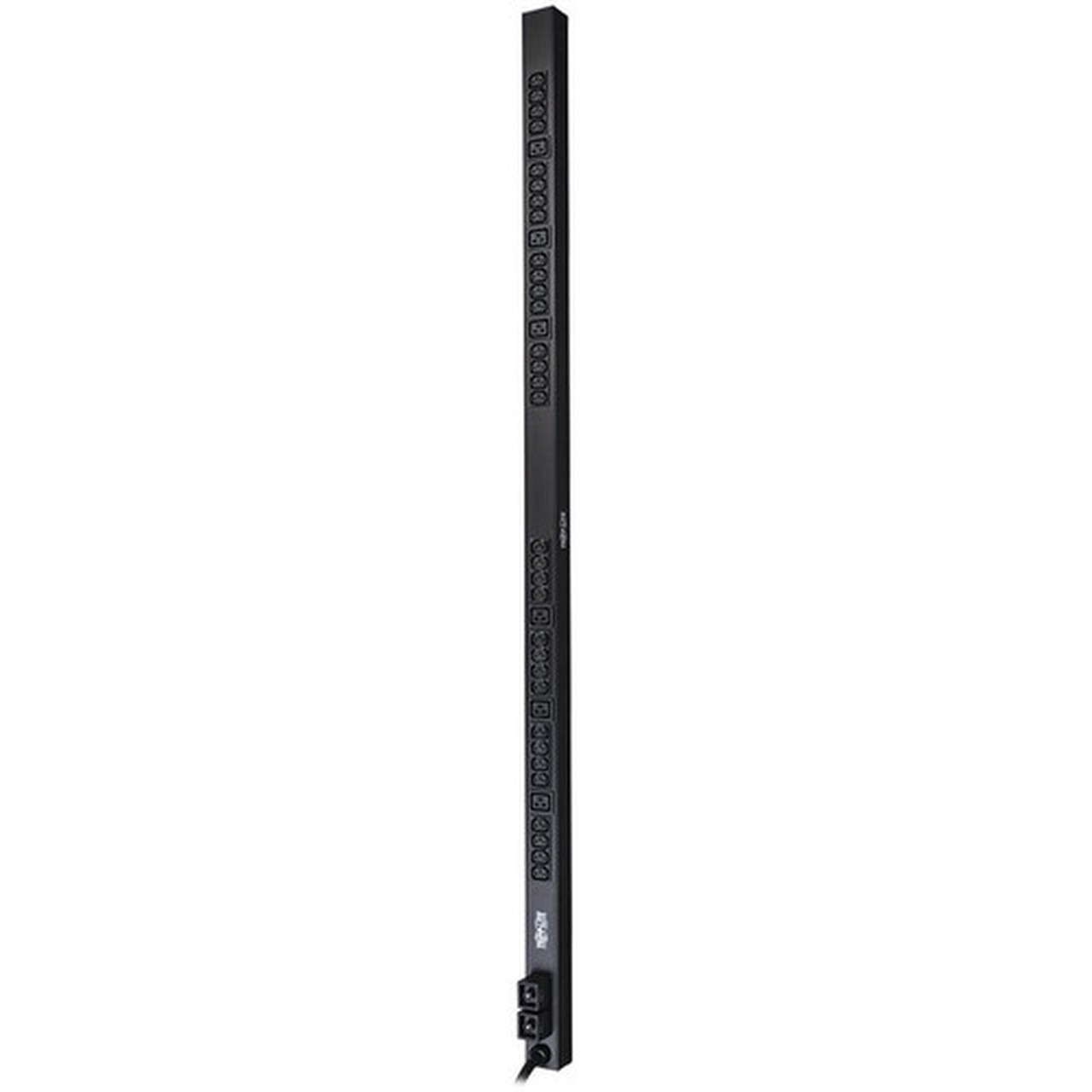

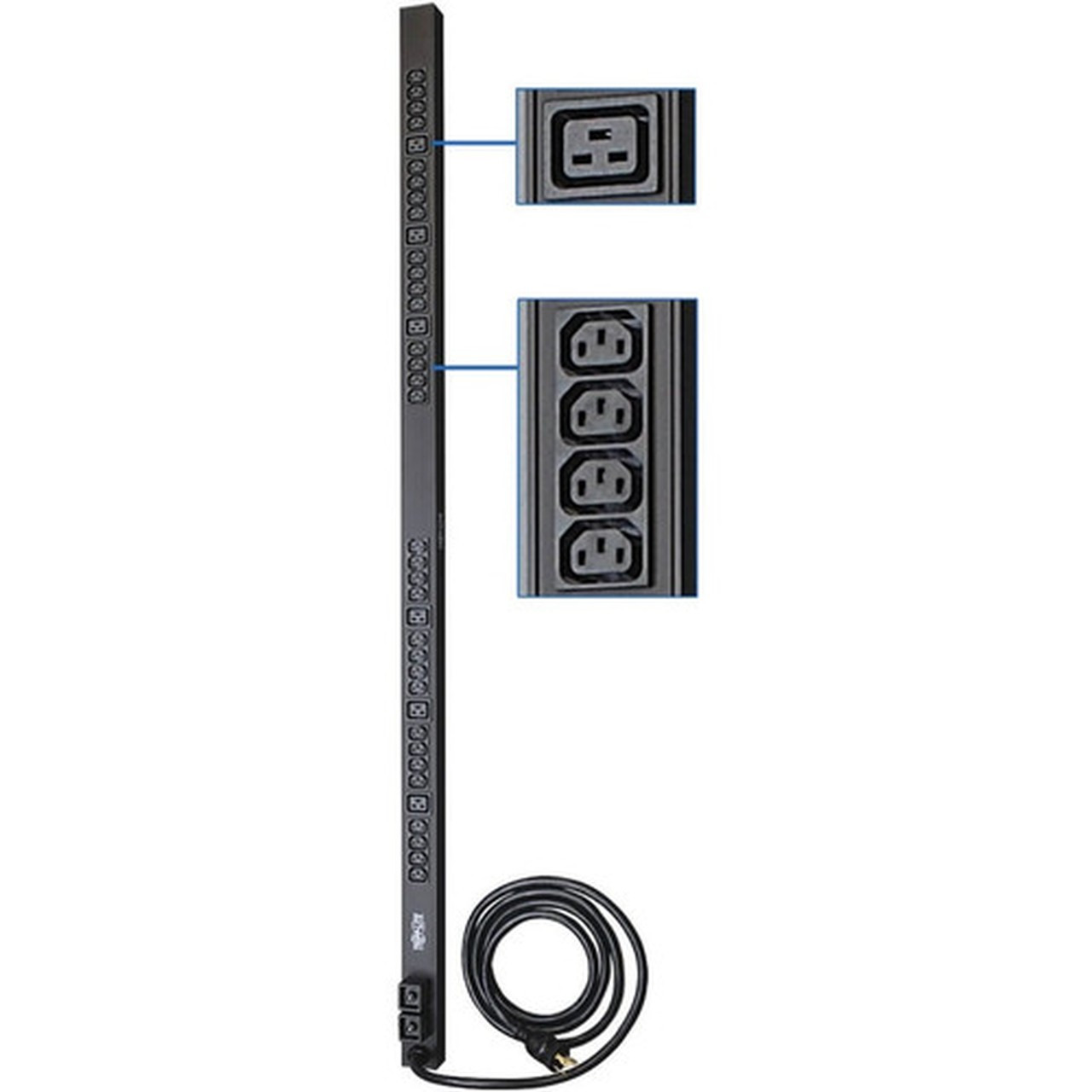

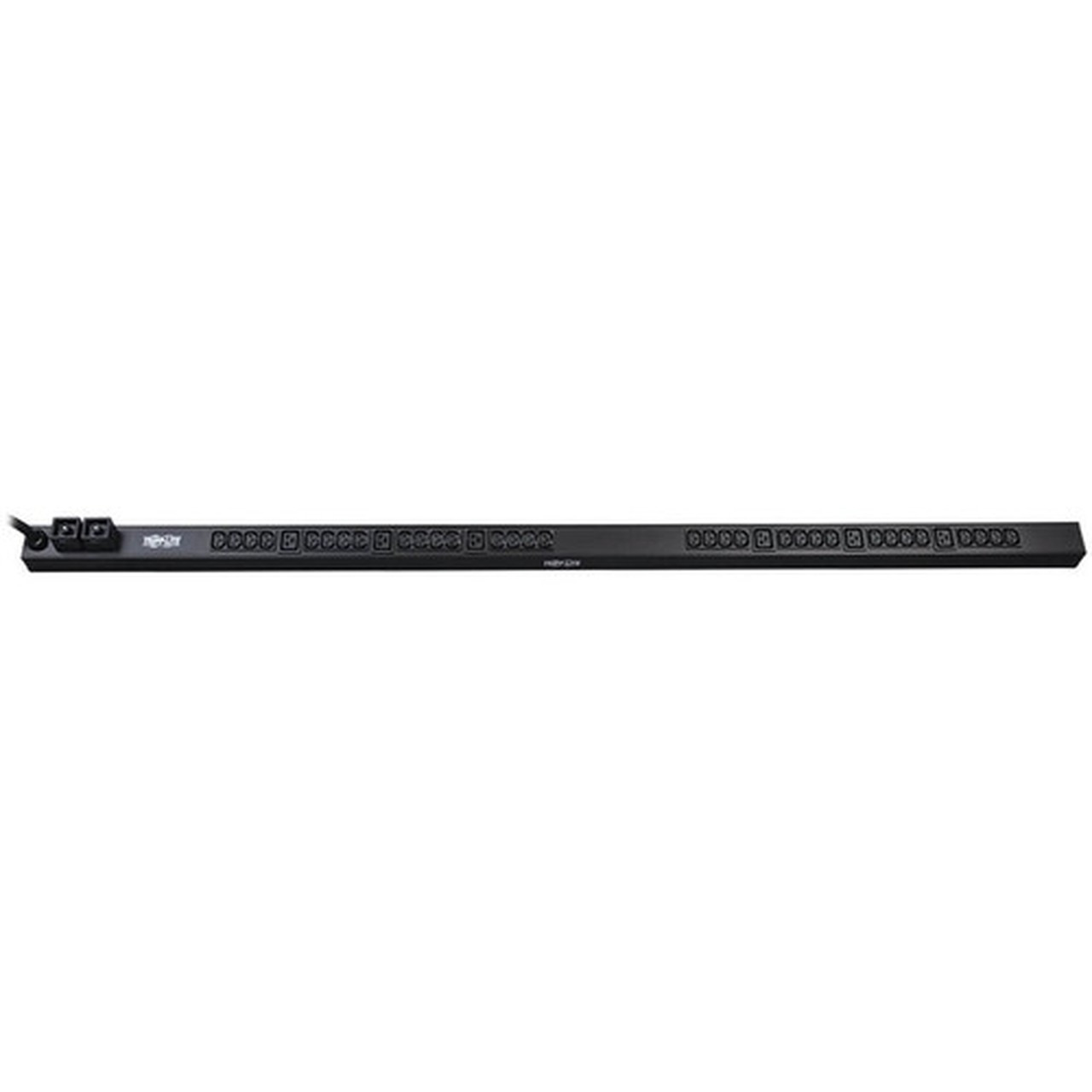

Tripp Lite PDUV30HV PDU Basic 208V - 240V 30A 38 Outlet - 6 x IEC 320 EN 60320 C19, 32 x IEC 320 EN 60320 C13 - Zero U Vertical (PDUV30HV)

Marketing Information:

Tripp Lite Basic Power Distribution Units give IT Managers the ability to power multiple servers and vital networking hardware from a single input power source. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to critical equipment in rack enclosures, network closets and more. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.PDUV30HV 63.75 in. vertical 0U rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A). Includes 10 ft. attached line cord with L6-30P input plug. 32 C13 and 6 C19 outlets support up to 38 directly connected pieces of networking equipment. Outlets are arranged in two separately breakered 15A load banks.

More from the Manufacturer

PDU Type: Basic

Plug/Connector Type: NEMA L6-30P

Receptacle Type: IEC 60320 C19,IEC 60320 C13

Receptacle Detail: 6 x IEC 60320 C19,32 x IEC 60320 C13

Protection Type: Overload Protection,Short Circuit Protection

Input Voltage: 230 V AC

Input Voltage Range: 208 V AC - 240 V AC

Output Voltage: 208 V AC,240 V AC

Mounting Orientation: Vertical

Mount Type: Wall-mountable,Rack-mountable

Height: 63.75" (1619.25 mm)

Width: 2.25" (57.15 mm)

Depth: 3.75" (95.25 mm)

Weight (Approximate): 3.63 kg

Package Contents:

• PDUV30HV PDU Basic 208V - 240V 30A 38 Outlet
• PDUV30HV 63.75 inch basic PDU with owner's manual
• Set of 2 plug retention brackets and installation hardware
• Set of mounting brackets and installation hardware

Country of Origin: China

Limited Warranty: 5 Year
