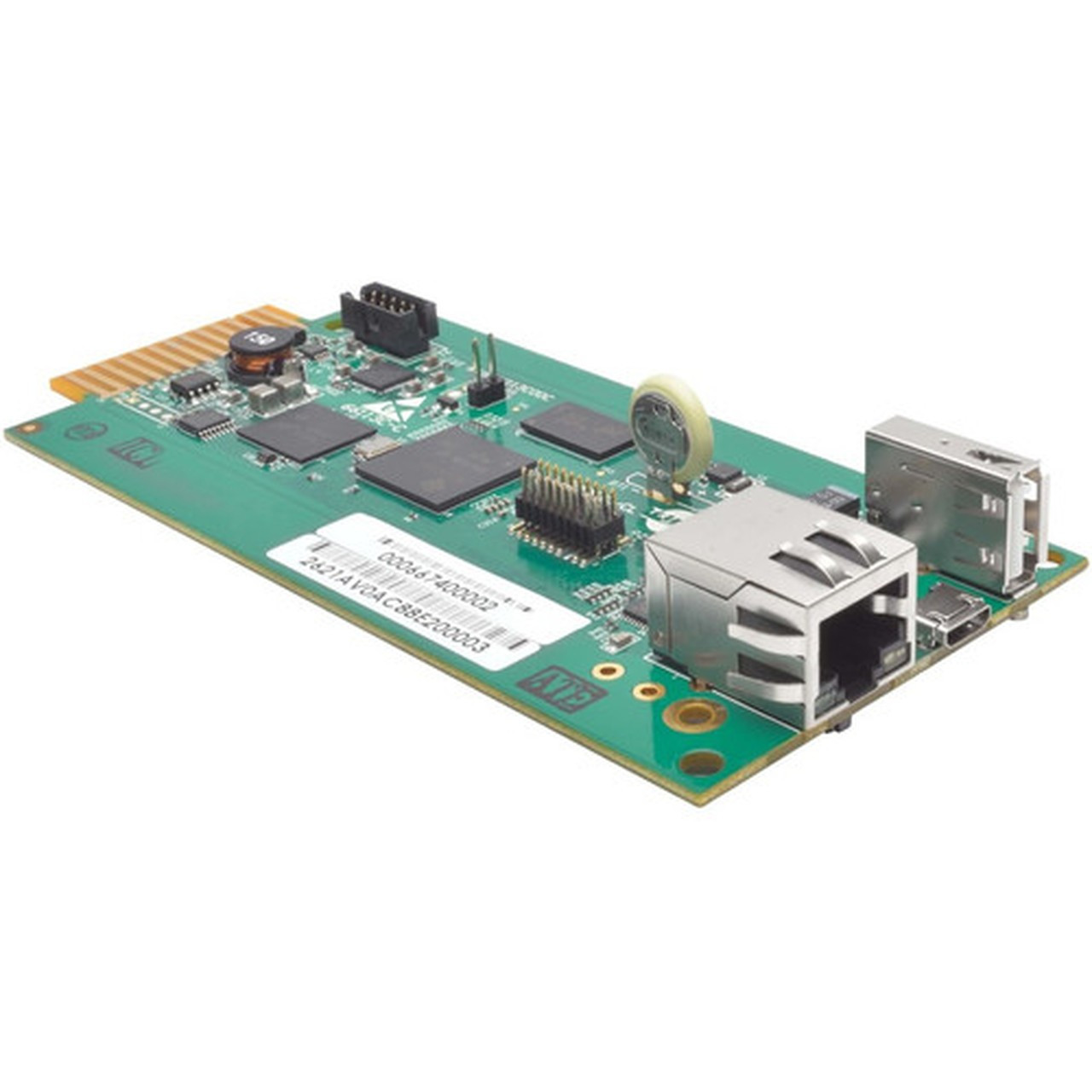

Tripp Lite Series WEBCARDLXE Network Management Card - 1 x Network (RJ-45) Port(s) - USB (WEBCARDLXE)

Marketing Information:

The WEBCARDLXE is designed to fit specific Eaton Tripp Lite Series SmartPro and SmartOnline UPS systems only. Please verify its compatibility with your model before ordering. It is also backward-compatible with PDUs and UPS systems that currently support the WEBCARDLX management card.

Features | Allows Any Compatible UPS System to Function as a Managed Network Device

WEBCARDLXE turns a compatible UPS system into a managed device on your network. By inserting the network management card into an accessory slot and using an SNMP network management platform, web browser, SSH or Telnet, you can access, monitor, control and reboot the managed device from almost anywhere at any time. WEBCARDLXE's HTML5-based interface means Java isn't needed to interact with the mobile-friendly PowerAlert® Device Manager.

Remotely Monitor and Reboot Network Equipment from Anywhere 24/7

You can remotely monitor and log site electrical data, UPS self-tests, alerts and power events like blackouts, brownouts and overvoltage conditions. You can also reboot locked network equipment without an on-site visit or disruption of power to other loads (when used with controllable outlets or remotely switchable outlets on select devices).

Control Access and Stay Informed with Event Notifications

You can assign users different levels of access from full administrator to view-only operator. Multiple user support allows viewing by more than one user simultaneously. In addition, you can create an encrypted connection using your web browser's SSL setting. Based on your preferences, the WEBCARDLXE can notify you of events and power conditions with email messages or SNMP traps. It can also automatically shut down remote operating systems over your network. Real-time clock support maintains current day and date, even after a UPS shutdown.

Check Environmental Data with an Optional EnviroSense2

When connected to EnviroSense2 modules (sold separately), the WEBCARDLXE can control digital outputs and monitor temperature, humidity and contact closure state (features vary by module). Up to three EnviroSense2 modules may be daisy-chained together and mounted magnetically to your rack.

Save Time with Mass Configurations

PowerAlert Element Manager (PAEM) software consolidates different management utilities and simplifies the software-based maintenance of WEBCARDLXE. Its discovery engine identifies supported network solutions to concurrently apply a source configuration to multiple target devices, as well as update firmware on multiple devices.

More from the Manufacturer

Management: UPS Network Management

Protocols: TCP/IP

USB: Yes

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 1

Ethernet Technology: Fast Ethernet

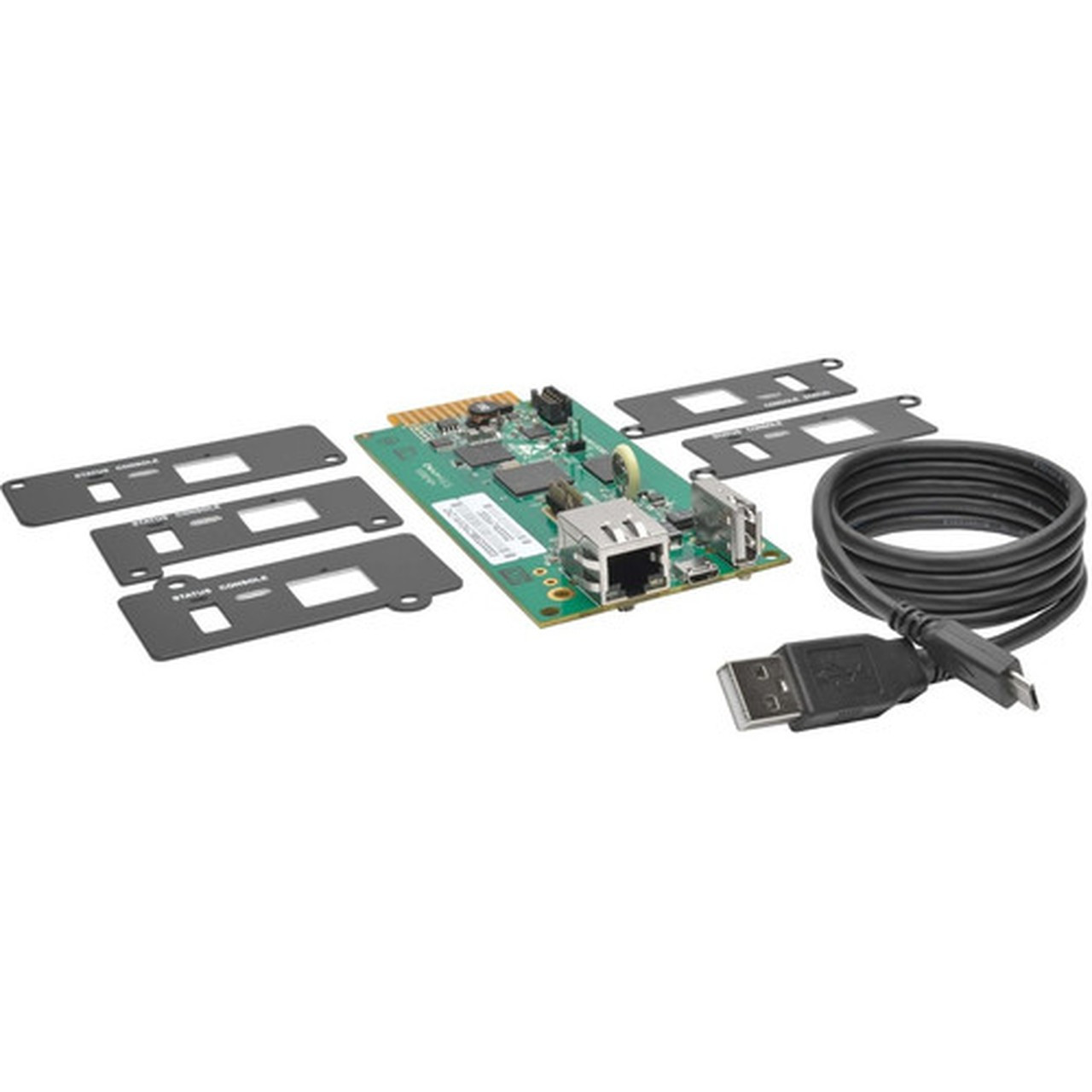

Package Contents:

• Series WEBCARDLXE Network Management Card
• Configuration Cable (73-1689)
• Faceplates
• Owner's Manual

Compatibility:

Eaton Tripp Lite Series UPS Systems:

• SmartPro
• SmartOnline

Country of Origin: Taiwan

TAA Compliant: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS) 3,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Limited Warranty: 2 Year
