Plug/Connector Type: NEMA 5-20PReceptacles: - 4 x NEMA 5-15R
- 4 x NEMA 5-15/20R
Switching Time: 5 msLoad Capacity (VA): 2.20 kVALoad Capacity (Watt): 1.92 kWInput Voltage: 120 V ACOutput Voltage: 120 V ACBackup/Run Time (Full Load): 4.50 MinuteMaximum Battery Recharge Time: 4.50 HourHeight: 3.43" (87.12 mm)Width: 17.32" (439.93 mm)Depth: 19.46" (494.28 mm)Rack Height: 2UForm Factor: Tower/Rack MountableWeight (Approximate): 26.13 kgPackage Contents: - SMART2200RMXLN UPS system with Pre-installed SNMPWEBCARD
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Installation Kit
- Owner's Manual
Energy Star: YesLimited Warranty: 2 Year
[custom-specifications]
SpecificationsManufacturer: Tripp Lite
Manufacturer Part Number: SMART2200RMXLN
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Series: SmartPro
Product Model: SMART2200RMXLN
Product Name: SMART2200RMXLN UPS System with Pre-installed SNMPWEBCARD

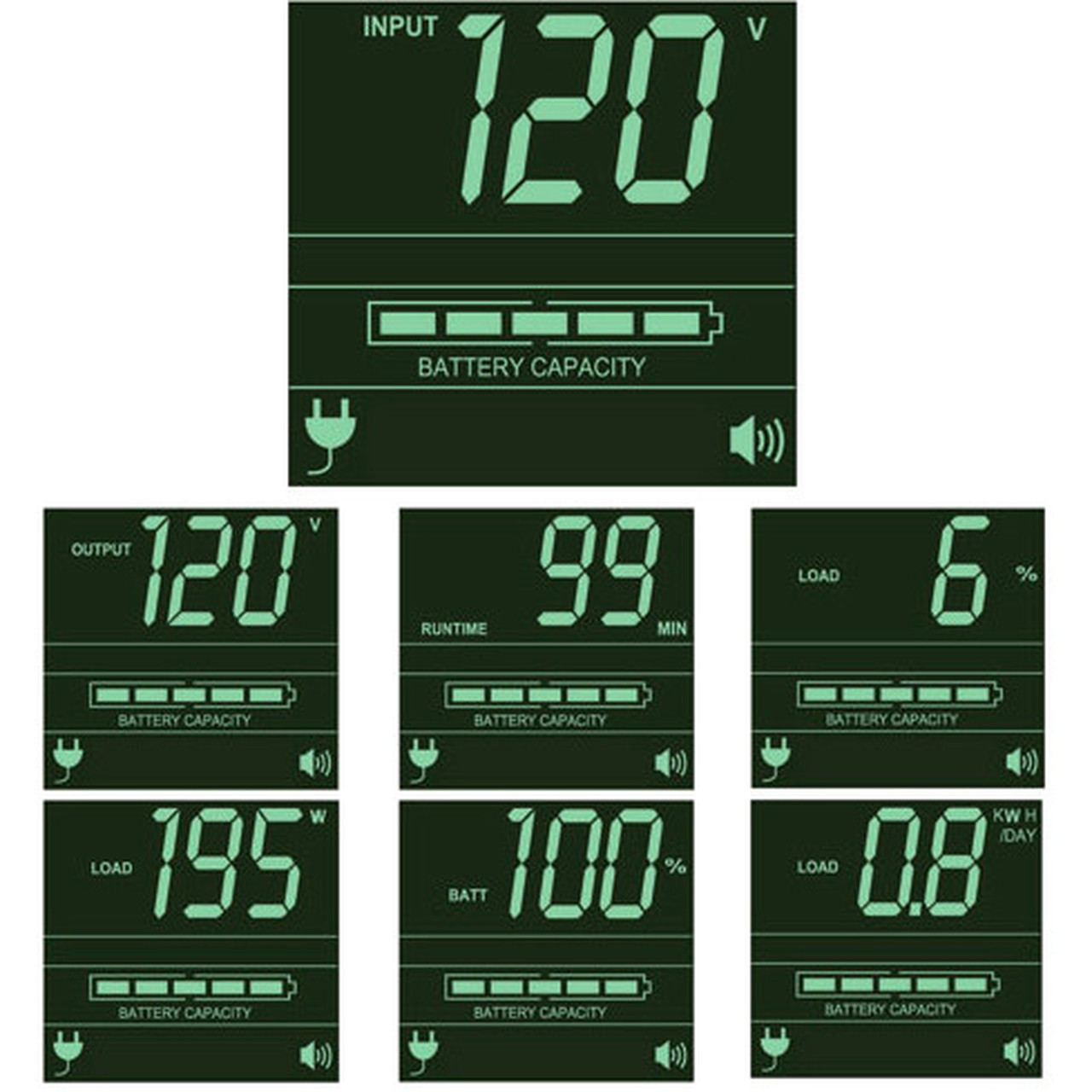

Marketing Information: Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rack-mount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
Product Type: Line-interactive UPS
Technical InformationPlug/Connector Type: NEMA 5-20P
Receptacles:
- 4 x NEMA 5-15R
- 4 x NEMA 5-15/20R
Switching Time: 5 ms
Power DescriptionLoad Capacity (VA): 2.20 kVA
Load Capacity (Watt): 1.92 kW
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Battery InformationBackup/Run Time (Full Load): 4.50 Minute
Maximum Battery Recharge Time: 4.50 Hour
Physical CharacteristicsHeight: 3.43" (87.12 mm)
Width: 17.32" (439.93 mm)
Depth: 19.46" (494.28 mm)
Rack Height: 2U
Form Factor: Tower/Rack Mountable
Weight (Approximate): 26.13 kg
MiscellaneousPackage Contents:
- SMART2200RMXLN UPS system with Pre-installed SNMPWEBCARD
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Installation Kit
- Owner's Manual
Energy Star: Yes
WarrantyLimited Warranty: 2 Year
