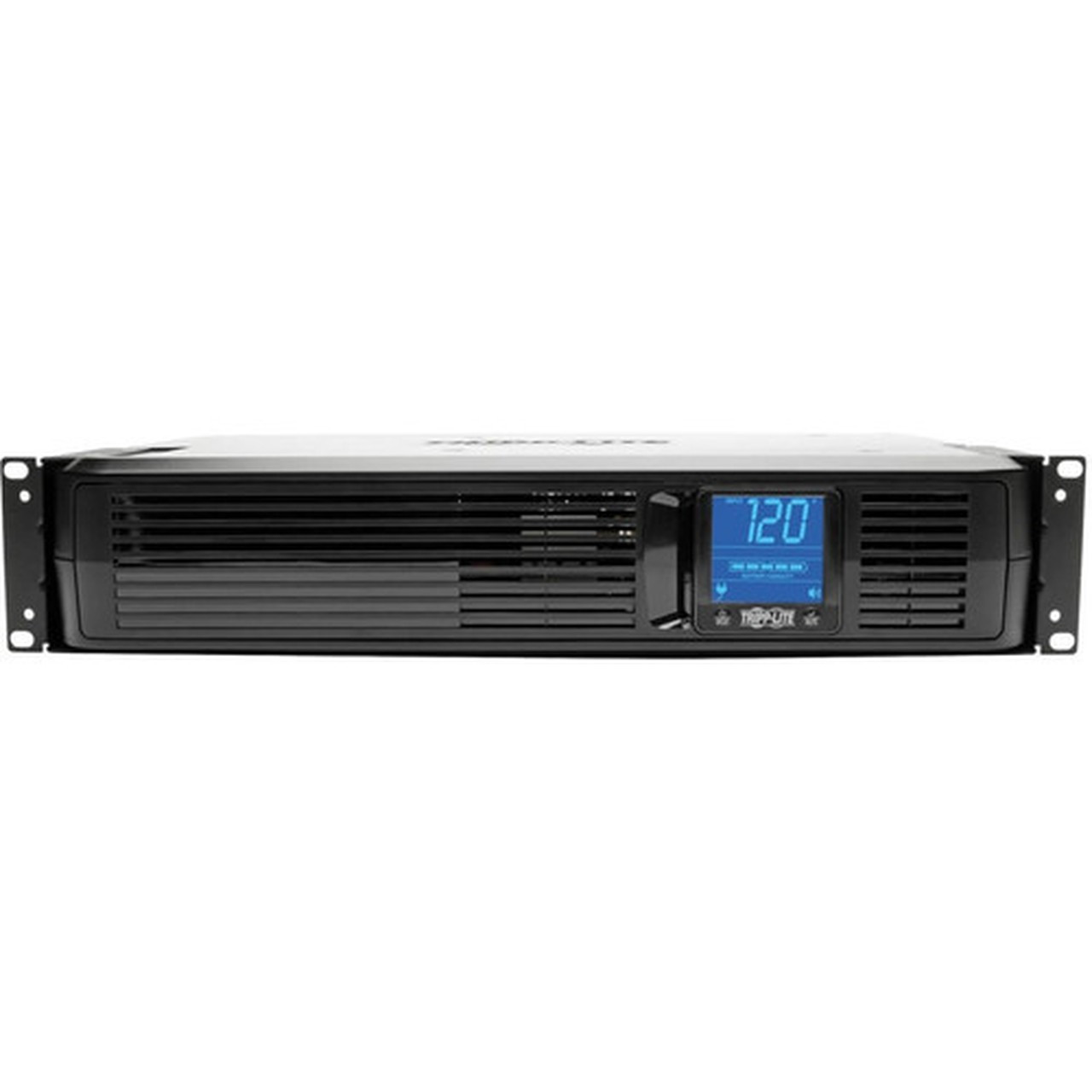

Tripp Lite SmartPro 1200 VA Rack-mountable Tower Digital UPS - 1200VA/700W - 4 Minute Full Load - 8 x NEMA 5-15R (SMART1200LCD)

Marketing Information:

The SMART1200LCD SmartPro LCD 120V, 1200VA/700W Line-Interactive Uninterruptible Power Supply provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio/visual components, this line-interactive UPS switches to battery backup mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

Eight NEMA 5-15R outlets protect against surges, as well as provide up to 14.3 minutes of UPS battery support at half load (350W) and 4.0 minutes of support at full load (700W). Automatic voltage regulation (AVR) corrects severe undervoltages as low as 75V and overvoltages as high as 147V without using any battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 870-joule surge suppression rating protects your equipment from harmful power surges.

NEMA 5-15P plug with 6-ft. (1.83 m) cord connects to any NEMA 5-15R socket. Large rotatable LCD screen shows real-time input voltage, overload, AVR and battery statuses at a glance. Alarm sounds to indicate power loss or low battery. With Tripp Lite's free PowerAlert software (available via free web download), the SMART1200LCD enables safe unattended system shutdown and file saves in case of a prolonged power failure.

Reliable Battery Backup

• Provides 1200VA/700W high-performance power protection for desktop computers, audio/video components, media centers and other electronics
• Supports 50% load (350W) up to 12 minutes and full load (700W) up to 4 minutes
• Audible alarm indicates loss of utility power or low battery
• Battery access door enables hot-swappable, user-replaceable internal batteries

Optimized Outlets

• 8 NEMA 5-15R outlets provide battery backup and protect against surges or spikes that can harm equipment or data

Automatic Voltage Regulation (AVR)

• Corrects undervoltages as low as 75V and overvoltages as high as 147V without drawing battery backup power

Rotatable LCD Status Screen

• Large LCD screen shows real-time input voltage, overload, AVR and battery statuses

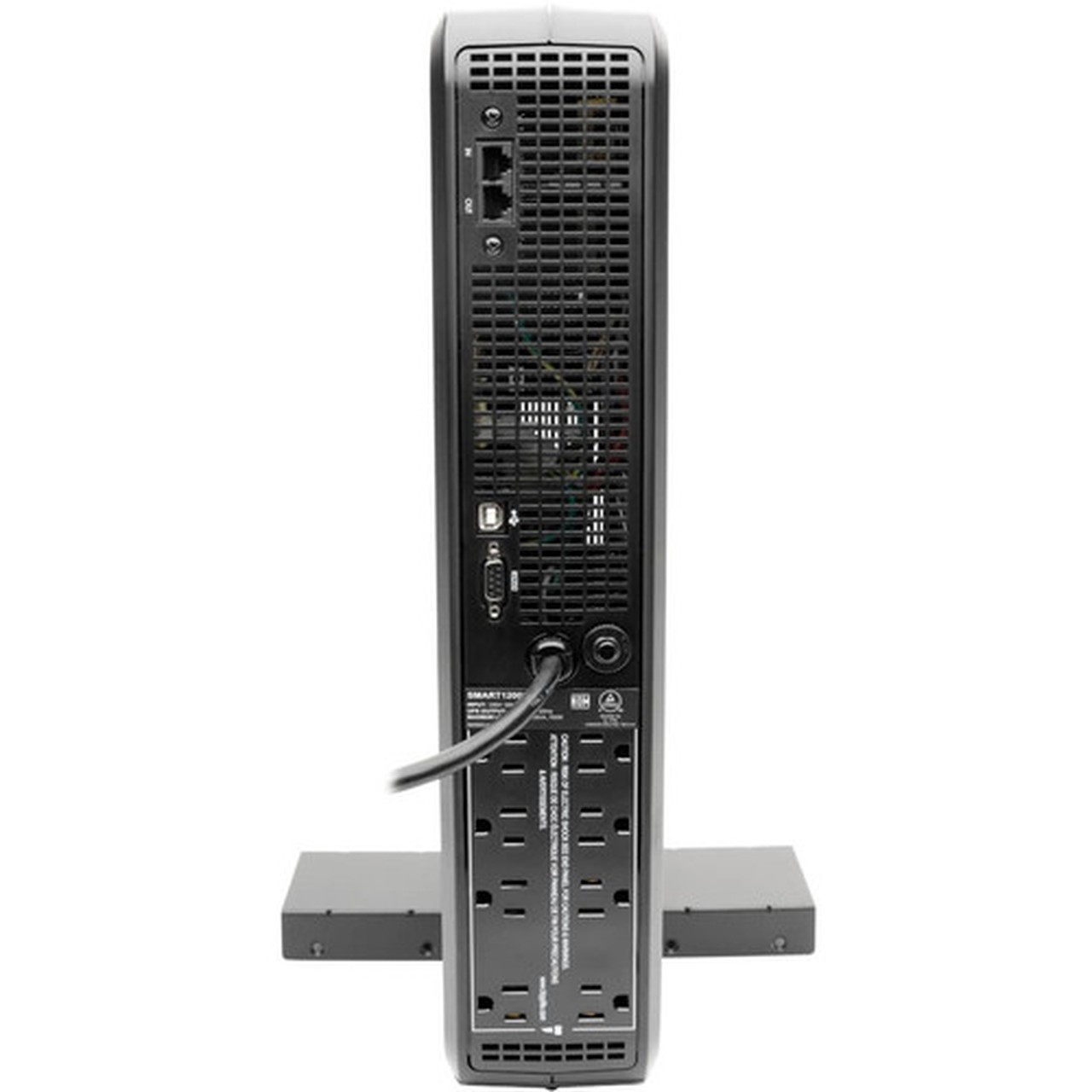

• Rotates for easy viewing in both horizontal and vertical installations
• Dimmer option controls brightness level

AC Line, Tel/DSL and Ethernet Surge Suppression

• Surge suppression rating of 870 joules protects connected equipment and data from harmful power surges
• Built-in RJ-45 jacks protect single-line tel/DSL or network Ethernet connection

More from the Manufacturer

Plug/Connector Type: NEMA 5-15P

Receptacle Type: NEMA 5-15R

Receptacle Detail: 8 x NEMA 5-15R

Dataline Protection: RJ-45

Cord Length: 6 ft

Transfer Time: 4 ms

Load Capacity (VA): 1.20 kVA

Load Capacity (Watt): 700 W

Input Voltage: 110 V AC

Output Voltage: 120 V AC

Waveform Type: Pulse-width Modulated Sine Wave

Surge Energy Rating: 870 J

Circuit Breaker: Yes

Status Indicators:

Front panel LCD screen with blue backlight offers:

• Continuous input line voltage data
• Line power
• Battery power
• Battery charge level
• Voltage regulation operation

Serial Port: Yes

USB: Yes

Backup/Run Time (Full Load): 4 Minute

Backup/Run Time (Half Load): 14.30 Minute

Battery Life: 6 Year

Typical Battery Recharge Time: 8 Hour

Maximum Operating Temperature: 122°F (50°C)

Thermal Dissipation: 243.70 BTU/h

Product Color: Black

Height: 17.25" (438.15 mm)

Width: 3.50" (88.90 mm)

Depth: 10.50" (266.70 mm)

Rack Height: 2U

Form Factor: Tower

Weight (Approximate): 11.40 kg

Package Contents:

• SmartPro 1200 VA Rack-mountable Tower Digital UPS
• SMART1200LCD Digital UPS
• USB, DB9 and phone cabling
• Mounting hardware
• Manual with warranty information

Country of Origin: China

Limited Warranty: 3 Year
