Tripp Lite SmartPro SM2200RMXL2UP 2200 VA Tower/Rack Mountable UPS - 2U Rack/Tower - 4.50 Hour Recharge - 4.50 Minute Stand-by - 120 V (SM2200RMXL2UP)
Write a Review
Da-Lite
Tripp Lite SmartPro SM2200RMXL2UP 2200 VA Tower/Rack Mountable UPS - 2U Rack/Tower - 4.50 Hour Recharge - 4.50 Minute Stand-by - 120 V (SM2200RMXL2UP)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- SmartPro SM2200RMXL2UP 2200 VA Tower/Rack Mountable UPS
- 4 Post 19 inch Rackmount Mounting Rail Kit
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable

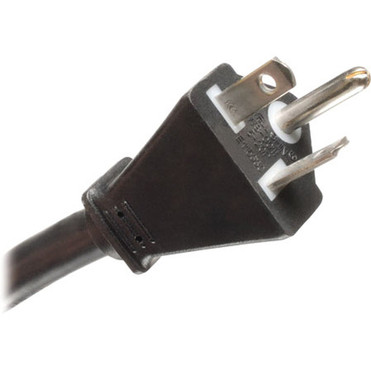

Plug/Connector Type: NEMA 5-20P
Receptacle Type: NEMA 5-15/20R,NEMA 5-15R
Receptacle Detail: 4 x NEMA 5-15/20R,4 x NEMA 5-15R
Transfer Time: 5 ms
Load Capacity (VA): 2.20 kVA
Load Capacity (Watt): 1.92 kW
Input Voltage: 120 V AC
Input Current: 16 A
Output Voltage: 120 V AC
Network Management: SNMP Manageable
Serial Port: Yes
USB: Yes
Backup/Run Time (Full Load): 4.50 Minute
Backup/Run Time (Half Load): 13 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour
Height: 3.50" (88.90 mm)
Width: 17.50" (444.50 mm)
Depth: 19" (482.60 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 64 lb (29029.91 g)
Package Contents:
Software Included: PowerAlert Software
Country of Origin: Taiwan
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- 2.2kVA / 2200VA / 1920W line interactive 2U rack/tower UPS, Sine Wave
- 120V output, Corrects brownouts and overvoltages from 83V to 145V
- 0.9 Power Factor, Interactive LCD interface
- Extended runtime options up to 1920W
- 4 post compatible mounting accessories
- 96% line-mode efficiency, 2 switched load banks
- USB, RS232, EPO and slot for SNMPWEBCARD option

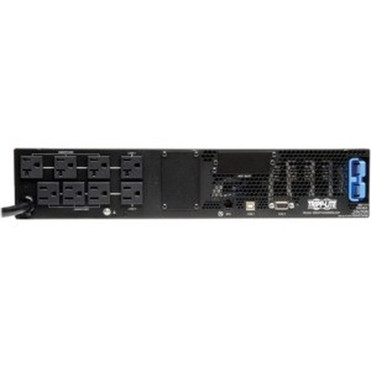

- 120V NEMA 5-20P input, 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SM2200RMXL2UP |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SM2200RMXL2UP |
| Product Name | SmartPro SM2200RMXL2UP 2200 VA Tower/Rack Mountable UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-15/20R,NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15/20R,4 x NEMA 5-15R |
| Transfer Time | 5 ms |
| Power Description | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.92 kW |
| Input Voltage | 120 V AC |
| Input Current | 16 A |
| Output Voltage | 120 V AC |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4.50 Hour |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 19" (482.60 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 64 lb (29029.91 g) |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerAlert Software |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite UPSHDEARKIT Front Mount UPS Brackets - Steel - 29.48 kg |
| SKU | UPSHDEARKIT |
| Sale Price | $76.21 |
| Product | Tripp Lite PDUMH20AT PDU Metered ATS 120V 20A 16 Outlet - 16 x NEMA 5-15/20R - 2.4kVA - 1U Rack-mountable |
| SKU | PDUMH20AT |
| Sale Price | $801.76 |
| Product | Tripp Lite PDUMV20 PDU Metered 120V 20A 28 Outlet - 28 x NEMA 5-15/20R - 2.4kW - Zero U Vertical Rackmount |
| SKU | PDUMV20 |
| Sale Price | $310.67 |
| Product | Tripp Lite Two Post Rackmount Kit - Steel |
| SKU | 2POSTRMKITWM |
| Sale Price | $155.67 |
| Product | Tripp Lite PDUMV40 PDU Metered DUAL 120V 40A 32 Outlet - 32 x NEMA 5-15/20R - 4.8kW - Zero U Vertical Rackmount |
| SKU | PDUMV40 |
| Sale Price | $522.47 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
3 Year
